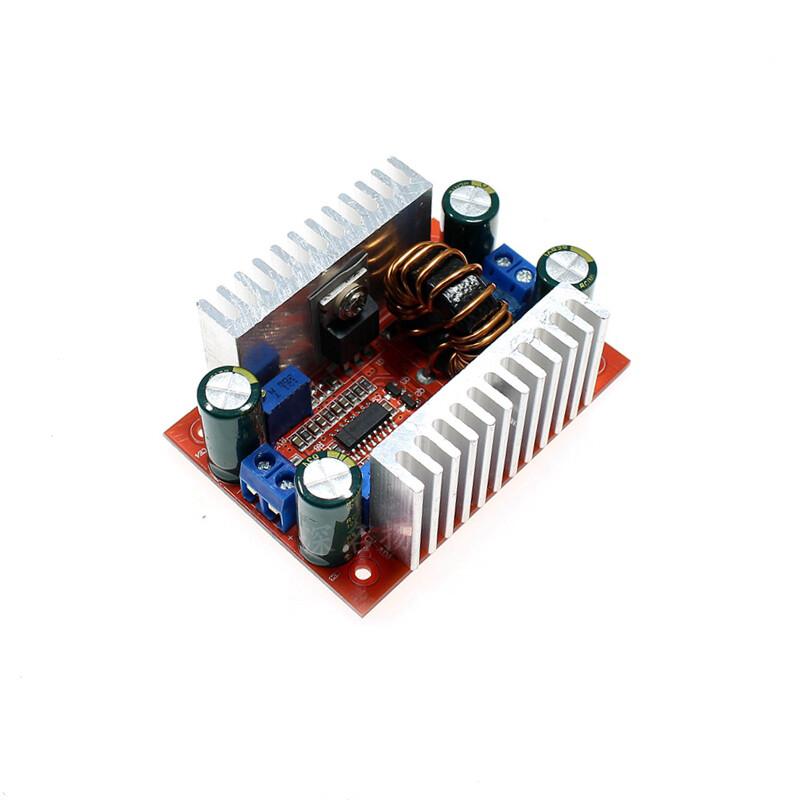

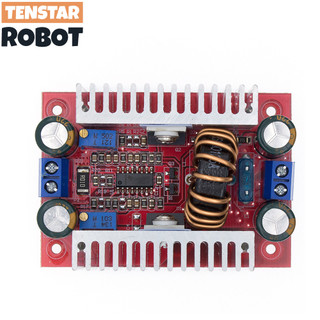

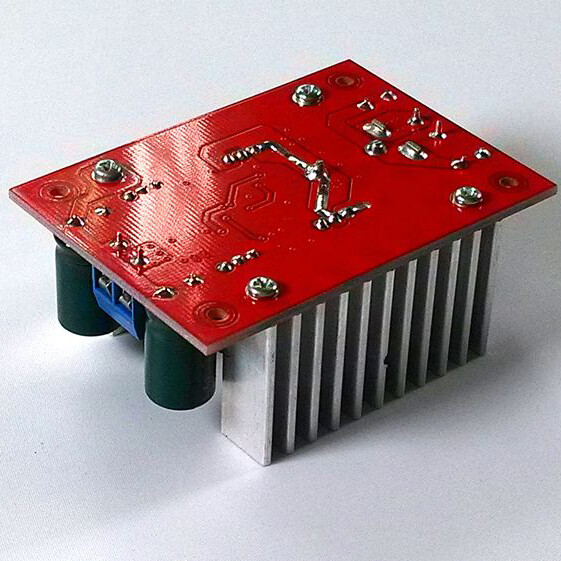

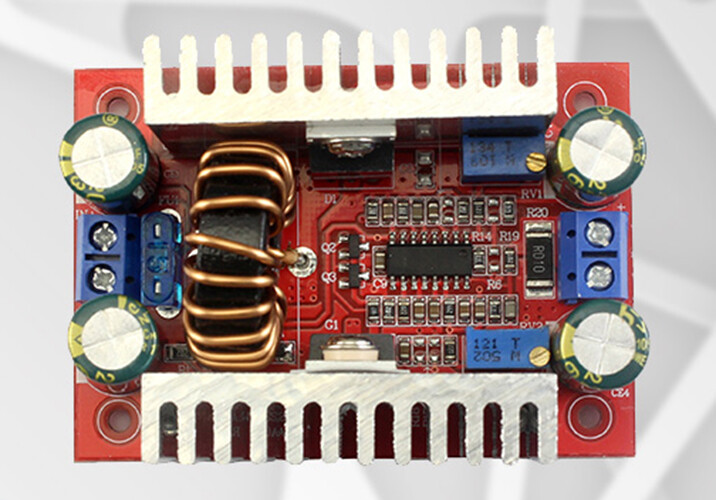

DC 400W Constant Voltage Constant Current Boost Power Supply Module DC 8.5V-50V To 10V-60 Voltage Step Up Module

Specifications:

1. Module name :400W boost constant current module
2. Module properties: non-isolated step-up module (BOOST)
3. Input voltage: DC8.5V-50V
4. Input current: 15A (MAX) exceeds 8A please enhance heat dissipation
5. Quiescent current: 10mA (12V liter 20V, the output voltage, the higher the current will increase too quiet)
6. Output voltage: 10-60V continuously adjustable
7. Temperature: -40 to + 85 degrees (ambient temperature is too high, please enhance heat dissipation)
8. Operating frequency: 150KHz
9. Conversion efficiency: up to 96%
10. Overcurrent protection: yes
11. Input reverse polarity protection: no
12. Installation: 4 2.55mm screw holes
13. Connection method: Connection Output

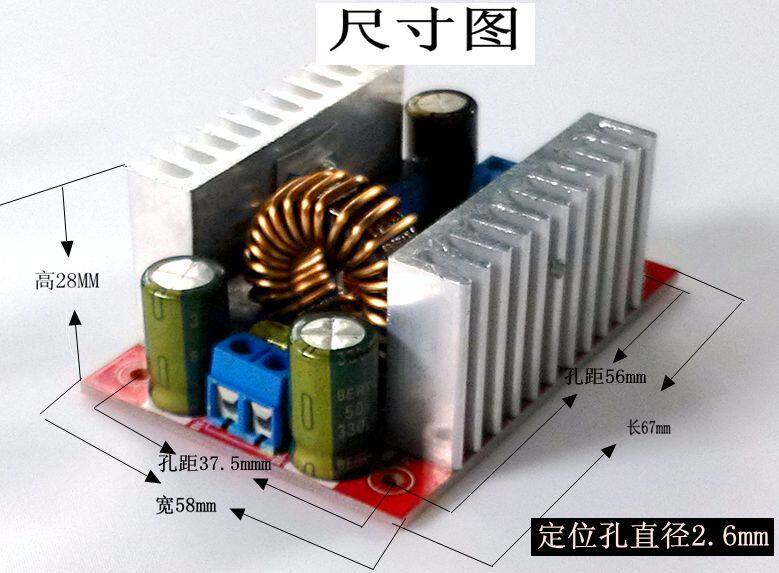

14. Module size: 67mm X48mm X 28mm (LxWxH)

• 1. Output voltage / current adjustment method:

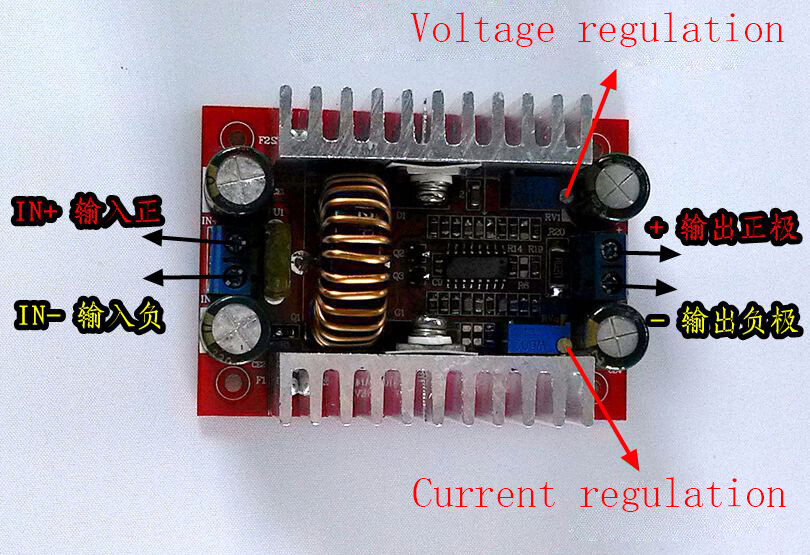

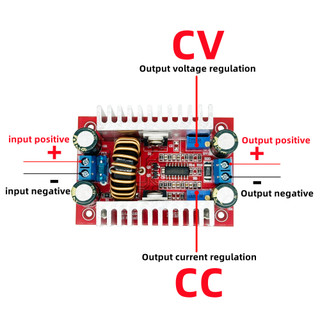

  1. Adjust the "CV-ADJ" potentiometer, set the output voltage to the voltage value you need according to your battery or LED. Such as 10 string LED voltage is adjusted to 37V. (Increase the counter-clock voltage and decrease the clock-clock voltage)

  2. Adjust the "CC-ADJ" potentiometer counterclockwise for about 30 turns, set the output current to the minimum, connect the LED, and adjust the RV2 potentiometer to the current you need. For battery charging, after the battery is discharged, connect it to the output and adjust RV2 to the current you need. (When charging, be sure to use the discharged battery to adjust, because the battery has more power. The more, the smaller the charging current.) (The counterclockwise current is reduced, and the clockwise current is increased)

  Please do not adjust the current by short-circuit, the circuit structure of the booster module cannot be adjusted by short-circuit.

• Applications:

  1. DIY a power supply, 12V can input and output can 12-50V adjustable.

  2. the power supply for your electronic device, according to your system can set the output voltage value.

  3. as the car power supply for your laptop, PDA or a variety of digital products supply.

  4. DIY a mobile notebook power supply: 12V coupled with high-capacity lithium battery pack, so you can go where light where books.

  5; solar panel regulator.

  6 to the battery, rechargeable lithium batteries.

  7. driving high-power LED lights.
