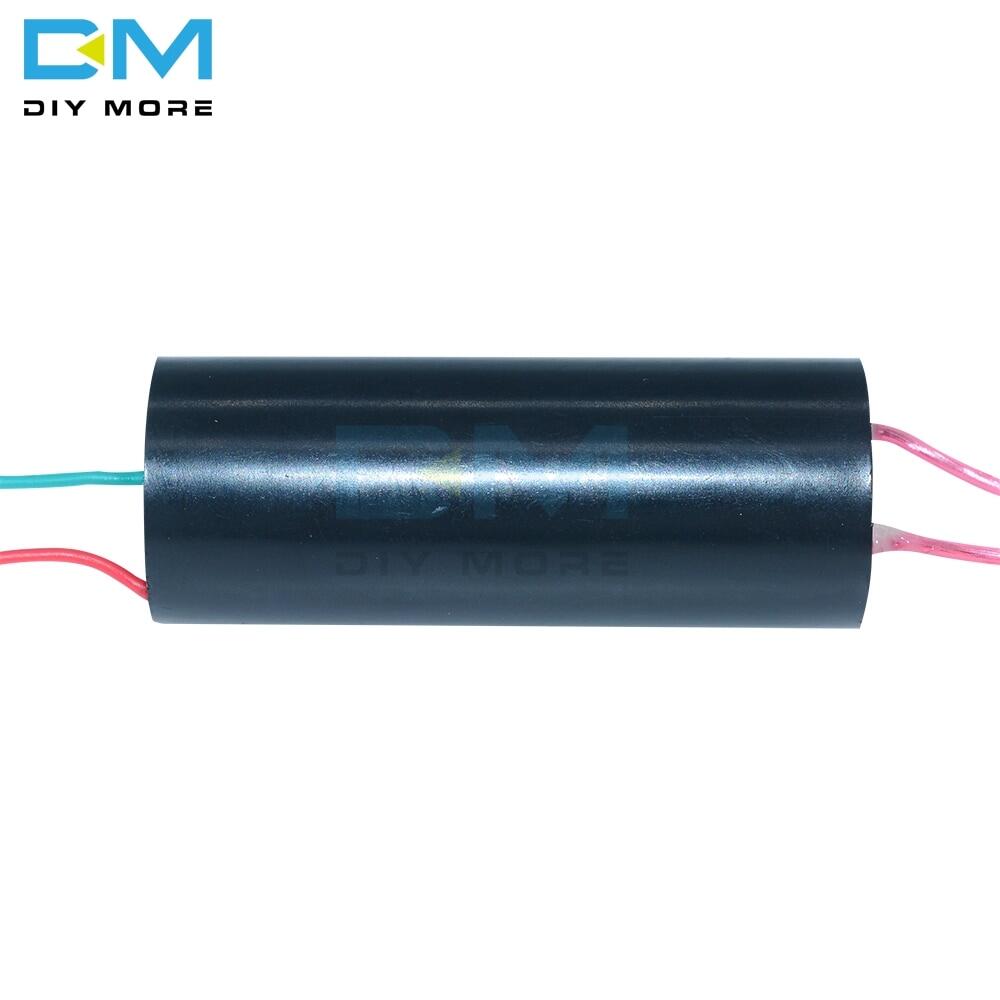

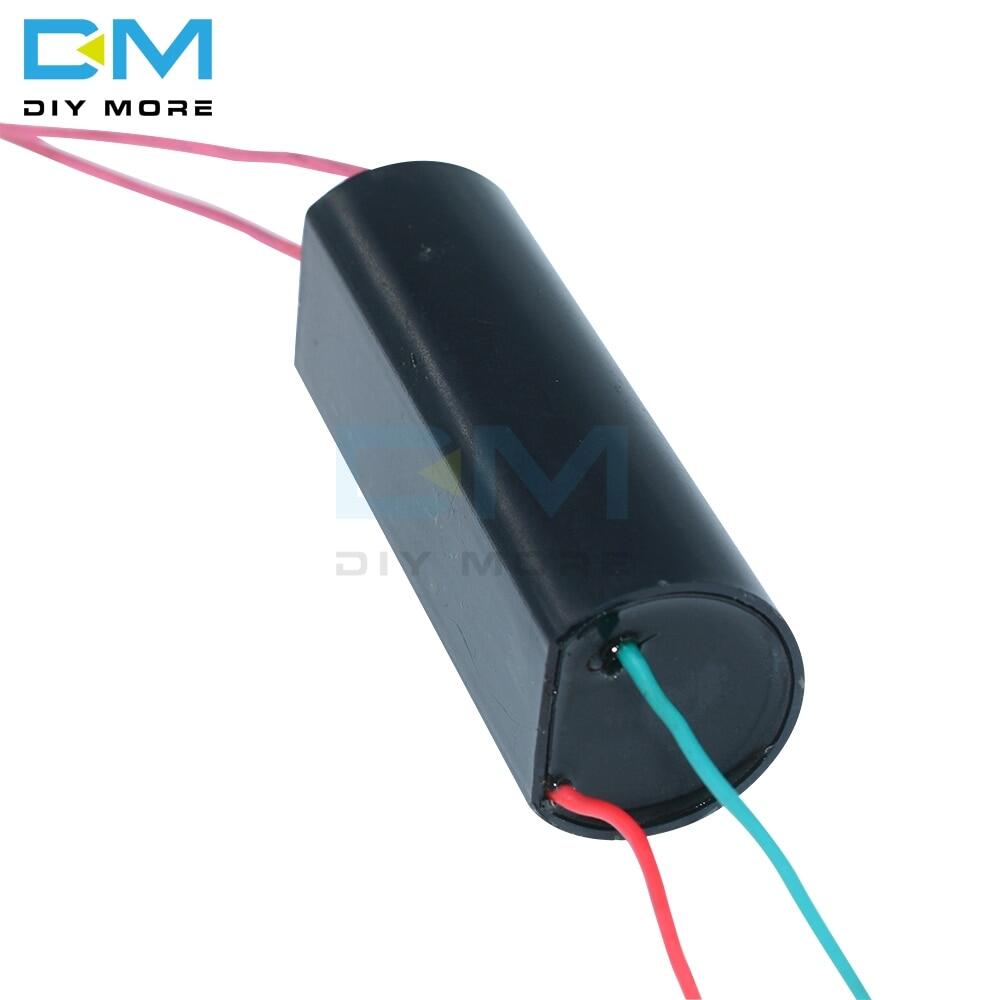

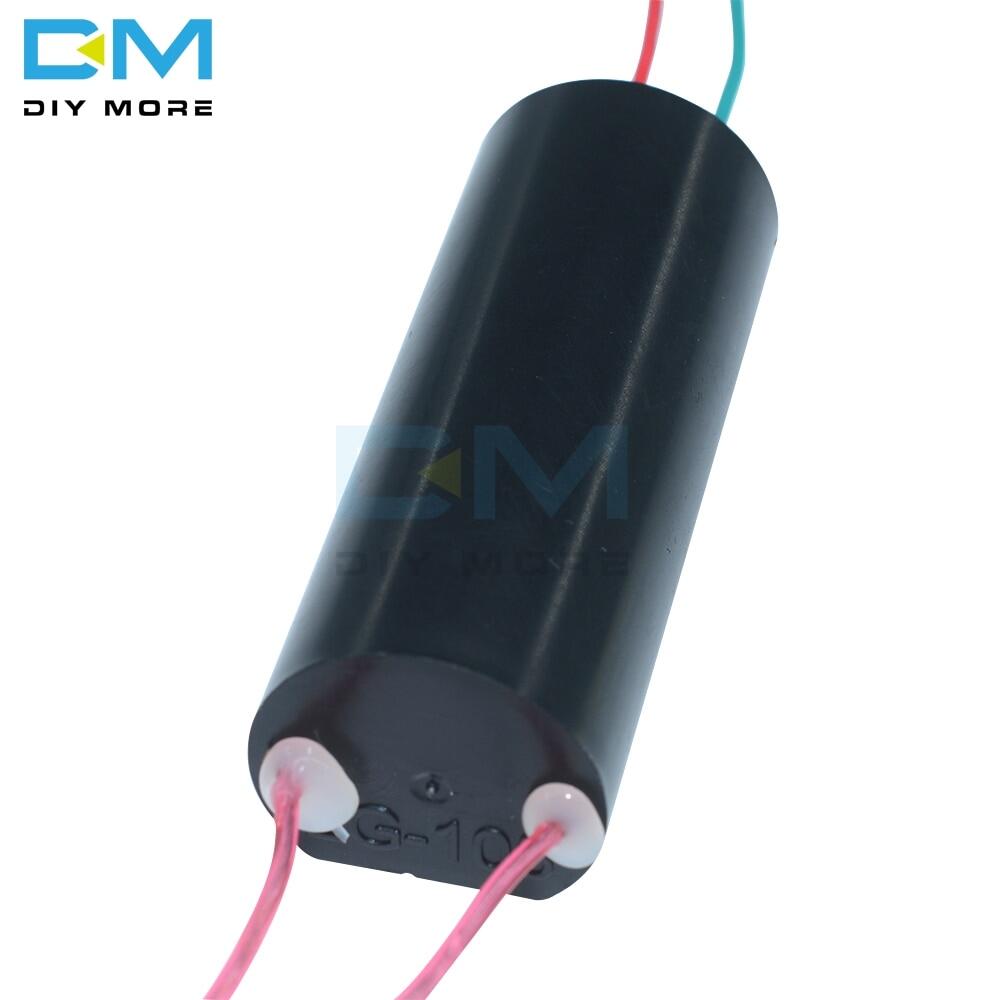

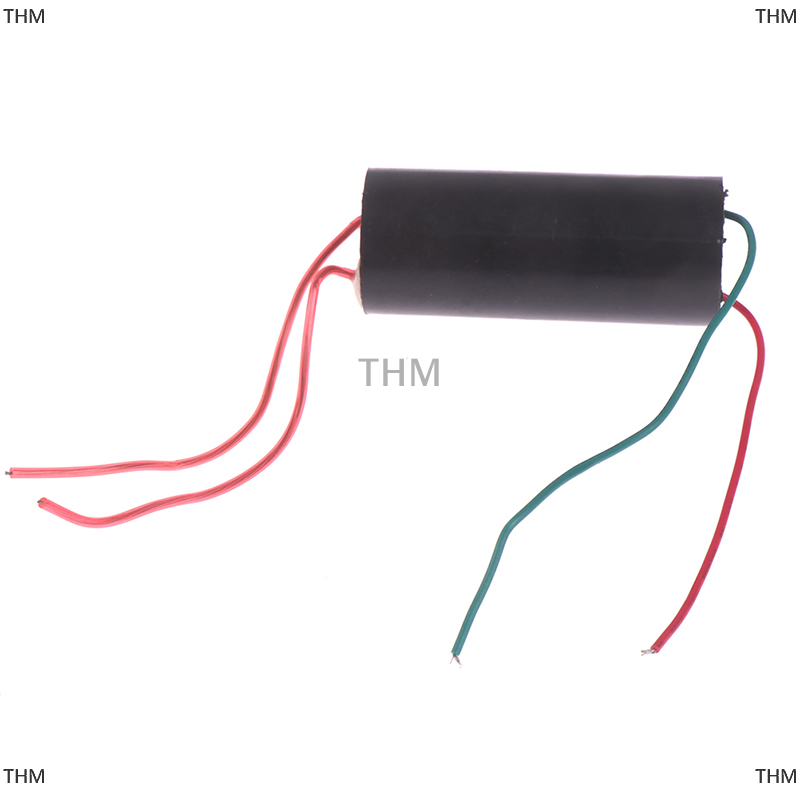

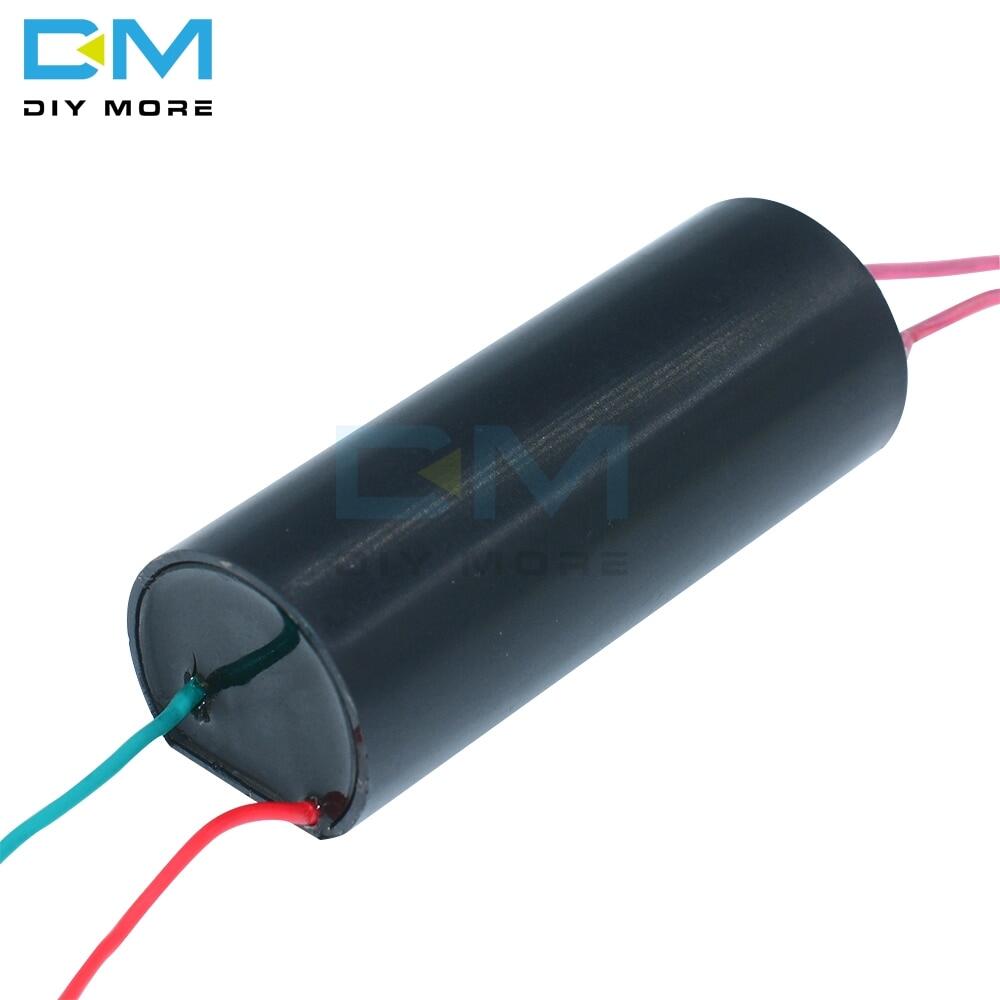

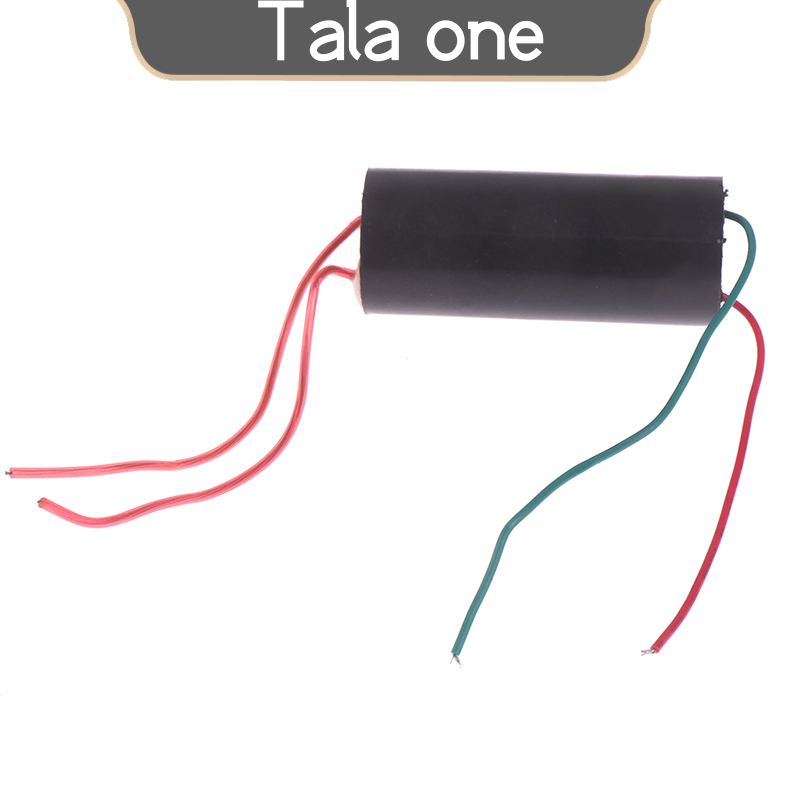

Mô Đun Tăng Áp DC 3.7V-6V Đến 400KV Biến Áp Máy Phát Điện Cao Áp Công Suất Cao Bộ Đánh Lửa Hồ Quang Nhiệt Độ Cao Tần Số Cao

Parameter:

Input: 3.7-6V 4A Input line length: about 10 cm

Output: 400KV 0.5A Line length: about 8 cm

High-voltage two-pole discharge distance: 1 cm - 2 cm

Lenth:56mm

About input power: single 3.7V lithium battery or two series, such as 18650 battery, or nickel cadmium/nickel hydrogen battery, 4V or 6V lead acid battery, etc. (6V battery can achieve the best results)

Product instructions:

The module is divided into input and output. The red and green (white) line is the input end. The red and green (white) are negative. The two high-voltage lines with the same color are the input end. The appropriate arc distance is fixed at the output end. The input terminal is connected. The battery can generate high voltage or high temperature arcs.

Precautions:

1. The high-voltage module should be protected from high-voltage and no-load power. Before power-on, the high-voltage line end must be adjusted. The high-voltage line arcing distance is proportional to the battery voltage and capacity used.

2. When testing the arc distance, it should be tested from short to long. When the power is on, it is forbidden to exceed the longest arcing distance. Because the high voltage energy cannot be released, the module is easily damaged.

3. The power of the module is large, and the internal heat is not suitable, so it is not allowed to work for a long time.

4. The method to determine whether the battery capacity can drive the maximum output power is to measure the battery voltage during arcing. If you are around 6V, you can output the maximum power.

5. The small-capacity lithium battery is connected in series at 7.2V. The voltage measured in the arc-sampling state has dropped to about 4V. The smaller the capacity, the lower the voltage pull. Therefore, it is recommended to use more than 2000MA lithium battery, and it is better to have a battery of 4000MA or more.
