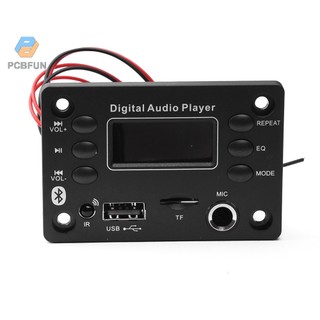

Bảng Giải Mã MP3 Bluetooth 5.0 Không Dây DC 12V Mô-đun Giải Mã Âm Thanh MP3 WMA Hỗ Trợ USB FM TF Radio Đầu Vào AUX Với Điều Khiển Từ Xa Cho Loa Xe Hơi Gia Đình

Features:
Support Bluetooth function
Jieli scheme, double decoding (solving MP3, WMA, WAV format music);
Support external audio input LINE IN (AUX);
Connect the device U disk to the TF card;
Button: three-button multi-directional control, PREV / PLAY / NEXT

Specification:
Main control IC: AC6925A
Bluetooth IC: AC6925A Bluetooth version is 5.0
Music format: MP3 / WMA / WAV / FLAC / APE lossless format
Radio FM frequency: 87.5-107.5 MHZ

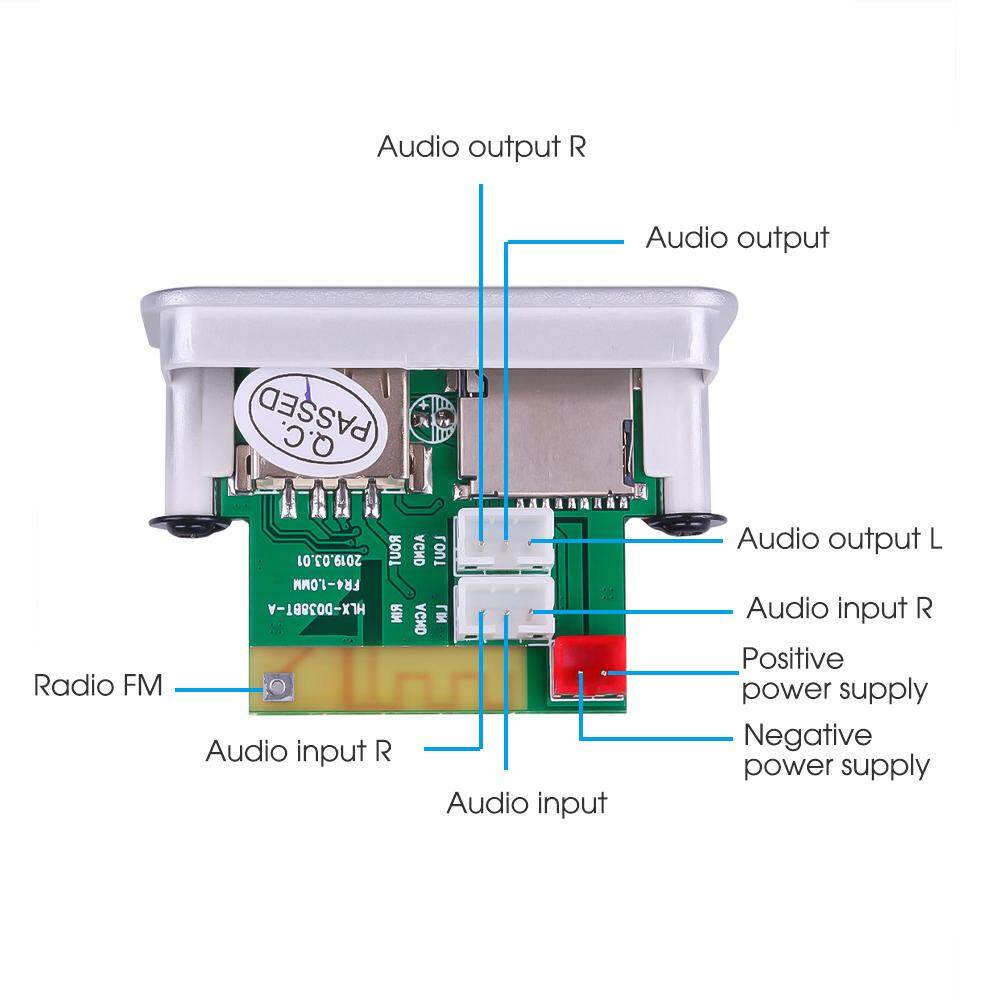

Support function introduction: support MP3/USB/TF/LINE IN/FM/BLUETOOTH/DC
Working voltage: 12V

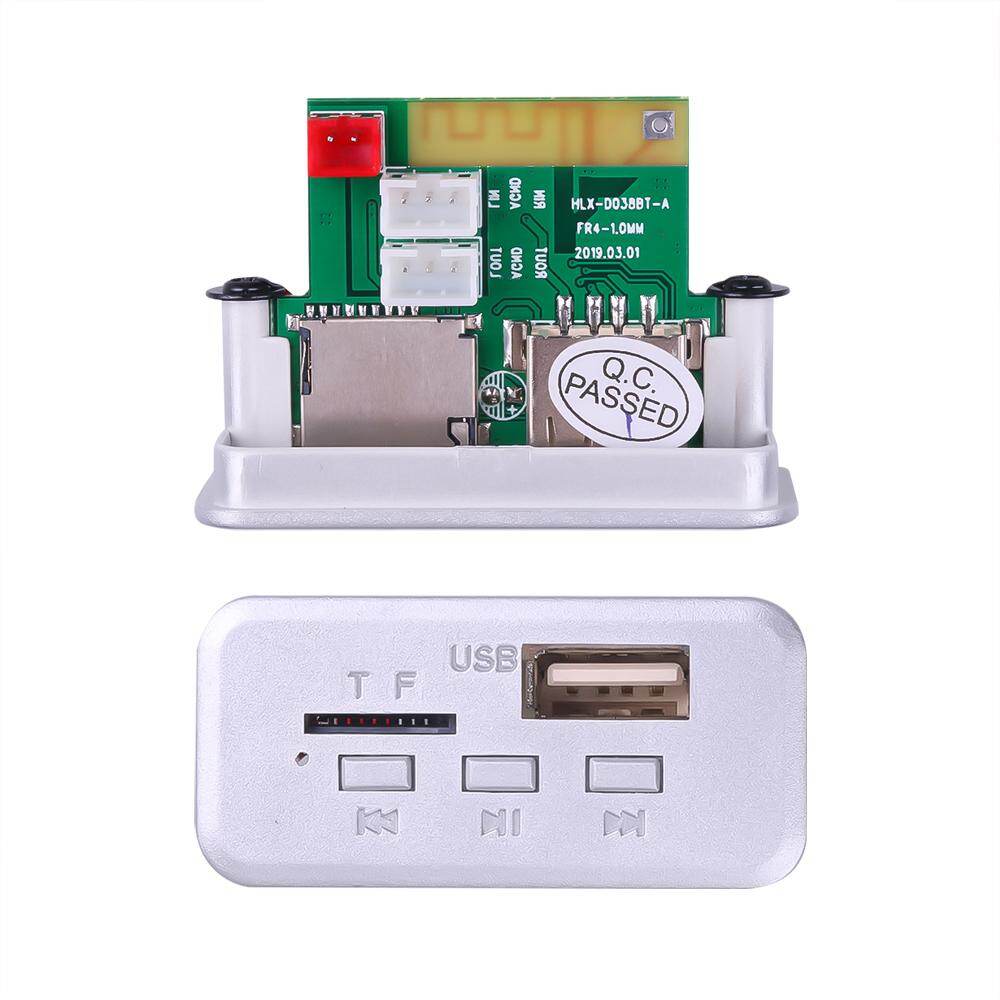

Panel size: 50 * 24 mm, the depth of the board is 35mm
Color: Silver

Operation details:
1. PREV button (previous song/volume reduction): In the MP3 state, the PREV short press is the previous song, and the long press is the volume reduction;
2, PLAY button (play / pause): PLAY short press for play / pause in MP3 state; long press is USB / TF card / AUX / Bluetooth mode test tone switch.
3, NEXT button (next song/volume increase): NEXT short press for the next song in MP3 state, long press for the volume to increase;
4. This model has the function of an automatic conversion device. When there is no device, the default is in the Bluetooth state. If there is a device, the device is interpreted first.

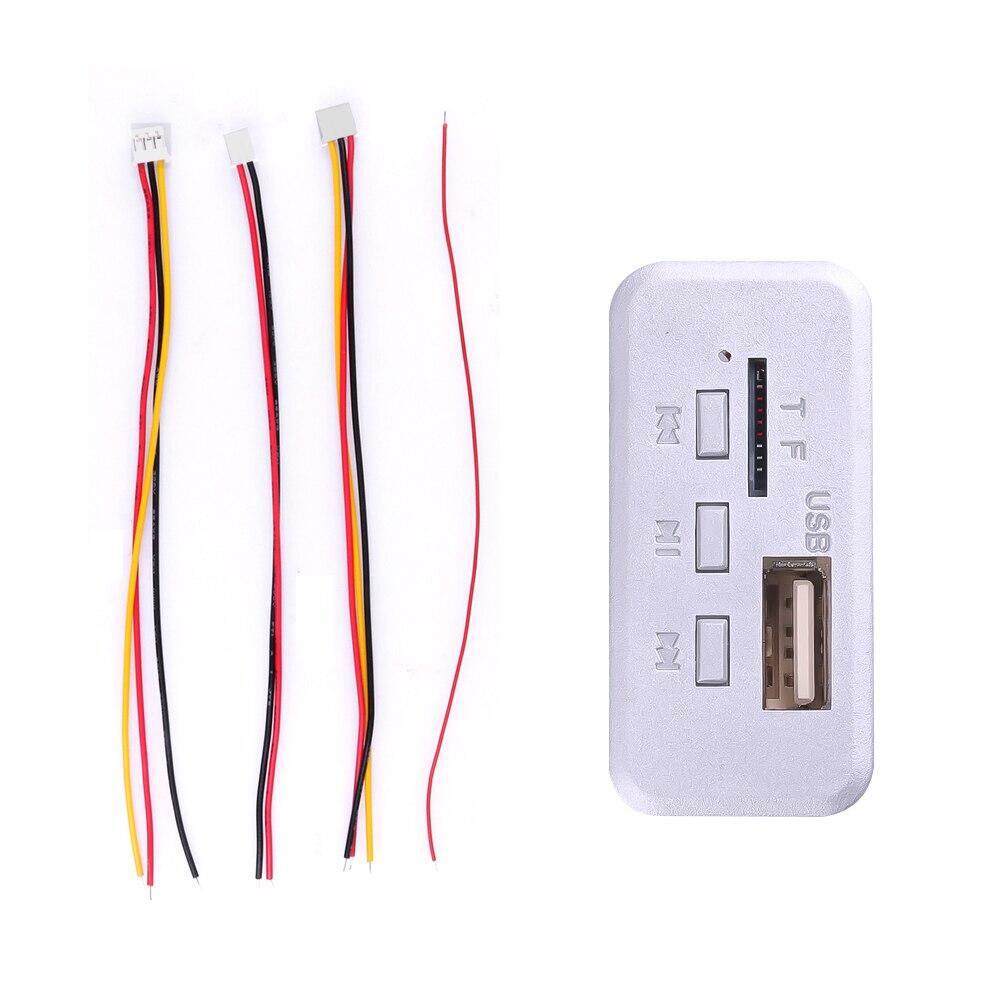

Packing List:

1 *Bluetooth 5.0 Decoder Board
4 * Cables

Note: This item comes without a retail box, but please rest assured that we will pack it well before shipping!
