KEBIDU Bảng Mạch Giải Mã Máy Nghe Nhạc MP3 Bluetooth 5.0 DC 12V Bộ Phụ Kiện Xe Hơi Rảnh Tay Màn Hình LCD Màu AUX USB TF Đài FM Cho Loa Xe Hơi Có Điều Khiển Từ Xa

Version:With Bluetooth 5.0 Function & Color LCDScreen Version SupportMP3 WAV WMA FLAC APEformat

Specification:

Installation pitch: 93 mm wide

Installation hole: 93 x 36mm x 28mm (W x H x D)

Input voltage: DC 12V

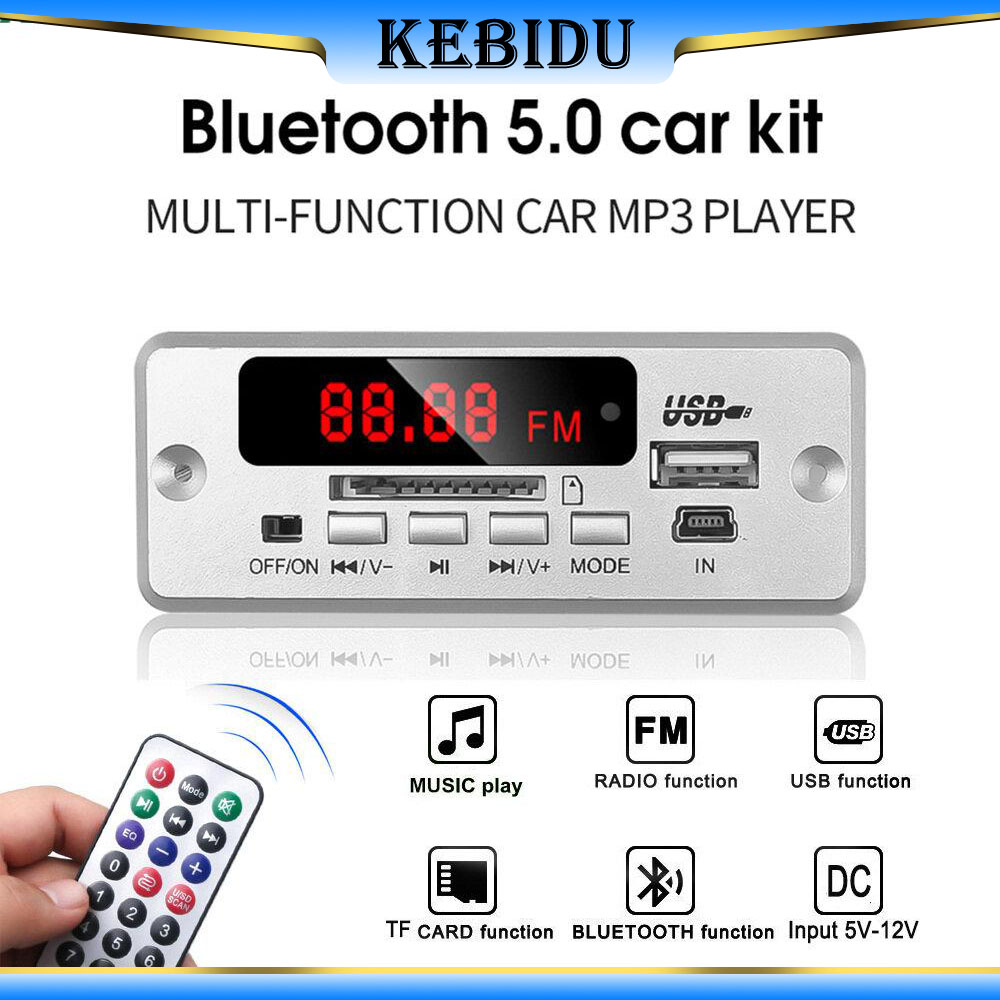

1. Infrared receiving module

2. LED: digital screen display, color screen, display red

3. USB: Connect U disk (maximum support 32GB, not included )

4. OFF/ON: power switch

5. VOL-: Short press is to select the previous song; the long press is to decrease the volume

6. SD: Connect SD memory card (maximum support 32GB, not included)

7. SCAN: Short press is the switch between pause and play; short press in the FM FM state is automatic

8. VOL+: Short press is to select the next song; the long press is to increase the volume

9. MODE: Switch between USB / TF / FM / AUX / BLUETOOTH

10.Audio input interface

Master IC: AC6926

Bluetooth IC: AC6926 Bluetooth version is version 5.0

Music format: MP3 / WMA / WAV / APE lossless format

Radio FM frequency: 87.5-107.5 MHZ

Support function introduction: support MP3 / USB / TF / LINE IN / FM / BLUETOOTH / remote remote connection / DC12V

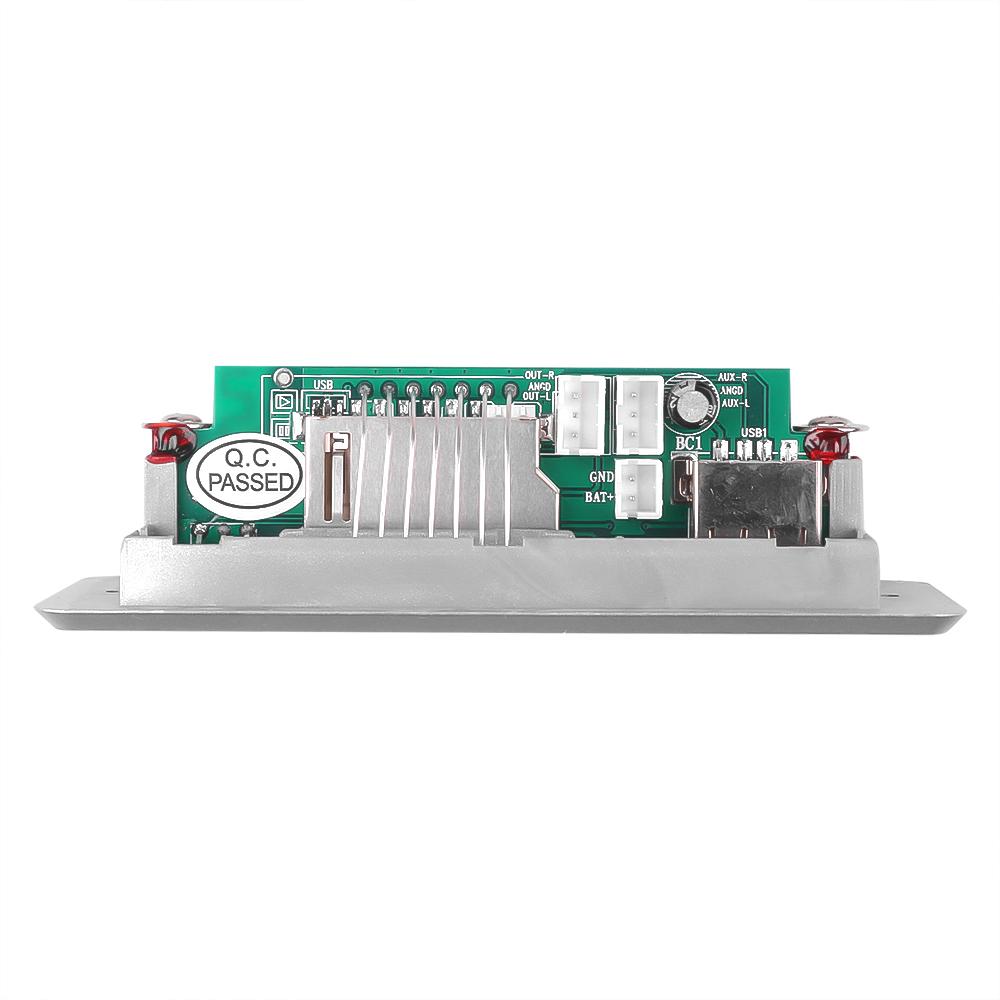

About the structure: panel size: 93 * 36 MM, the two corners of the panel and the screw hole position, then the cover surface, the depth of the board is 28 MM

Main function:

1. Double decoding supports music in MP3 WAV WMA FLAC APEformat

2. Support Bluetooth function;

3. With digital tube display;

4. Support MMC/SD/MMA and other cards, support USB interface (U disk);

5. Power failure memory function 24C02;

6. Support 5-10 meters distance infrared remote control operation;

7. Support for external audio input LINE IN (AUX);

8. Support radio FM, receiving frequency band (87.5MHZ-108.0MHZ);

9. Button: four buttons multi-directional control, MODE/previous song/play/pause/next song;

The button operation details:
1. Previous button (volume down): Short press in the MP3 state for the previous song, long press for the volume to decrease; short press in the FM state to adjust one station number; short press under the Bluetooth function Bluetooth is a song, long press to reduce the volume.
2. Play/Pause: Short press in MP3 state for play/pause; short press in FM state for play/pause, long press to automatically receive and save the station; short press for play/pause under Bluetooth function.
3. The next song button (volume increase): in the MP3 state, short press for the next song, long press for the volume to increase; short press in the FM state to adjust a station number; short press under the Bluetooth function Bluetooth next song, long press for the volume to decrease.
4. MODE button: Switch between USB/TF/FM/AUX/Bluetooth function.

The remote control instruction:

1. POWER: STANDBY button cannot switch.

2. MODE: TF card and U disk: switching sequence for USB→TF→Bluetooth→FM→AUX;

Only U disk: switching sequence for USB→Bluetooth→FM→AUX;

Only the TF card: switching sequence for TF→Bluetooth→FM→AUX;

There is no USB and TF card: switching sequence for FM→AUX→Bluetooth.

3. PREV: In USB/TF / Bluetooth MODE, short press for PREV;

In the USB / SD MODE, long press for fast rewind; In FM MODE, short press for last channel, long press for scan search last channel.

NEXT: In USB / TF/Bluetooth MODE,short press for NEXT;

In USB / TF MODE, long press for fast forward;

In FM MODE, short press for next channel, long press for scan searches the next channel.

4. VOL + : short / long press for music. VOL-: short/long press for music.

5. REP: In USB / TF MODE, it is the switch key between single repeat and whole cycle when play music, boot for all cycle.

6. STOP: In the USB / TF MODE, short press to STOP the music play.

7. MUTE: MUTE, press for MUTE, press again for relieve(also can relieve by VOL- /VOL+).

8. EQ: Acoustic field MODE. The NORMAL→BAS→POP→ROC→JAZZ→CLA→CUT→NORMAL

9. PLAY/PAUSE: In USB/SD/Bluetooth MODE for PLAY / PAUSE; In the FM MODE, long press for searching all channels and save.

Package Content:
1 x MP3 Decoder Board with the Surface panel
1 x Remote Controller (Without battery)
2 x Power Cables

This item comes without a retail box, but please rest assured that we will pack it well before shipping!
