DC 12V 12 kênh Relay RF chuyển đổi điều khiển từ xa Transmitter + Receiver 315Mhz Hot

Description:

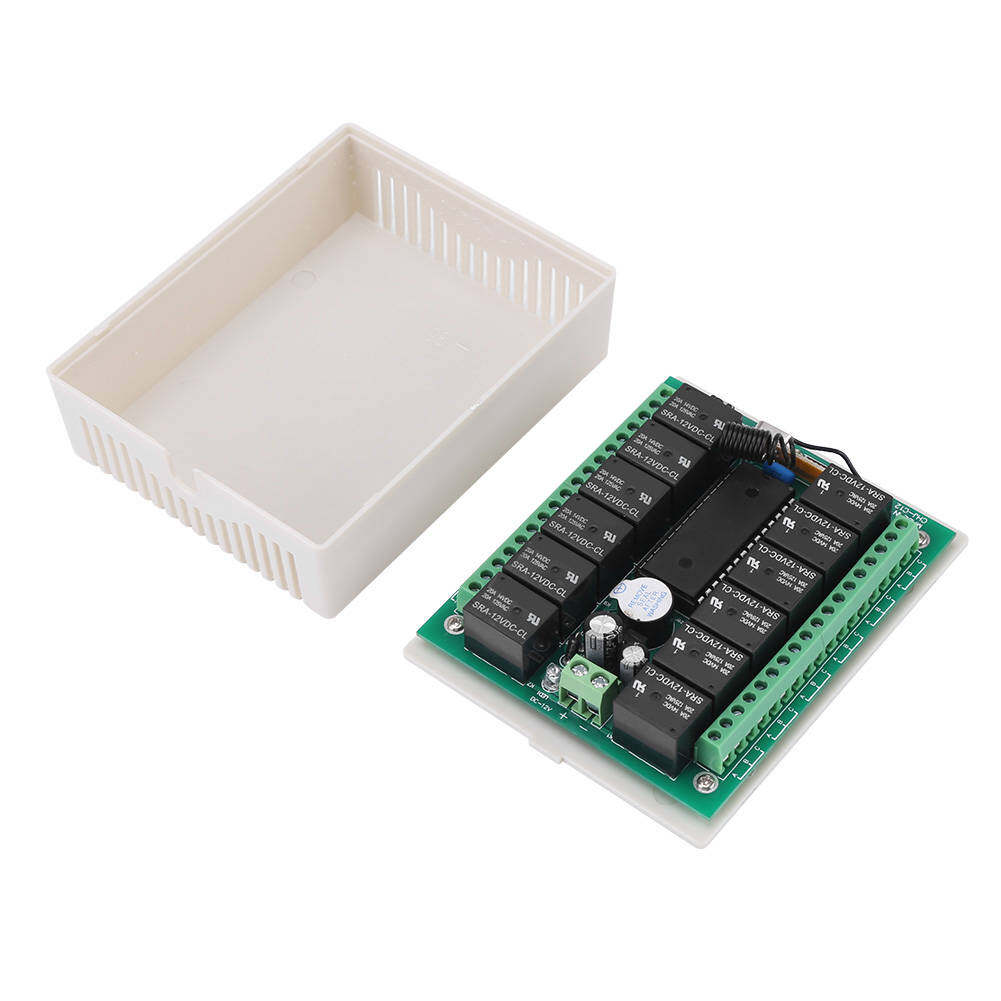

This 12V 10A relay has large control power and the control performance is stable. Learning button design, one switch can be equipped with multiple remote control, or a remote control with multiple switches. Adopt high quality chip, and double-sided PCB circuit board, which make the relay more durable and compatible. The wireless signal program learning function makes the relay has strong ability of anti-interference

Features:

• Perfect relay for your lost or damaged one.
• Momentary, Self-locking, Interlock, 3 Commands.
• Remote distance range is up to 200-500 meter.
• One switch can be equipped with multiple remote control, or a remote control with multiple switches.
• This relay is stable, durable and compatible.

Specification:
Type: 12 channel remote control switch
Output current: 20A
Static working current: ≤6mA
Output voltage: AC 125V / DC 14V
Working voltage: 12V
Battery type: 1 x 23A/12V battery(not included)
Working frequency: 315 433MH
Remote control distance: Approx. 200-500M
Operating temperature: 40°C ~ +80°C
Receive Sensitivity: ≥105dBm
Working mode: Momentary, Self-locking, Interlock

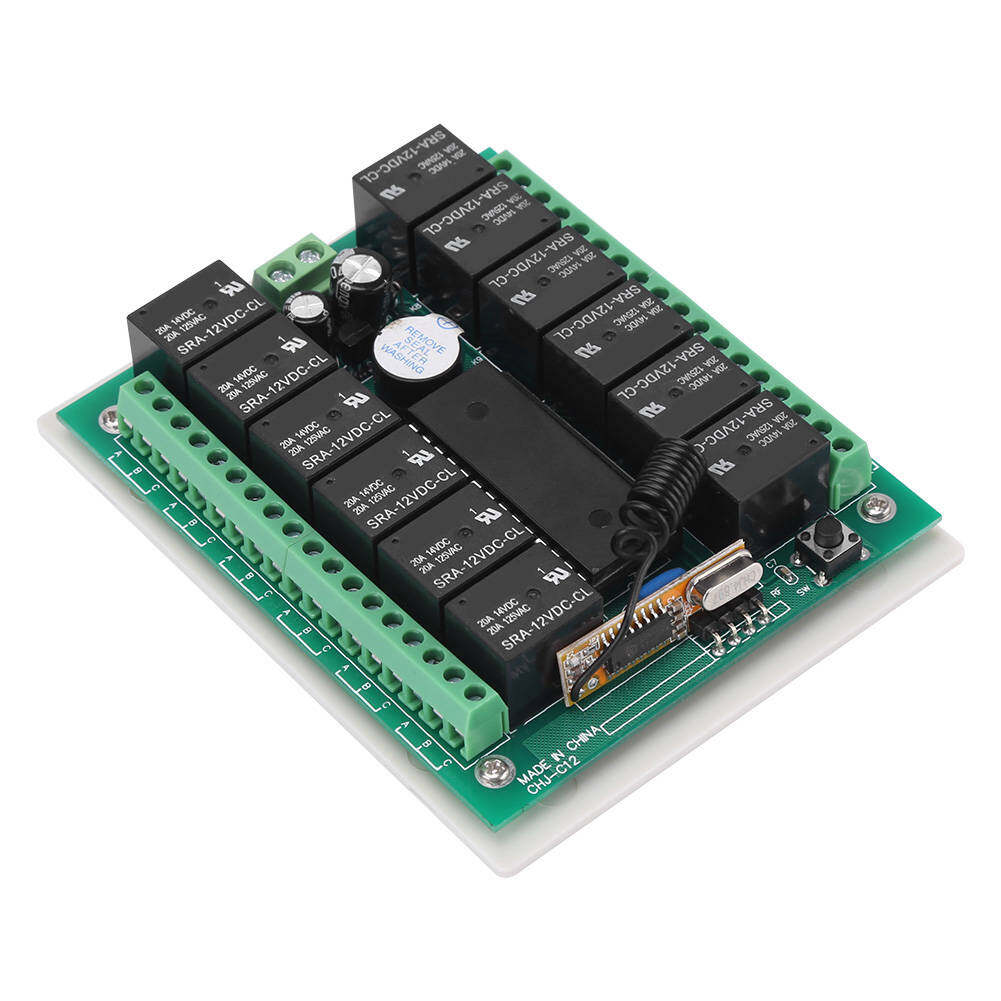

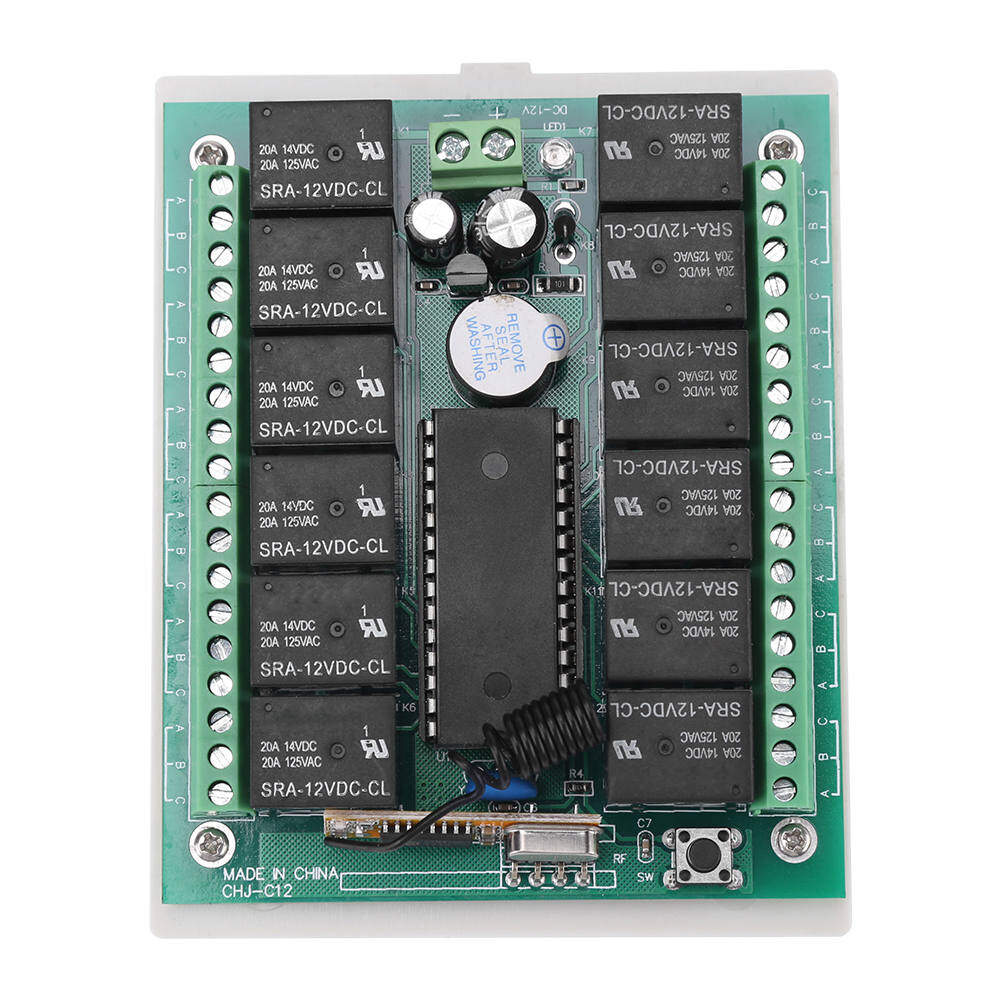

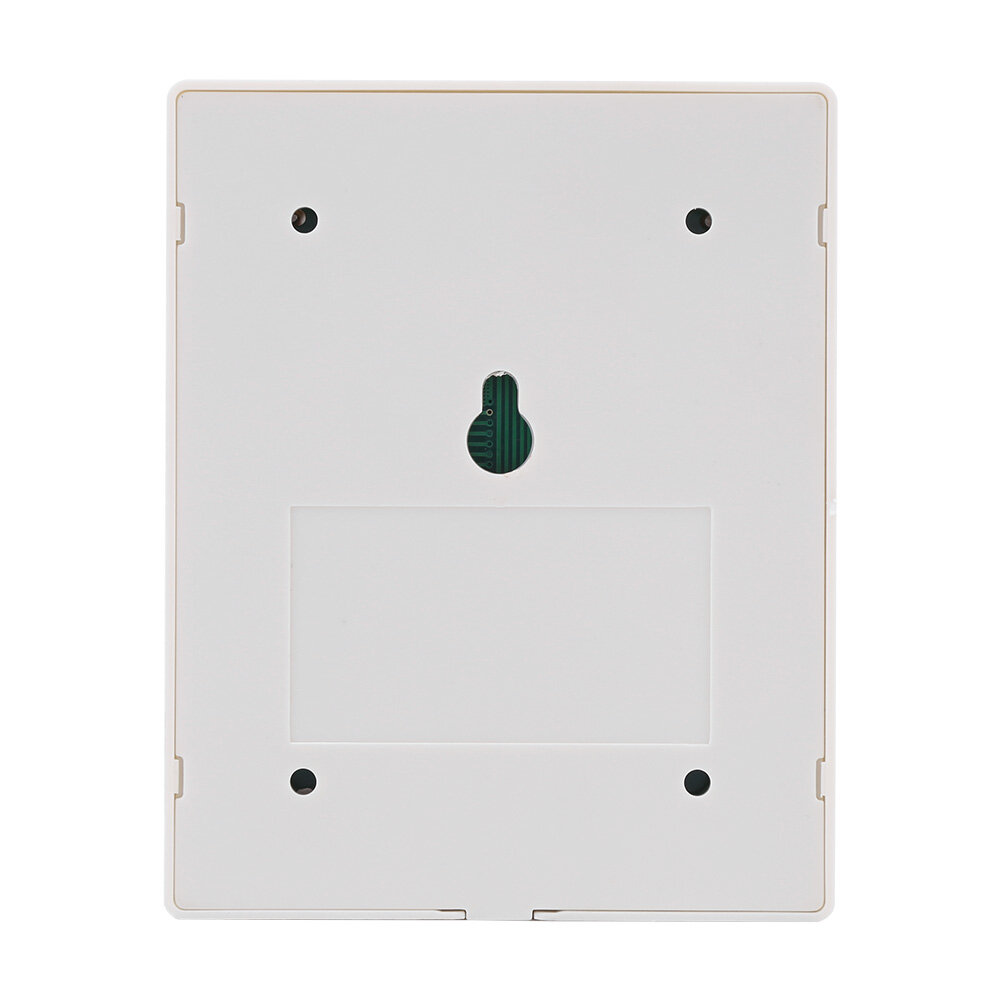

Relay size: Approx. 10 x 8 x 2.5cm / 3.93 x 3.14 x 0.98inch

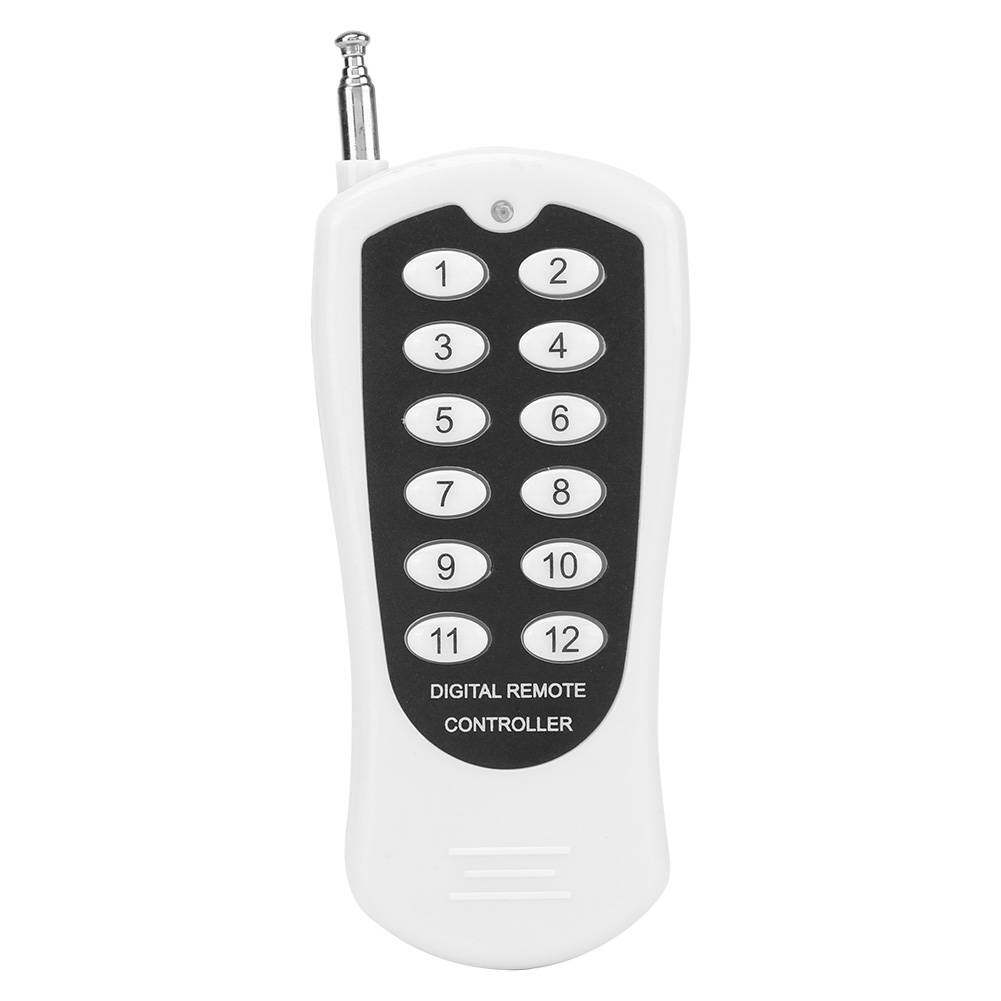

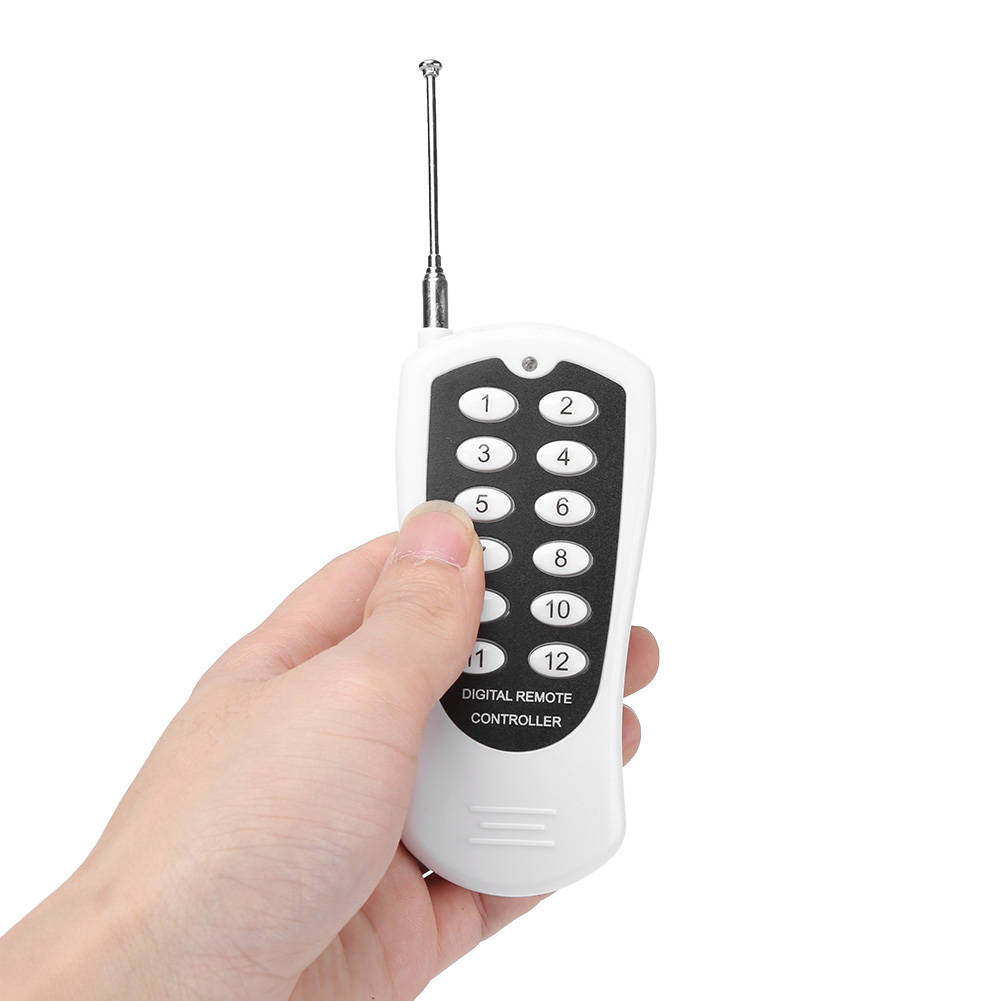

Remote size: Approx. 12 x 5 x 1.5cm / 4.72 x 1.96 x 0.59inch
Weight: 243g

Working mode:

• Momentary: Press every button on the switch, and the corresponding relay is connected. Release the switch, the corresponding relay is closed. You can only connect a relay at a time.
• Interlock: Press every button on the switch, and the corresponding relay is connected. And then press the other button on the switch, the corresponding relay is connected. The other relay is closed. You can only connect a relay at a time.
• Self-locking: The same button control a relay. Press once means opening, press again means closing. Two independent control.

Working mode switching & Switch pair instructions:

• Momentary: Learn from the "3" button on the switch, and all 12 relay will jog. Press the 1 button of the switch, and the corresponding A1 relay will open, release it, A1 relay will close. All relays are for this mode of work.
• Interlock: Learn from the "6" button on the switch, and all 12 relay will interlock. Press the "1" button of the switch, and the corresponding A1 relay will open and hold, the other 11 relay close, press the "2" button on the switch, the other 11 relay close, A2 relay will open and hold, working successively.
• Self-locking: Learn from the "9" button on the switch, and all 12 relay will self-lock. Press the "1" button of the switch, and the corresponding A1 relay will open and hold, press the "1" button again, A1 relay close. The way it works is not related to other buttons. All 11 relay are working in this way.
• Learning method: Press the learning key on the receiver. Press the button on the switch to learn after the buzzer sound. It means successful learning after the receiver has the signal and the buzzer sound.
• Clearing method: Long press to learning button on the receiver about 10 seconds until the buzzer sound. The stored information is successfully cleared.

Package List:

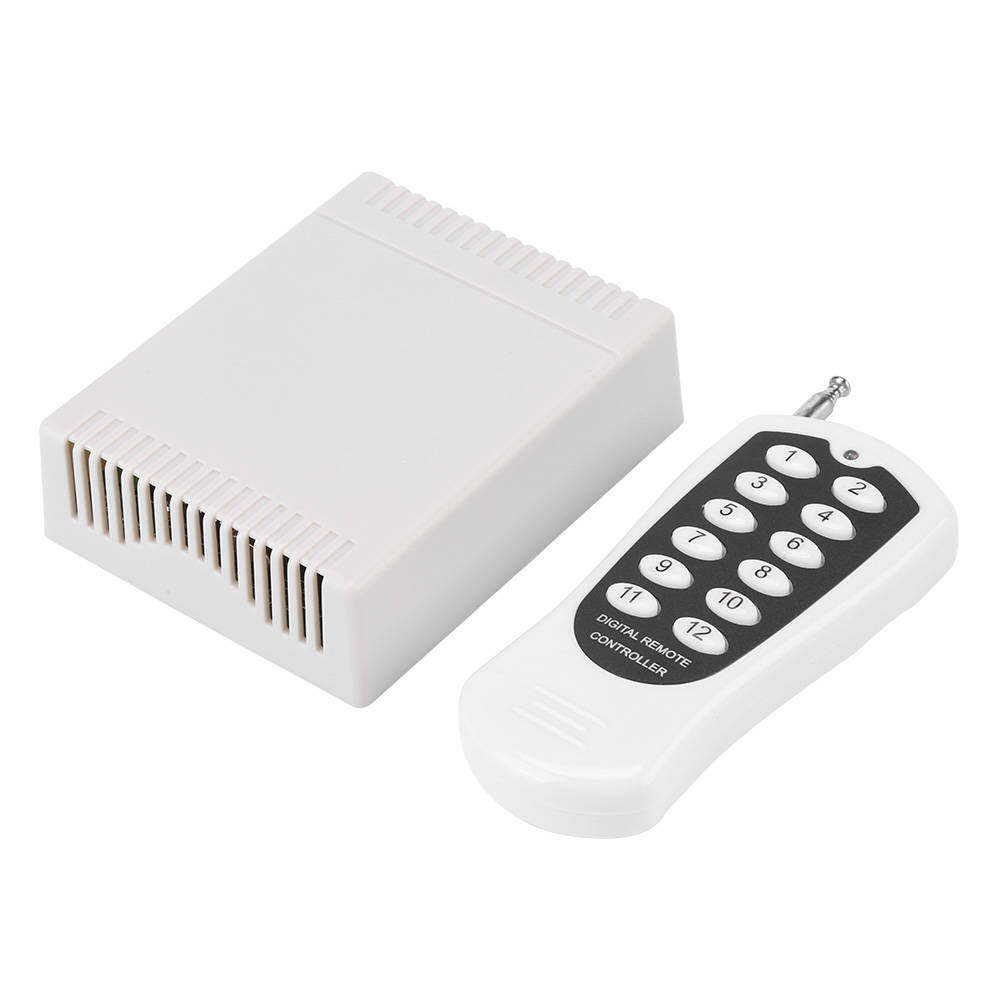

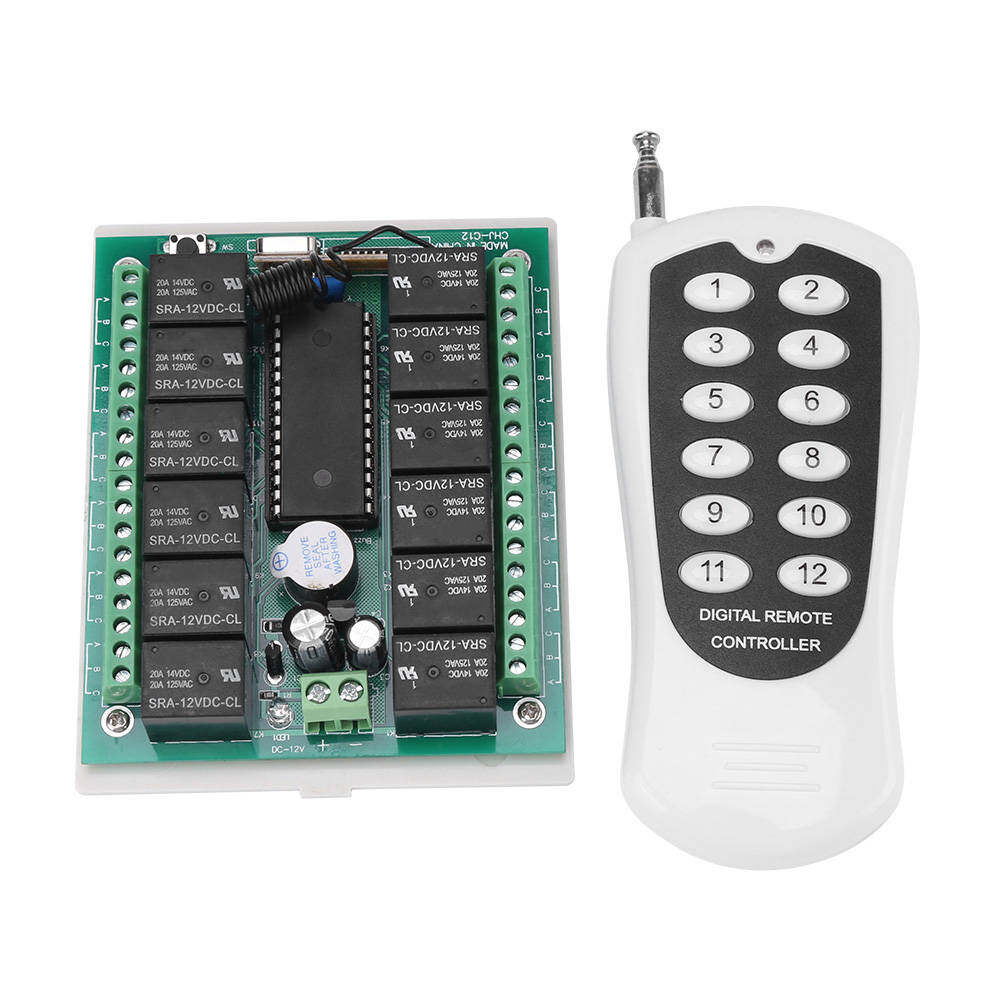

1 x 12 Channel Relay
1 x Remote Controller
