[EHEH] ĐẦY ĐỦ 20KV high voltage pulse generator super arc ignition boost coil module DC12V-24V

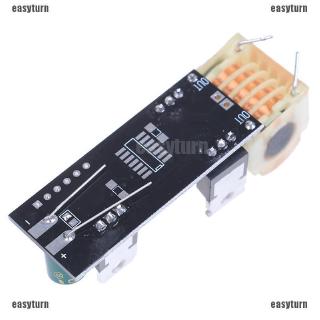

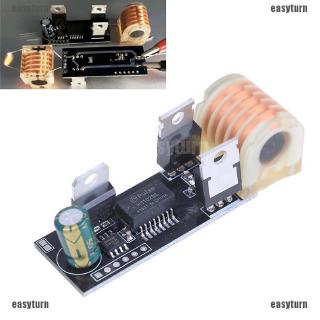

welcome to easyturn.vn 🌸ĐẦY ĐỦ 🌸20KV high voltage pulse generator super arc ignition boost coil module DC12V-24V 100% Brand New and High Quality The product has no casing, it is recommended to use the potting before use (the transformer part has been sealed) to improve the durability. Default send one board. as the third main photo shows. Specifications and parameters: PCB size : 20*50mm Power: <30W Input voltage range: 7~28VDC Standard input voltage: 24V Input current: <1.2A Output voltage: 15KV~20KV Output current: 5mA~15mA Arc starting distance: 1cm~2cm (Direct arc starting, no need to pull arc, when the arc has failed to ignite, the electrode distance can be closer) Note: This product can pull arc continuously for 24 hours at <=18V power supply, short-circuit no-load without burning, but need to add fan next to transformer when 18V continuous working time exceeds 5 minutes. Package Included: 1 x High Voltage Boost Coil Module #🌸20KV #🌸ĐẦY #ĐỦ #ignition #voltage #pulse #arc #DC12V-24V #high #super #coil #generator #boost #module #generator-super #ignition-boost #arc-ignition #coil-module
