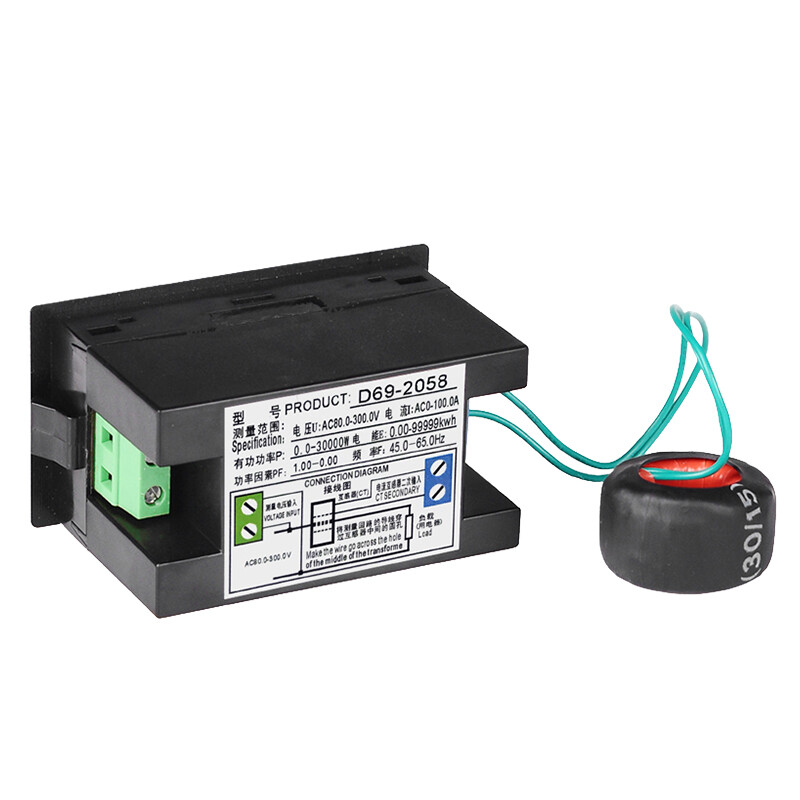

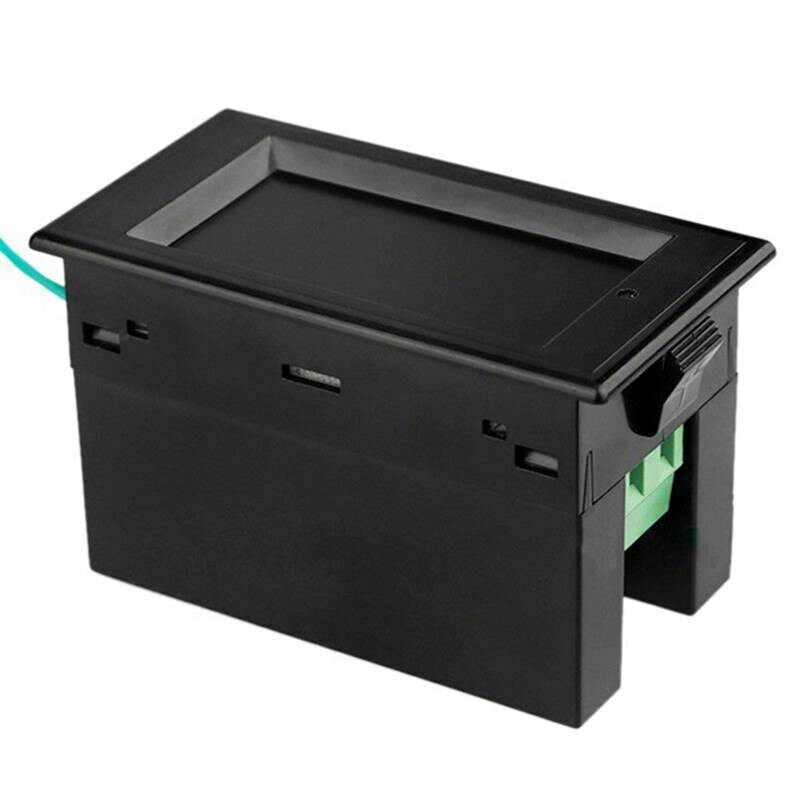

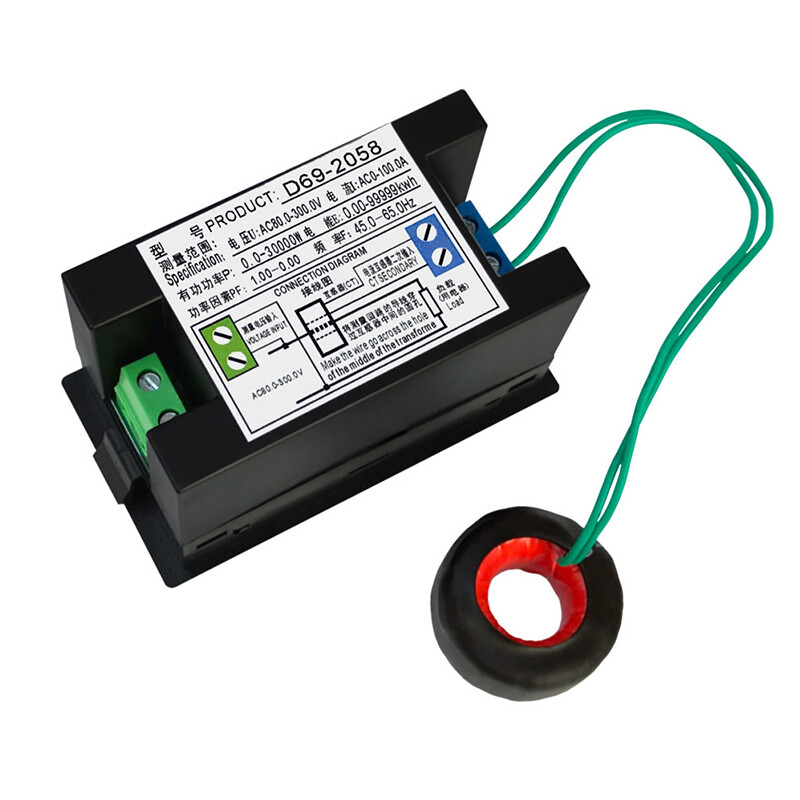

D69-2058 6in1 vôn kế hiện tại Ampe kế Hệ số công suất điện năng lượng máy đo tần số Bảng điều khiển kỹ thuật số wattmeter LCD Volt Amp

>>Description

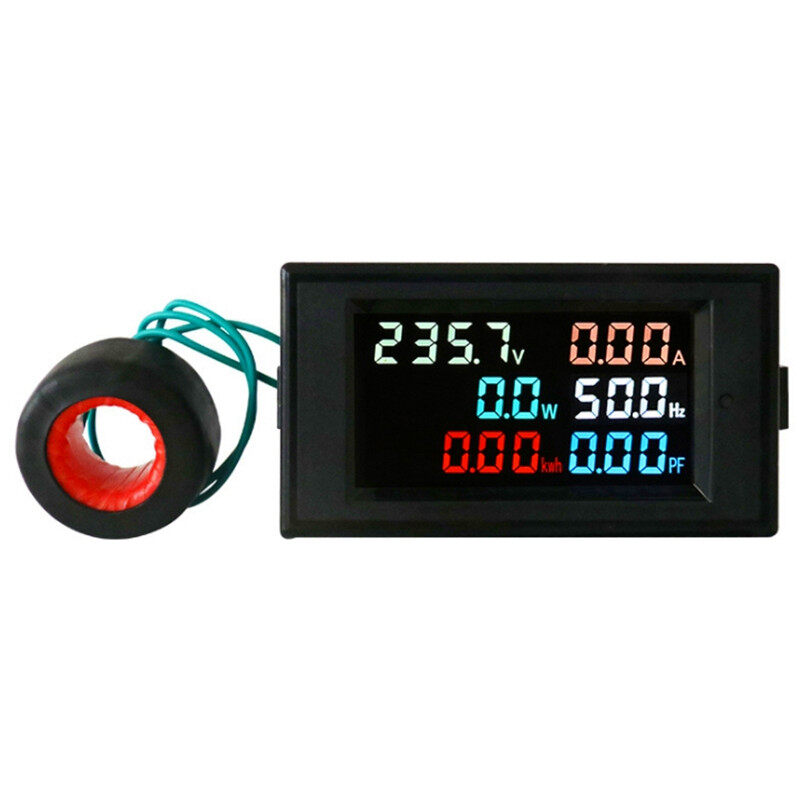

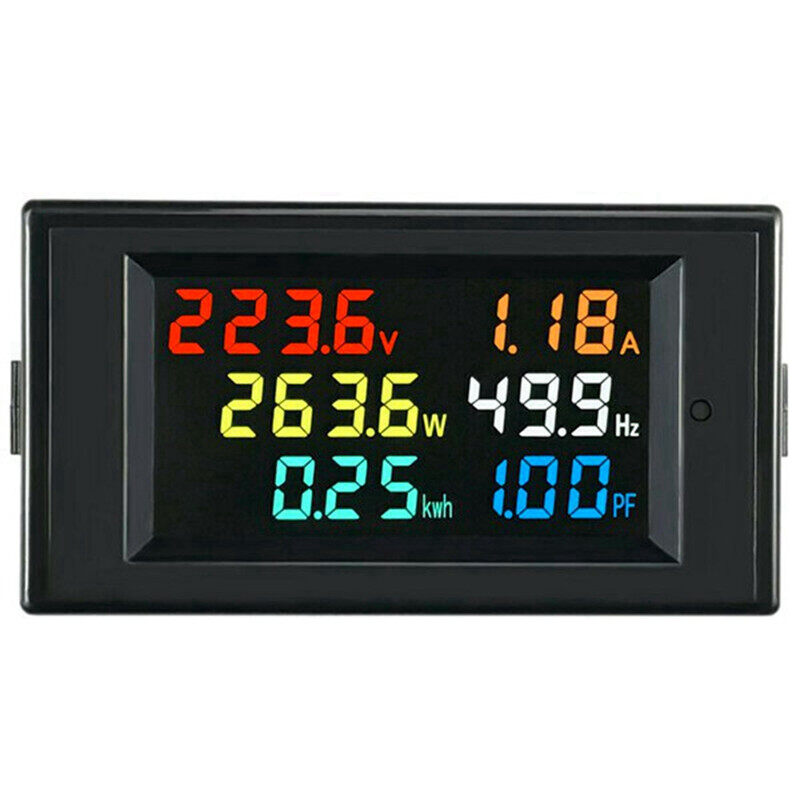

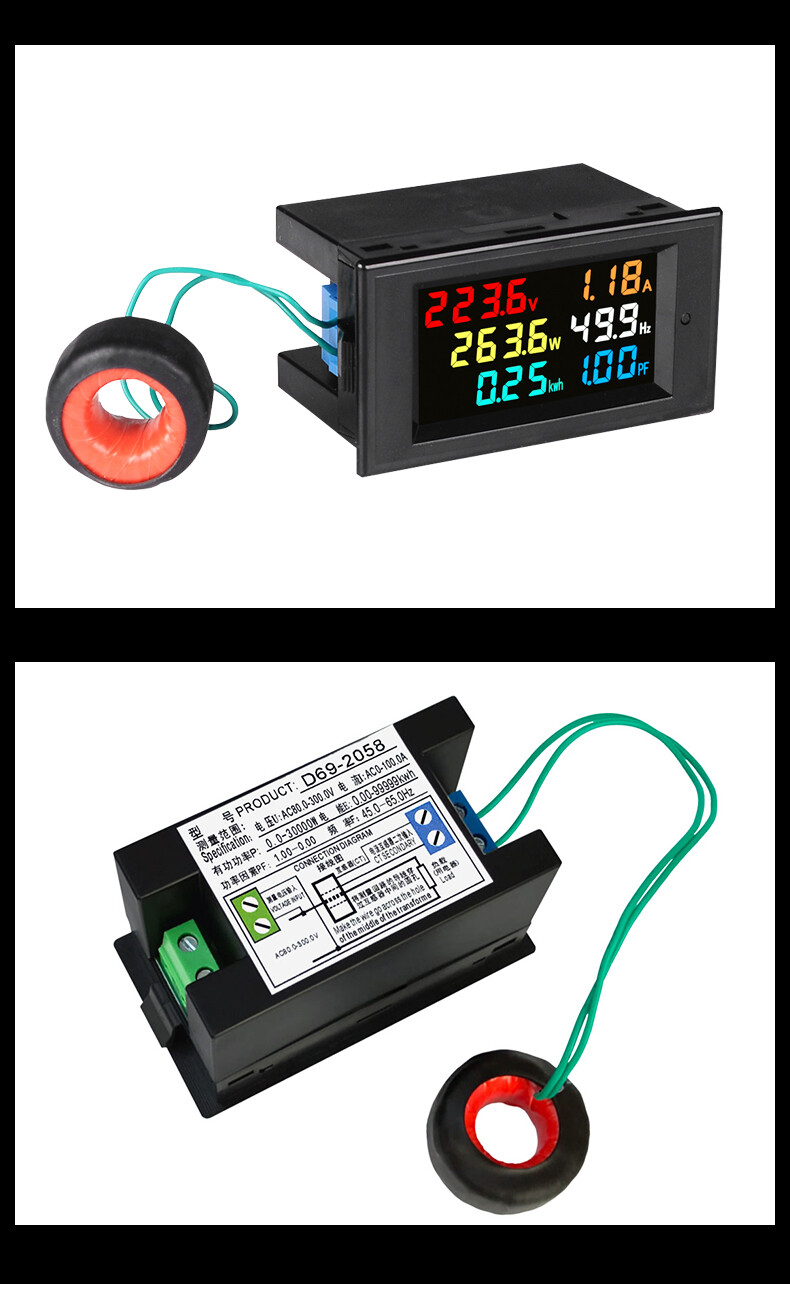

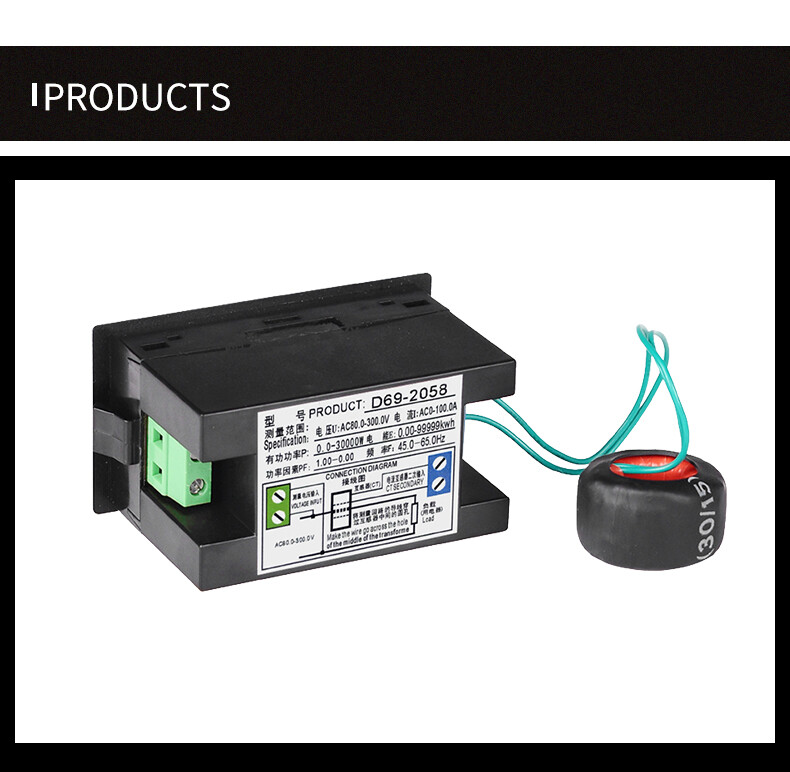

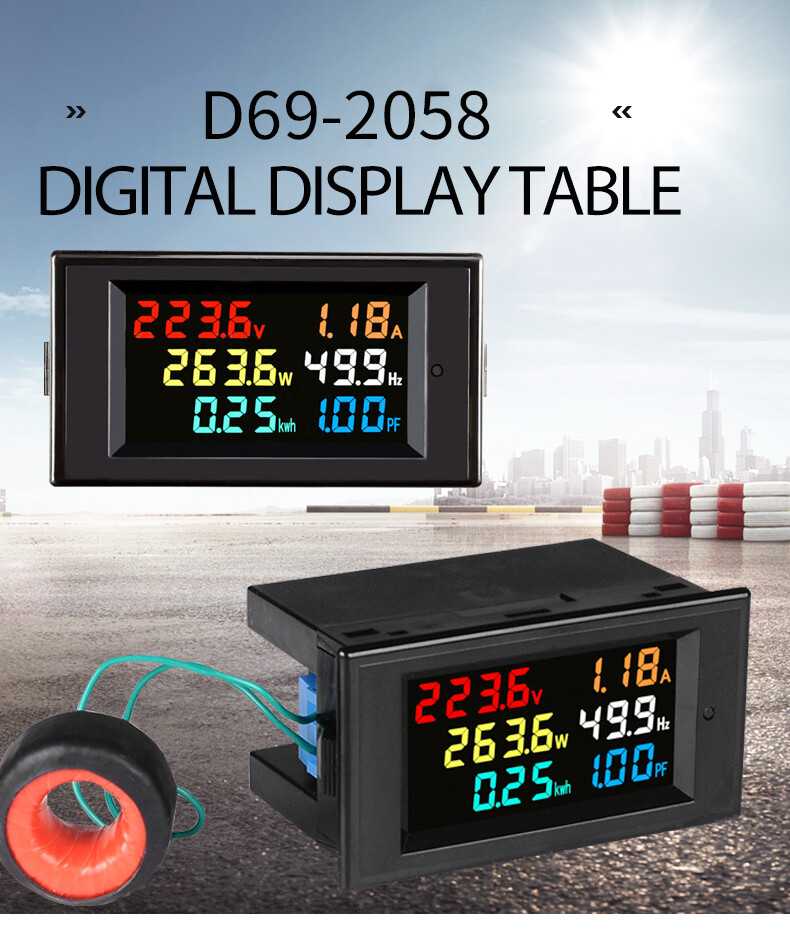

D69-2058 digital display multifunction meter is an instrument on the same screen at the same time to display the measured AC voltage, AC current, active power, power factor, frequency, as well as electric quantity, electric energy parameters. The instrument display part adopts color HIGH-DEFINITION LIQUID crystal display.

>>Specification

• Accuracy: 1%±2 words
• Range

1. AC voltage： AC80.0-300.0V/200-0-450.0V(You should select yhe suitable of meter when your making order)
2. AC Current: AC 0-99.99A, minimum resolution is 0.01A
3. AC Current: AC 0-40.00A, minimum resolution is 0.01A
4. Power Frequency:45.0Hz-65.0Hz
5. Power Factor: 0.00-1.00PF
6. Active Power: 0-45000W when the active power between 0 and 9999.9W, the display accuracy is 0.1W
7. Electric Energy: 0-999999kwh,when the electric power between 0 and 999.99kwh,The Ndisplay accuracy is 0.01kwh, when between 10000.0-9999.9kwh The display accuracy is 0.1kwh,when between 10000.0 and 999999kwh The display accuray is 1kwh.

• Speed: 2 times per second

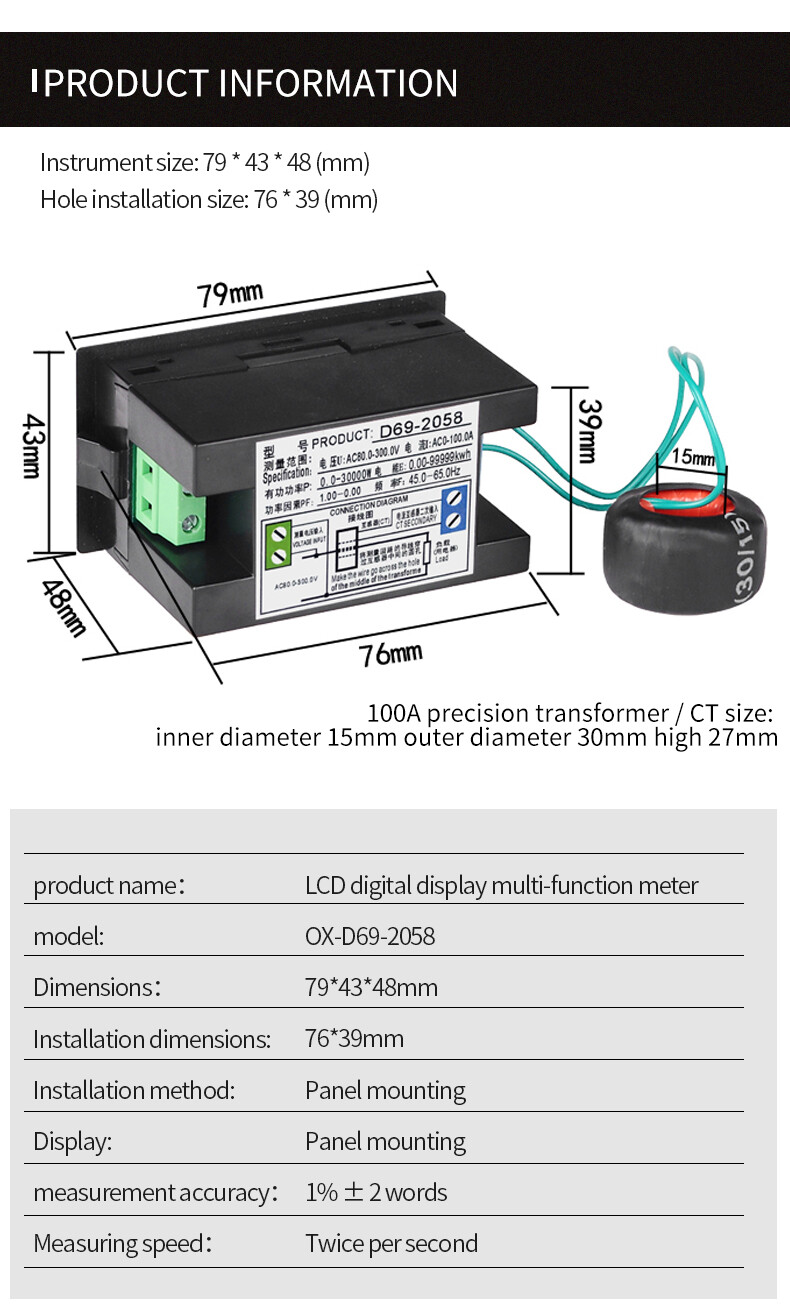

• Size: 79*43*48mm
• Installation Size: 76*39mm
• Auto-saving: When power off, the electric energy will be saved. The saved electric energy will be accumulated continue when the meter power-on next time.
