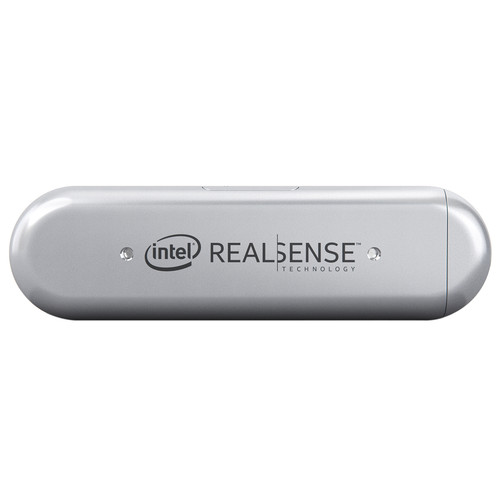

Camera chiều sâu Intel RealSense Depth Camera D435i (Intel D435i) 0401

Shop 2 tùy chọn:

1. Gói mới: nguyên hộp, Brand New

Tên thiết bị: Camera chiều sâu Intel RealSense Depth Camera D435i

Model: Camera chiều sâu Intel RealSense Depth Camera D435i

Thương hiệu: Intel

Thời gian bảo hành: 12 tháng

Tình trạng: hàng mới, chính hãng 100%

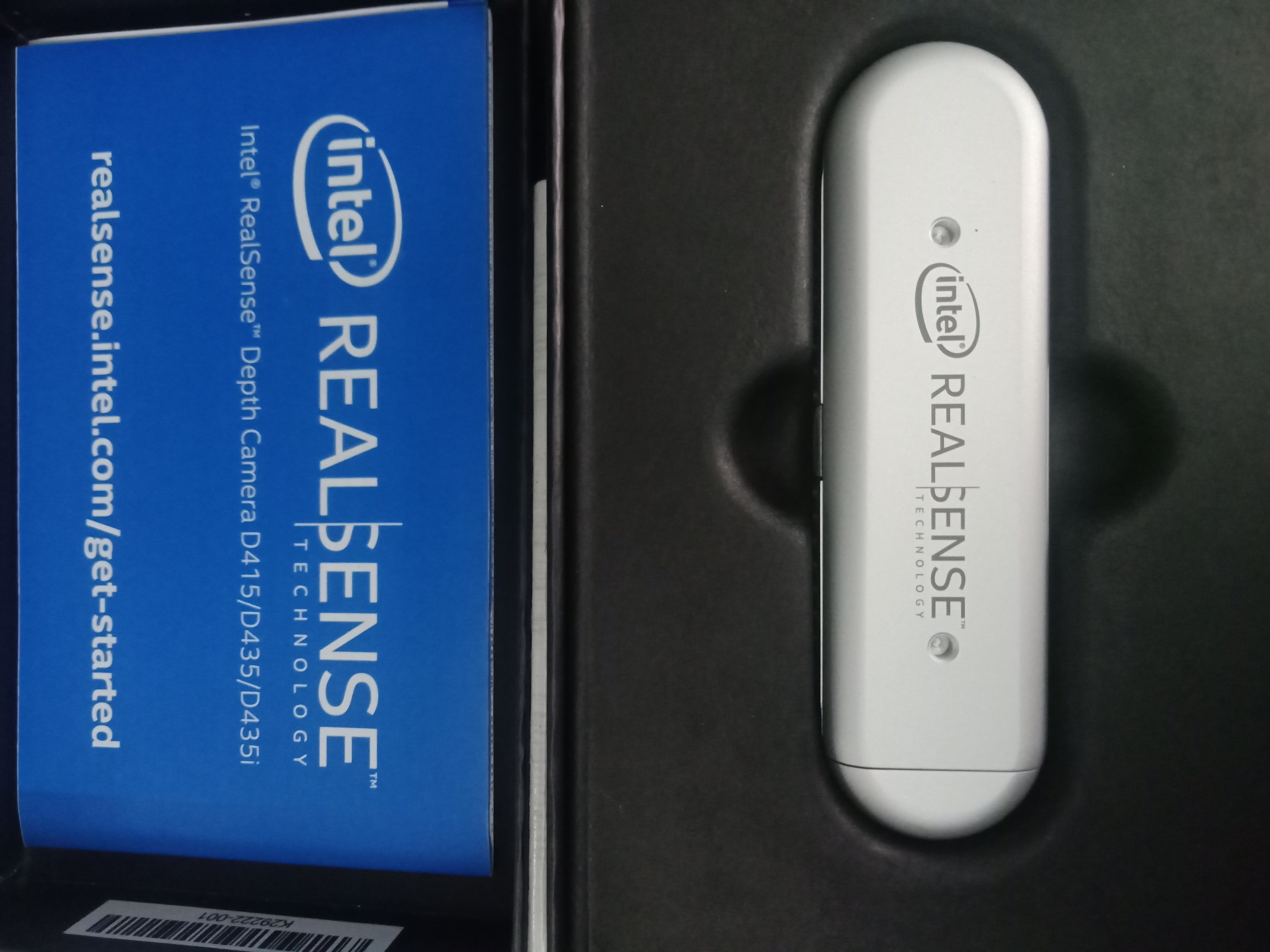

2. Gói Open Box: Như hình chụp, kèm đầy đủ Camera Intel D435i, Tripod, Cable, túi đựng, đóng hộp

Thiết bị bảo hành 06 tháng sử dụng, đã test đầy đủ các chức năng, mới 99%

• Extract 3D Information from a Scene
• For Robotics Navigation Developers, Etc.

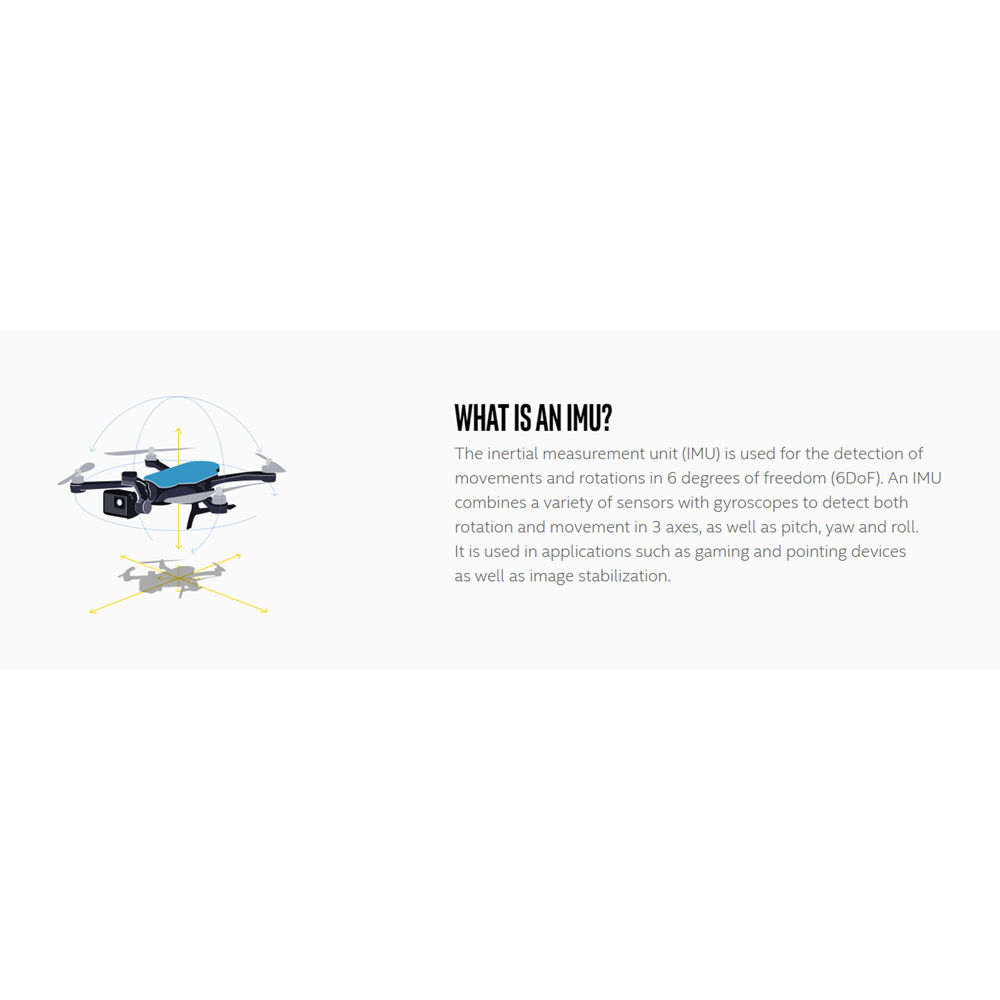

• Inertial 6DoF Measurement
• USB-Powered Indoor/Outdoor Solution
• 2 Depth Sensors/RGB Sensor/IR Projector
• Wide FOV & Global Shutter
• Up to 720p90 Depth Stream Output
• 1080p30 RGB Sensor
• 4.3" Minimum Depth Distance
• Up to 33' Maximum Range

Intel D435i Overview

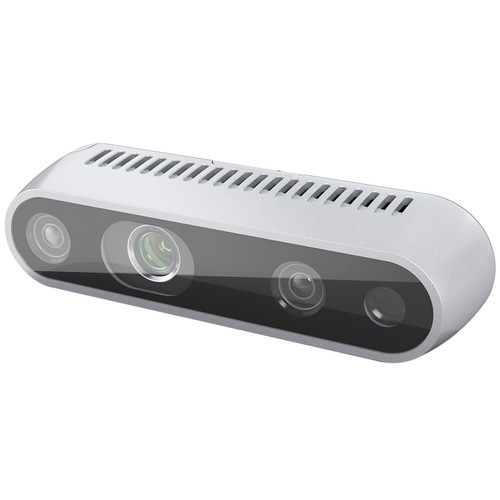

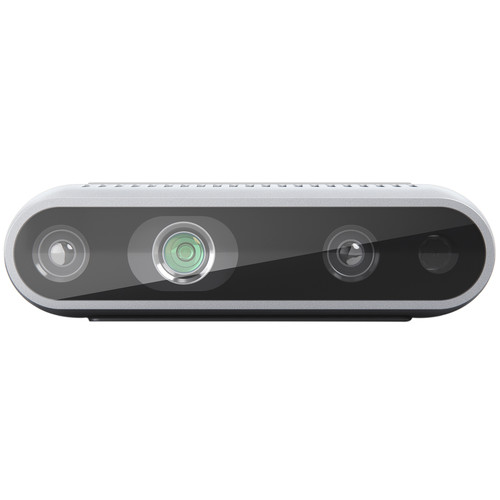

The Intel RealSense Depth Camera D435i extracts 3D information from a scene to let developers add 3D depth to robotics navigation, object recognition, and other applications. It is a USB-powered depth camera and features a pair of depth sensors, an RGB sensor, and an infrared projector. This D435i version includes inertial 6DoF (six degrees of freedom) measurement data for enhanced accuracy. The D435i is an indoor/outdoor solution designed to best fit developers' prototypes. It has a wide field of view and global shutter combination that offers accurate depth perception when an object is moving or a device is in motion, and it covers more area, minimizing blind spots. This camera comes with a mini tripod and a USB Type-C to USB Type-A cable.

Stereo Depth

Stereo image sensing technologies use two cameras to calculate depth. Intel RealSense stereo depth technology brings 3D to devices and machines that only see 2D. Designed for easy setup and portability, the RealSense D435 features long-range capabilities and high depth resolution and includes active infrared (IR) stereo. The D435 is a wide field of view solution using global shutter sensors. The wide view/global shutter combination makes the D435 ideal for applications such as robotic navigation and object recognition. The wider field of view allows a single camera to cover more area, resulting in less blind spots. The global shutter sensors provide great low-light sensitivity, allowing robots to navigate spaces with the lights off.

Key Features

• Vision processor with 28 nanometer (nm) process technology supports up to 5 MIPI Camera Serial Interface 2 lanes to compute real-time depth images and accelerate output
• Provides inertial 6DoF measurement data
• Advanced stereo depth algorithm for accurate depth perception and long range
• Image sensors that enable capturing of disparity between images up to 1280 x 720 resolution
• Support for cross-platform and open-source Intel RealSense SDK 2.0
• Dedicated color image signal processor for image adjustments and scaling color data
• Active infrared projector to illuminate objects to enhance the depth data
• Depth Stream Output: Up to 1280 x 720 at up to 90 fps
• Minimum Depth Distance: 4.3"
• Up to 33' maximum range (accuracy varies depending on calibration, scene, and lighting condition)
• RGB Sensor Resolution & Frame Rate: 1920 x 1080 at 30 fps
• RGB Sensor FOV (Horizontal x Vertical): 69.4 x 42.5° (±3°)

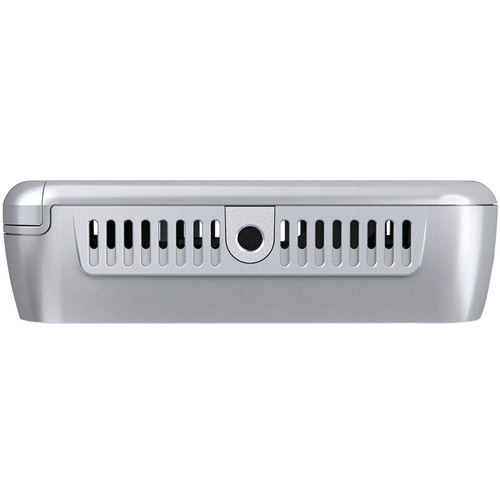

• One 1/4"-20 mounting thread and two M3 mounting threads

The Intel RealSense Depth Camera D435i extracts 3D information from a scene to let developers add 3D depth to robotics navigation, object recognition, and other applications. It is a USB-powered depth camera and features a pair of depth sensors, an RGB sensor, and an infrared projector. This D435i version includes inertial 6DoF (six degrees of freedom) measurement data for enhanced accuracy. The D435i is an indoor/outdoor solution designed to best fit developers' prototypes. It has a wide field of view and global shutter combination that offers accurate depth perception when an object is moving or a device is in motion, and it covers more area, minimizing blind spots. This camera comes with a mini tripod and a USB Type-C to USB Type-A cable.

Stereo Depth

Stereo image sensing technologies use two cameras to calculate depth. Intel RealSense stereo depth technology brings 3D to devices and machines that only see 2D. Designed for easy setup and portability, the RealSense D435 features long-range capabilities and high depth resolution and includes active infrared (IR) stereo. The D435 is a wide field of view solution using global shutter sensors. The wide view/global shutter combination makes the D435 ideal for applications such as robotic navigation and object recognition. The wider field of view allows a single camera to cover more area, resulting in less blind spots. The global shutter sensors provide great low-light sensitivity, allowing robots to navigate spaces with the lights off.

Key Features

• Vision processor with 28 nanometer (nm) process technology supports up to 5 MIPI Camera Serial Interface 2 lanes to compute real-time depth images and accelerate output
• Provides inertial 6DoF measurement data
• Advanced stereo depth algorithm for accurate depth perception and long range
• Image sensors that enable capturing of disparity between images up to 1280 x 720 resolution
• Support for cross-platform and open-source Intel RealSense SDK 2.0
• Dedicated color image signal processor for image adjustments and scaling color data
• Active infrared projector to illuminate objects to enhance the depth data
• Depth Stream Output: Up to 1280 x 720 at up to 90 fps
• Minimum Depth Distance: 4.3"
• Up to 33' maximum range (accuracy varies depending on calibration, scene, and lighting condition)
• RGB Sensor Resolution & Frame Rate: 1920 x 1080 at 30 fps
• RGB Sensor FOV (Horizontal x Vertical): 69.4 x 42.5° (±3°)
• One 1/4"-20 mounting thread and two M3 mounting threads

Intel D435i Specs

360 Stitched Video Recording

Camera per Lens

Optics per Lens

Recording per Lens

Recording

Display

Input/Output Connectors

General

Packaging Info

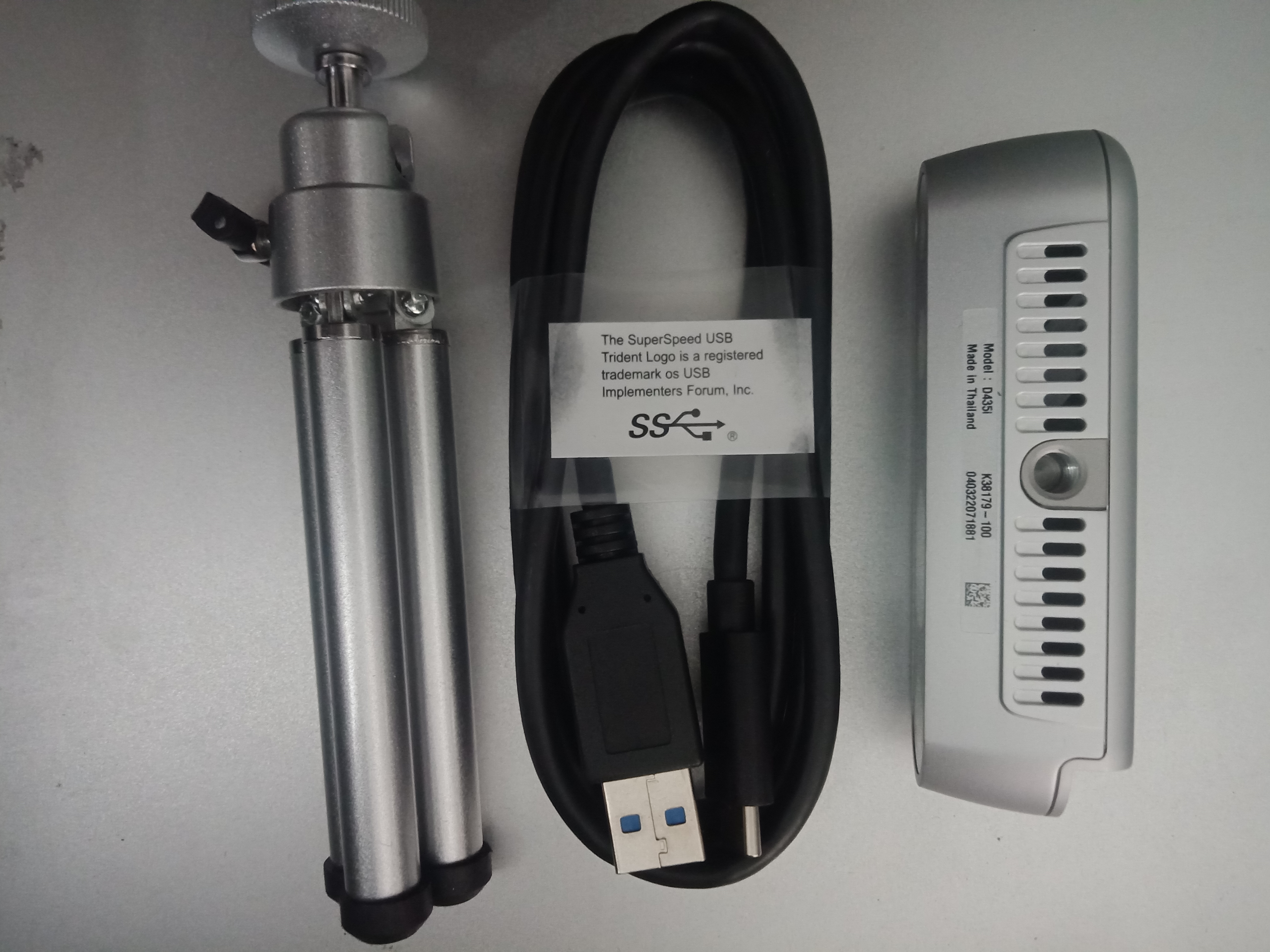

In the Box

• Intel RealSense Depth Camera D435i
• Mini Tripod
• USB Type-C to USB Type-A Cable
