Specification:
-
Brand new
-
Material: electric parts
-
Color: as picture shows
-
Dimension: approx. 25 x 19 x 10mm
-
Charge module: Linear charging.
-
Current: 1A adjustable. Please see the below table for changing the charging current by changing the Rprog resistor
-
Charge precision: 1.5%.
-
Input voltage: 4.5V-5.5V.
-
Full charge voltage: 4.2V.
-
Led indicator- red is charging blue is full charged.
-
Input interface: Micro USB
-
Work temperature: -10 to +85C
-
Inversed polarity protection: NO.
-

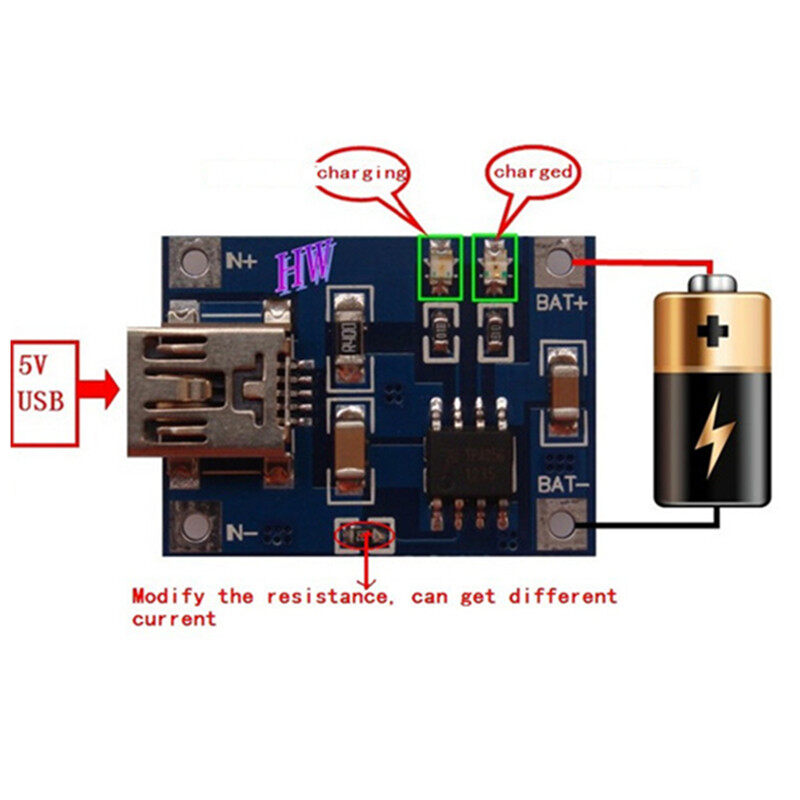

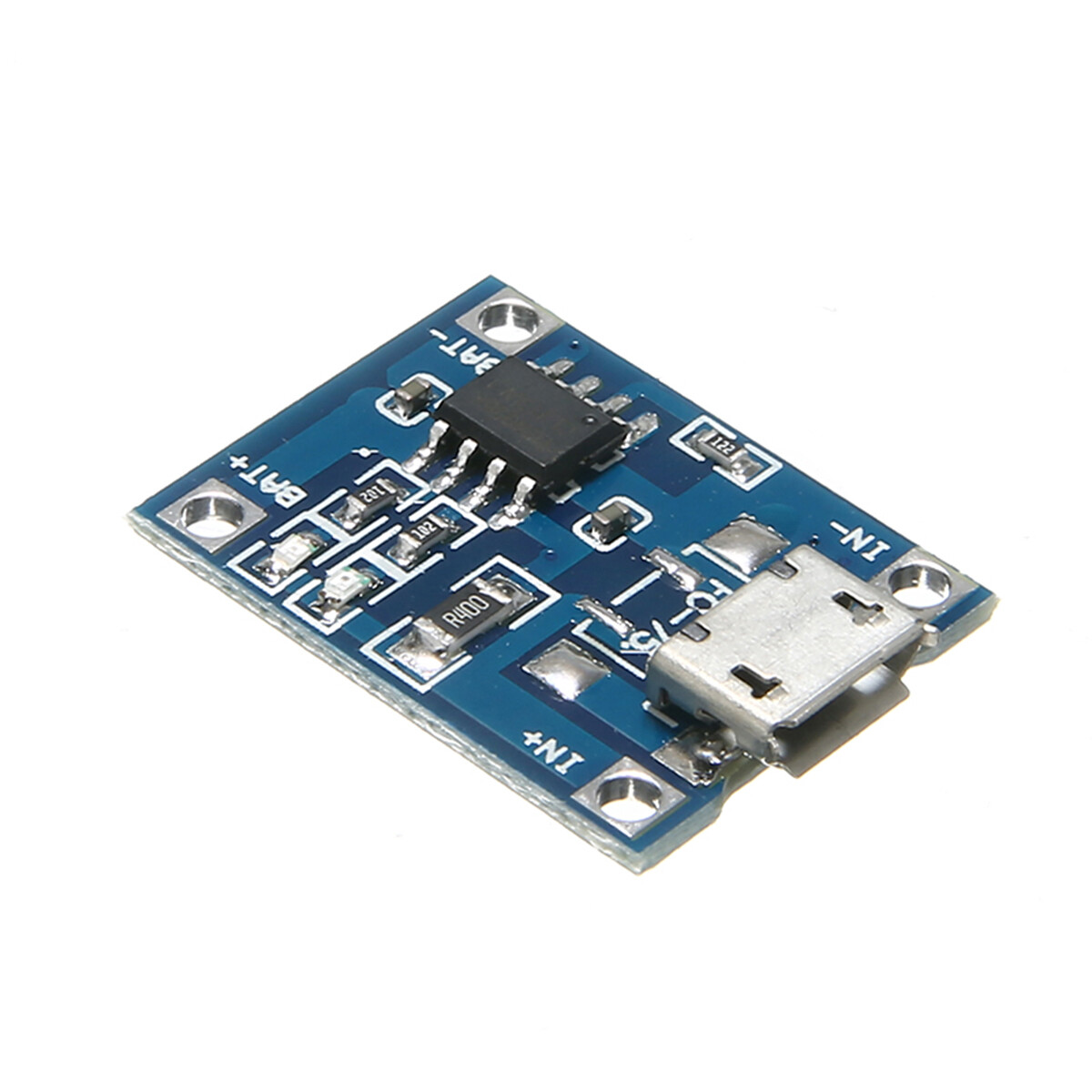

This module is use a USB 5V micro to charge a Lithium ion battery. With LED indication. This module use IC TP4056, If you want to change the charging current, you can change the resistor as in the table.

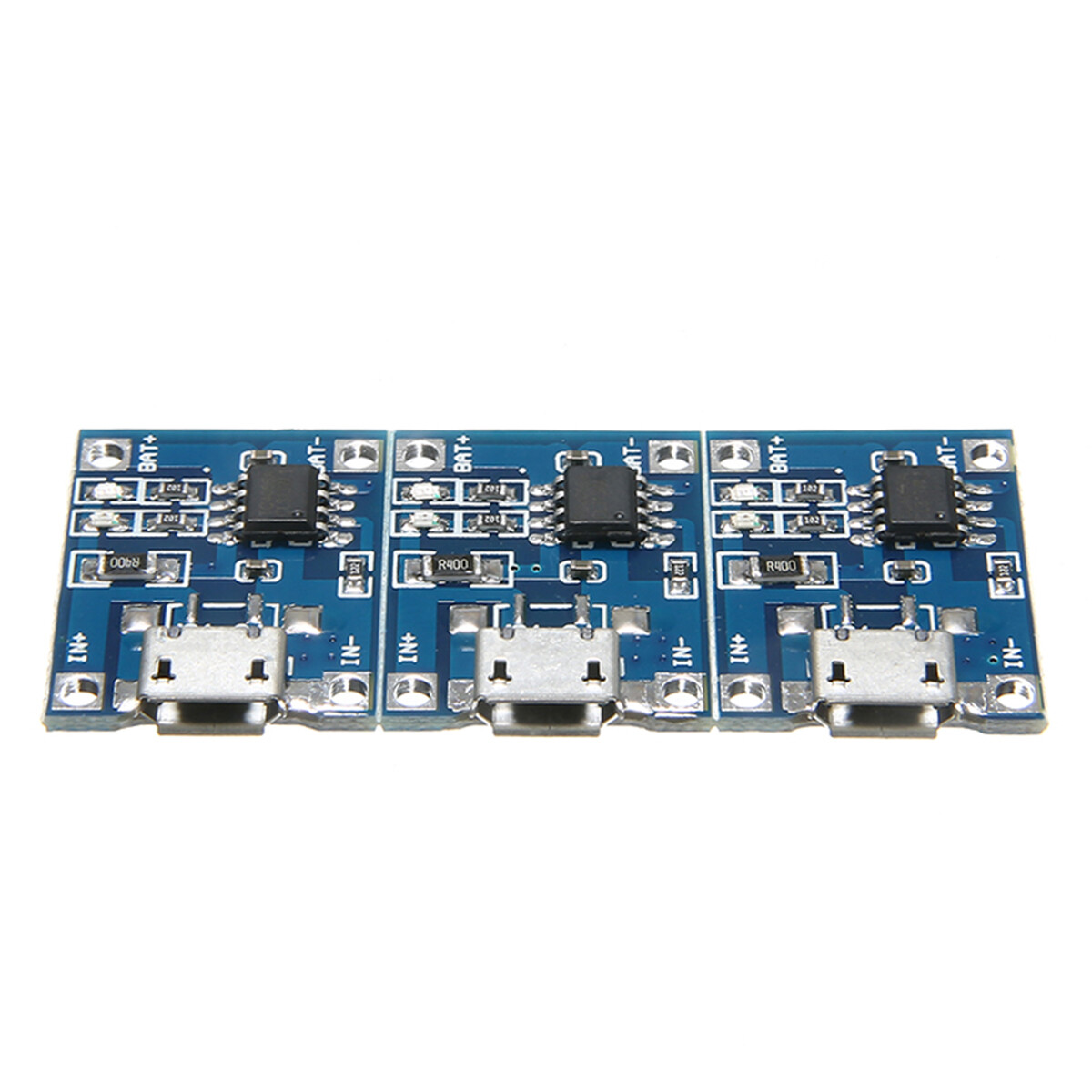

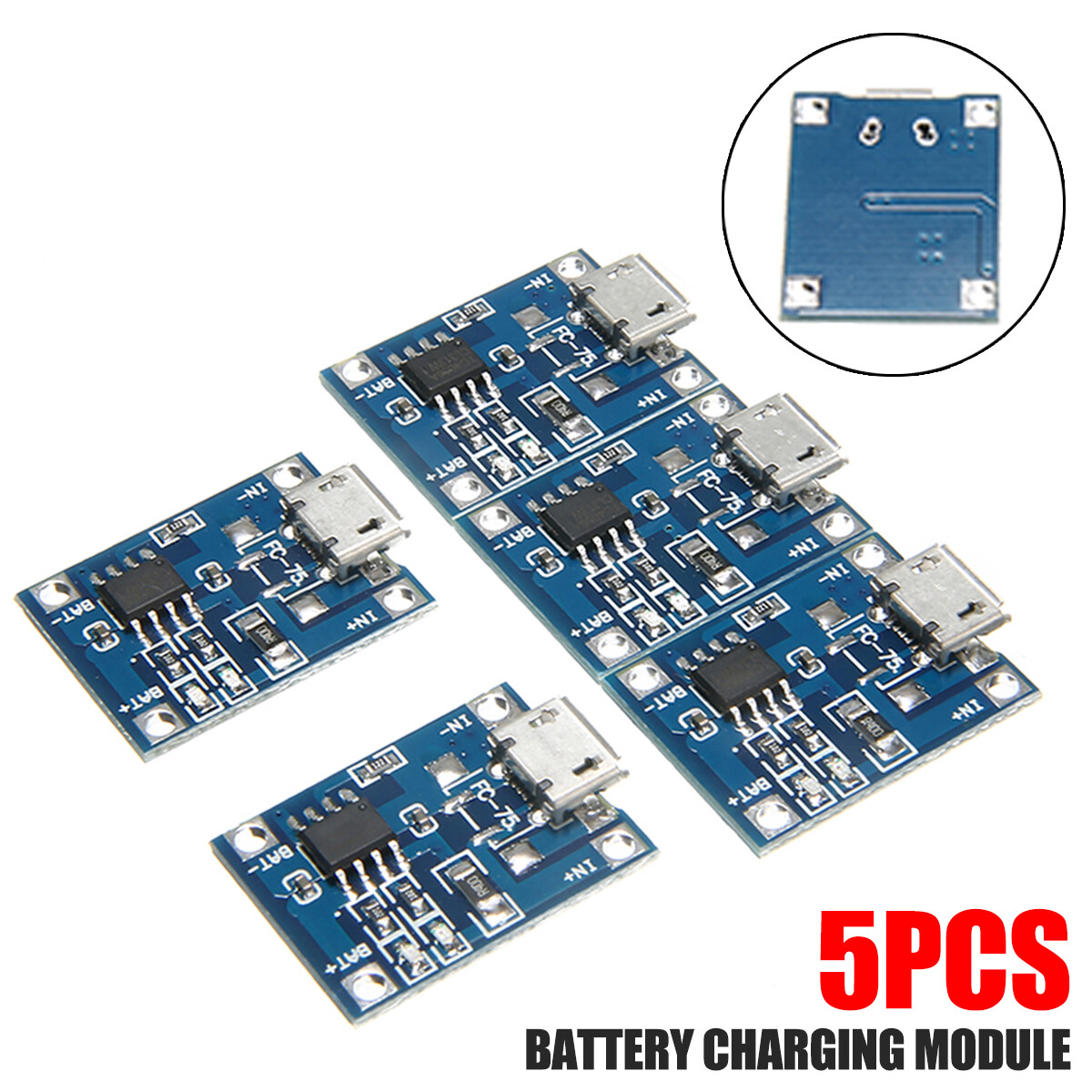

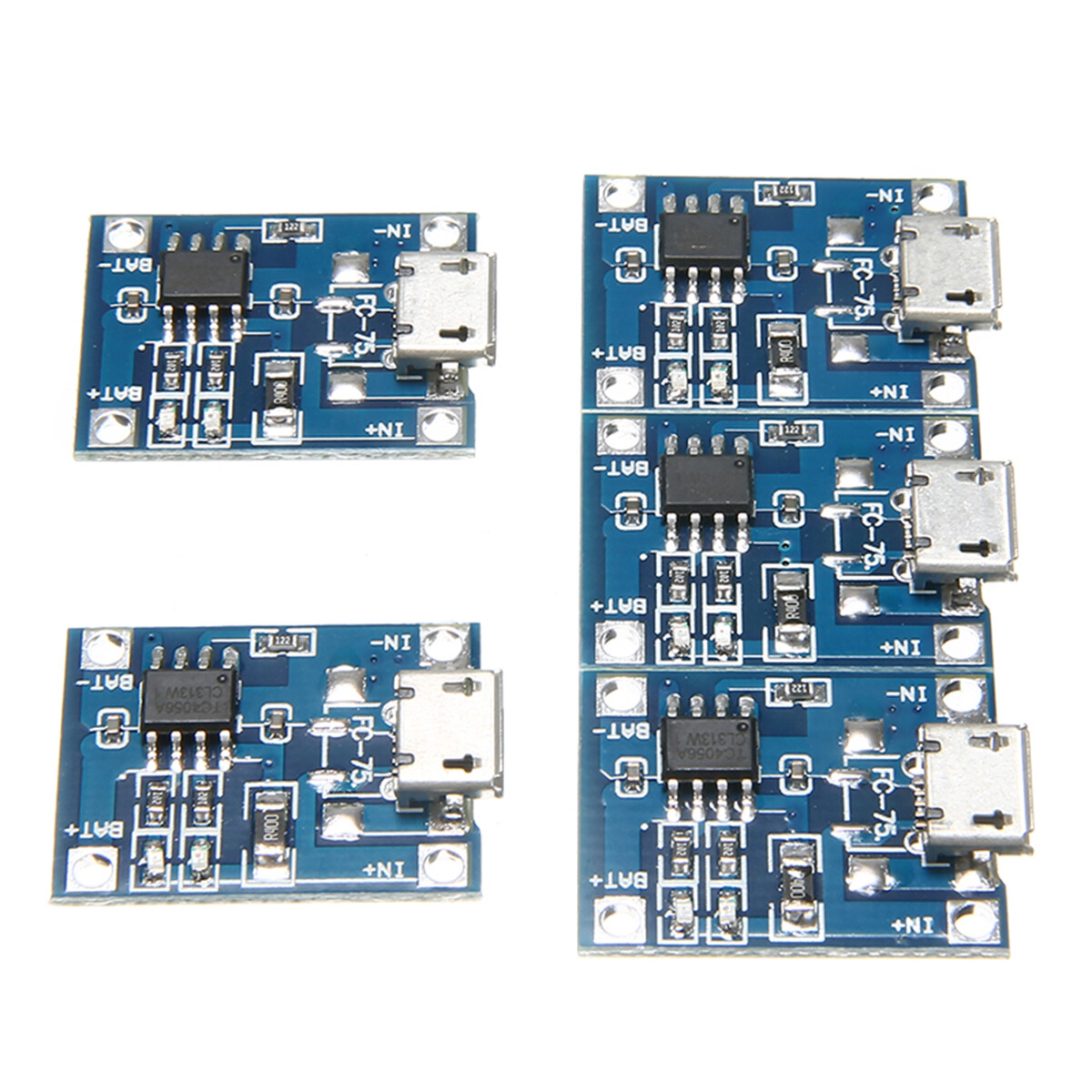

Package included: 5pcs x lithium battery charging board (board only, other accessories are not included)
Note:
-
Please allow 0.5-1cm errors due to manual measurement
-
Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
