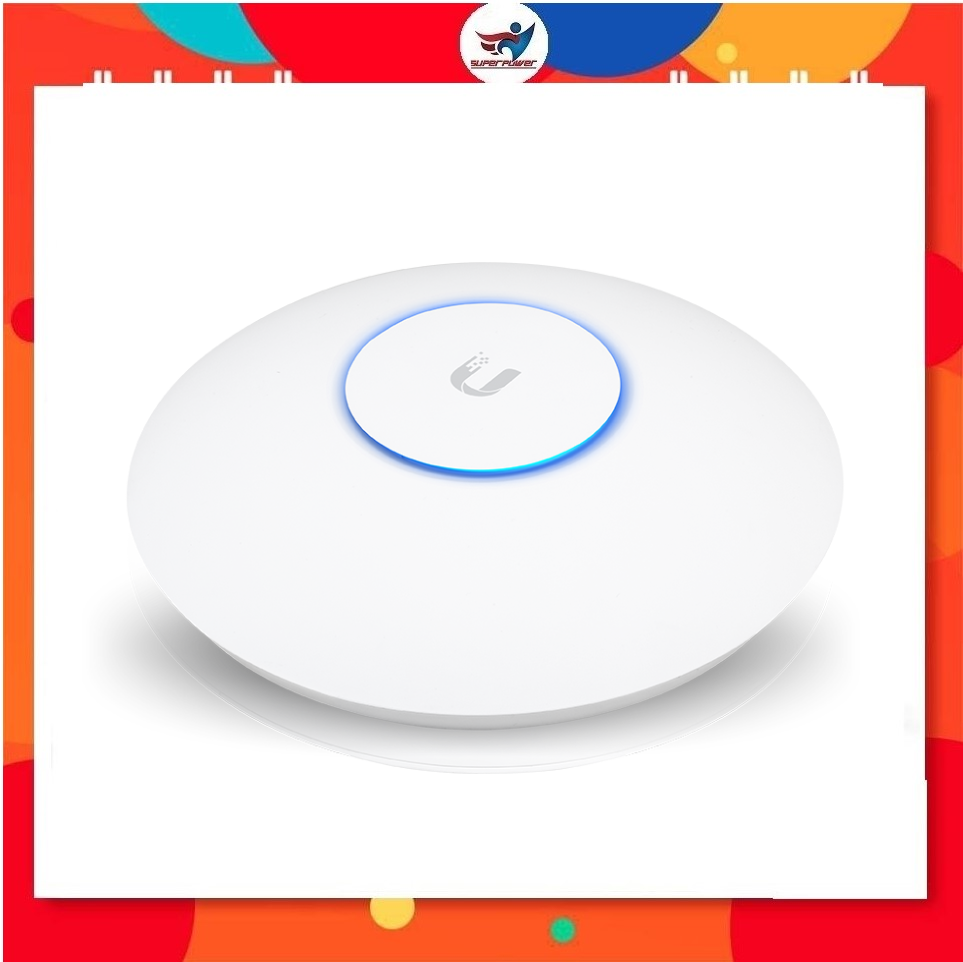

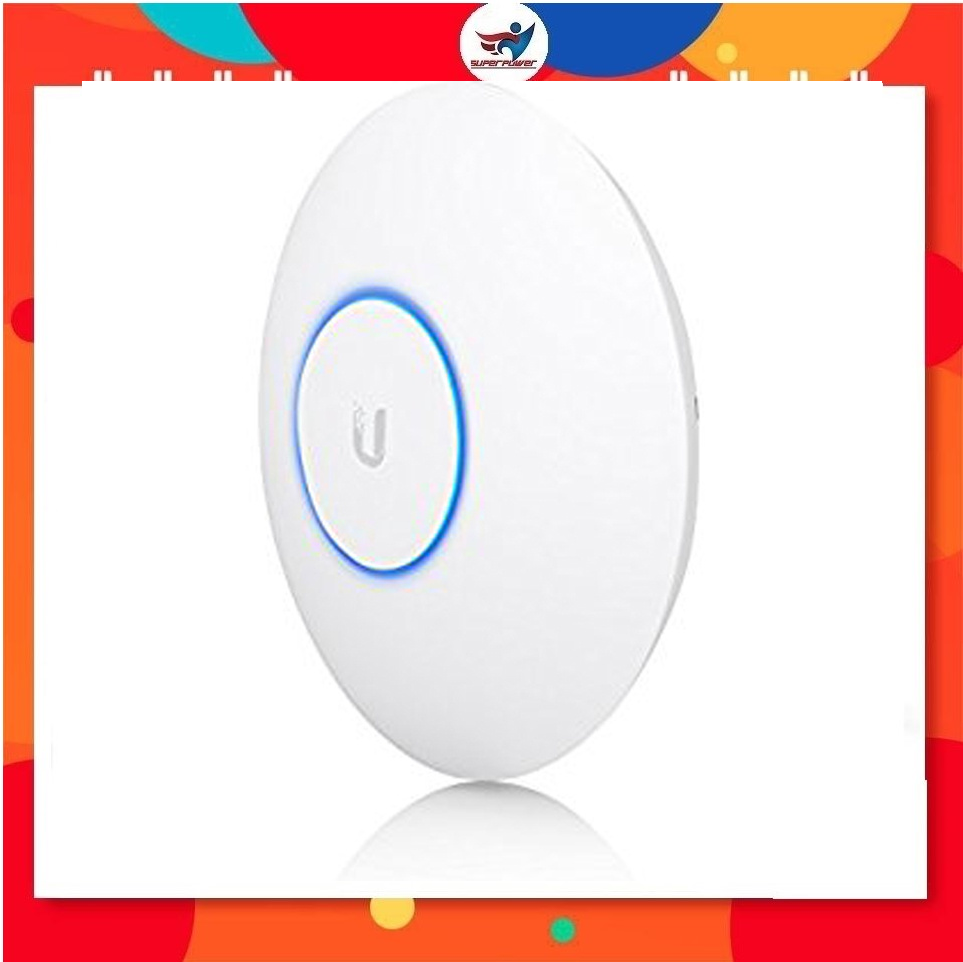

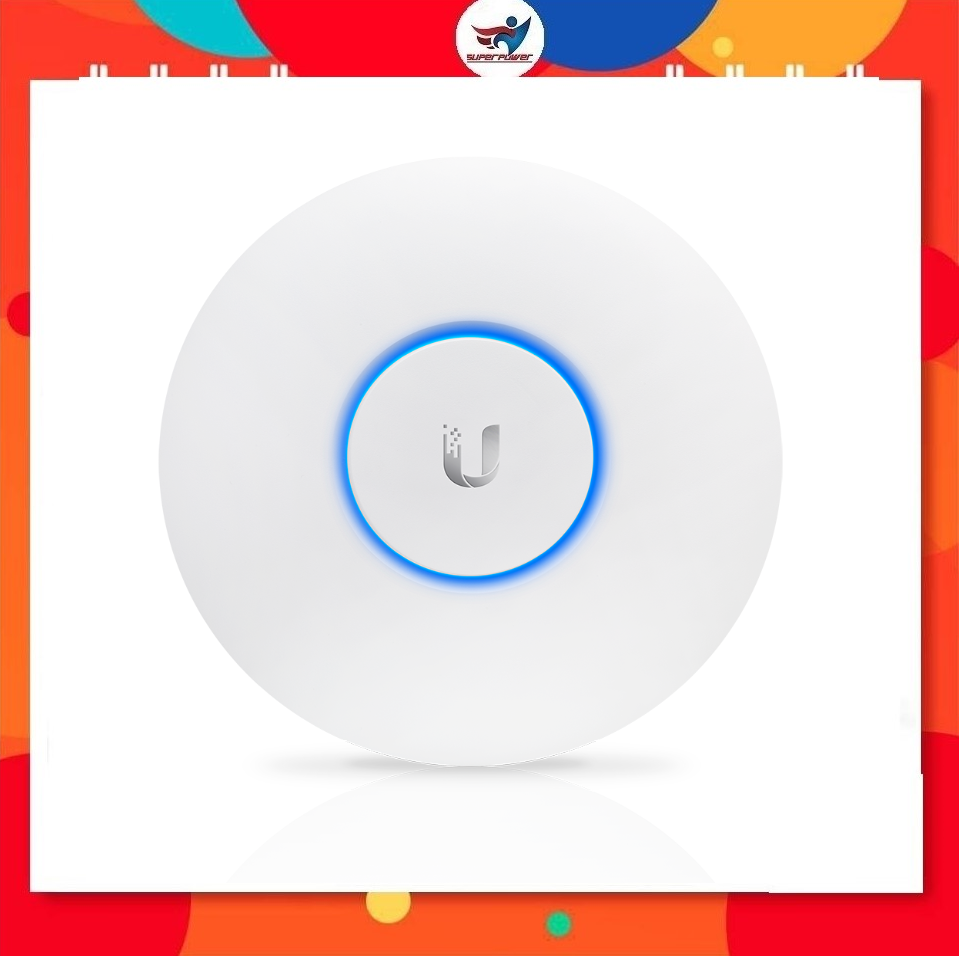

Bộ phát wifi UniFi U6 LR (không nguồn)
Access Point WiFi 6 Long-Range
It delivers an aggregate radio rate of up to 3.0 Gbps with 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz 4x4 MIMO radios. The U6-LR seamlessly blends into any environment, and is capable of being mounted in indoor and semi-outdoor environments (IP54 rated).
Features:
- 1.3 GHz dual-core processor (now upgraded to support full-duplex 1 Gbps TCP/IP performance)
- Four-stream high-efficiency Wi-Fi 6 technology
- 5 GHz band 4x4 MU-MIMO and OFDMA with radio rate of 2.4 Gbps
- 2.4 GHz band 4x4 MIMO with radio rate of 600 Mbps
- Powered with 802.3at PoE (PoE injector not included)
Mechanical
Dimensions
Ø220 x 48 mm (Ø8.66 x 1.89")
Weight
Without Mount: 800 g (1.76 lb)_x000D_ With Mount: 930 g (2.05 lb)
Enclosure Material
Plastic
Mount Material
SGCC Steel
Weatherproofing
IP54
Hardware
Processor Specs
Dual-Core® Cortex® A53 at 1.35 GHz
Memory Information
512 MB
Management Interface
Ethernet
Bluetooth Low Energy 5.0
Networking Interface
(1) 1 Gbps Ethernet RJ45
Button
Factory Reset
LED
RGB
Power Method
PoE+, Passive PoE (48V)
Power Supply
UniFi PoE Switch_x000D_ 48V, 0.5A PoE Adapter (Not Included)
Supported Voltage Range
44 to 57VDC
Max. Power Consumption
16.5W
Max. TX Power
2.4 GHz
26 dBm
5 GHz
26 dBm
MIMO
2.4 GHz
4 x 4
5 GHz
4 x 4
Throughput Speeds
2.4 GHz
600 Mbps
5 GHz
2400 Mbps
Antenna Gain
2.4 GHz
4 dBi
5 GHz
5.5 dBi
Mounting
Wall/Ceiling (Kits Included)
Operating Temperature
-30 to 60° C (-22 to 140° F)
Operating Humidity
5 - 95% Noncondensing
Certifications
CE, FCC, IC
Software
Wi-Fi Standards
802.11a/b/g_x000D_ Wi-Fi 4/Wi-Fi 5/Wi-Fi 6
Wireless Security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3*)
*Supported With Upcoming Controller Versions
BSSID
8 per Radio
VLAN
802.1Q
Advanced QoS
Per-User Rate Limiting
Guest Traffic Isolation
Supported
Concurrent Clients
300+
Supported Data Rates (Mbps)
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
1, 2, 5.5, 11 Mbps
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (Wi-Fi 4)
6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11ac (Wi-Fi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (Wi-Fi 6)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
