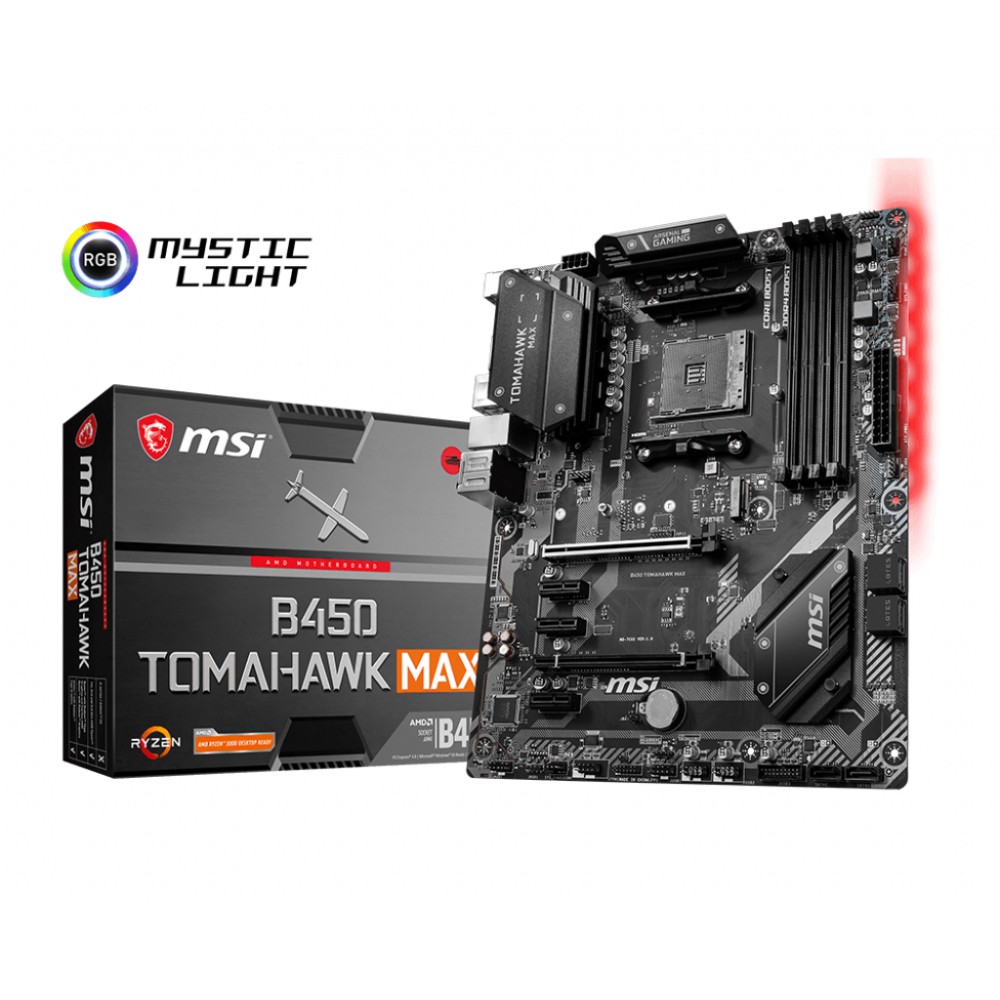

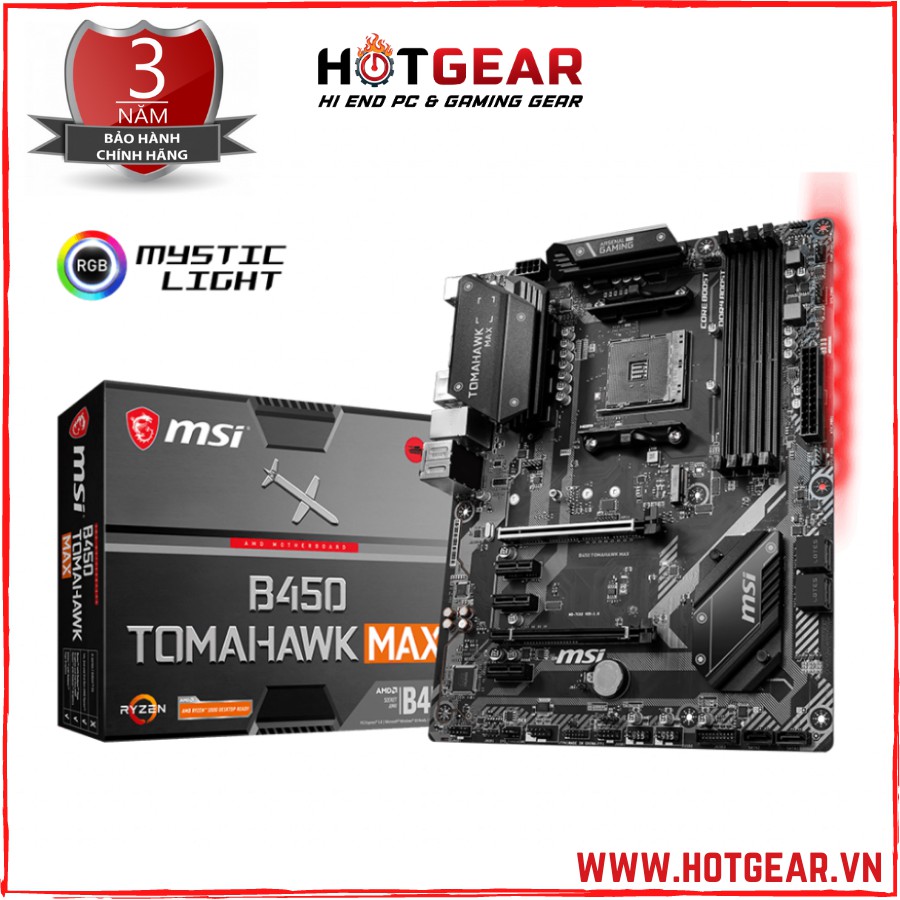

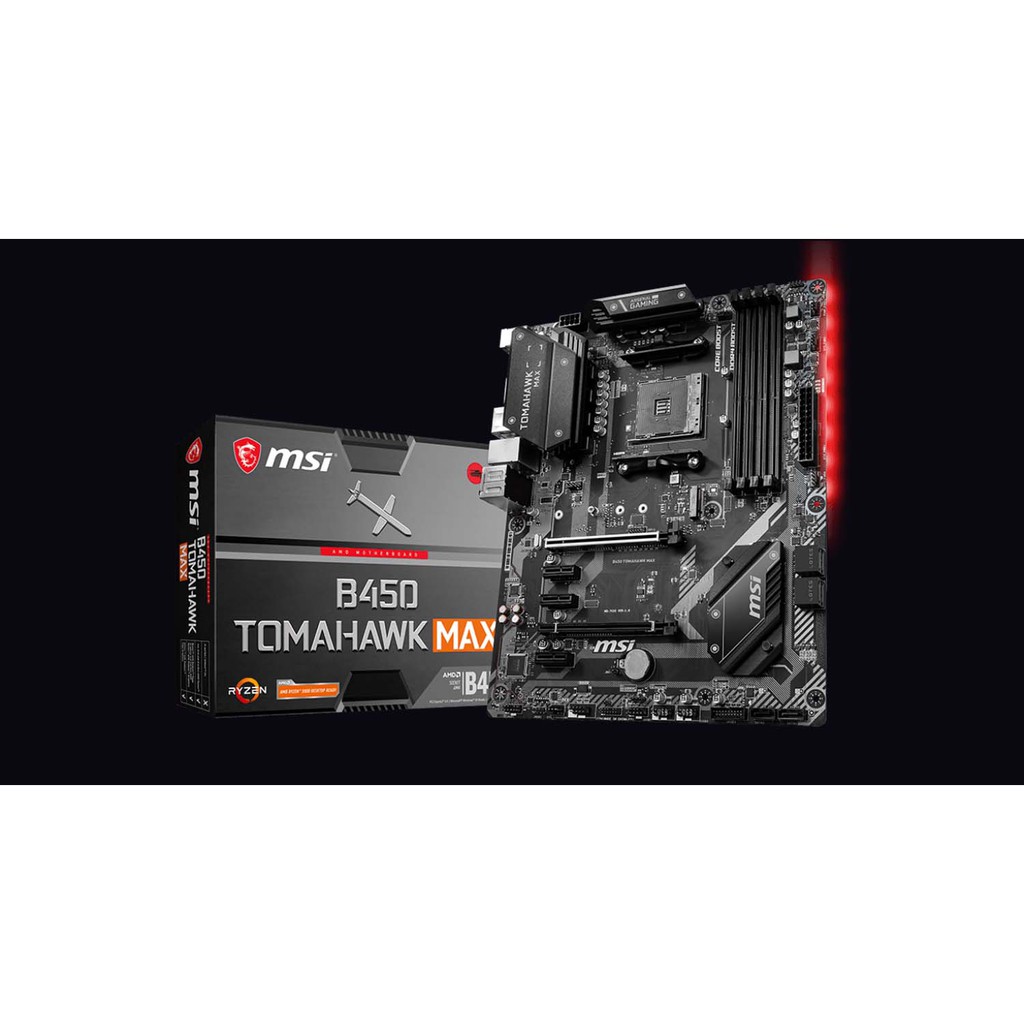

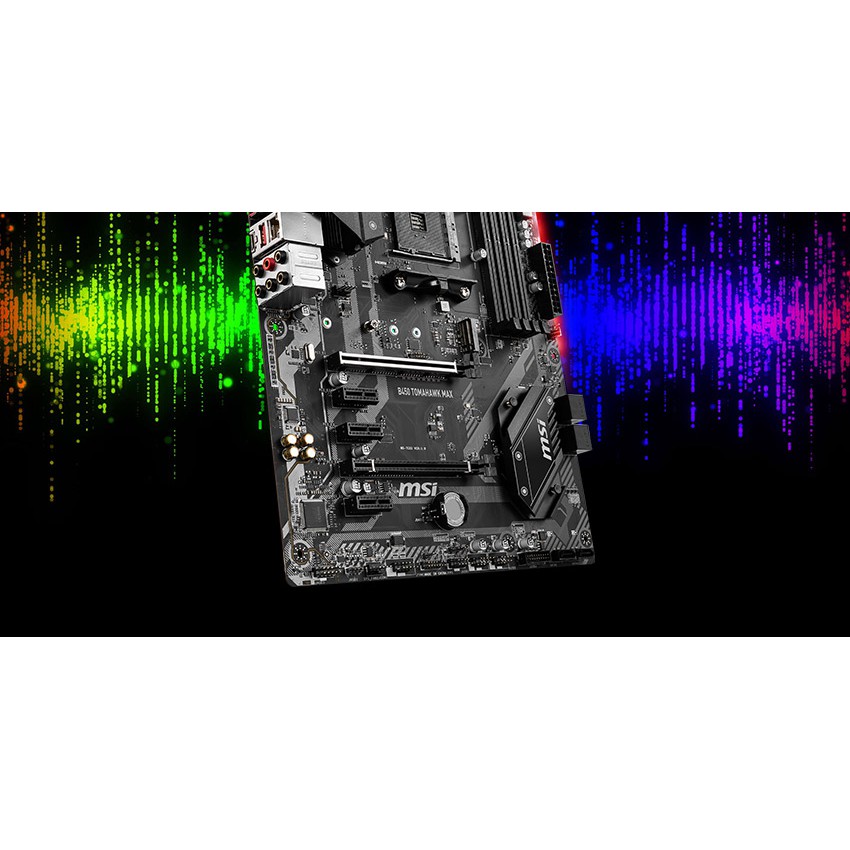

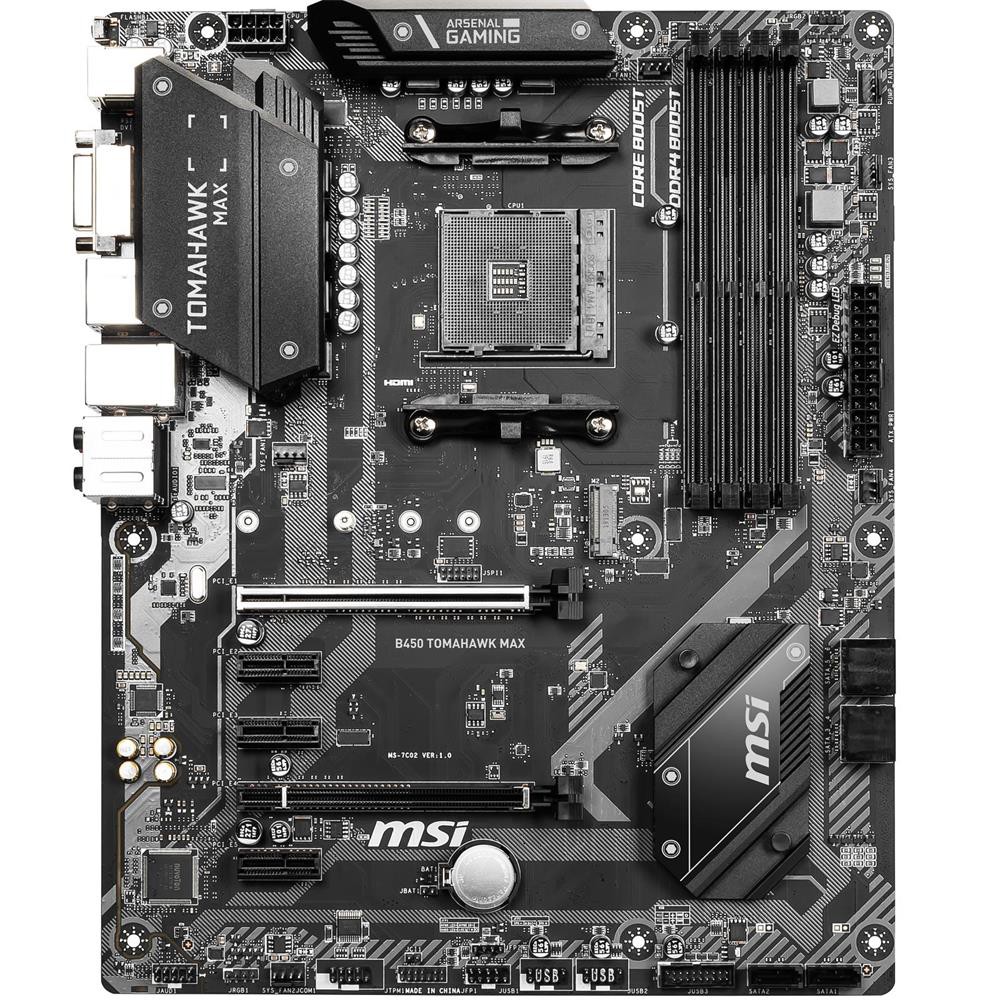

Bo mạch chủ Main MSI B450 TOMAHAWK MAX AM4 ATX ( New chính hãng bảo hành 36T)

MÔ TẢ SẢN PHẨM

Tình Trạng:

Tình Trạng:

New Full box

Bảo hành 36 tháng , Chính hãng

Supports 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4

CHIPSET

AMD®B450 Chipset

MEMORY

4 x DDR4 memory slots, support up to 64GB

Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)

For AMD Ryzen Gen3 (R5/R7/R9)

Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 4000/ 4133 MHz (by A-XMP OC MODE)

For AMD Other CPU

Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz(by A-XMP OC MODE)

Dual channel memory architecture

Supports non-ECC UDIMM memory

Supports ECC UDIMM memory (non-ECC mode)

See supported memory

SLOTS

1 x PCIe 3.0 x16 slot (PCI_E1)

1st, 2nd and 3rd Gen AMD Ryzen™ processors support x16 speed

Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics processors support x8 speed< >1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)13 x PCIe 2.0 x1 slots1PCI_E4 will run x2 speed when installing devices in PCI_E2/ PCI_E3 slot.

ONBOARD GRAPHICS

1 x DVI-D port, support a maximum resolution of 1920x1200 @60Hz1,2

1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160@30Hz, 2560x1600@60Hz1,2

Only support when using Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics processors

Maximum shared memory of 2048 MB

MULTI-GPU

Supports 2-Way AMD®CrossFire™ Technology

STORAGE

AMD®CPU

2 x SATA 6Gb/s ports1

1 x M.2 slot (Key M)1

Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) or PCIe 3.0 x2 (Athlon™ with Radeon™ Vega Graphics) and SATA 6Gb/s

Supports 2242/ 2260 /2280/ 22110 storage devices

AMD®B450

4 x SATA 6Gb/s ports

SATA5 and SATA6 ports will be unavailable when installing a M.2 device in M.2 slot.

RAID

AMD®B450

Supports RAID 0, RAID1 and RAID 10 for SATA storage devices

USB

AMD®B450

1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel

1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel

2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector

6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

AMD®CPU

2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel

AUDIO

Realtek®ALC892 Codec

7.1-Channel High Definition Audio

LAN

1 x Realtek®8111H Gigabit LAN controller

INTERNAL CONNECTORS

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

6 x SATA 6Gb/s connectors

2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)

1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports)

1 x 4-pin CPU fan connector

1 x 4-pin water-pump-fan connector

4 x 4-pin system fan connectors

1 x TPM module connector

1 x Front panel audio connector

2 x System panel connectors

1 x Chassis Intrusion connector

1 x Serial Port conn
