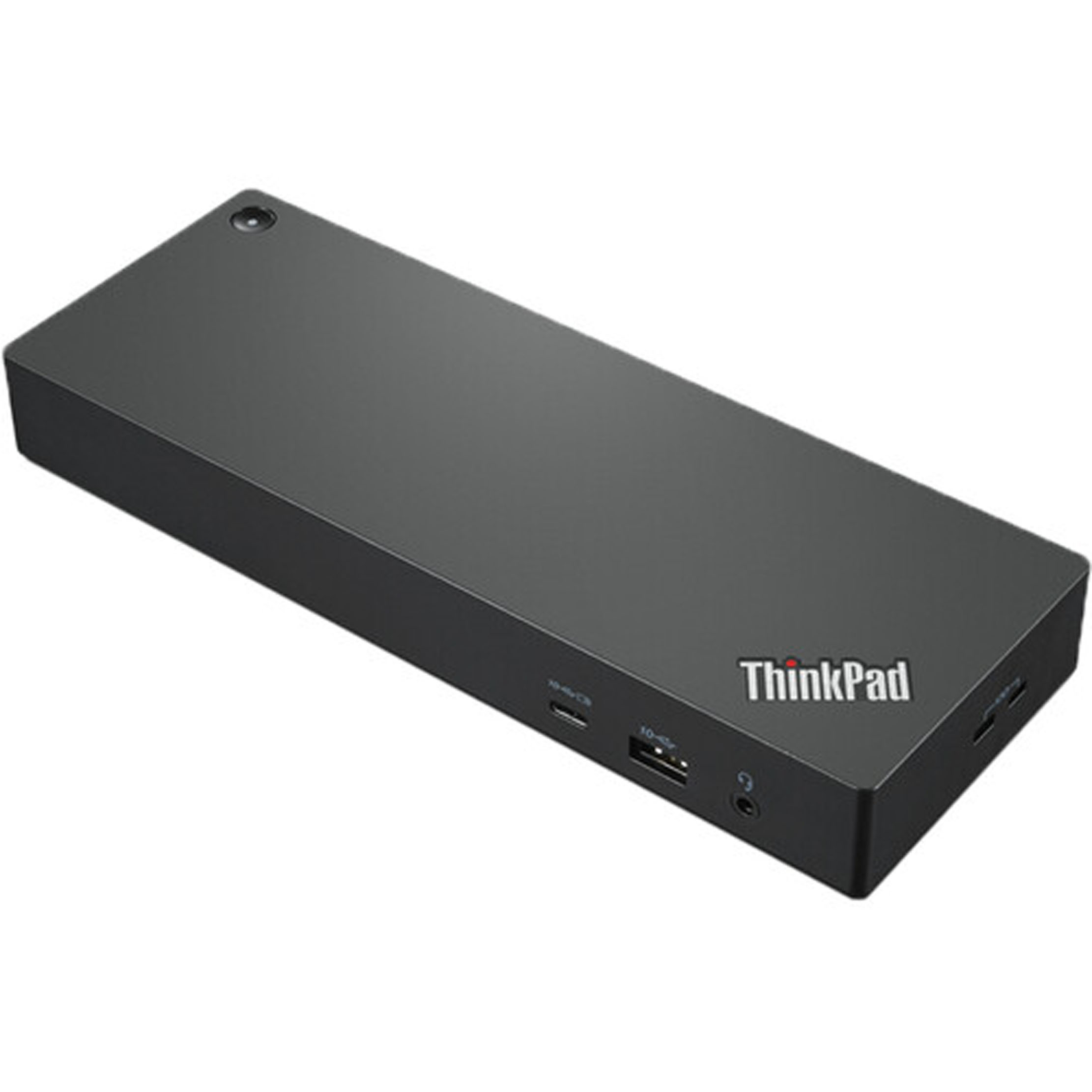

Bộ chuyển đổi Lenovo ThinkPad Universal Thunderbolt 4 Smart Dock (40B00135US) hỗ trợ 4K 5K 8K, truyền dữ liệu 40Gb/s (0401)

Tên thiết bị: Lenovo ThinkPad Universal Thunderbolt 4 Smart Dock (40B00135US) hỗ trợ 4K 5K 8K, truyền dữ liệu 40Gb/s

Model: 40B00135US

Thương hiệu: Lenovo Thinkpad

Tình trạng: đóng hộp, hàng mới, chính hãng 100%

Thời gian đặt hàng: 1 - 2 ngày

Hình ảnh thiết bị như hình chụp

Lenovo 40B00135US Overview

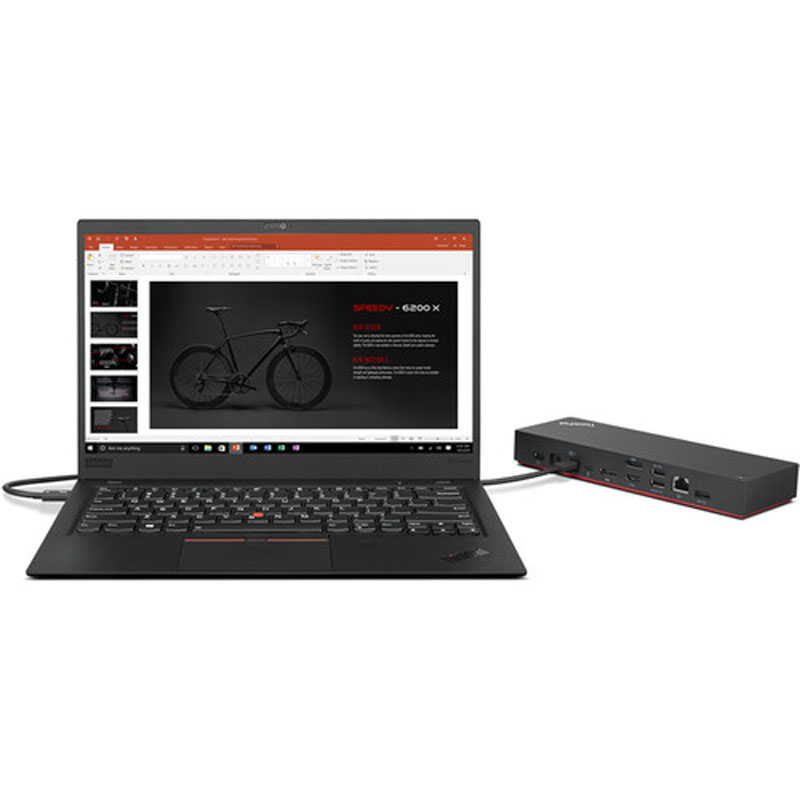

Boost your productivity by connecting the Lenovo ThinkPad Universal Thunderbolt 4 Dock
to your compatible laptop system. Taking advantage of the 40 Gb/s
Thunderbolt 4 bandwidth, this docking station allows you connect either
one 7680 x 4320 resolution 8K monitor or up to four 4K 3840 x 2160
resolution displays through its HDMI 1.4, Thunderbolt 4, and two
DisplayPort 1.4 ports to significantly enhance your multitasking
efficiency. The Thunderbolt 4 connector also supports up to 100W power
delivery There are also four USB 3.2 Gen 2 Type-A ports and a Type-C
port that can transfer up to 10 Gb/s with compatible devices. Other
convenient features include a Gigabit Ethernet port for high-speed
network connections and a 3.5mm audio jack.

Display Configuration Support

One 7680 x 4320 display @ 30 Hz (HDMI only)
One 7680 x 4320 display @ 30 Hz (HDMI only) and one d 5120 x 2880 display @ 60 Hz (Thunderbolt 4 Only)
Up to four 3840 x 2160 displays @ 60 Hz

Flexible Mounting

Mount the ThinkPad Universal Thunderbolt 4 Dock to a wall or monitor stand using VESA mount screws.

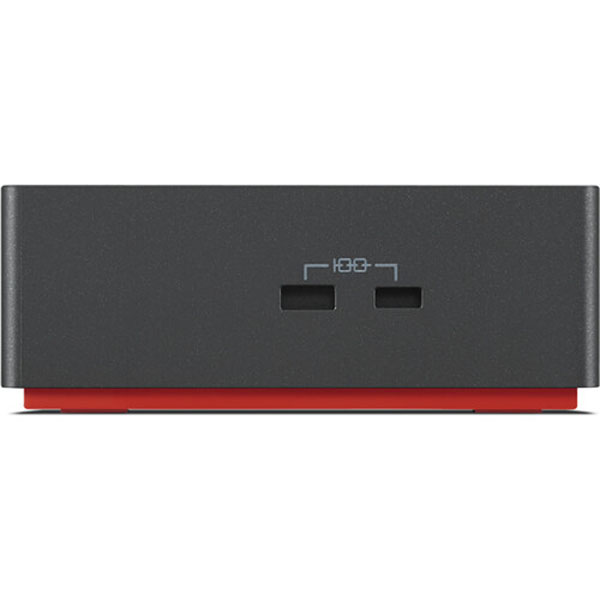

Security

Two
Kensington / Lenovo NanoSaver security lock slots are available. The
second slot supports T-bar locking technology or MiniSaver lock
standards.

Lenovo 40B00135US Specs

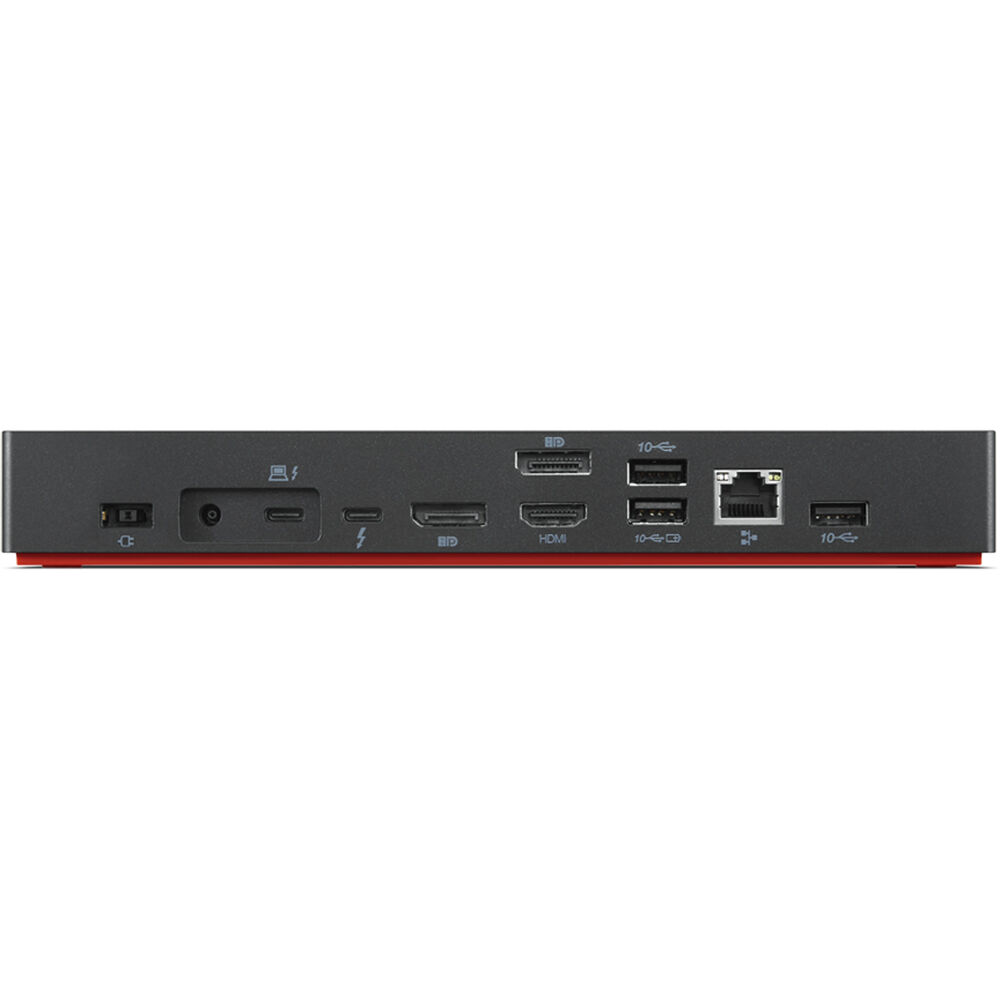

Connections

USB	4 x 1 x
Thunderbolt	1 x
Ethernet	1 x
FireWire	None
Display	1 x 2 x
Audio	1 x
Memory Card Slots	None

Host Connections

System Connection	1 x
Connection Type	Detachable Cable
Interface Max Data Rate	40 Gb/s

General

Number of Displays Supported	4
Maximum Resolution Supported	7680 x 4320 at 30 Hz (Single Display)3840 x 2160 at 60 Hz (Dual Display)3840 x 2160 at 60 Hz (Triple Display)3840 x 2160 at 60 Hz (Quad Display)
Compatibility	Lenovo ThinkPad
Operating System Support	Windows
UASP Support	Yes

Power

Power Source	AC Adapter
Power Port	Barrel Connector (Unspecified Diameter)
DC Input Power	20 VDC at 6.75 A

Environmental

Operating Temperature	32 to 104°F / 0 to 40°C
Operating Humidity	95%

Physical

Lock Slot	Yes, Kensington
Dimensions	8.7 x 3.1 x 1.2" / 220 x 80 x 30 mm
Weight	0.99 lb / 0.45 kg

Packaging Info

Package Weight	2.815 lb
Box Dimensions (LxWxH)	10.9 x 6.4 x 3"

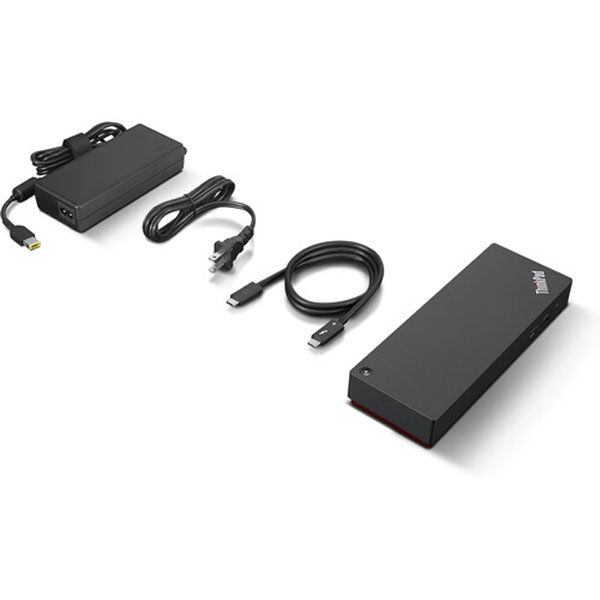

In the Box

• Lenovo ThinkPad Universal Thunderbolt 4 Dock
• 135W Power Adapter
• Power Cable
• Thunderbolt Cable
• Limited 1-Year Warranty
