Set Akko CS switch (45 switch)

Key Changes for the New CS Switches:
1) Clear PC bottom ( previously using POM);
2) Dustproof stem added;
3) Dual tactile bump for Jelly Blue & Sponge (both when pressing and releasing);
4) Two-stage switch springs on Starfish.

AKKO Custom Series (CS) Jelly Switch

As one of the popular custom switch, AKKO CS switch series have gain good feedback form the community. Previously we have released six different types of switches and now we are introducing new jelly series to AKKO CS family. Jelly series include six types of switches, either linear or tactile. The purpose of releasing the customer switches series is to offer more options to keyboard enthusiasts as every tiny bit of changes would create distinct typing experiences.

About Lubes

It is always subjective when it comes down to the level of lubes that need to be applied on individual switch. Meanwhile, lubing the switches by machine might also affect the lifespan of switches. Thus, concerning those factors, AKKO CS switches will not come factory-lubed at the moment. AKKO CS switches do have a thin layer of dry film in the shrapnel for lubrication purpose, but there is no lube at all on any other parts such as top, stem or spring.

Compatible with MX Structure Keycaps

AKKO CS switches are designed with general MX structure so that they can fit most keycaps sets with (X) cross stem. This greatly improves the compatibility and you can feel free to change the switch and remake your own keyboard.

Built-in LED Slot&Durable Lifespan

AKKO CS switches are equipped with north-facing LED slot for LED modification. It is also compatible with SMD LED. This provides more fun feature and options for those who are a DIYer. With a lifespan of approximate 50 million times of keystrokes based on laboratory durability test, you are rest assured with the long lifespan.

Chose The Type Based On Your Needs

These extra six types of AKKO CS switches are designed with different configurations to meed various needs. Either you are in favour of a tactile feel or linear feel, you are able to find one switch among tons of choices.

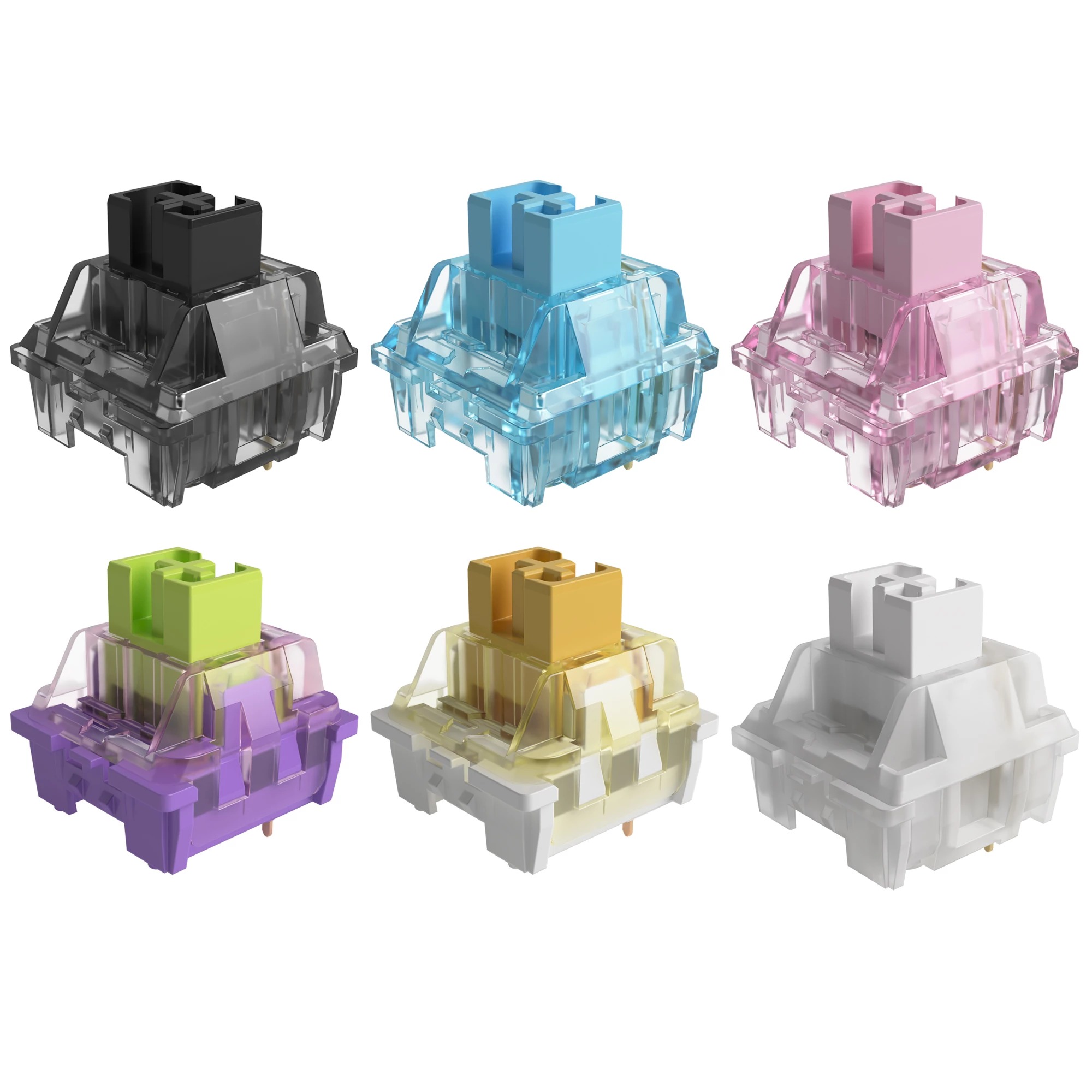

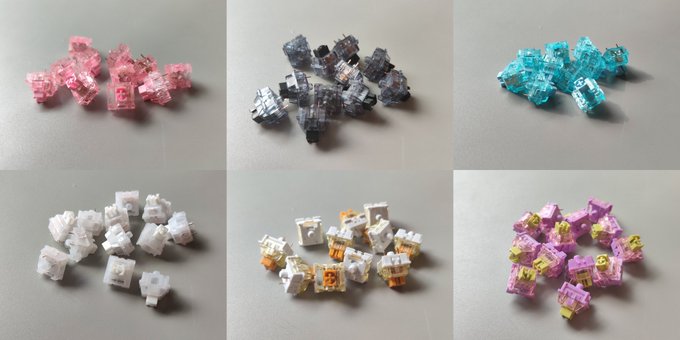

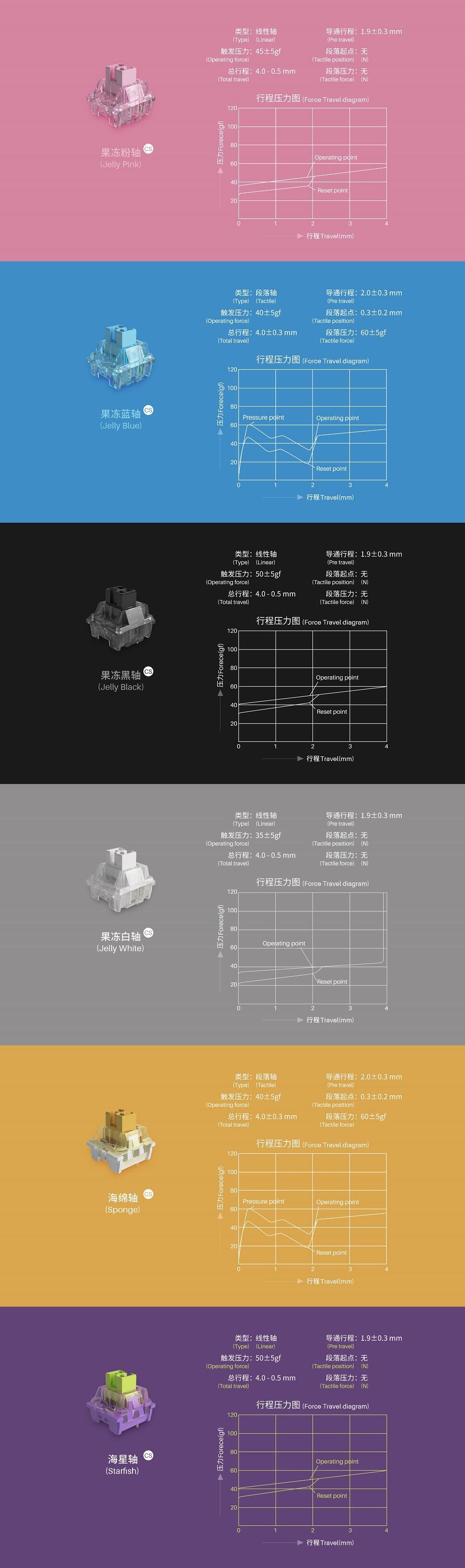

SPECIFICATIONS FOR EACH TYPE OF SWITCH

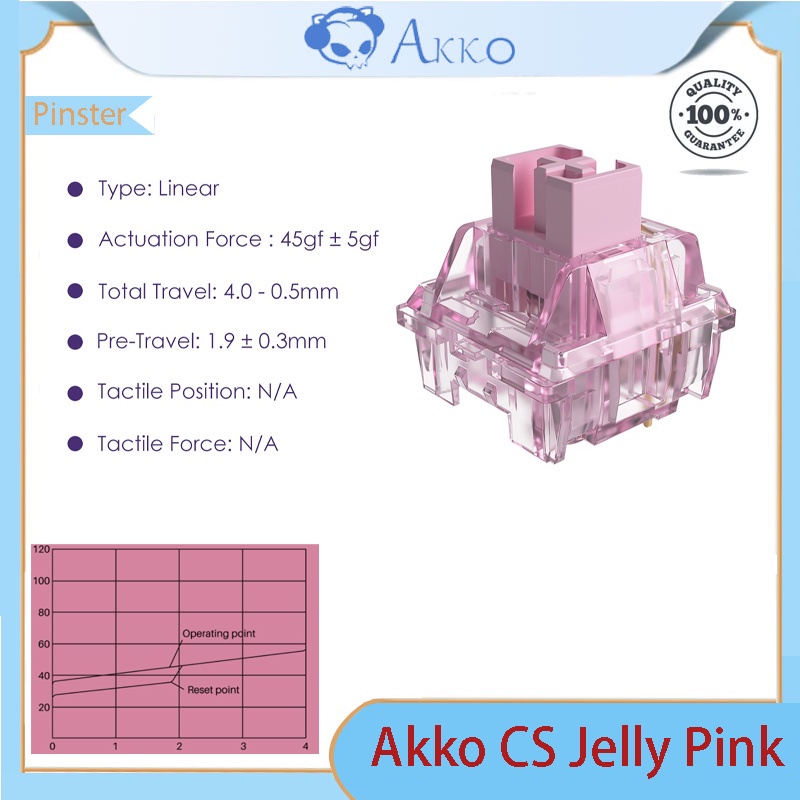

AKKO CS JELLY PINK SWITCH

Type: Linear

Operating force: 45+/-5gf

Total travel: 4.0-0.5mm

Pre travel: 1.9+/-0.3mm

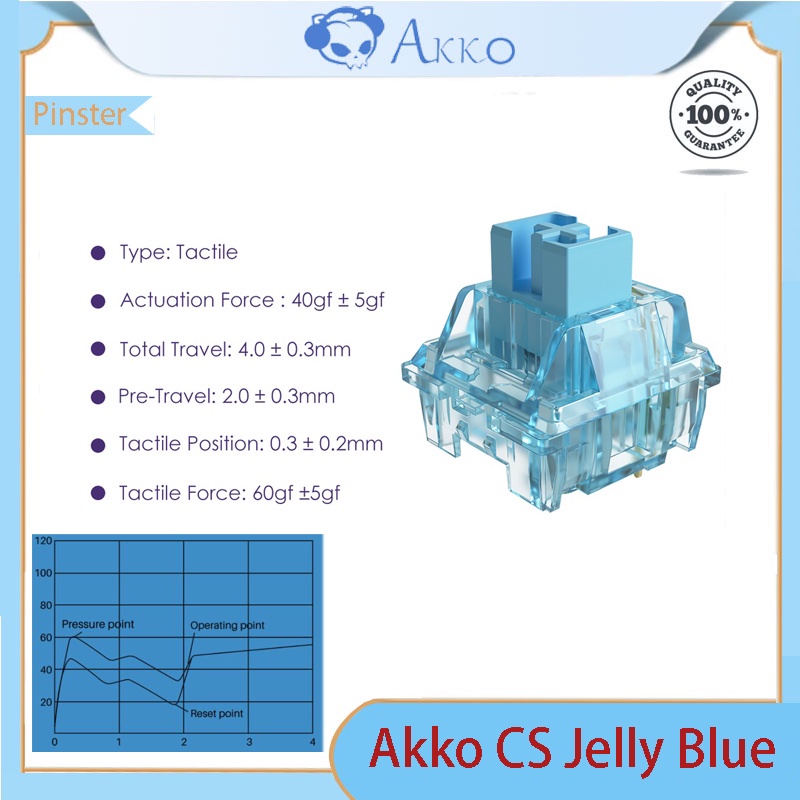

AKKO CS JELLY BLUE SWITCH

Type: tactile

Operating force: 40+/-5gf

Total Travel: 4.0-0.3mm

Pre Travel: 2.0+/-0.3mm

Tactile position: 0.3+/-0.2mm

Tactile force: 60+/-5gf

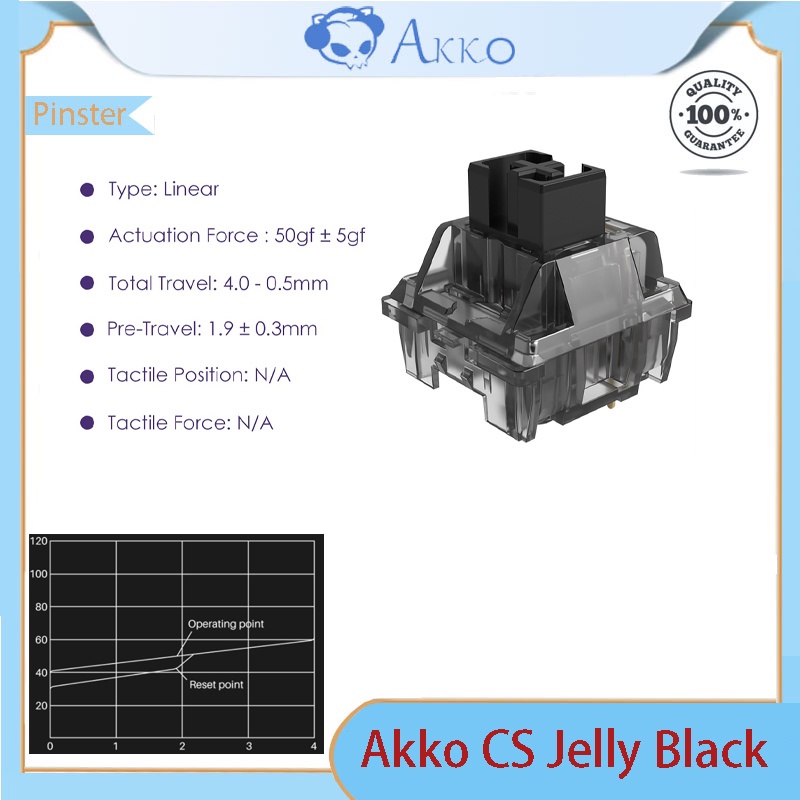

AKKO CS JELLY BLACK SWITCH

Type: Linear

Operating force: 50+/-5gf

Total Travel: 4.0+/-0.5mm

Pre Travel: 1.9+/-0.3mm

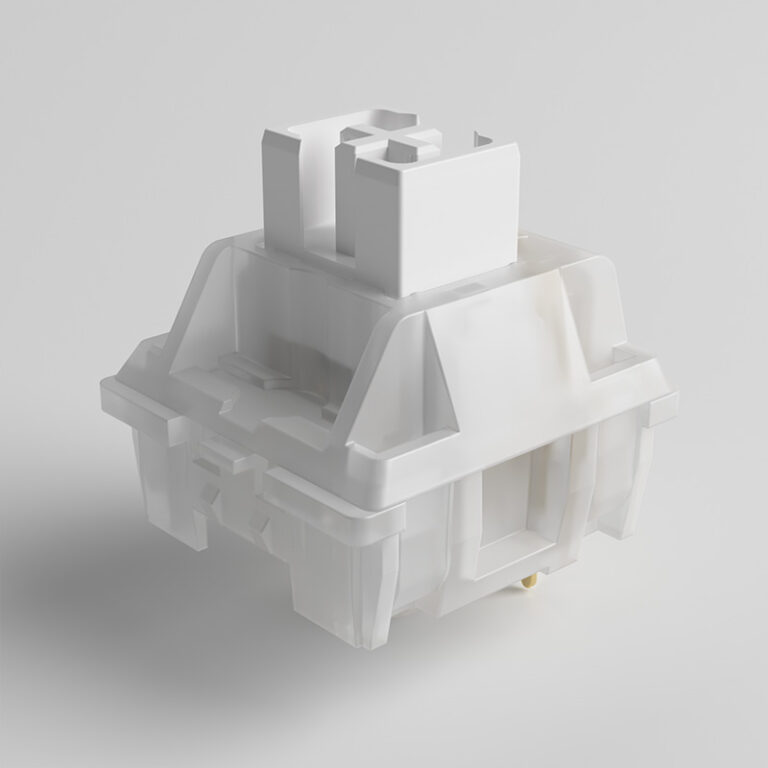

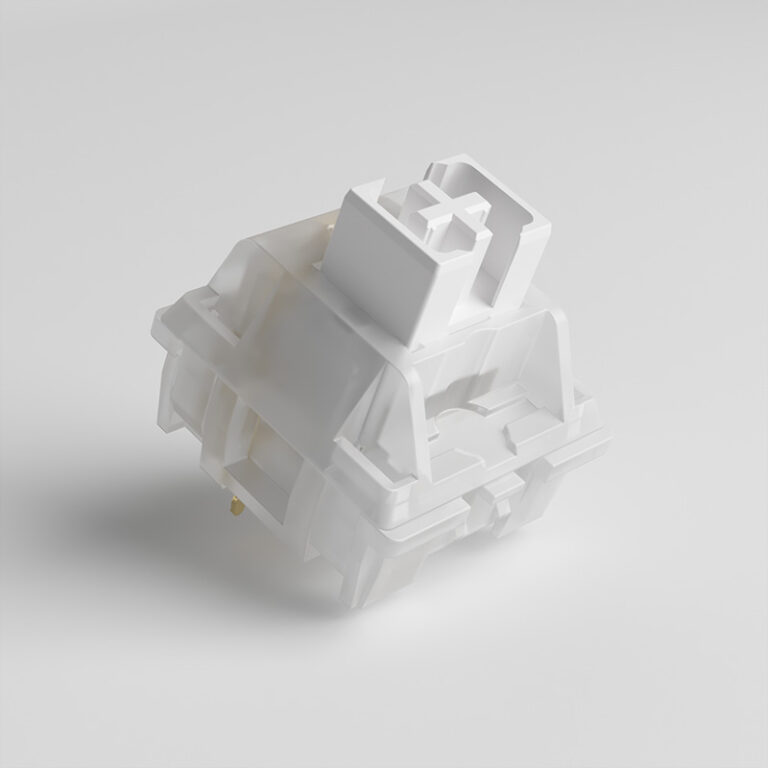

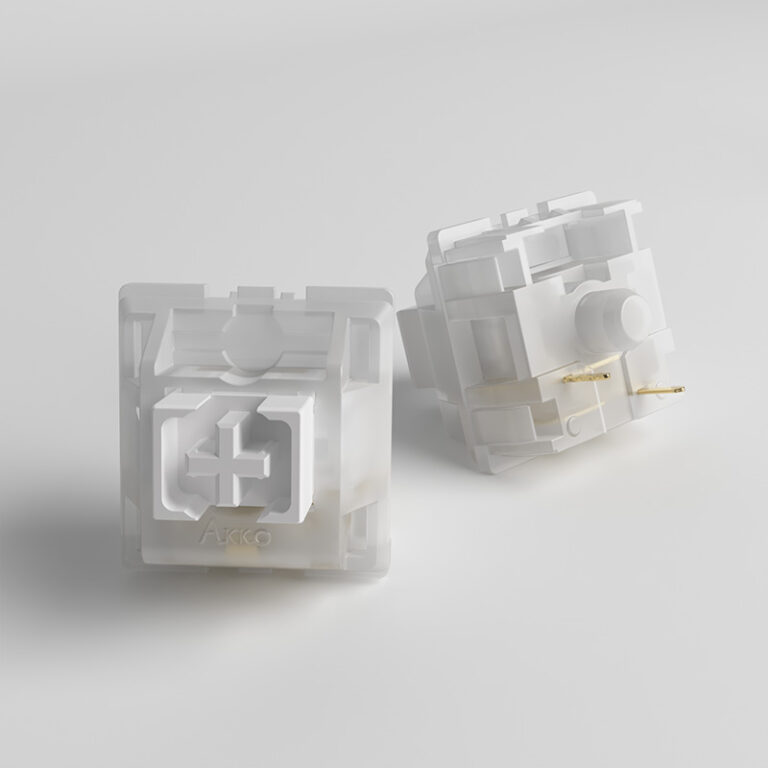

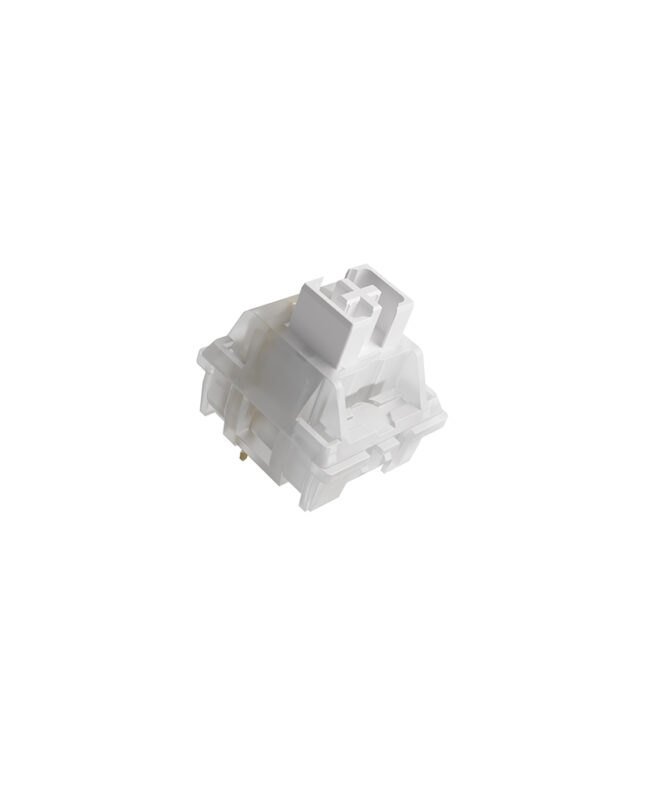

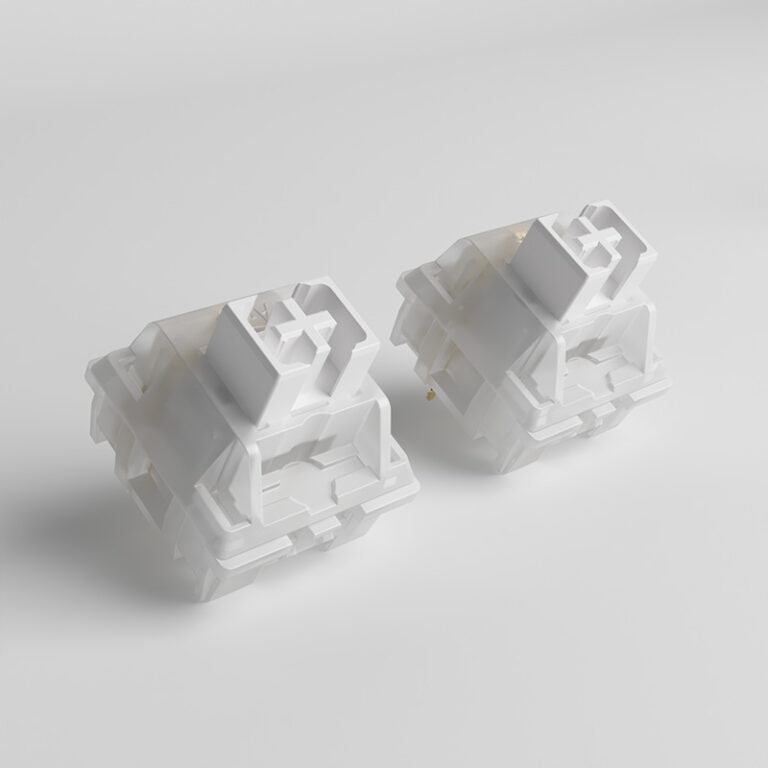

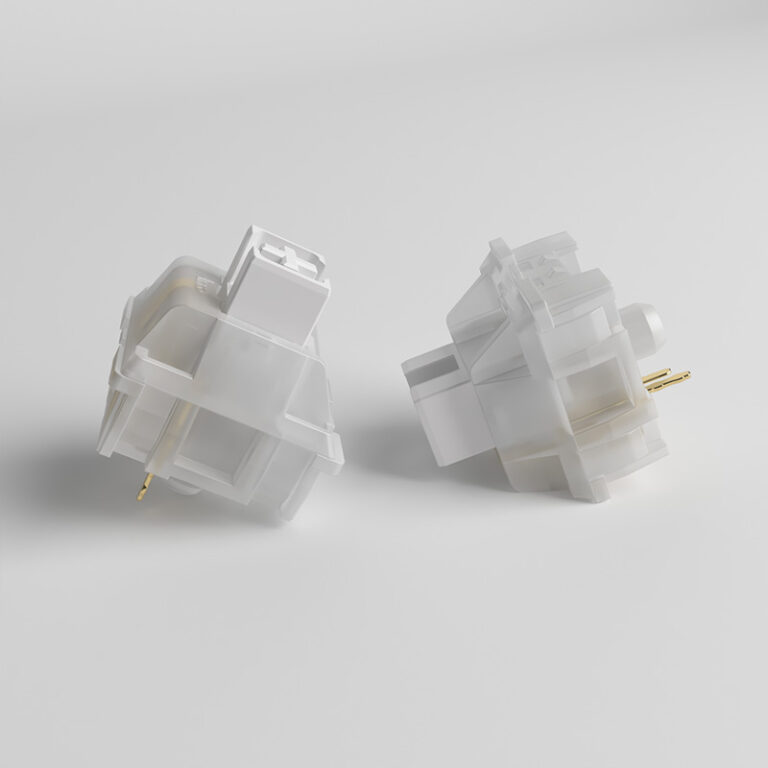

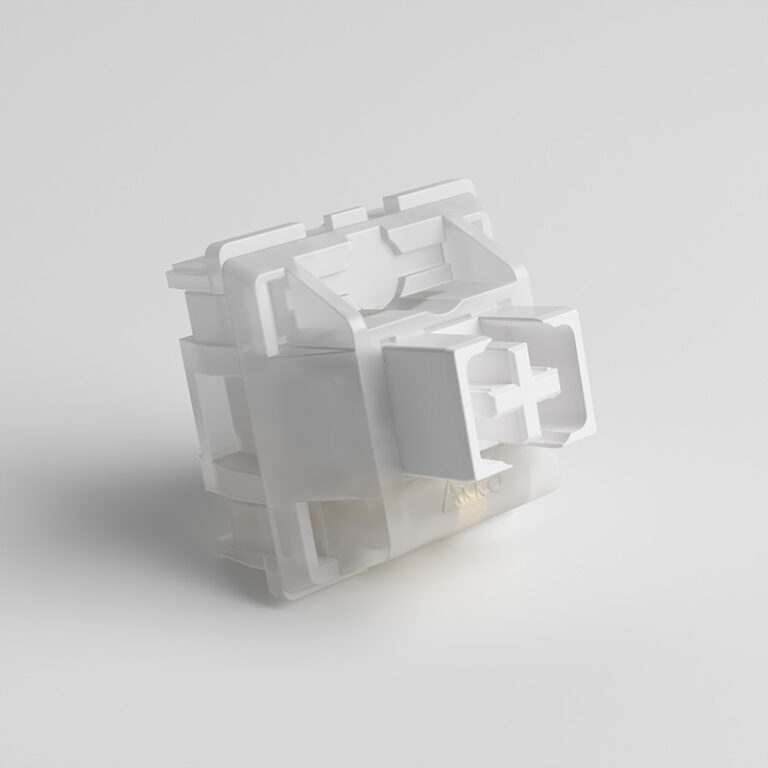

AKKO CS JELLY WHITE SWITCH

Type: linear

Bottom Force: 35gf+/-5gf

Total Travel: 4.0-0.5mm

Pre Travel: 1.9+/-0.3mm

AKKO CS SPONGE SWITCH

Type: tactile

Operating Force: 40gf+/-5gf

Total Travel: 4.0+/-0.3mm

Pre Travel: 2.0+/-0.3mm

Tactile position: 0.3+/-0.2mm

Tactile force: 60+/-5gf

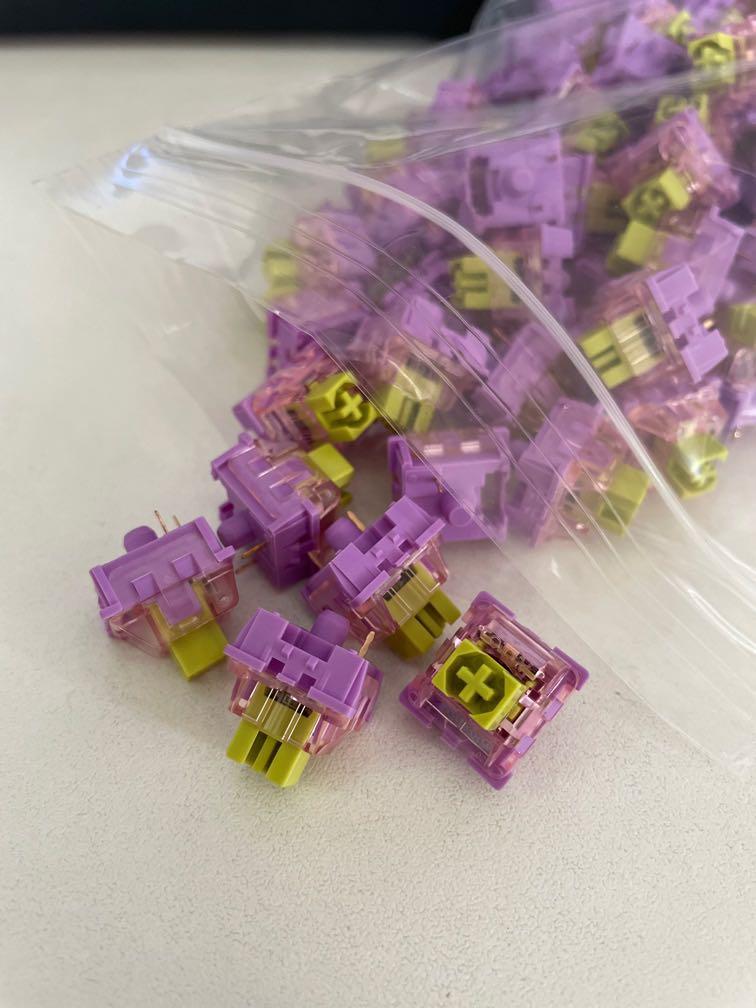

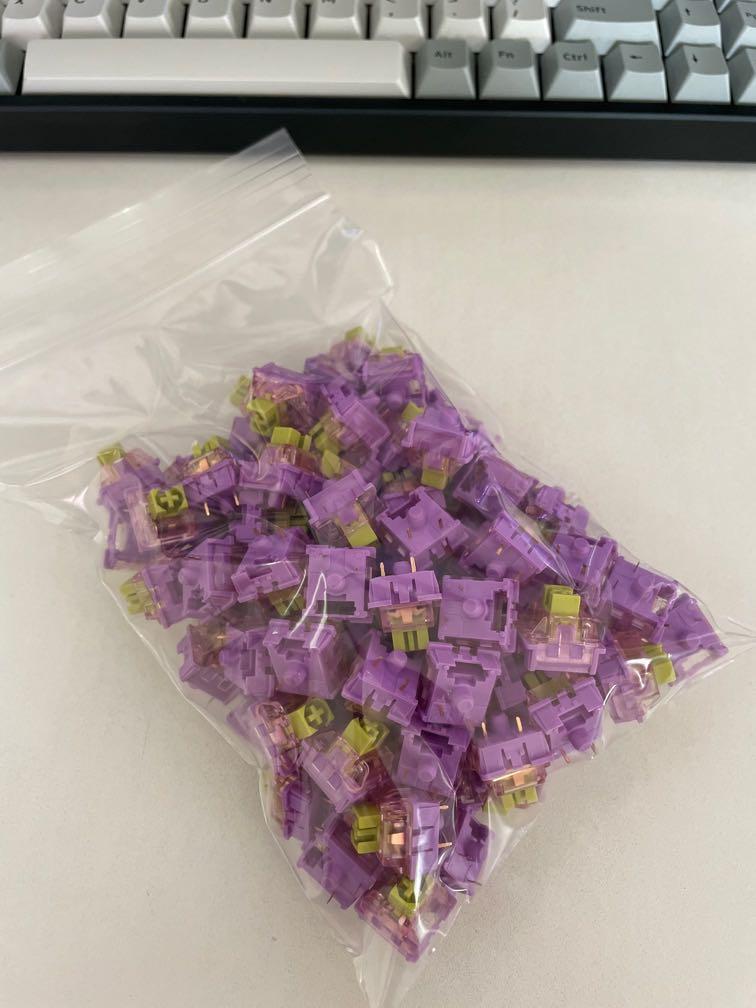

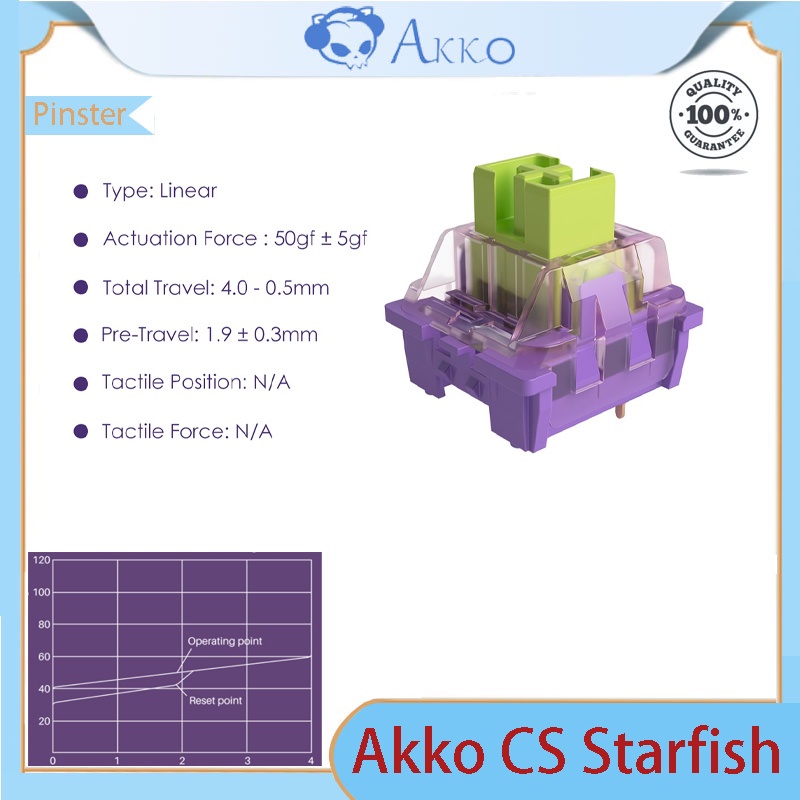

AKKO CS STARFISH SWITCH

Type: Linear

Operating force: 50+/-5gf

Total travel: 4.0+/-0.5mm

Pre travel: 1.9+/-0.3mm

PRODUCT SPECIFICATIONS

Jelly Pink - LinearJelly Blue - TactileJelly Black - LinearJelly White - LinearSponge - TactileStarfish - LinearCompatible with SMD LED
