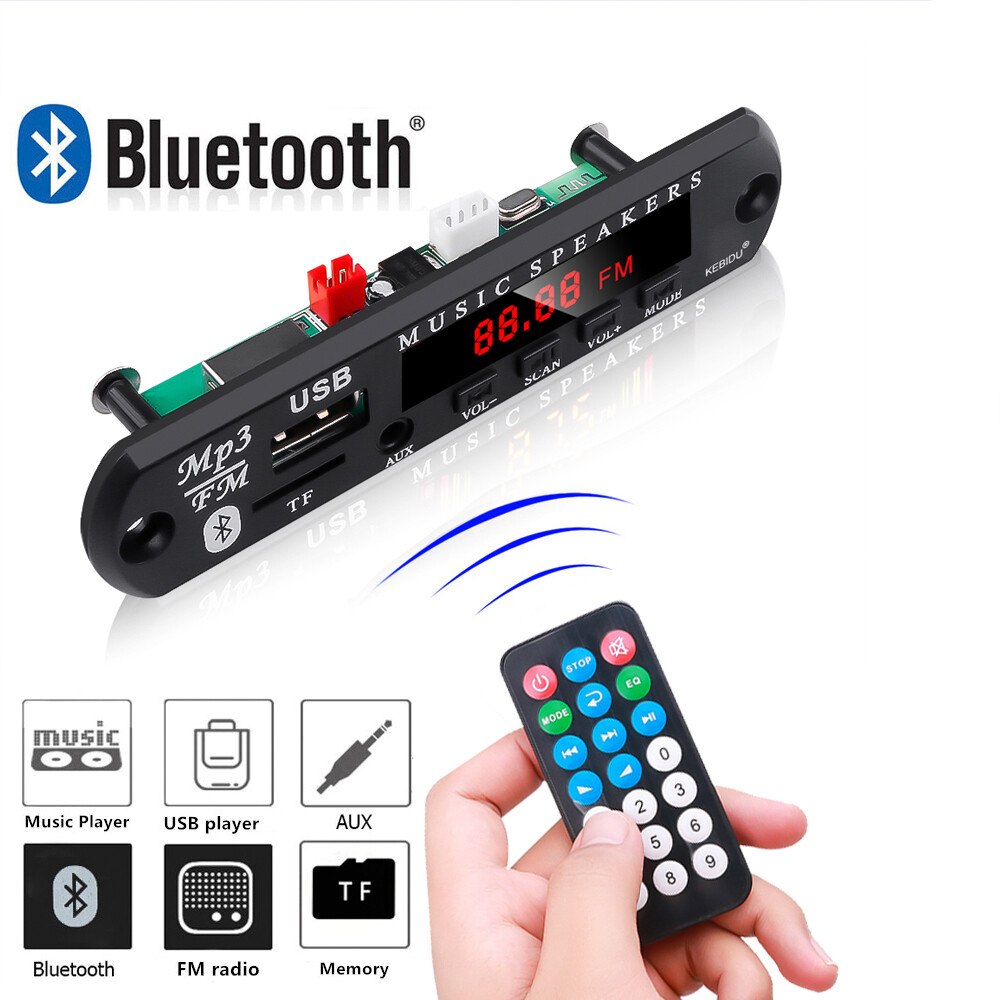

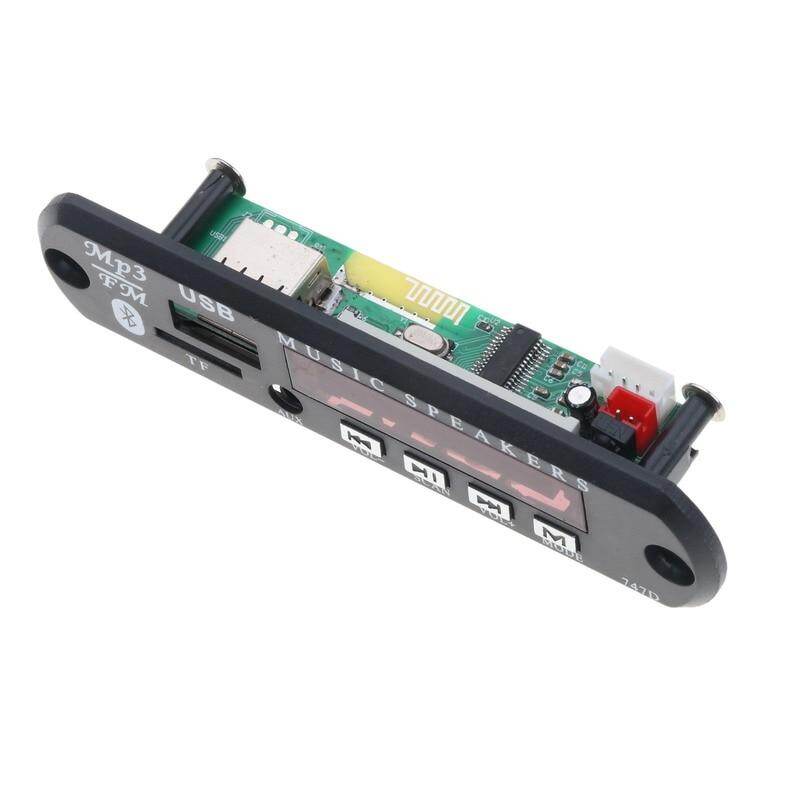

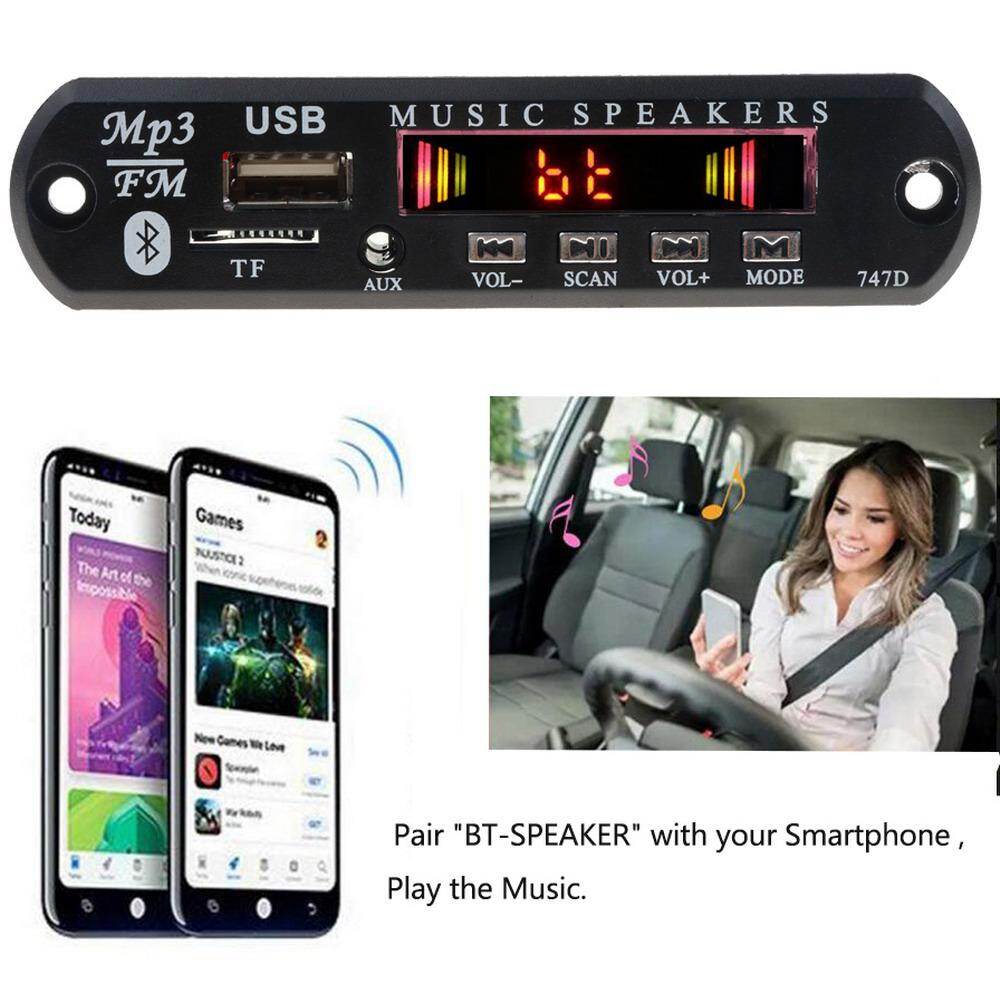

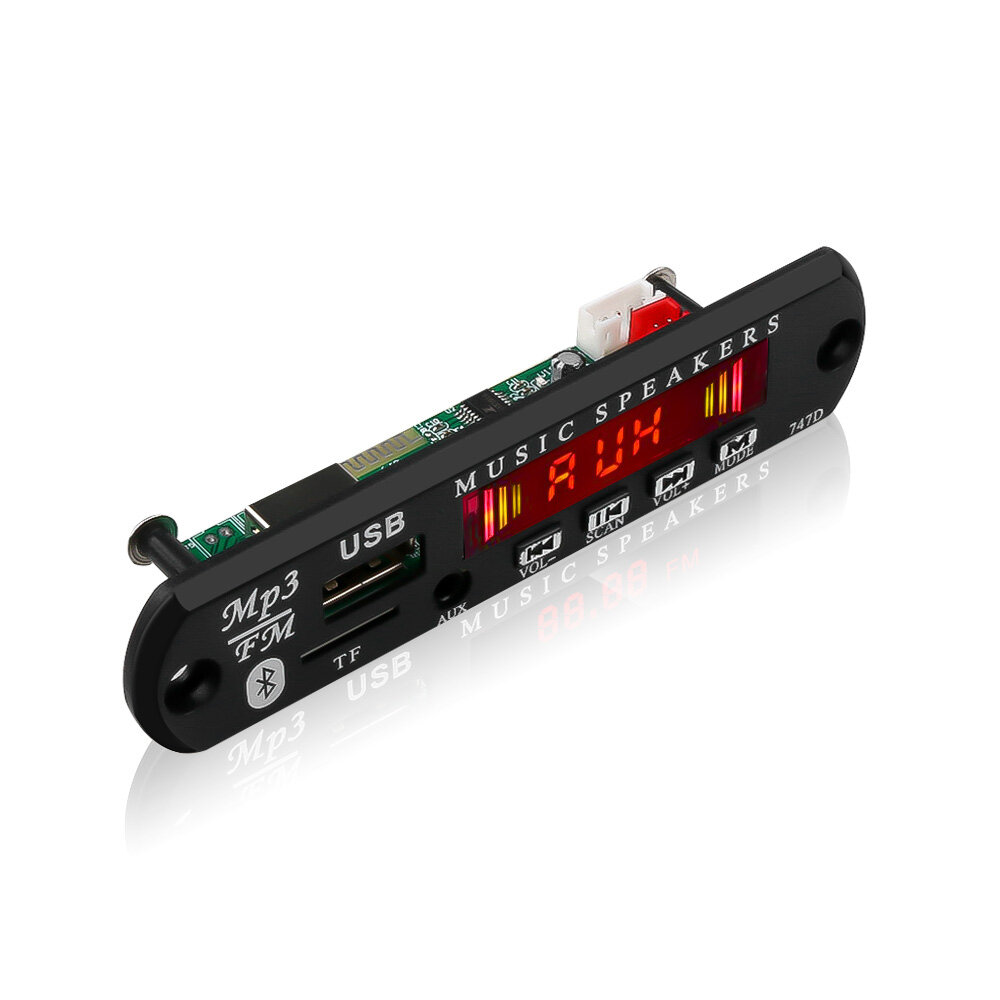

5V 12V Wireless Bluetooth MP3 WAV WMA Decoder Board MP3 Player Module Audio Car Kit With USB U DiskTF FM Radio External3.5mm Aux Line-in Function Music Audio Receiver With Remote Controller (LED and Color LCD Screen Version for Optional)
Version 1:
BT + Color LCD: Bluetooth with Color LCD Screen Version
Version 2:
BT + LED:Bluetooth with Single LED Screen Version
***Please choose and confirm the version you'd like while place order, and we will arrange the shipment according to your optioned version.
Specification:
Installation pitch: 92 mm wide
Installation hole: 83 x 20 x 38 mm
Overall dimensions: 107 x 25 x 38 mm (W x H x D)

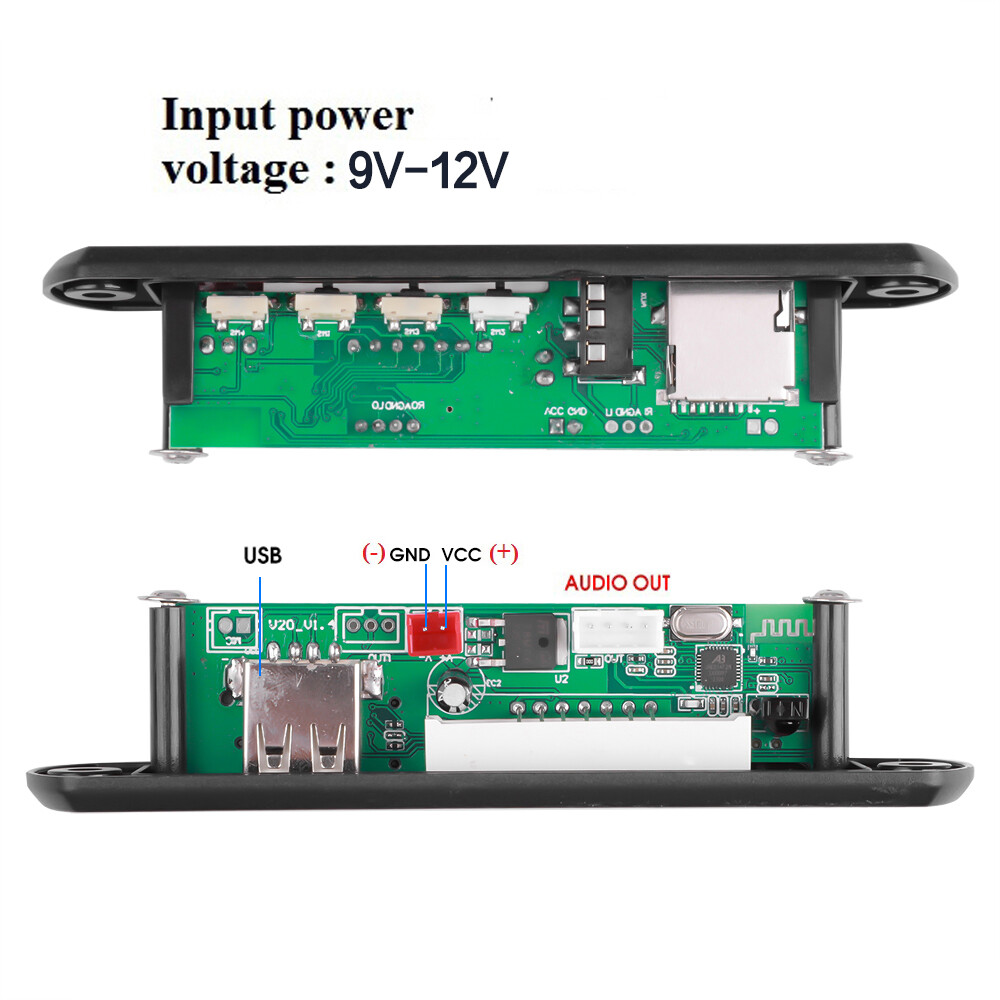

Input voltage: 5-12V

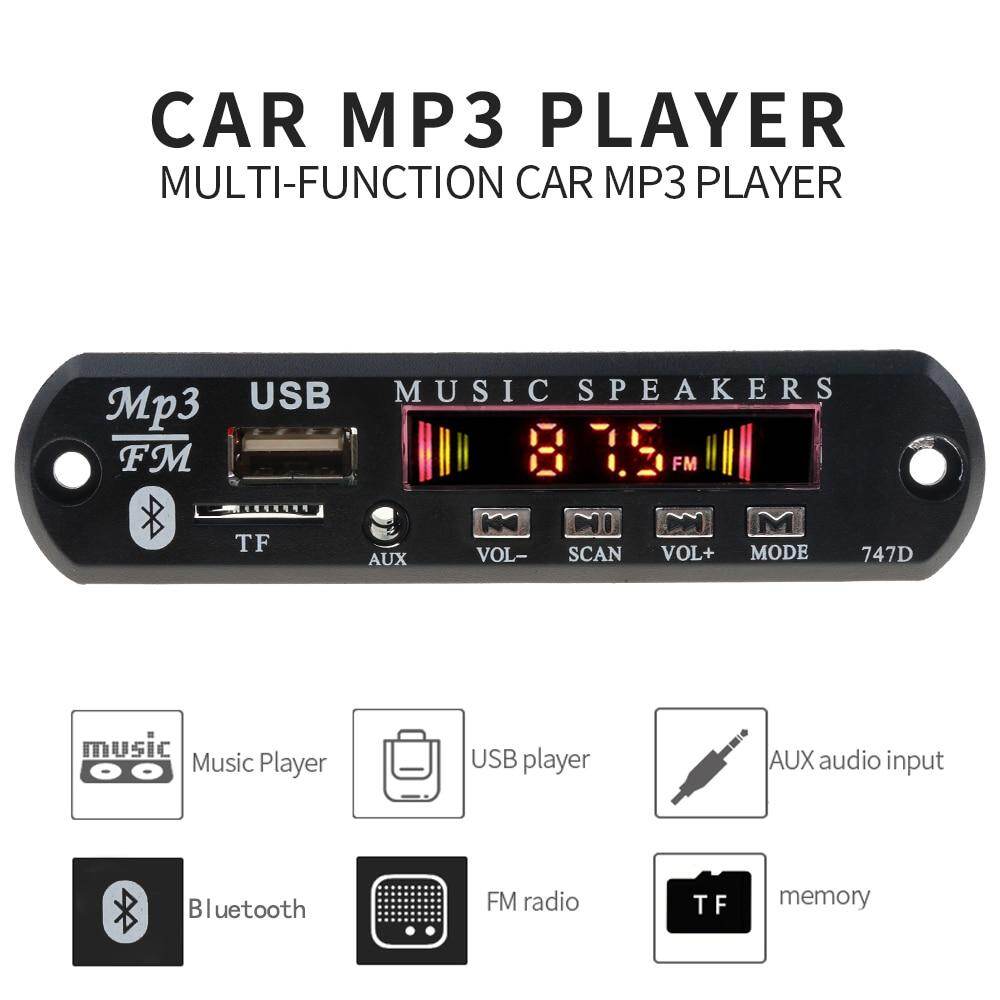

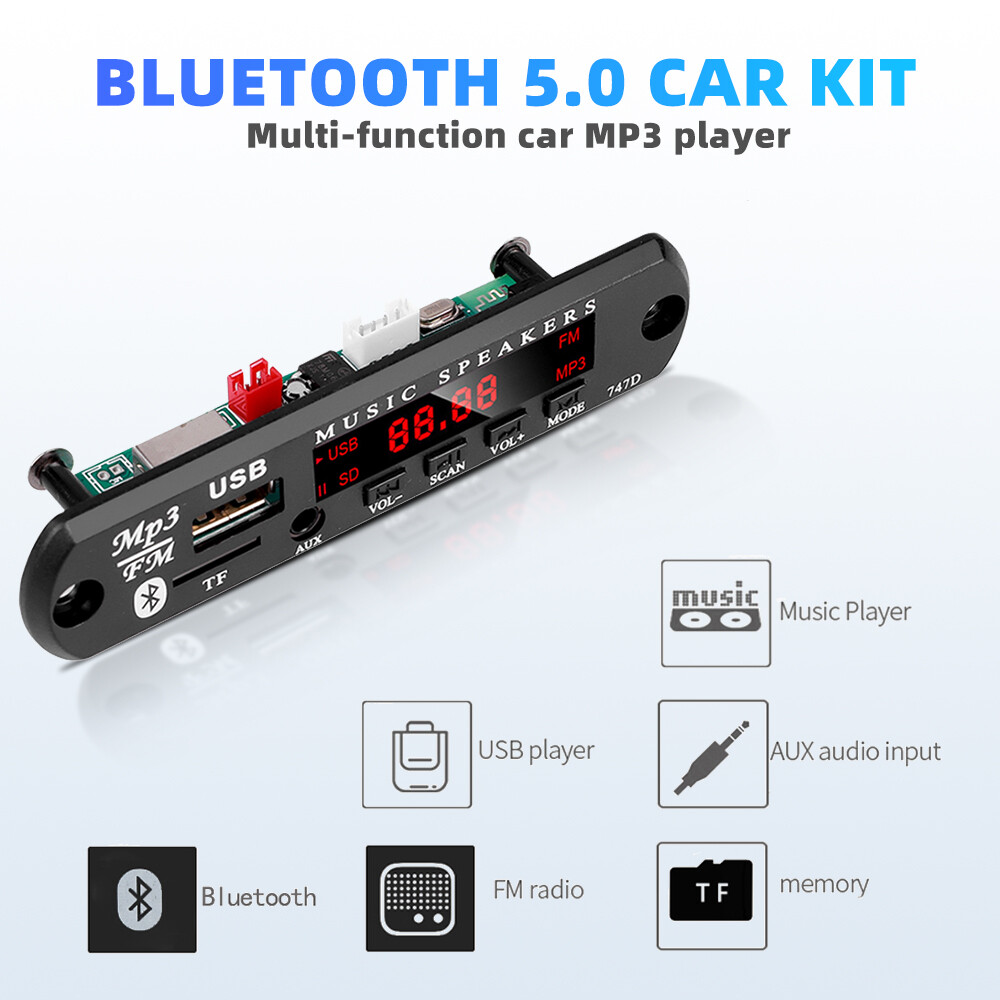

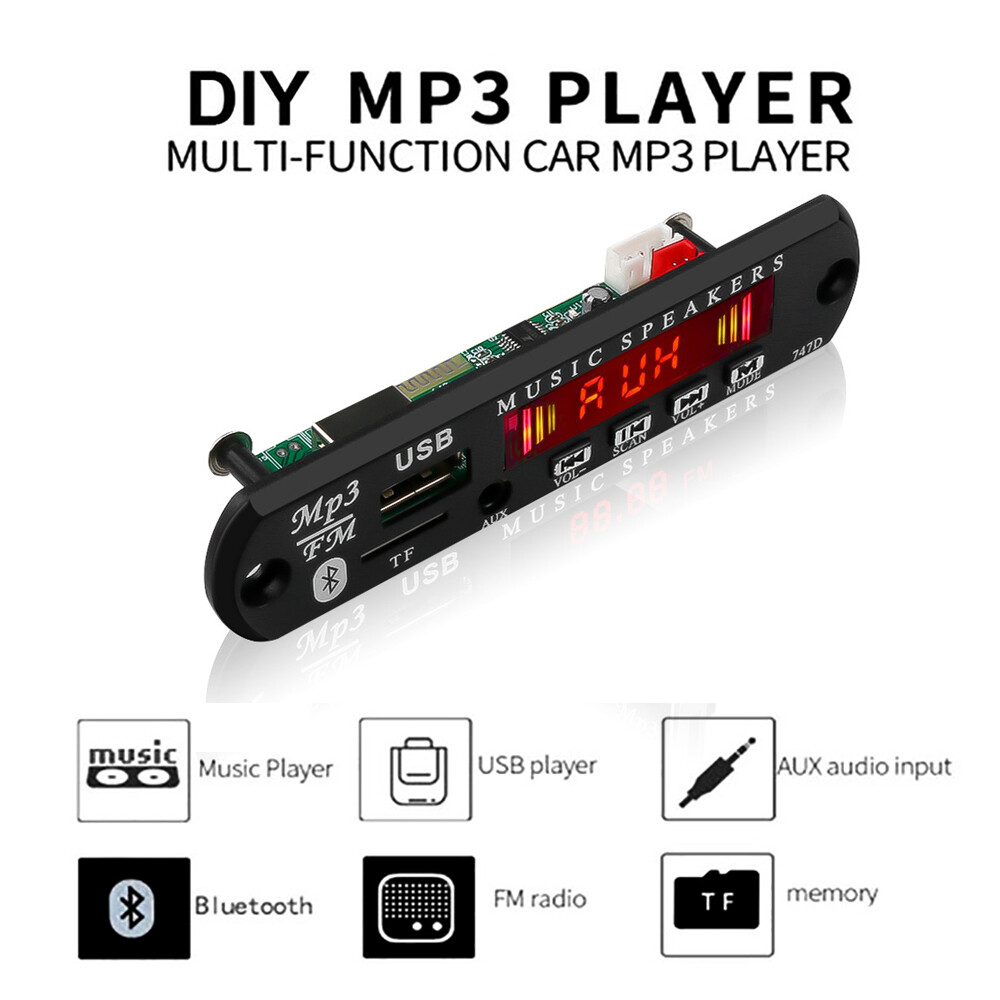

Main function:
1. Double decoding supports music in MP3/WMA/WAV format;

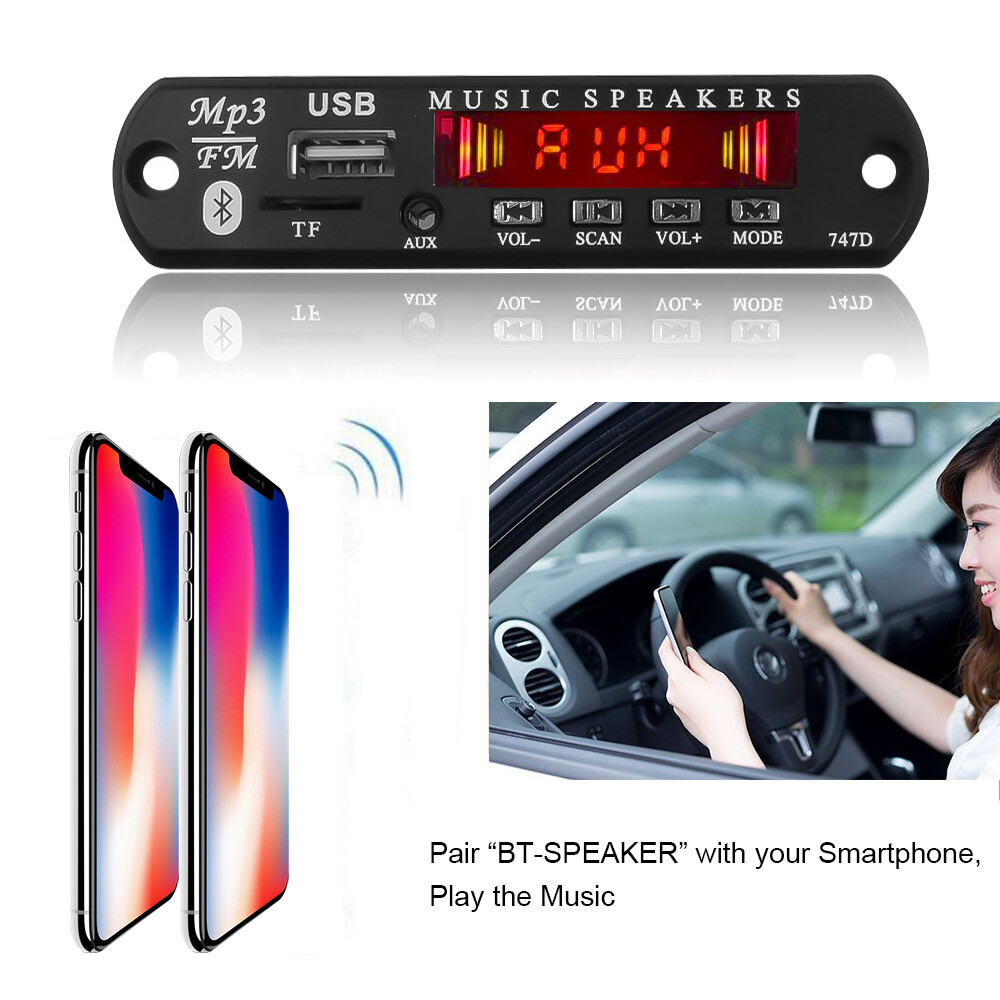

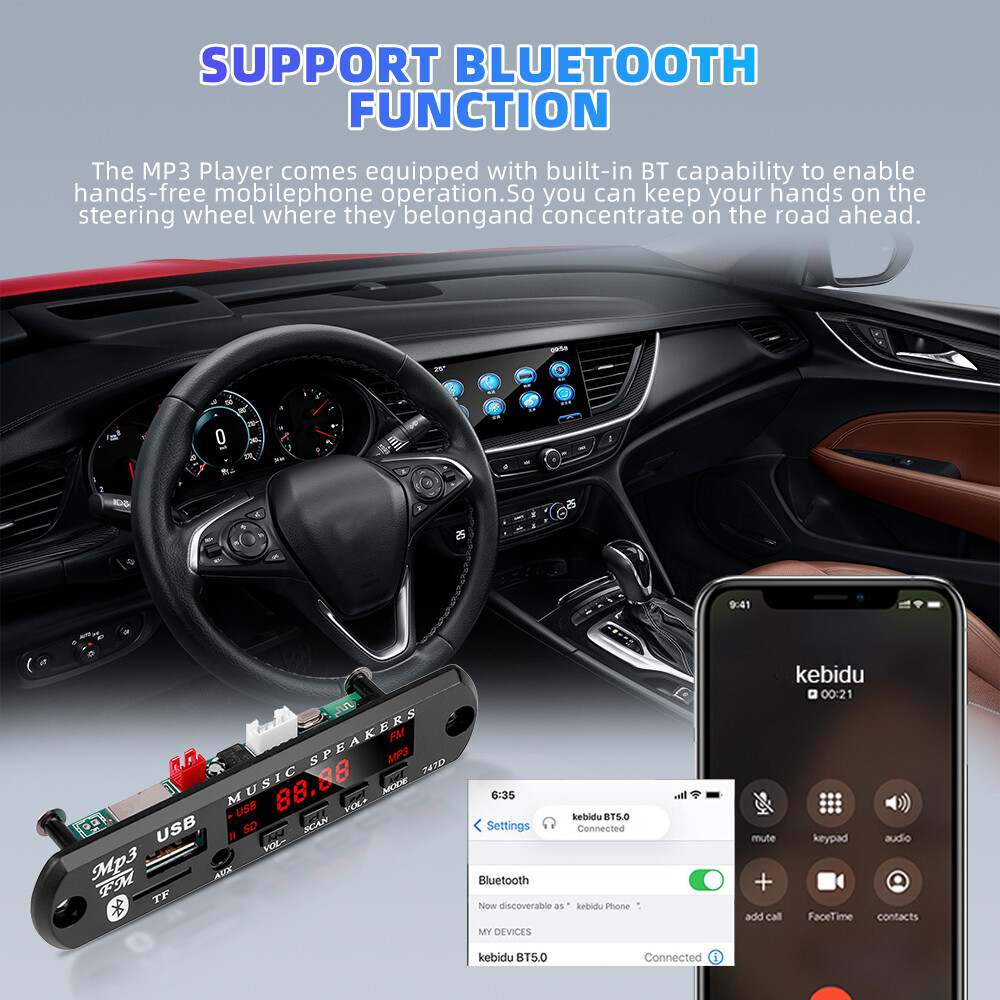

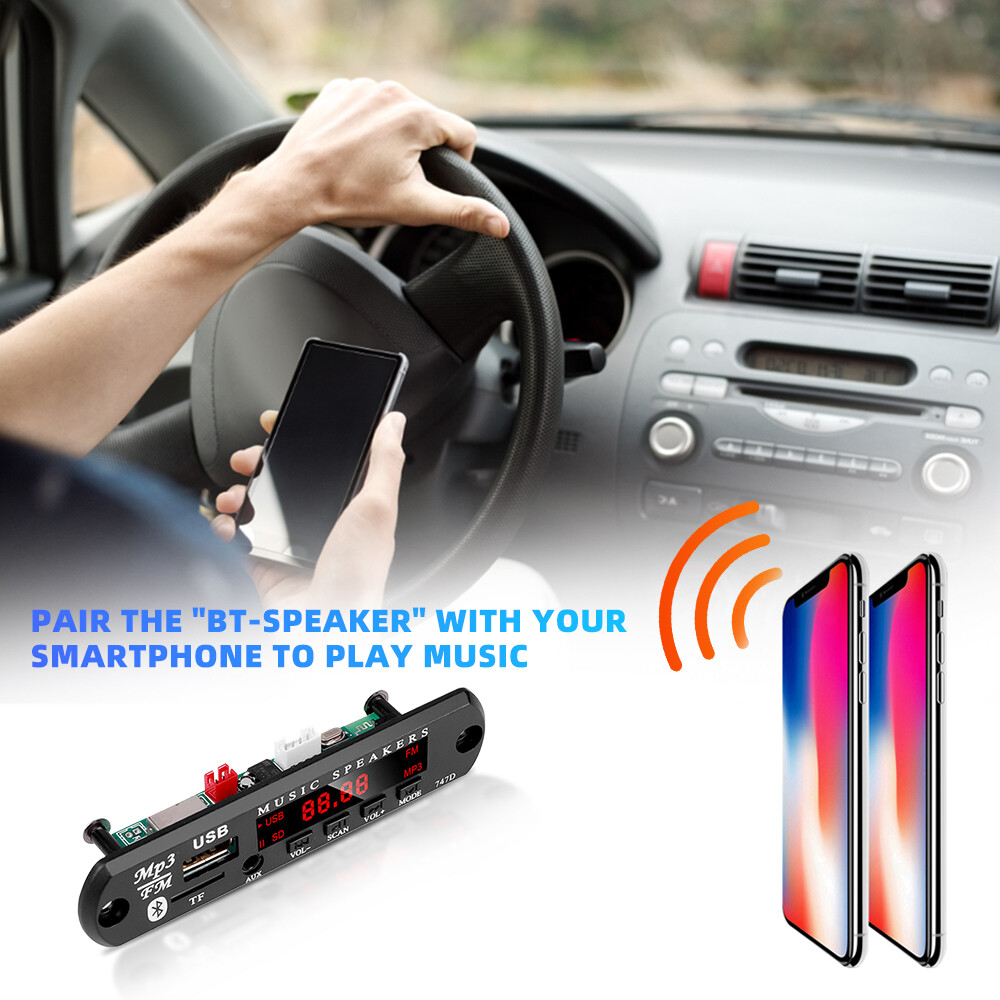

2. Support Bluetooth function;

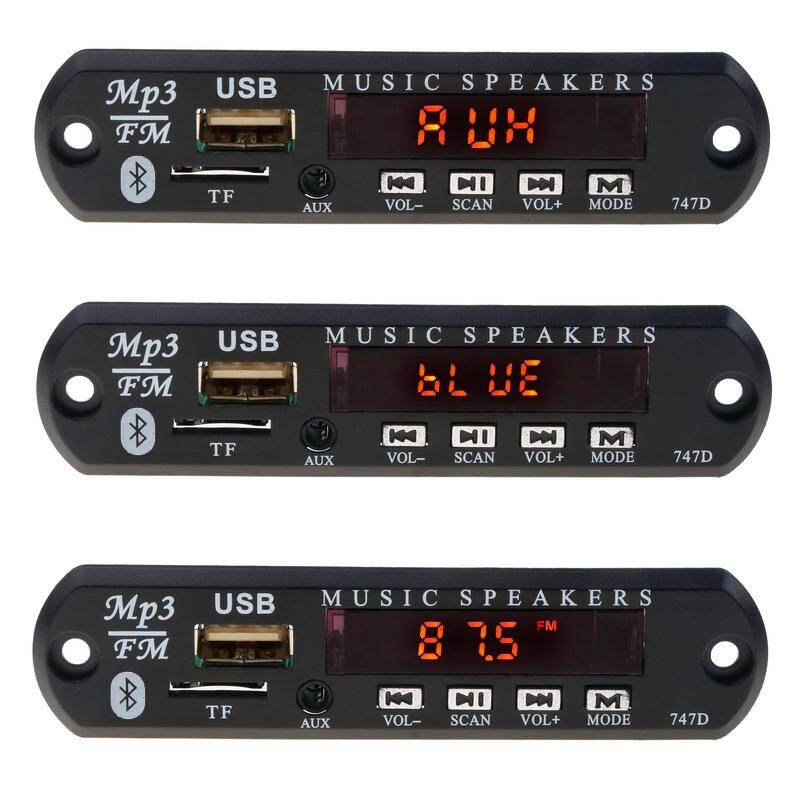

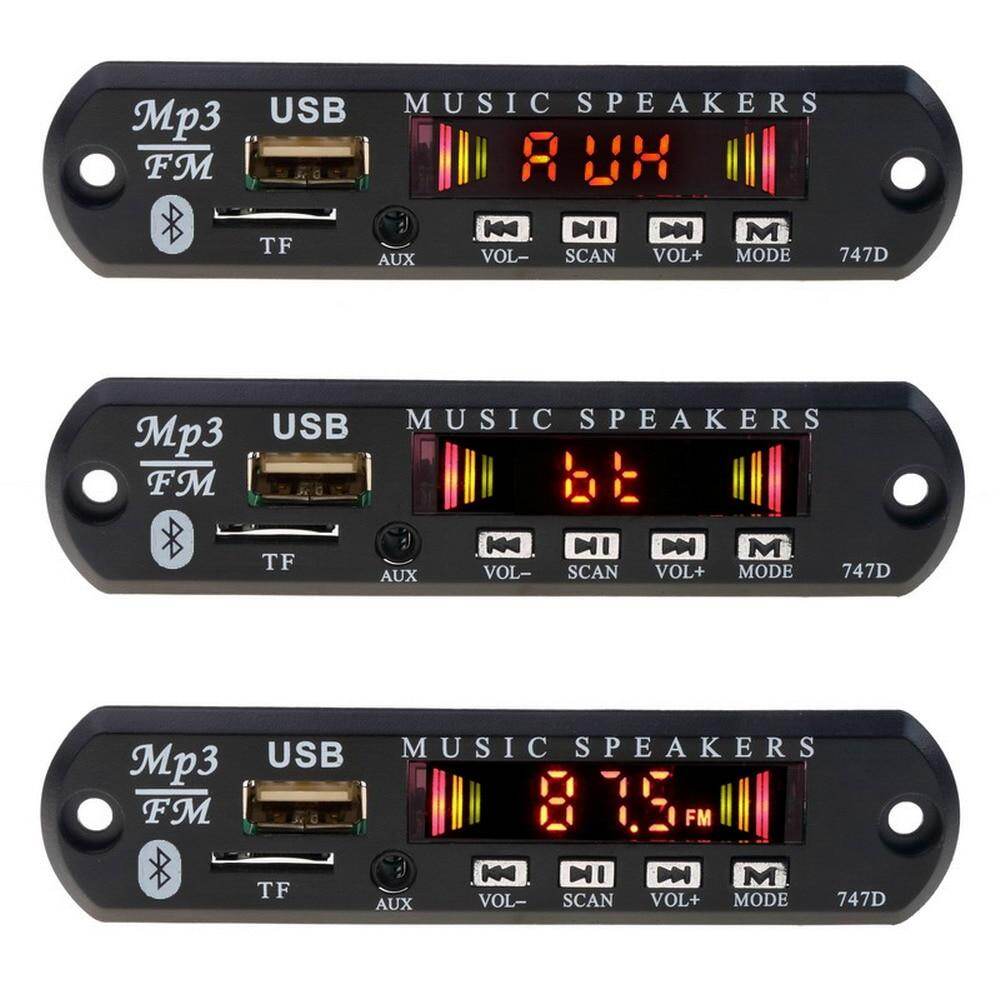

3. With digital tube display;
4. Support MMC/SD/MMA and other cards, support USB interface (U disk);
5. Power failure memory function 24C02;

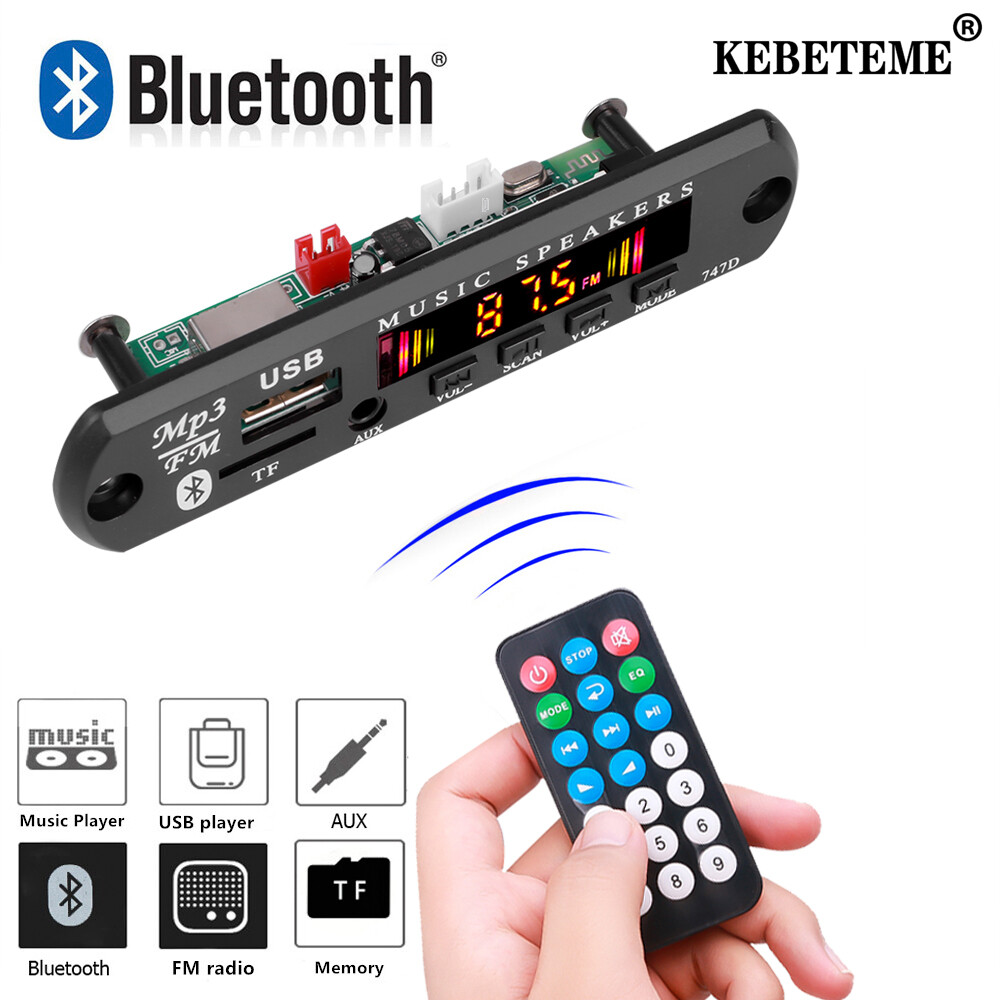

6. Support 5-10 meters distance infrared remote control operation;
7. Support for external audio input LINE IN (AUX);
8. Support radio FM, receiving frequency band (87.5MHZ-108.0MHZ);
9. Button: four buttons multi-directional control, MODE/previous song/play/pause/next song;
The button operation details: 1. Previous button (volume down): Short press in the MP3 state for the previous song, long press for the volume to decrease; short press in the FM state to adjust one station number; short press under the Bluetooth function Bluetooth is a song, long press to reduce the volume. 2. Play/Pause: Short press in MP3 state for play/pause; short press in FM state for play/pause, long press to automatically receive and save the station; short press for play/pause under Bluetooth function. 3. The next song button (volume increase): in the MP3 state, short press for the next song, long press for the volume to increase; short press in the FM state to adjust a station number; short press under the Bluetooth function Bluetooth next song, long press for the volume to decrease. 4. MODE button: Switch between USB/TF/FM/AUX/Bluetooth function.

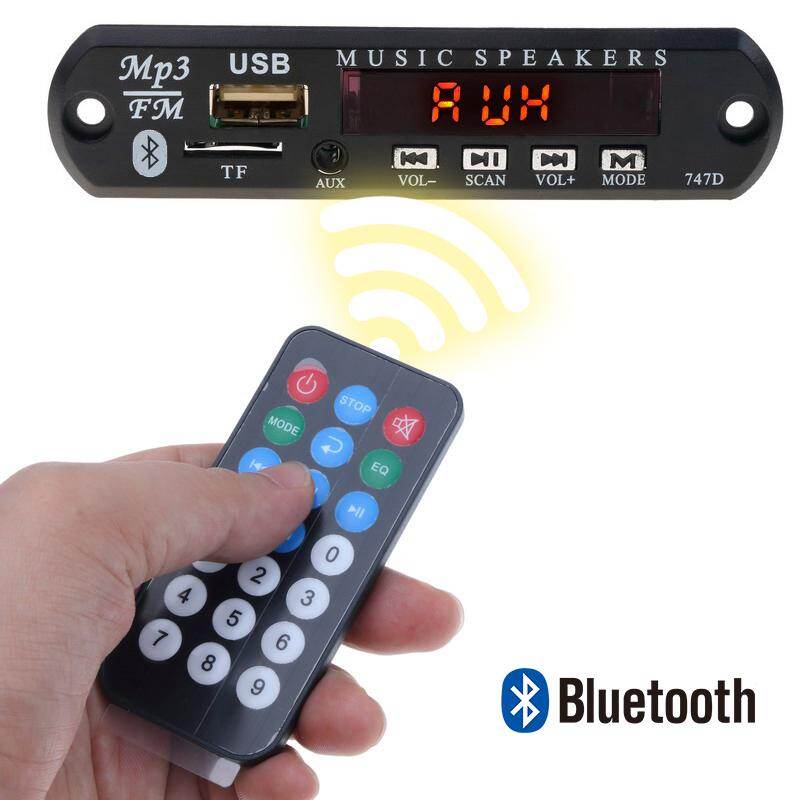

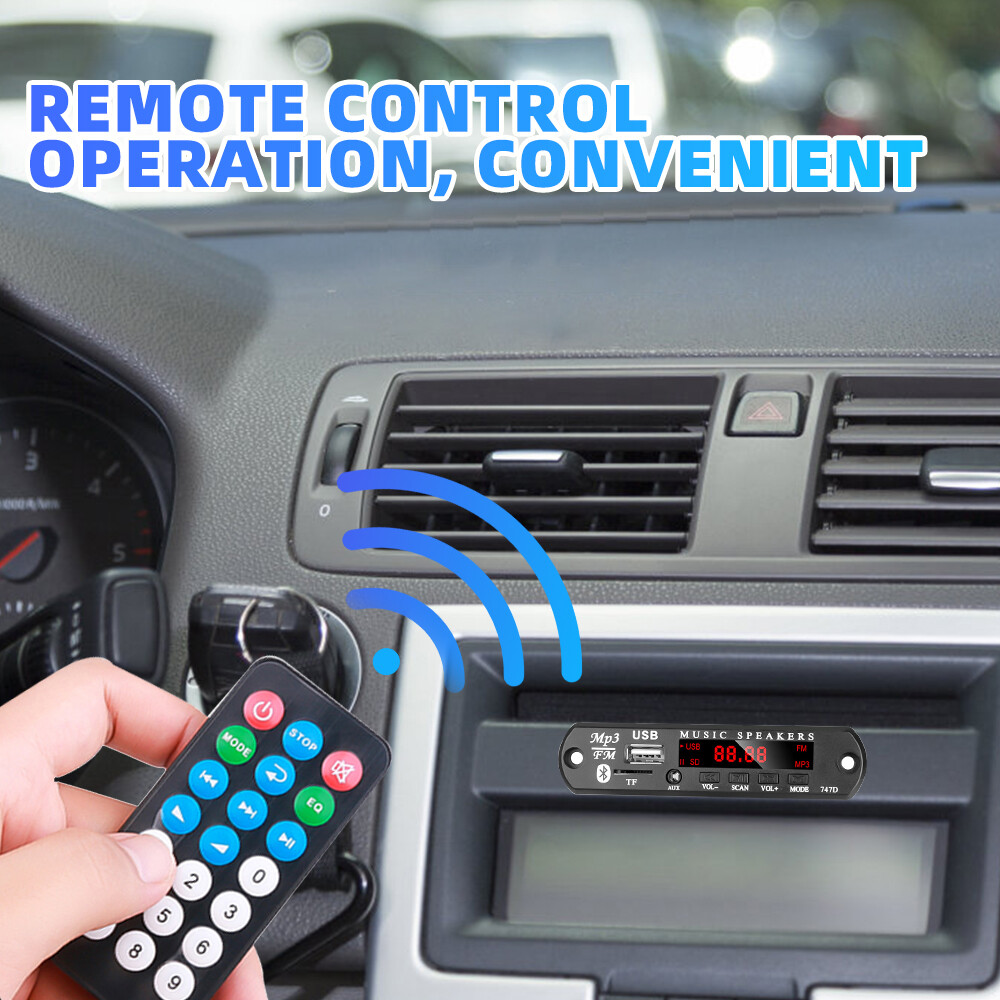

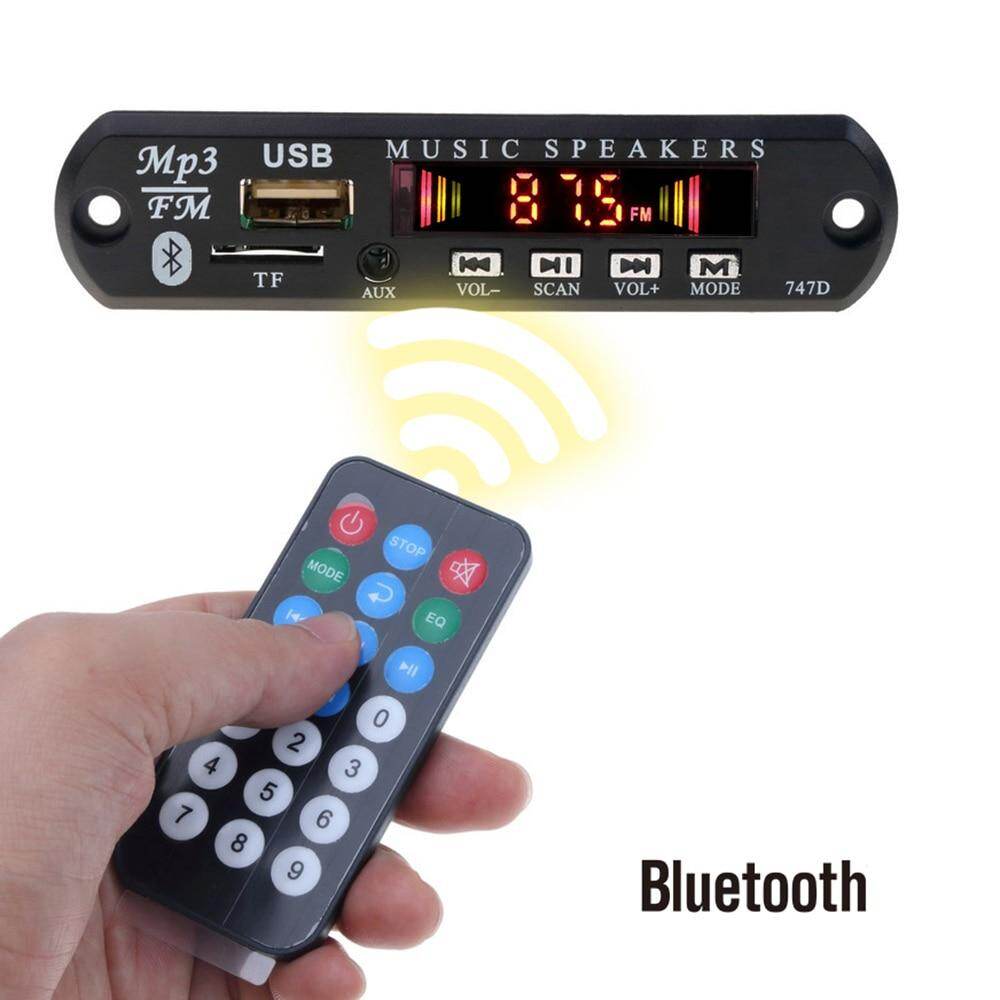

The remote control instruction:
1. POWER: STANDBY button cannot switch.
2. MODE: TF card and U disk: switching sequence for USB→TF→Bluetooth→FM→AUX;
Only U disk: switching sequence for USB→Bluetooth→FM→AUX;
Only the TF card: switching sequence for TF→Bluetooth→FM→AUX;
There is no USB and TF card: switching sequence for FM→AUX→Bluetooth.
3. PREV: In USB/TF / Bluetooth MODE, short press for PREV;
In the USB / SD MODE, long press for fast rewind; In FM MODE, short press for last channel, long press for scan search last channel.
NEXT: In USB / TF/Bluetooth MODE,short press for NEXT;
In USB / TF MODE, long press for fast forward;
In FM MODE, short press for next channel, long press for scan searches the next channel.
4. VOL + : short / long press for music. VOL-: short/long press for music.
5. REP: In USB / TF MODE, is the switch key between single repeat and whole cycle when play music, boot for all cycle.
6. STOP: In the USB / TF MODE, short press to STOP the music play.
7. MUTE: MUTE, press for MUTE, press again for relieve(also can relieve by VOL- /VOL+).
8. EQ: Acoustic field MODE. The NORMAL→BAS→POP→ROC→JAZZ→CLA→CUT→NORMAL
9. PLAY/PAUSE: In USB/SD/Bluetooth MODE for PLAY / PAUSE; In the FM MODE, long press for searching all channels and save.

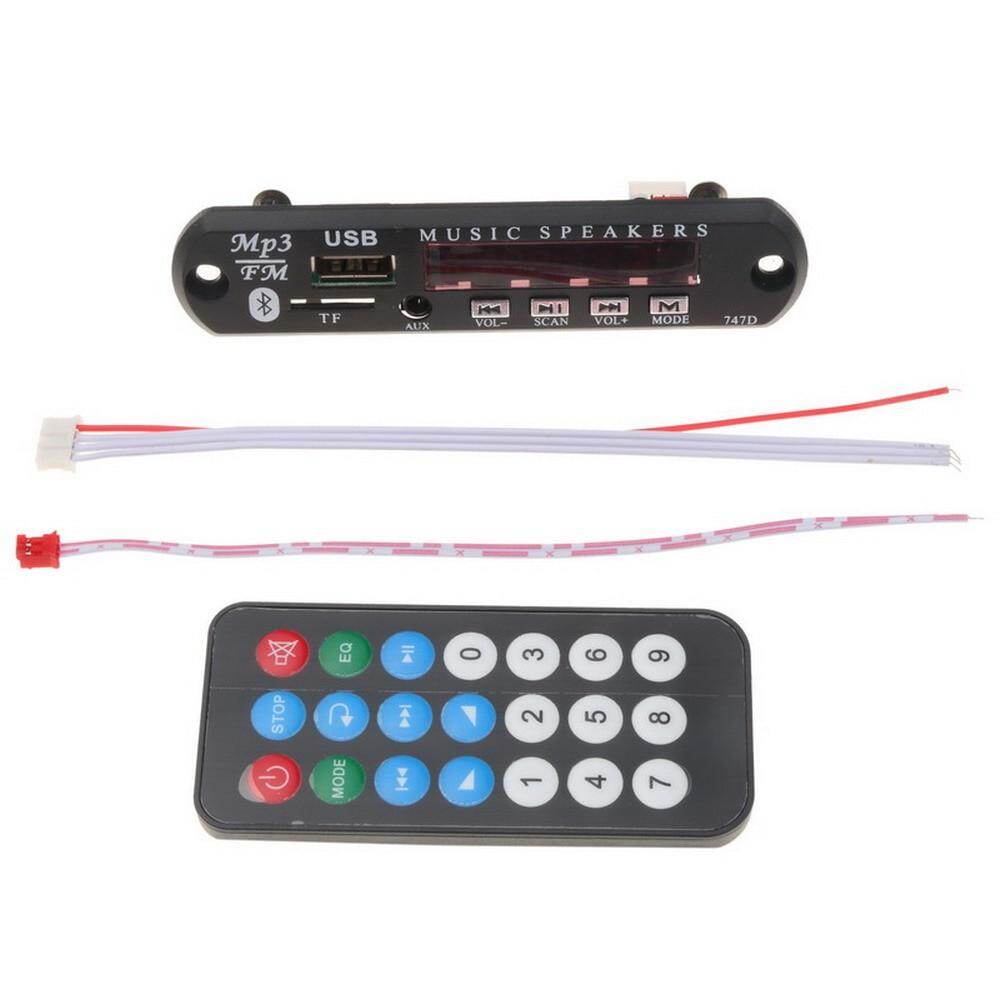

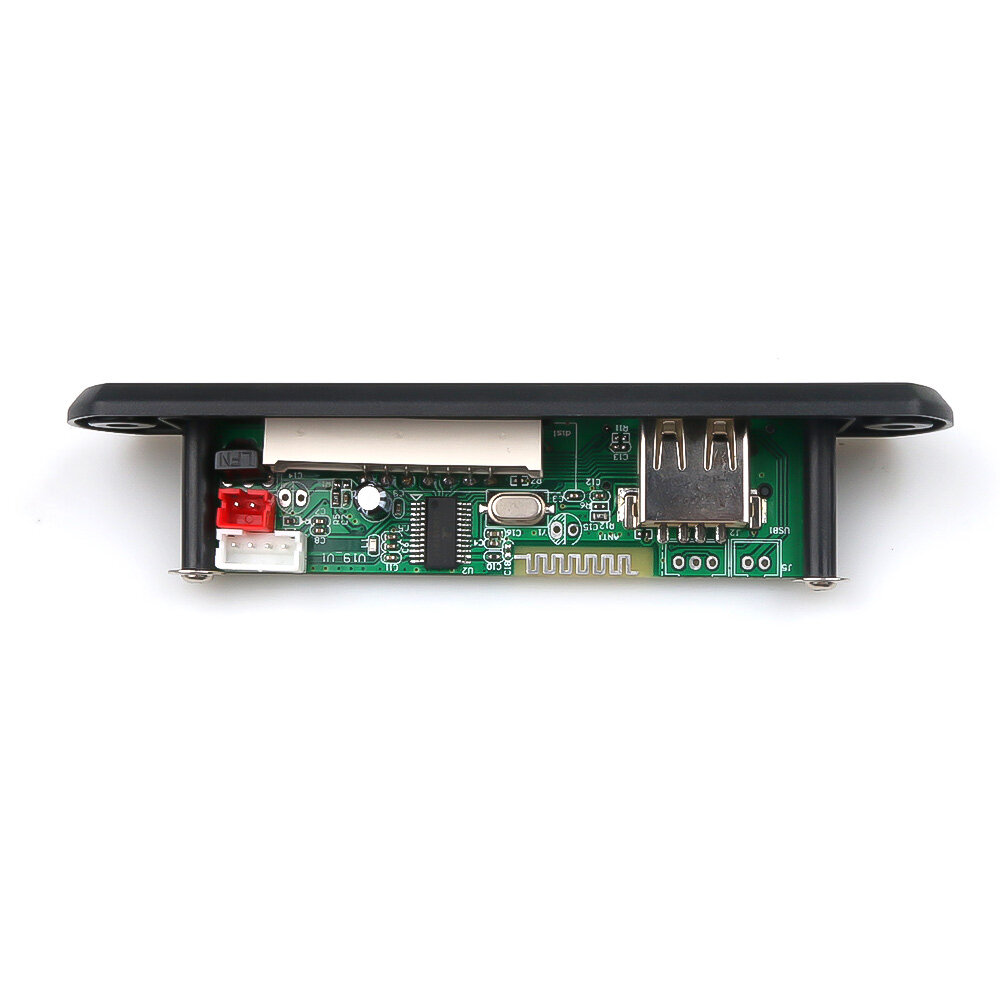

Package Content: 1 x Decoder Board with the Surface panel 1 x Remote Controller (Without battery) 2 x Cables
Note: This item comes without a retail box, but please rest assured that we will pack it well before shipping!
Version 1:
BT + Color LCD: Bluetooth with Color LCD Screen Version
Version 2:
BT +LED: Bluetooth with Single LED Screen Version
