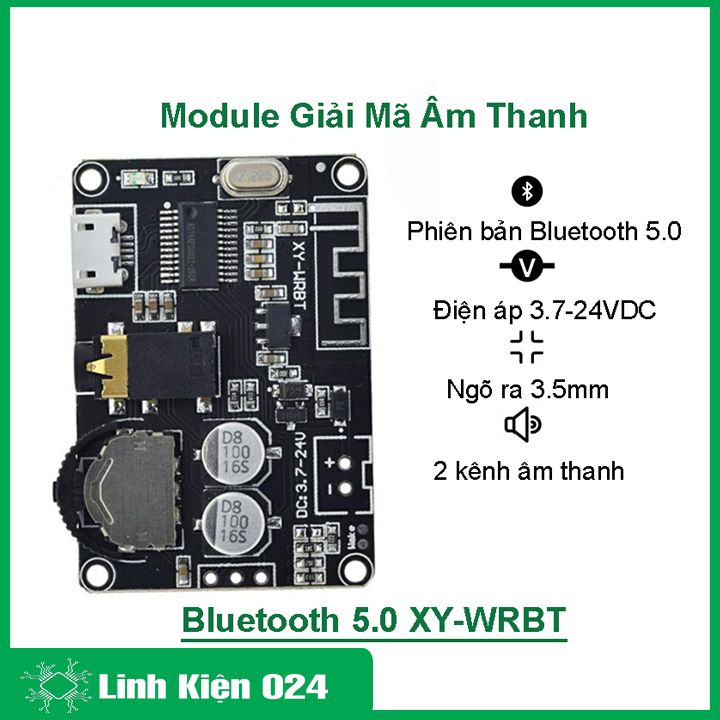

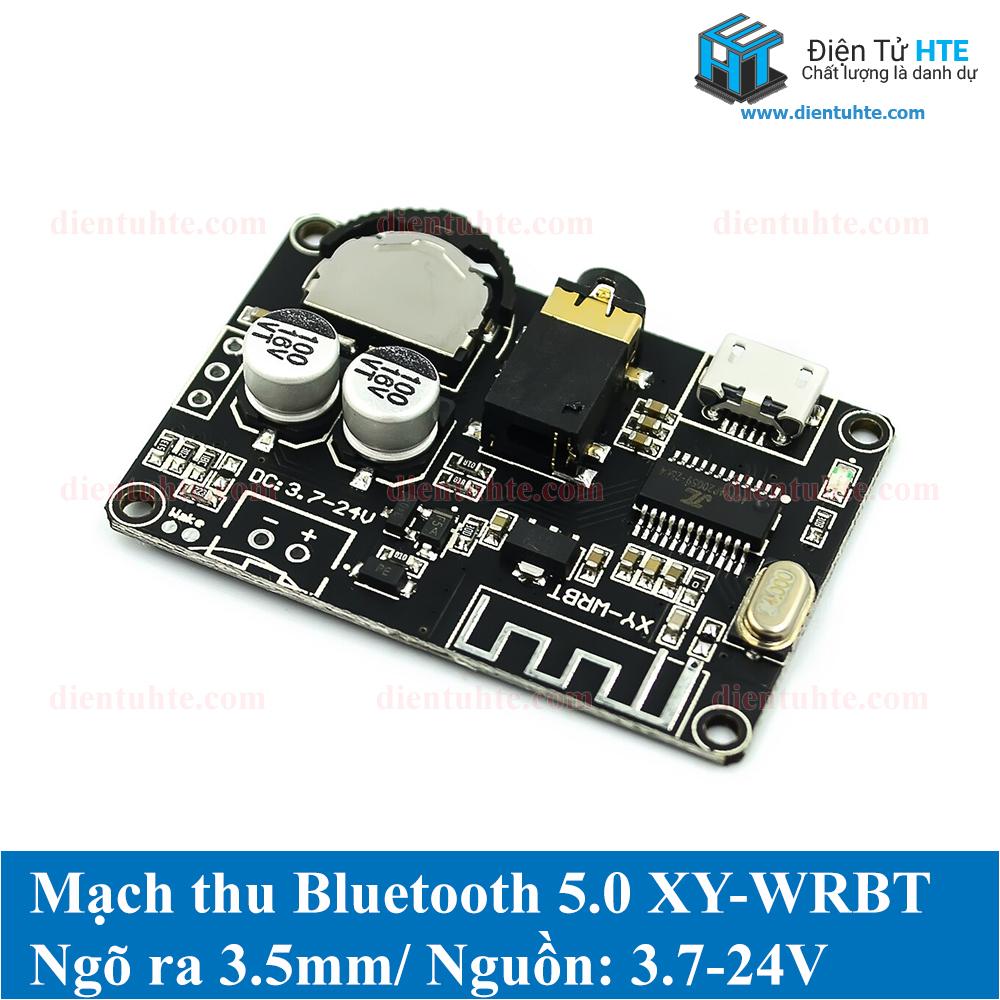

Bảng mạch giải mã thu âm thanh MP3 lossless bluetooth 5.0 XY-WRBT stereo không dây-INTL

1. Micro-USB mobile phone charger, 3.7-4.2V lithium battery and 3.7-24V DC power supply can be used for power supply.

2. Short "on/off contact" 2 seconds can set decoder board on/off, for battery power supply, when not in use, power-saving, convenient refitting.

Operation instructions:
After switching on the power supply, the blue indicator flashes and enters the Bluetooth mode; after broadcasting the "prompt tone", it enters the matching mode and waits for matching; after broadcasting the "prompt tone", the mobile Bluetooth searches for "XY-WRBT" (the name of the power amplifier board device), clicks on the "XY-WRBT" connection, and plays the "prompt tone" after the connection is successful. When the indicator lights are on for a long time, the mobile music can be played, and the indicator lights will flash slowly when the Blue The amplifier board prepares for the next pairing, and plays the "prompt sound" before entering the pairing mode to wait for the pairing.

Cautions for Power Supply with 3.7V Lithium Battery

1. When powered by batteries, the battery voltage is less than 3.3V decoder board automatically shuts down. After re-energizing or full charging, the contacts are switched on/off for 2 seconds.

2. When using batteries for power supply, if the voltage of batteries is too low, there may be "nourishing" noise. In this case, the batteries need to be charged.

3. Because there is no charge protection circuit for lithium batteries on decoder board, it is recommended to use lithium batteries with protection board.

4. If your rechargeable battery supports Micro USB charging directly, you can use Micro USB charging directly to the battery

Package Included:
1Pcs* XY-WRBT Bluetooth 5.0 mp3 lossless decoder board Wireless Stereo Music Module
