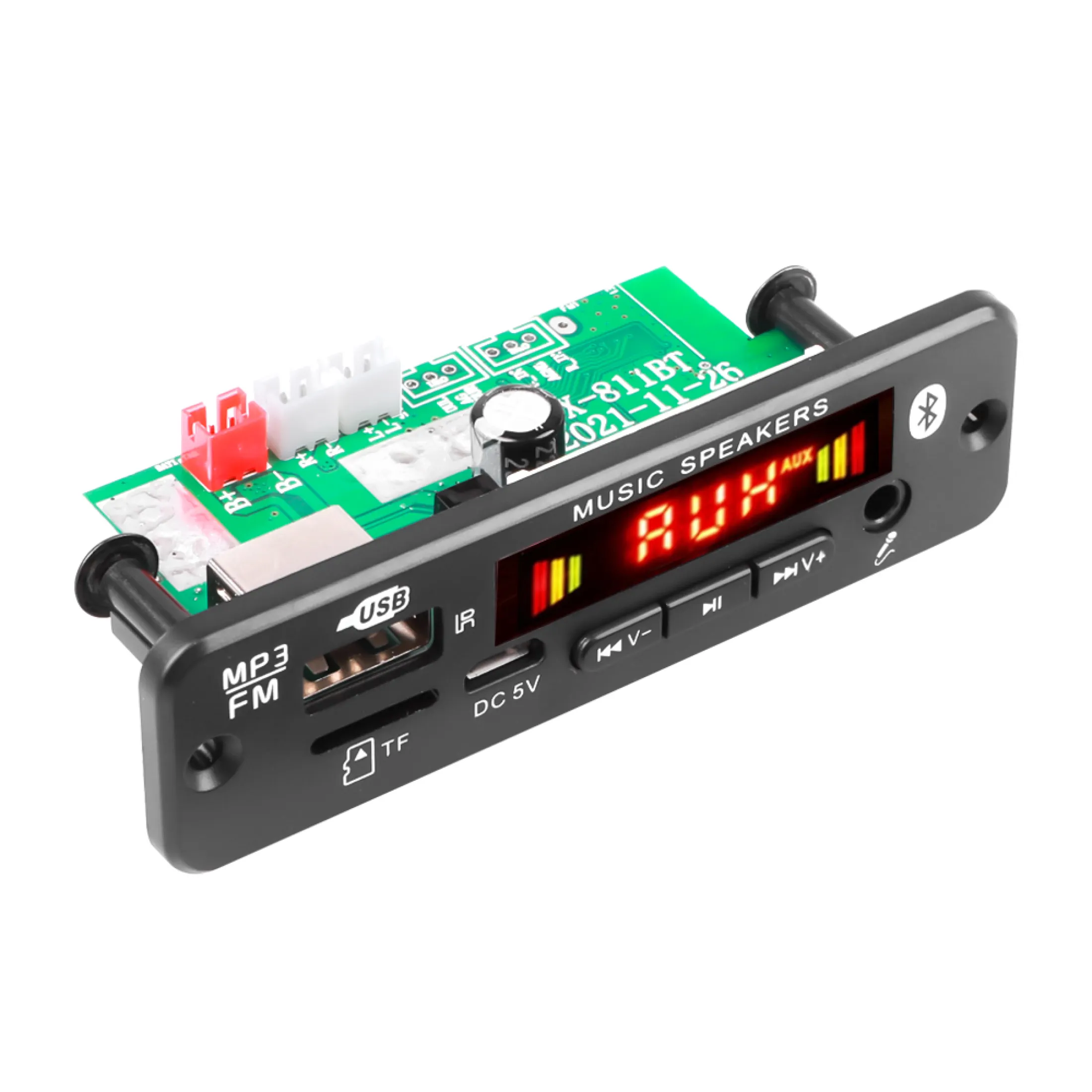

【 40W Amplifier TF Card】6V-18V:

Feature:
Bluetooth call function

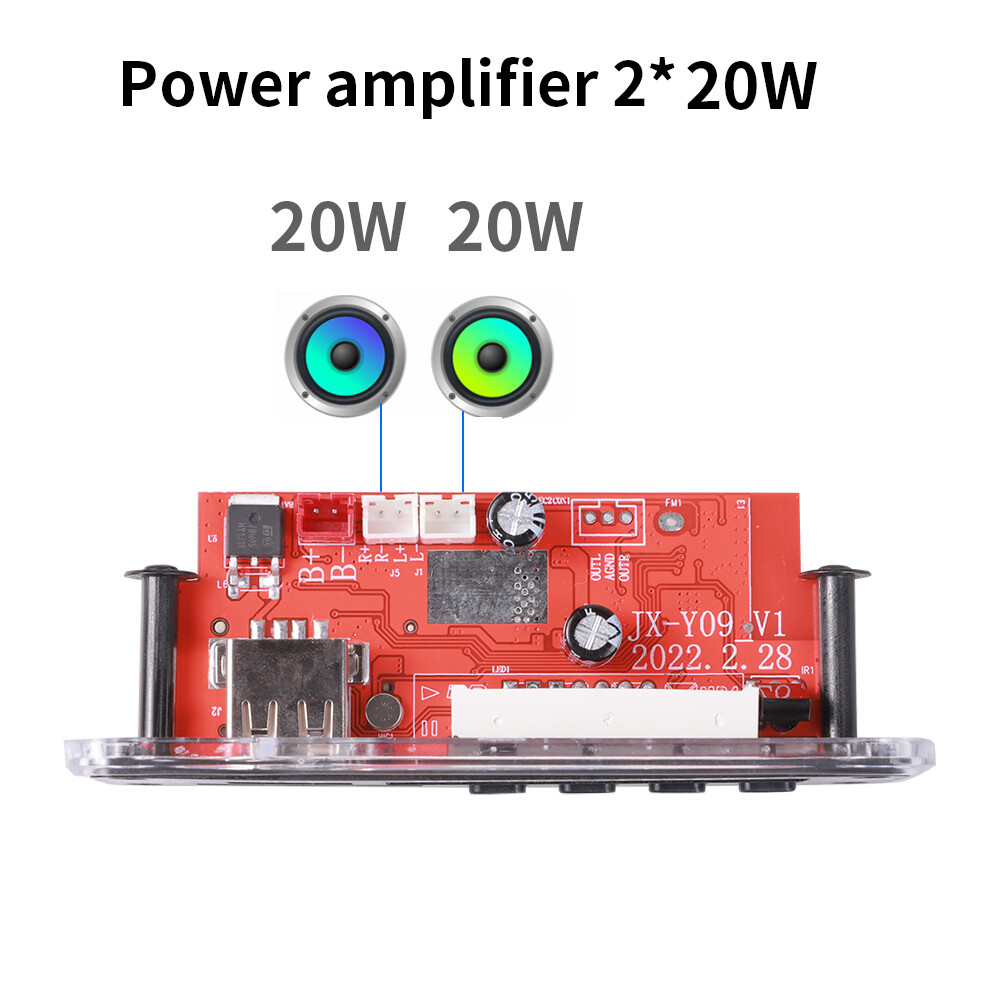

2*20W power amplifier: can be connected to 2*20W speakers at the same time
Music Format: MP3 / WMA / WAV / FLAC / APE loss lossless music format
FM Radio Frequency: 87.5-107.5MHZ
Folder switch function

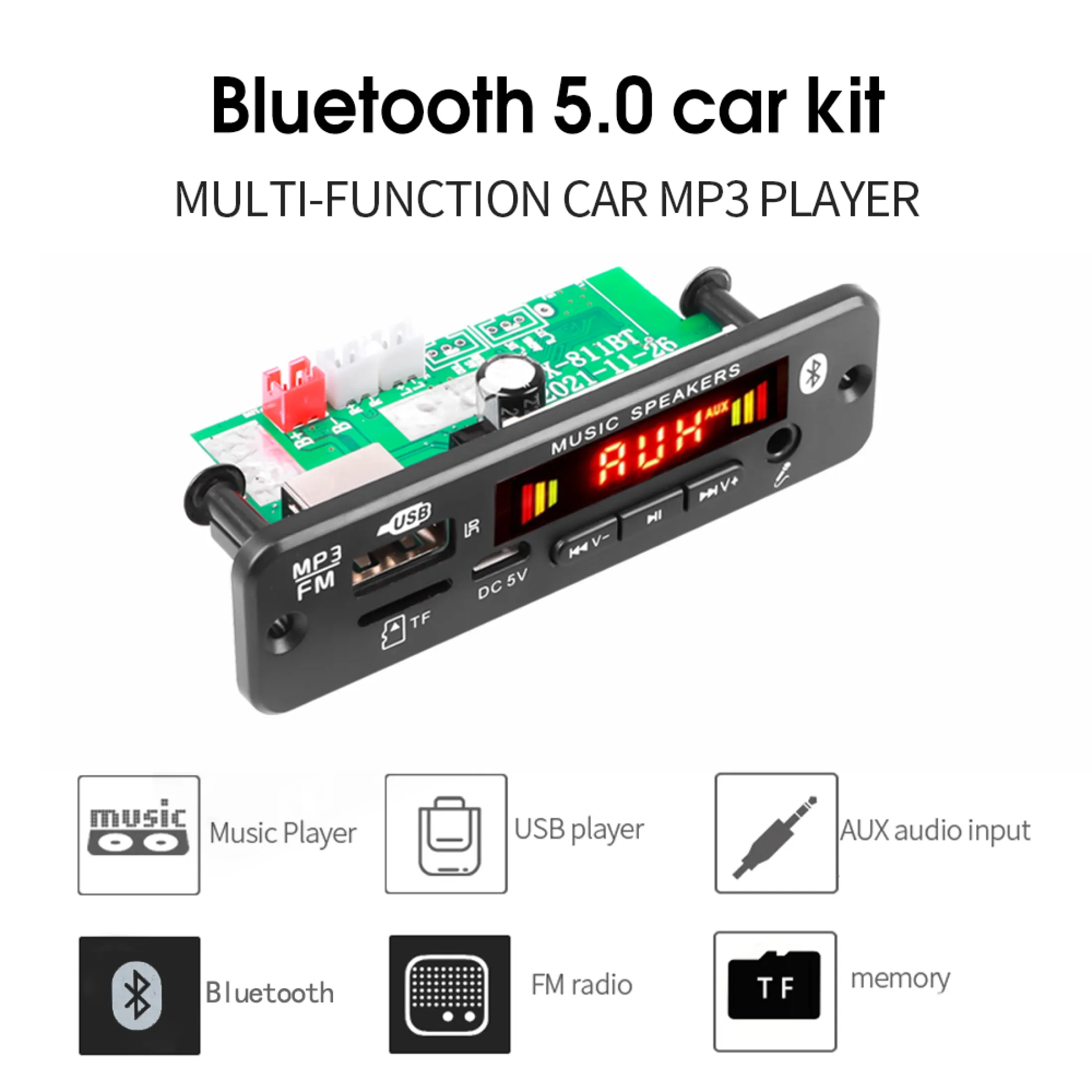

Support function introduction: support MP3 / USB / TF / LINE IN / FM / BLUETOOTH / remote control / DC 12V connection

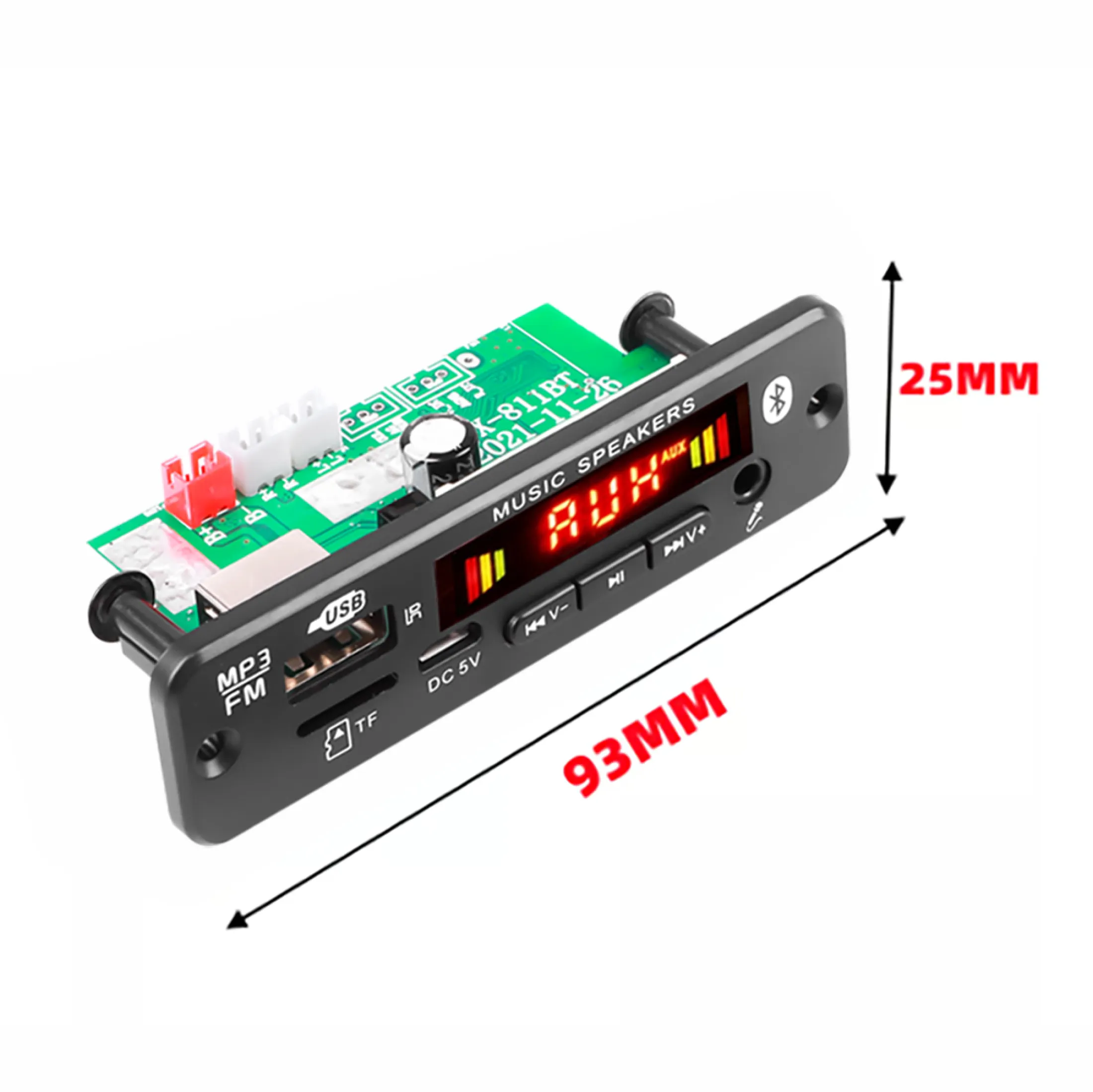

About the structure: Panel size: 88*25MM, the two corners of the panel and the screw hole position, and then the cover surface of the cover, the depth of the board is 27MM

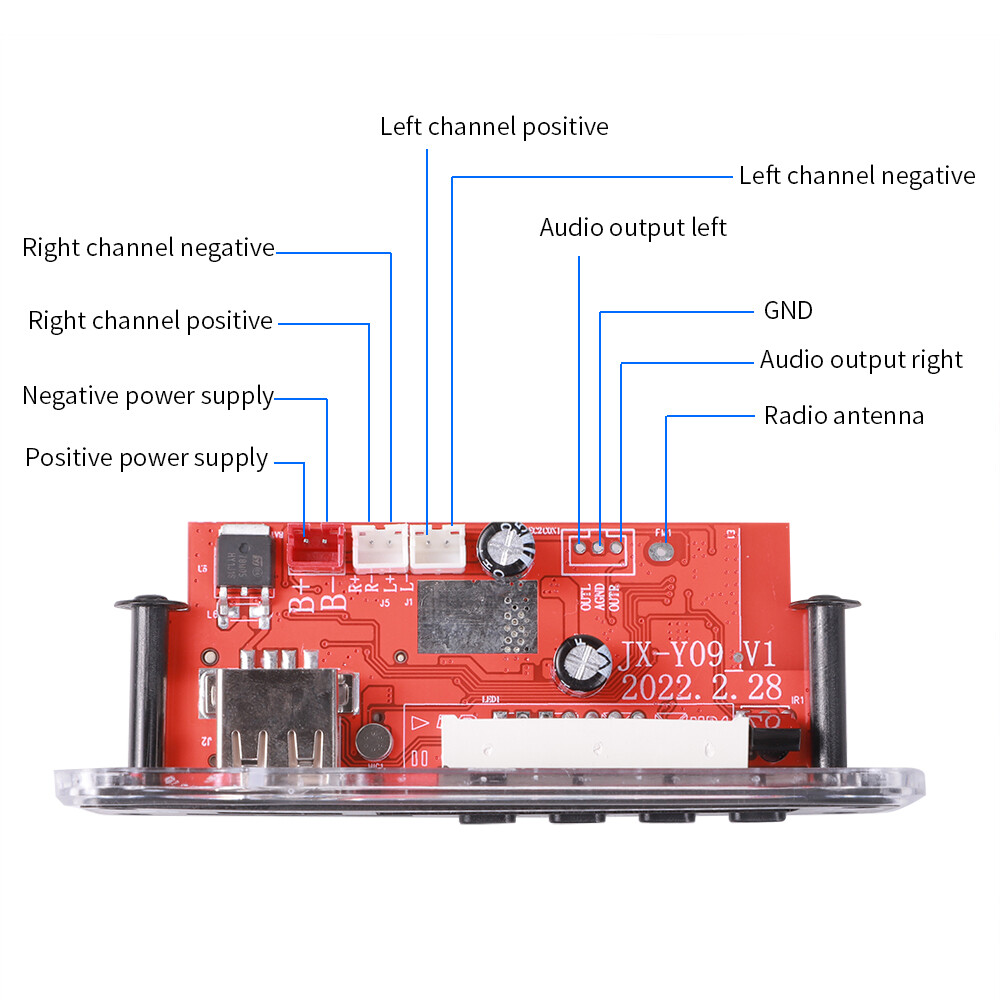

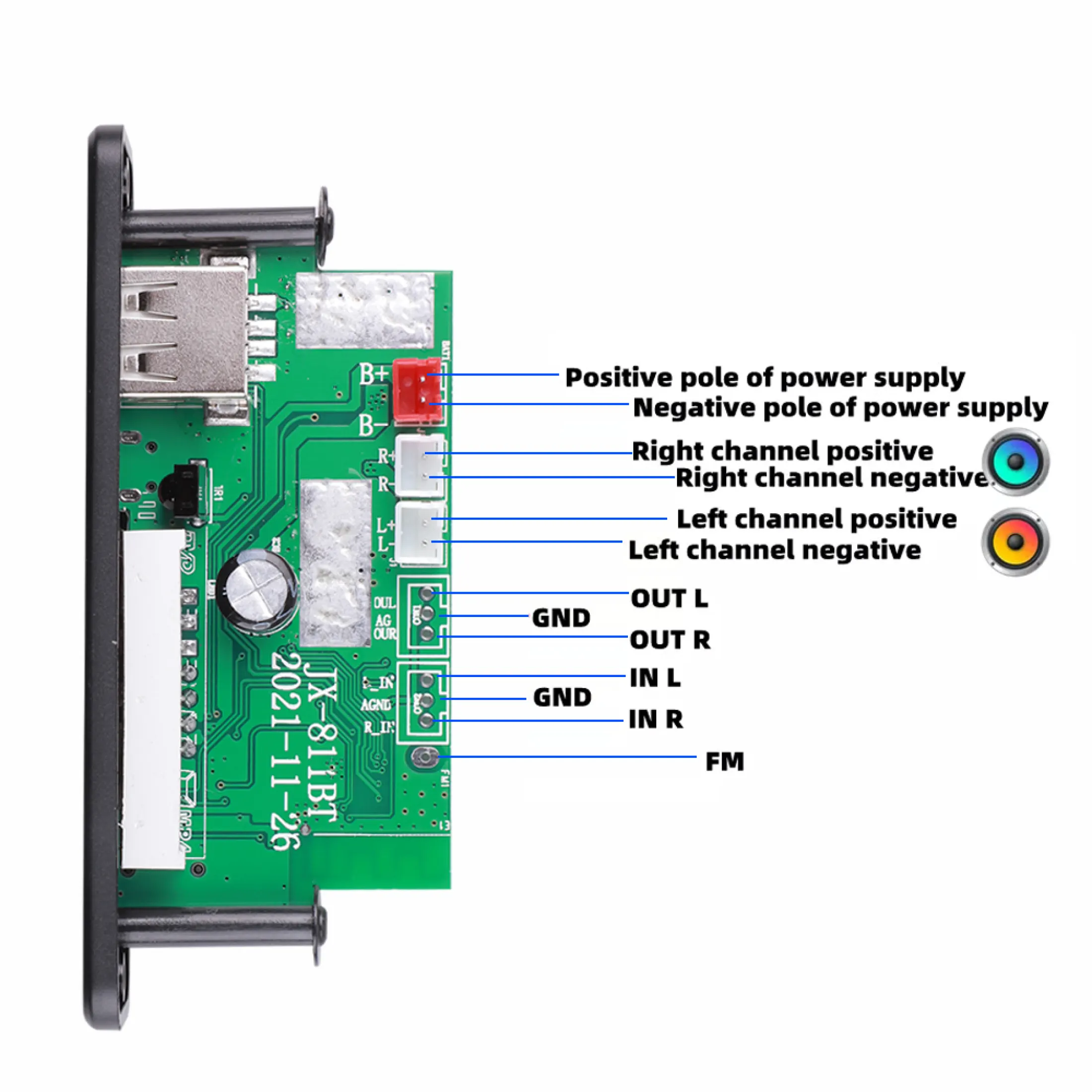

Button function and interface function:
1. USB: connect to U disk (memory card interpretation speed above 32GB is slow)
2. Infrared receiver module
3. MIC: support calls (long press the remote control pause button to answer the call when there is an incoming call).
4. Support recording. Recording only supports operation in TF mode or USB mode.

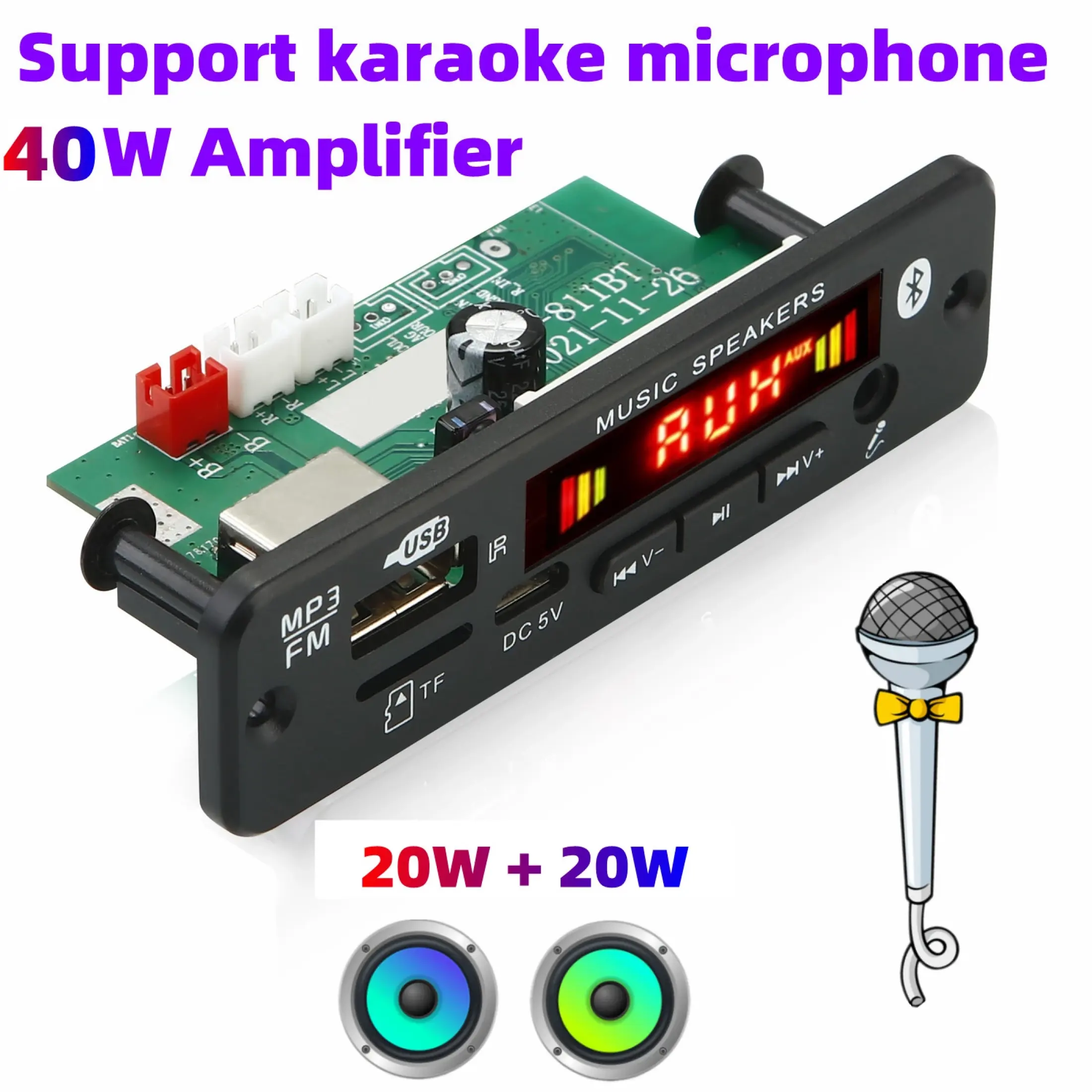

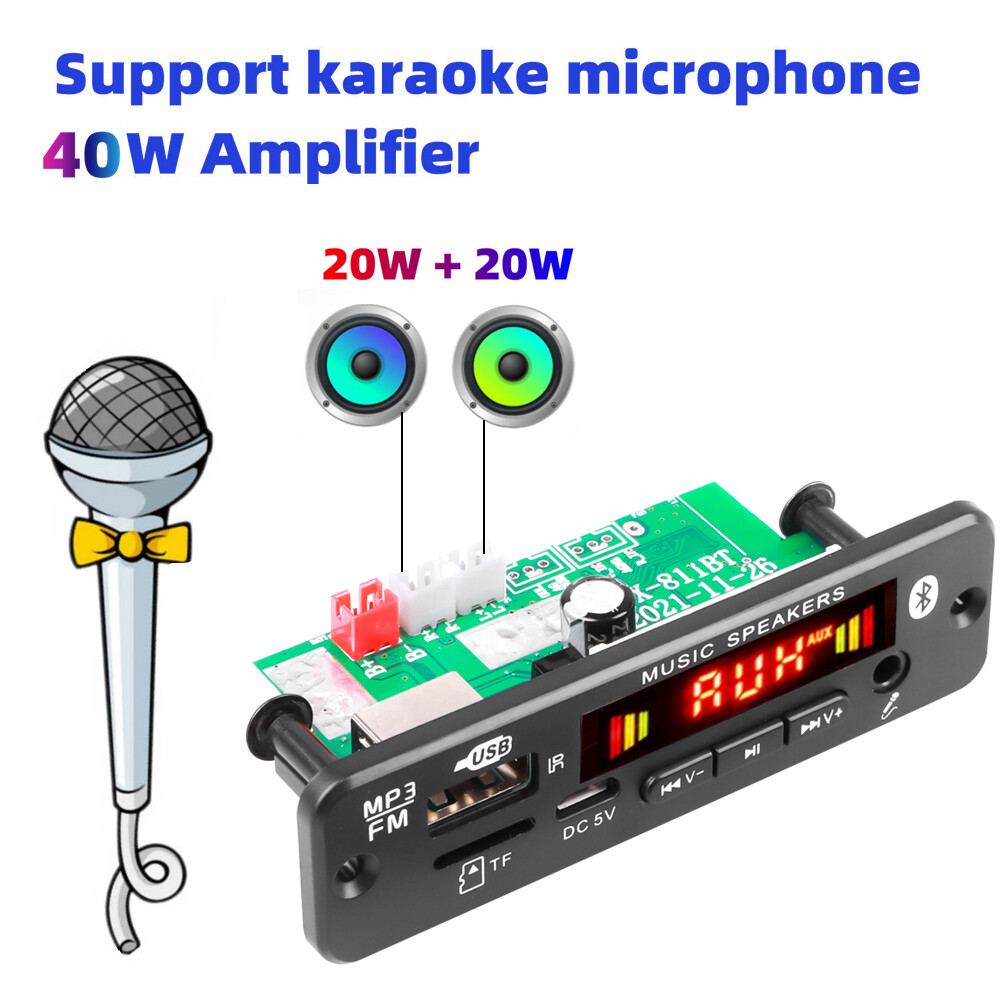

5. Support Karaoke function 3.5MM head microphone (not mobile phone headset)
(Long press the remote control MODE button to start recording, long press the remote control play button to switch between recording and music playback; When recording, you need to connect a storage device, such as U disk or TF card ;)
6. LED: digital display, screen color displays red
7. TF: connect TF memory card (memory card interpretation speed above 32GB is slow)
8. power: voltage supports between DC 6v-18v and current between 1-3A.
9. vol- button (previous song/volume down): in MP3 state, short press vol- for last song, long press to decrease volume; In FM radio state, short press to increase one channel; In Bluetooth under function, short press is previous Bluetooth song, long press is volume decrease.
10. Play/pause (play/Pause) button: Short press play/pause in MP3 state to play/pause; Short press in FM radio state to close and save station automatically; short press to play/pause Bluetooth function. Long press play/pause button to switch between USB / TF / FM / LINE IN / BLUETOOTH
11. VOL+ (next song/volume increase) button: in MP3 state, short press VOL+ for next song, long press to increase volume; In FM radio state, short press to set one channel down; In Bluetooth function short press for next Bluetooth song, long press to decrease volume.
12. AUX: Audio input interface
13. Support memory power off
14. Power 40W, stereo 2*20W.
14. Support folder selection and playback. When the USB or TF is playing, when there is a folder in the device and there is a song in the folder, press the previous button or the next button twice to select the folder to play the song, and the screen will display F001-F00? And so on, huh? F00 is displayed for each folder? .

Package includes:
1 XMP3 Player

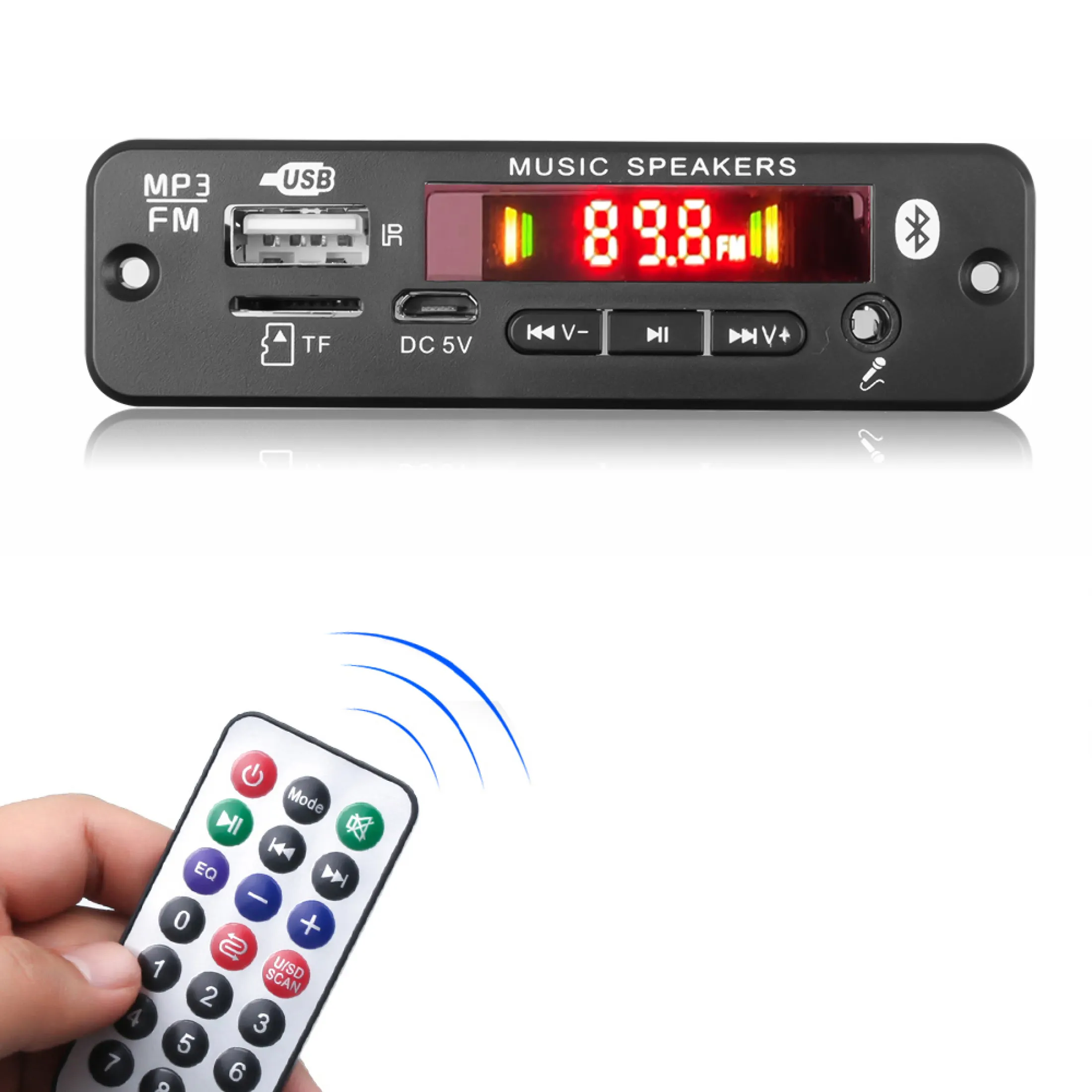

1Xremote control (without battery)

Note: this item comes without retail box, but rest assured that we will pack it well before shipping!

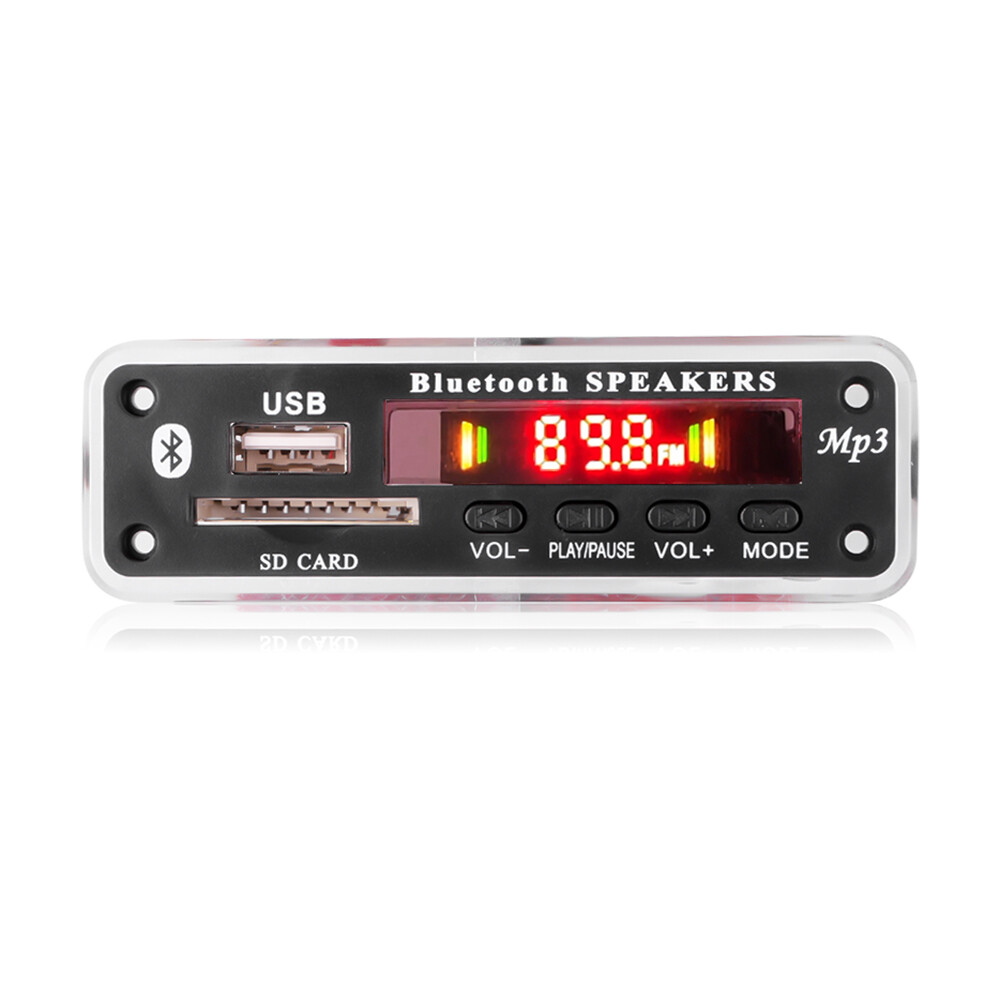

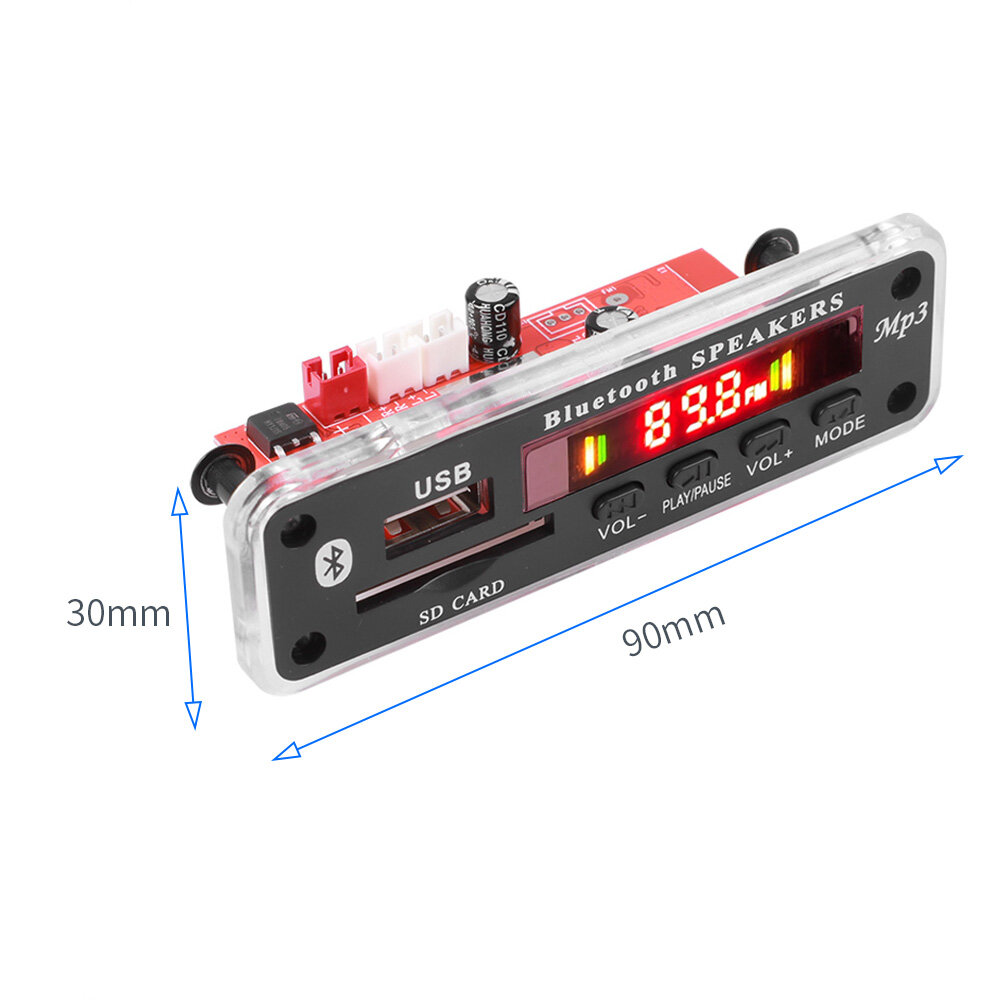

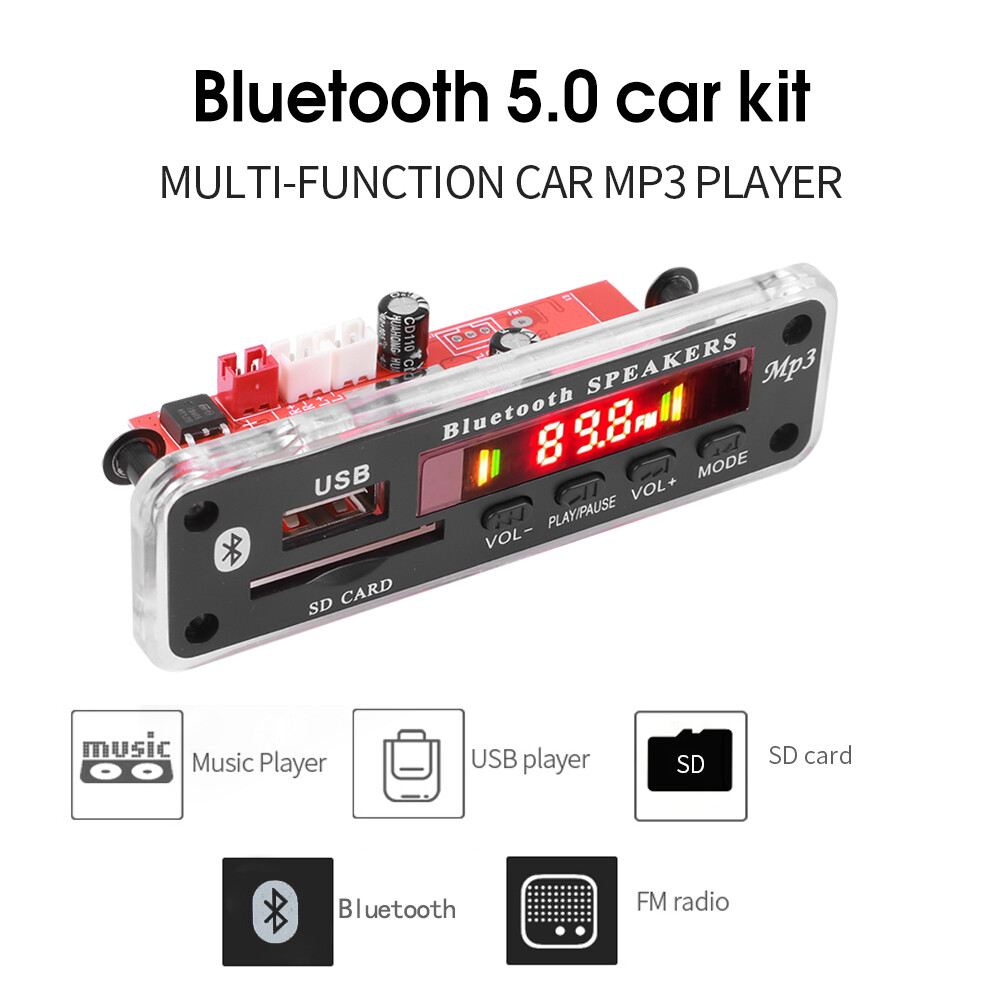

【 40W Amplifier SD Card】7V-18V:

Note:
17W×2(4 ohm load/ VCC=12V/ THD+N=10%)
20W×2(4 ohm load/ VCC=15V/ THD+N=10%)
23W×2(8 ohm load/ VCC=18V/ THD+N=10%)

Feature:
1. Bluetooth version 5.0
2. Support calling (long press the pause button to answer the call when there is a call).
3. Support recording. Recording only supports operation in TF mode or USB mode.
(Long press the MODE button to start recording, long press the MODE button again to cancel the recording and play the recorded file; exit the recording mode and long press the pause button to exit. When recording, you need to connect a storage device, such as a U disk or TF card;)
4. Support power-off memory
5. The power supply voltage supports between DC 7v-18v, and the current is between 1-3A.
6. Can be directly connected to speakers, with power amplifier and decoding functions.
7. Support song format MP3/WMA/WAV/APE/FLAC

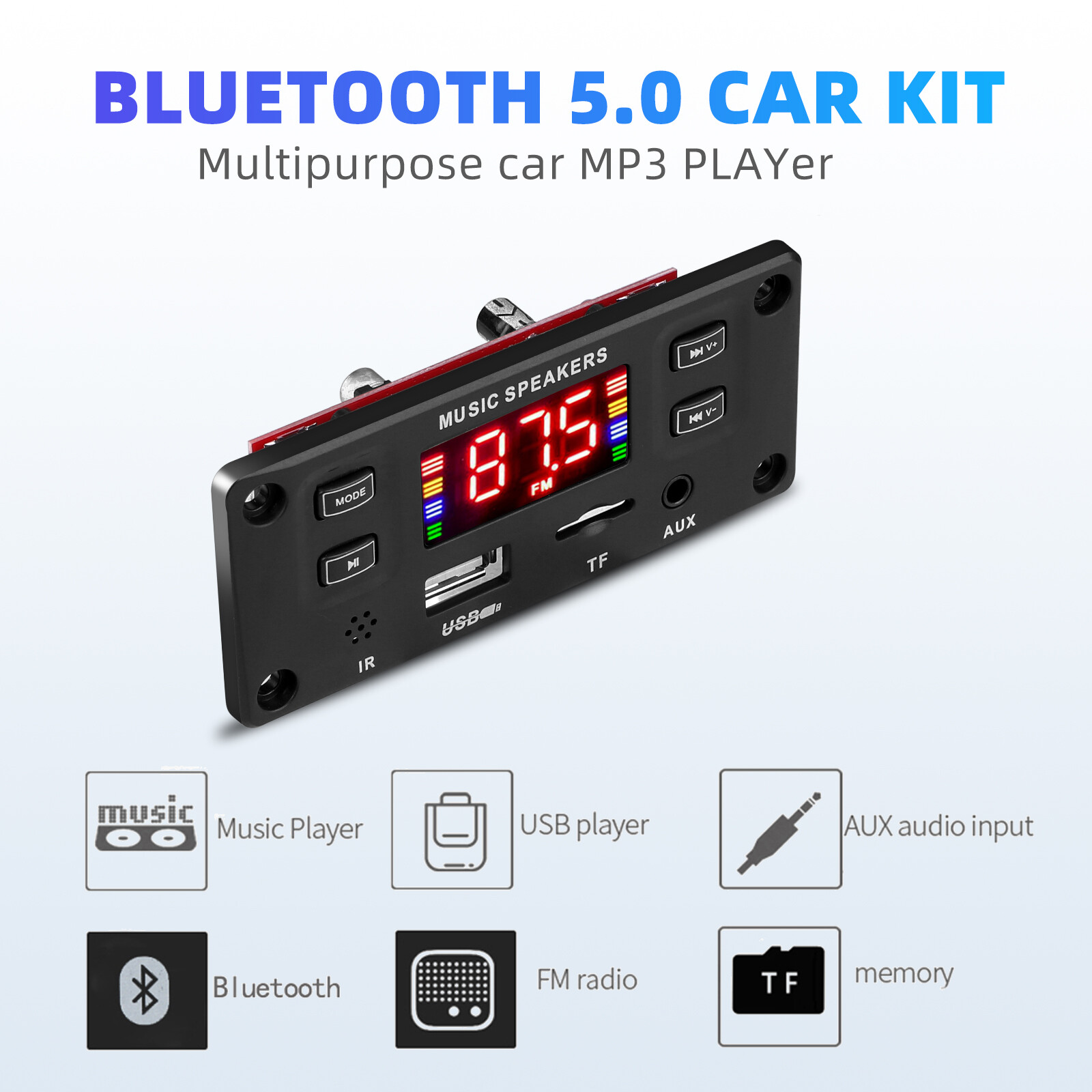

8. Main function MP3/USB/TF/FM/BLUETOOTH/remote control/
9. Power 40W, stereo 2*20W.
10. Support folder selection to play. When USB or TF is playing, there is a folder in the device and there are songs in the folder. Press the previous button or the next button twice to select the folder to play songs, and the screen will display F001-F00? and so on, yes? A folder displays F00? .

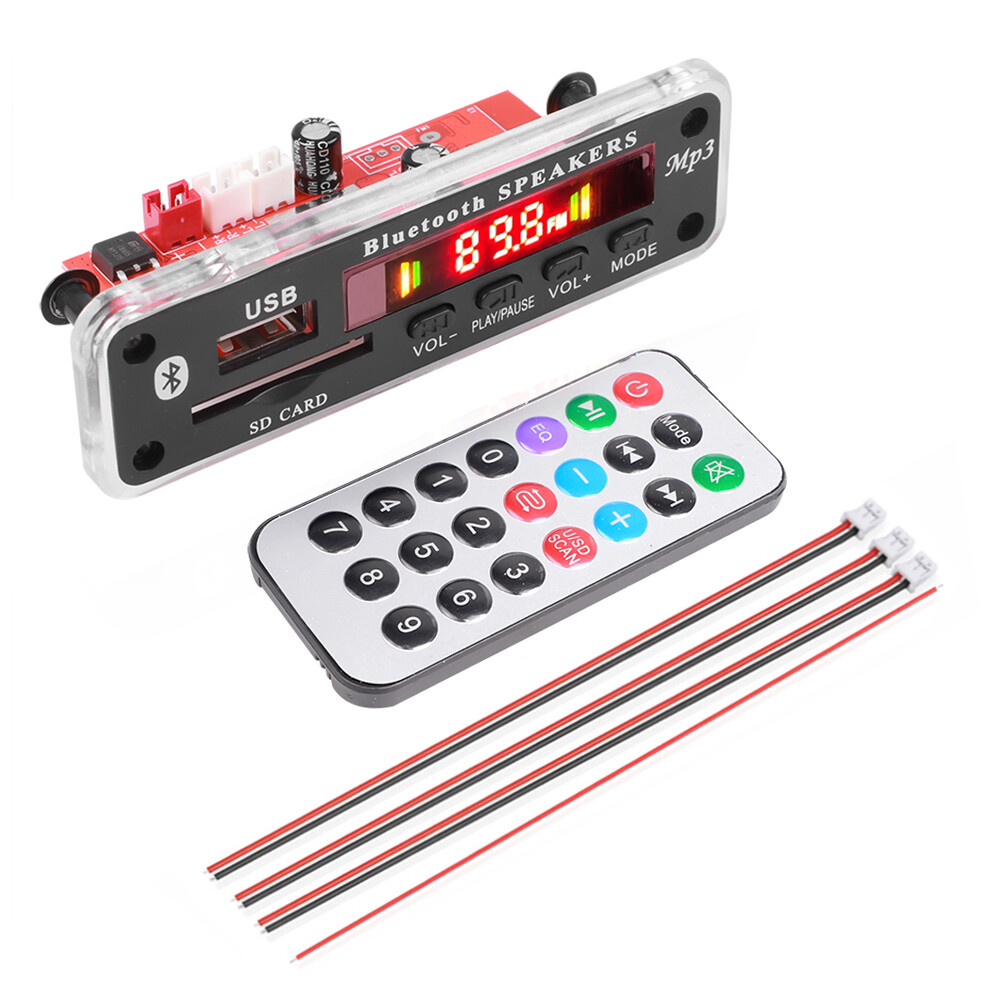

Package includes:
1 X MP3 Player
1x Remote control (without battery)

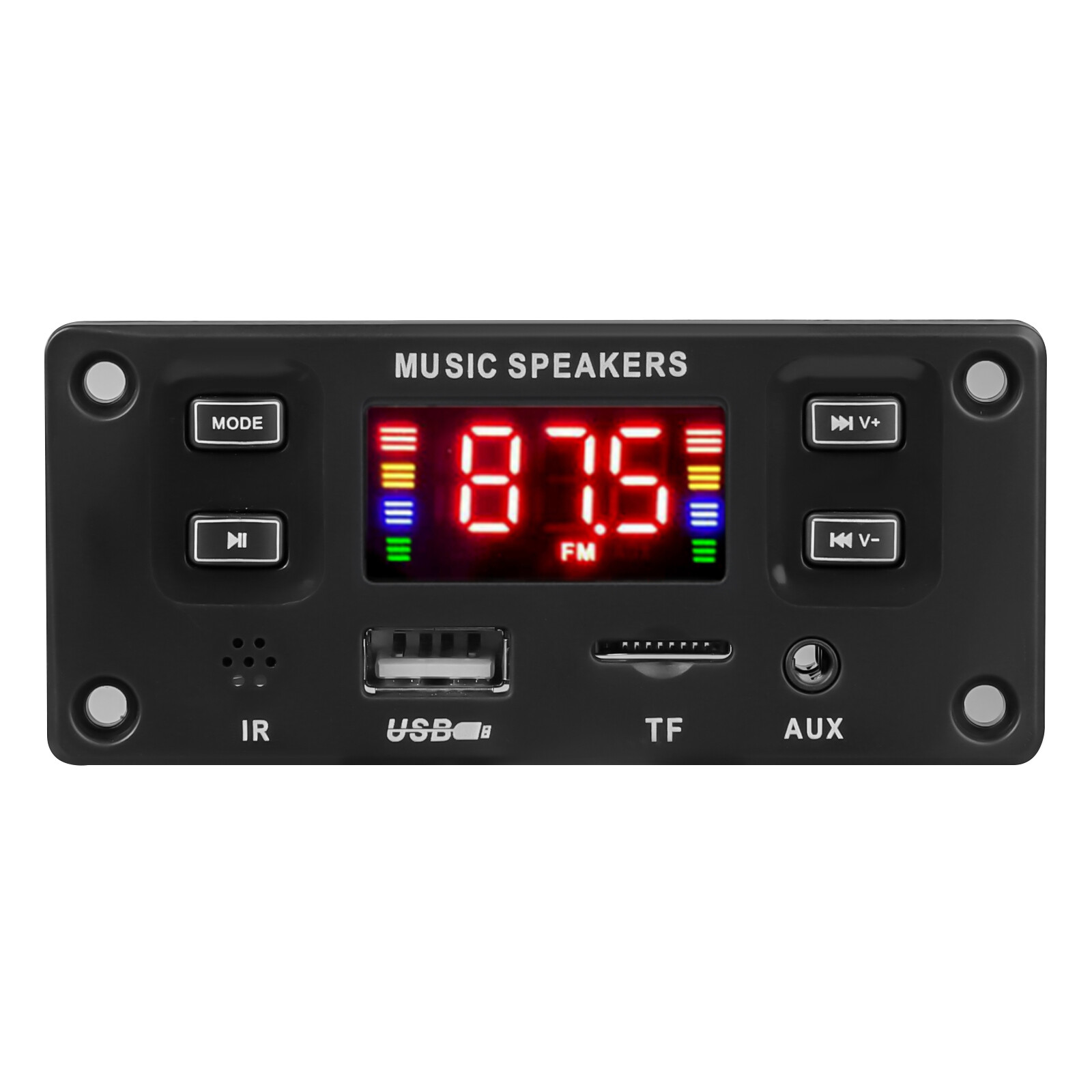

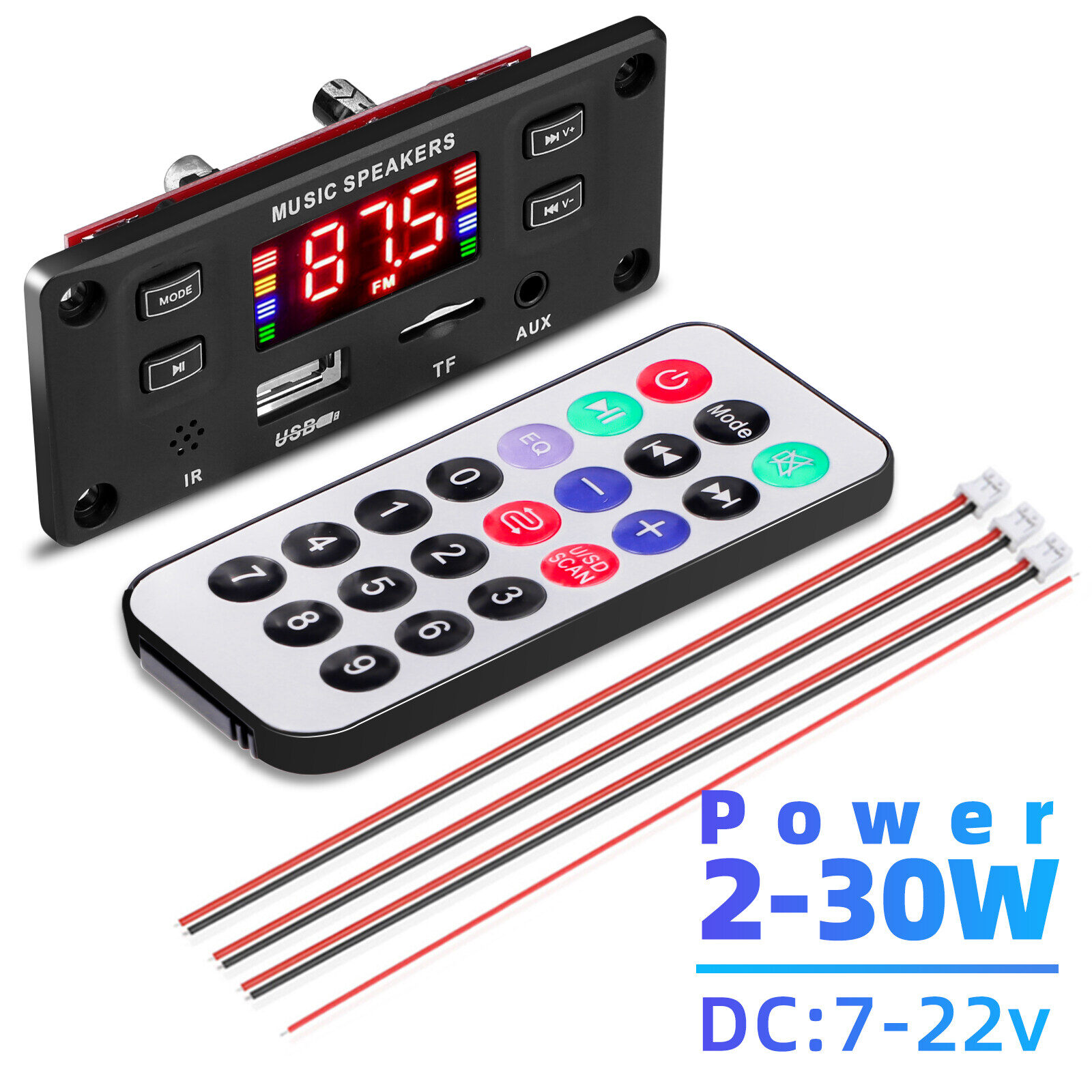

【 60W Amplifier TF Card】7V-22V:

Size: 92*41MM
Output Power:
1. 2*20W (VDD=14.5V, RL=4 ohms)
2. 2*33W (VDD=22V, RL=8 ohms)
Function Description
1. Bluetooth version 5.0
2. Support calling (long press the pause button to answer the call when there is a call).
3. Support recording. Recording only supports operation in TF mode or USB mode.
(Long press the MODE button to start recording, long press the MODE button again to cancel the recording and play the recorded file; exit the recording mode and long press the pause button to exit. When recording, you need to connect a storage device, such as a U disk or TF card;)
4. Support power-off memory
5. The power supply voltage supports between DC 7v-22v, and the current is between 1-3A.
6. Can be directly connected to speakers
7. Support song format MP3/WMA/WAV/APE/FLAC
8. Main function MP3/USB/TF/FM/BLUETOOTH/remote control/
9. Power 60W, stereo 2*30W.
10. Support folder selection to play. When USB or TF is playing, there is a folder in the device and there are songs in the folder. Press the previous button or the next button twice to select the folder to play songs, and the screen will display F001-F00? and so on, yes? A folder displays F00? .
