Bluetooth 5.0 Bảng Mạch Giải Mã MP3 DC 5V 12V Đầu phát âm thanh rảnh tay Micro xe hơi USB Radio FM hỗ trợ thẻ TF MP3 loa Máy nghe nhạc

Description

DC 5V 12V (the item without the Amplifier , it need to work with the Amplifier Board )

Bluetooth version is 5.0

Music format: MP3/WMA/WAV/FLAC/APE lossless format

Radio FM frequency: 87.5-107.5 MHZ

Support function introduction: support MP3 / USB / TF / LINE IN / FM / BLUETOOTH / remote control connection / DC 5V or 12V (optional)

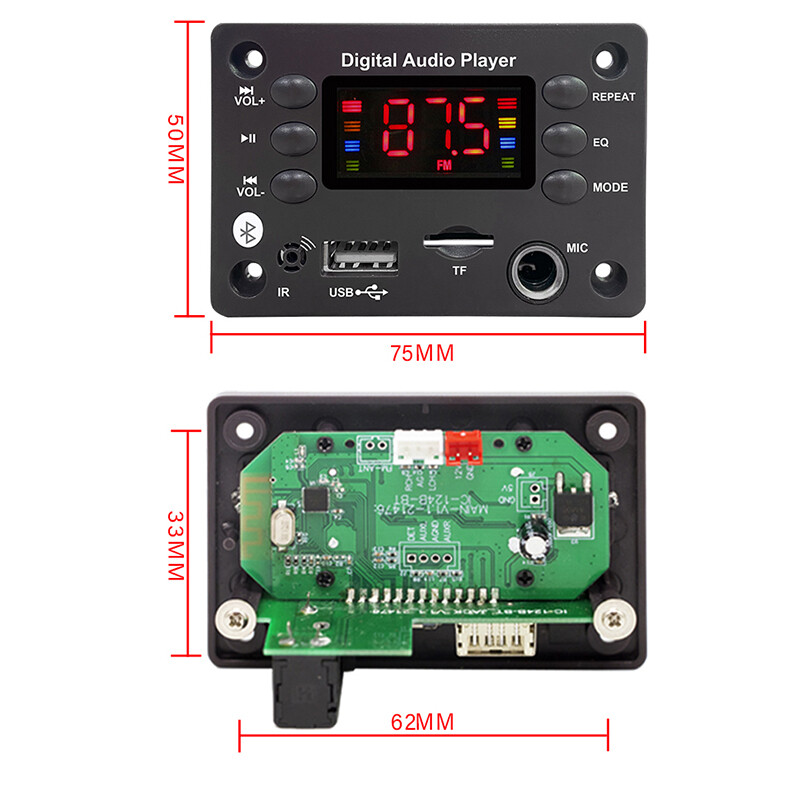

About structure: Panel size: 75*50 MM, screw holes around the panel, the depth of the board is 18MM

Infrared receiver module

TF card slot: connect TF memory card (maximum support 32GB, not included);

LED: digital color screen display, showing red;

AUX interface: audio input interface

MIC: support microphone function

USB interface: connect U disk (maximum support 32GB, not included);

PREV/VOL-: short press is to select the previous song; long press is to decrease the volume

PLAY/PAUSE: short press is to switch between pause and play; long press is to radio FM automatic station;

NEXT/VOL+: short press is to select the next song; long press is to increase the volume;

MODE: Switch between USB/TF/FM/AUX

Package included:

1 x MP3 WMA WAV Decoder Board

1 x Remote control (without batteries)

1 x Cables
