main feature:

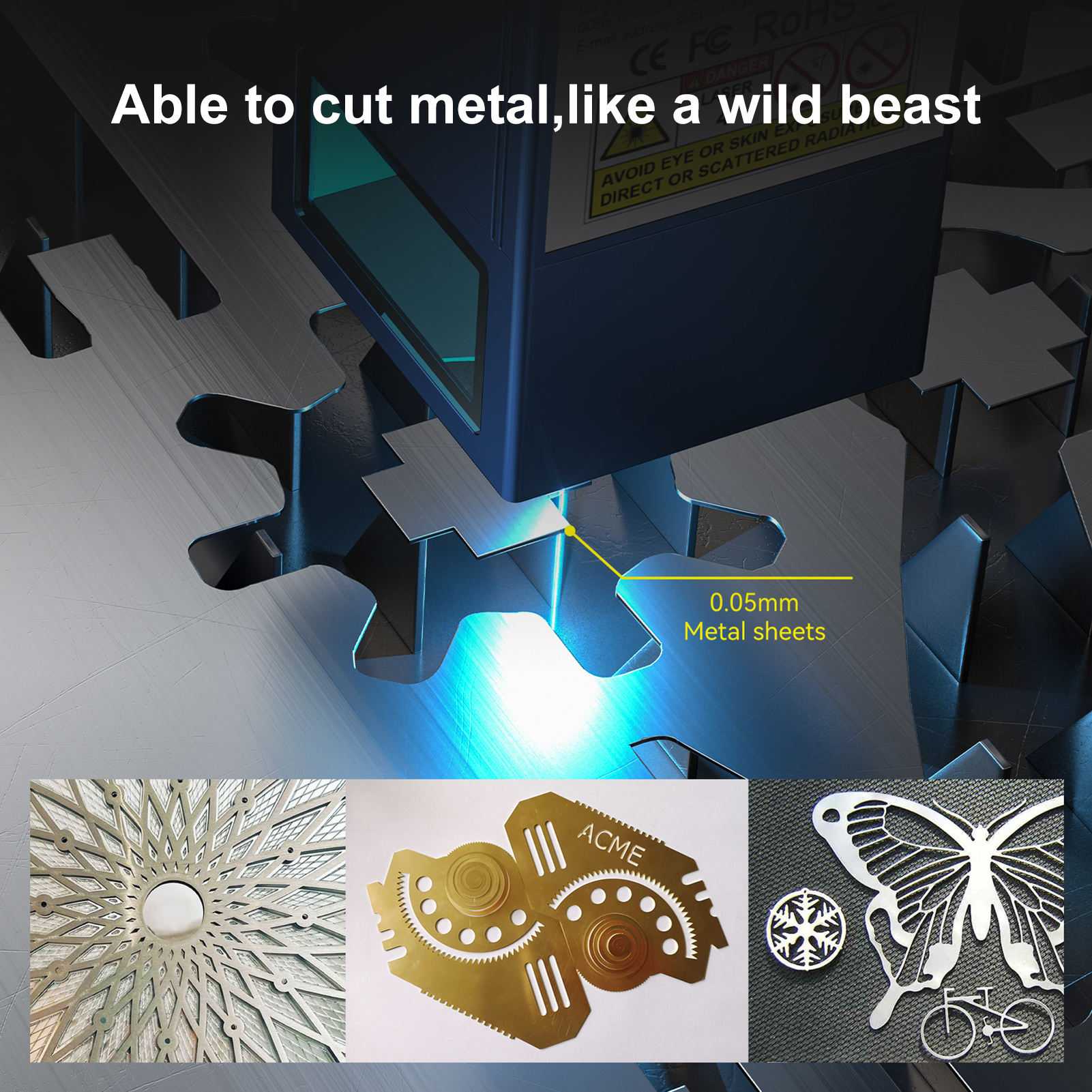

1. Super high power: the world's first 20W Pro optical power laser engraving machine. The latest four 6W laser coupling technology, with powerful power, can cut 10mm paulownia board, 8mm black acrylic board, and even 0.05mm stainless steel sheet at one time.

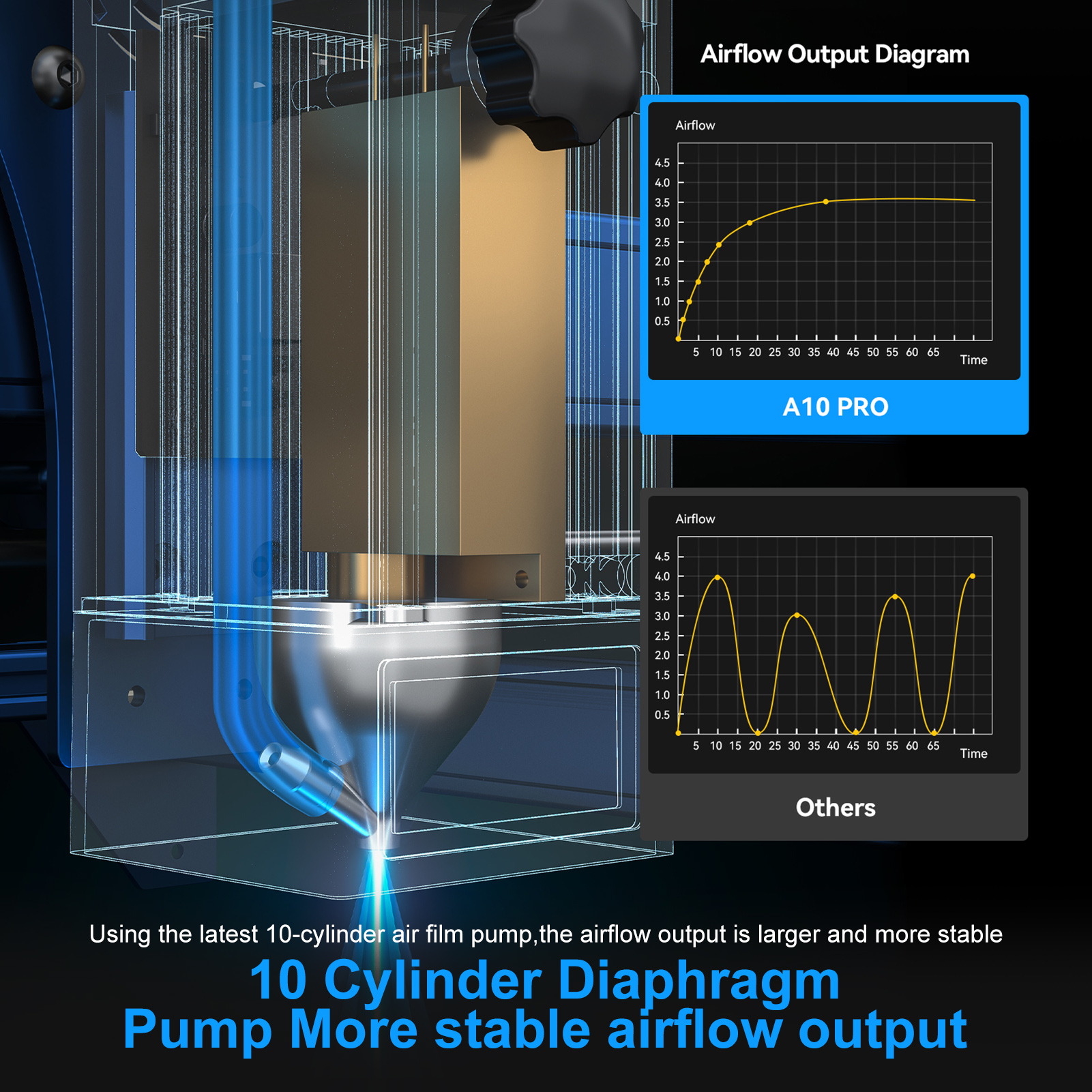

2. The product is equipped with F30 Pro upgraded air kit as standard: the cutting ability has been greatly improved, and the cutting accuracy and cutting quality can also be greatly optimized.
3. The newly upgraded Atomstack self-developed 32-bit motherboard: built-in 256-bit color scale map, which makes the engraving work more delicate and has higher contrast, so that your engraving is not only black.
4. Newly designed laser: Tired of fixed focus film? Think air assist is not aesthetically pleasing? Now, the new A20 Pro laser has a built-in tool-free focusing module, and a built-in air assist system, without the interference of wires, simple and beautiful.
5. Atomstack's self-developed mobile phone APP: Atomstack's self-developed mobile phone APP has been launched in major Android application markets and Apple APPstore (you can also scan the QR code in the manual to download). It is small in size and multi-functional, bringing a new control experience. Come on give it a try.
6. Brand-new filter panoramic glass eye protection design: the panoramic filter glass protective cover can protect your eyes very well, filtering 97% of ultraviolet light, you and the people around you don't need to wear goggles, you can also watch Laser engraving. Reduce your goggle expense and inconvenience of wearing goggles.
7. Sturdy and easy-to-install structural design: The all-aluminum anodized structural design makes the machine more durable and improves the engraving accuracy. The whole structure has been designed for quick installation, and the installation can be completed in generally 20-30 minutes.
8. Upgraded version of high-performance fixed-focus laser: it can be engraved without focal length adjustment; the focal spot area of the new laser is only 1/3 of the spot area of other ordinary lasers, which can take into account both precision engraving and high-energy cutting. At the same time, the laser power of the fixed-focus laser is more stable than that of the zoom laser.
9. Wide compatibility: the machine is compatible with various mature engraving software, such as LaserGRBL, LightBurn, supports Win XP / Win 7 / Win 8 / XP / Win 10, and also supports MAc system (LightBurn), engraving file format Support NC, BMP, JPG, PNG, DXF, etc.
10. Precise scale line axis: X-axis and Y-axis contain precise scale lines, which is convenient for you to quickly measure the length. The 400x400mm large-area engraving area can meet your various engraving needs.

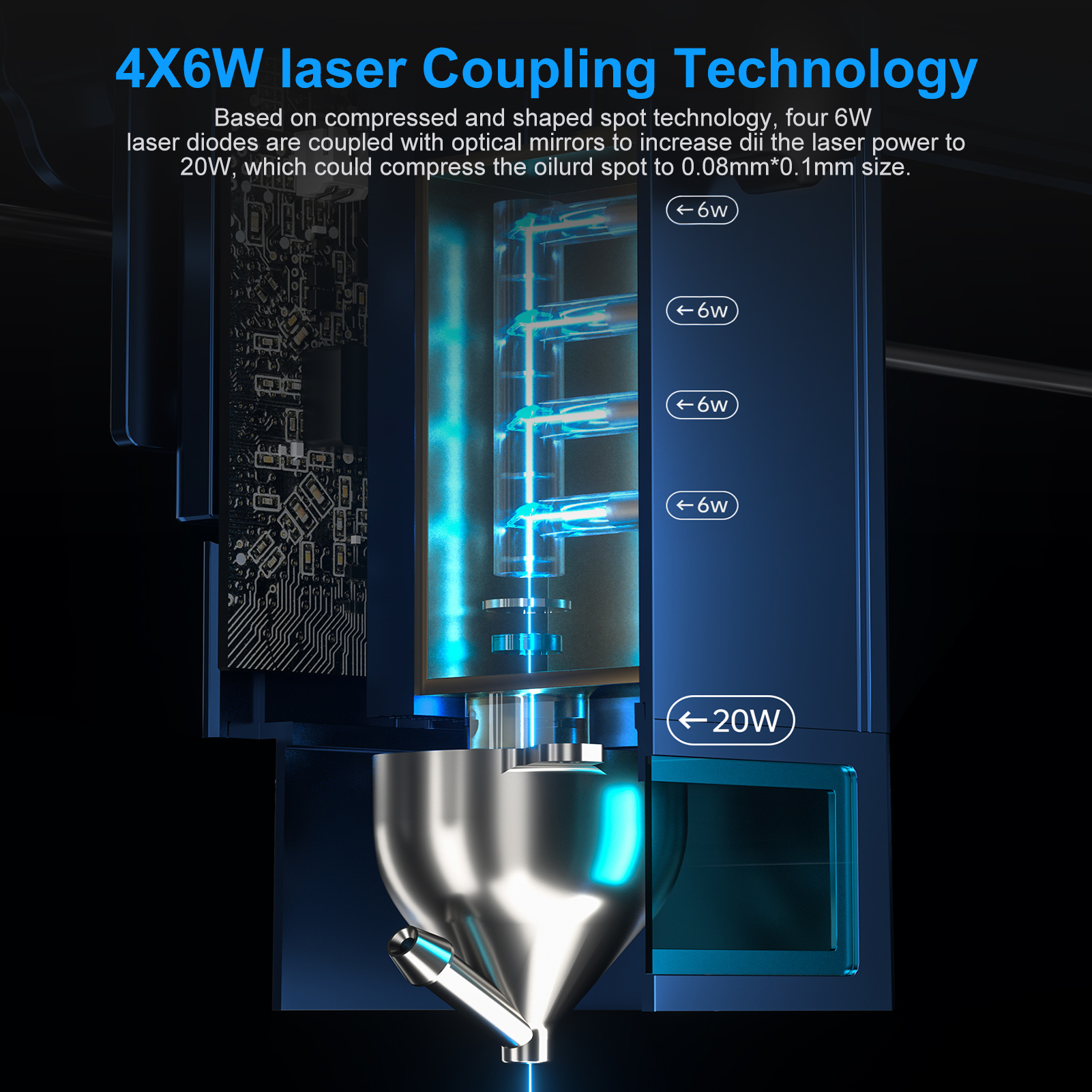

11. Upgraded dual compression spot coupling technology: the ultra-fine laser focus area is reduced to 0.08*0.1mm, and the high-density laser can easily cut 20mm thick black acrylic; it can directly engrave mirror stainless steel metal, ceramics, glass, and the engraving & cutting speed is faster than ordinary The cost is increased by 40%, comparable to that of a 300W CO₂ laser engraving machine.
12. Integral screw: The machine uses an integral screw instead of a combined shaft coupling. The stepping motor and the screw are integral, which makes the movement of the laser more precise and the coupling more durable.
13. New laser with knob: It is more convenient and quick to adjust the height of the laser.

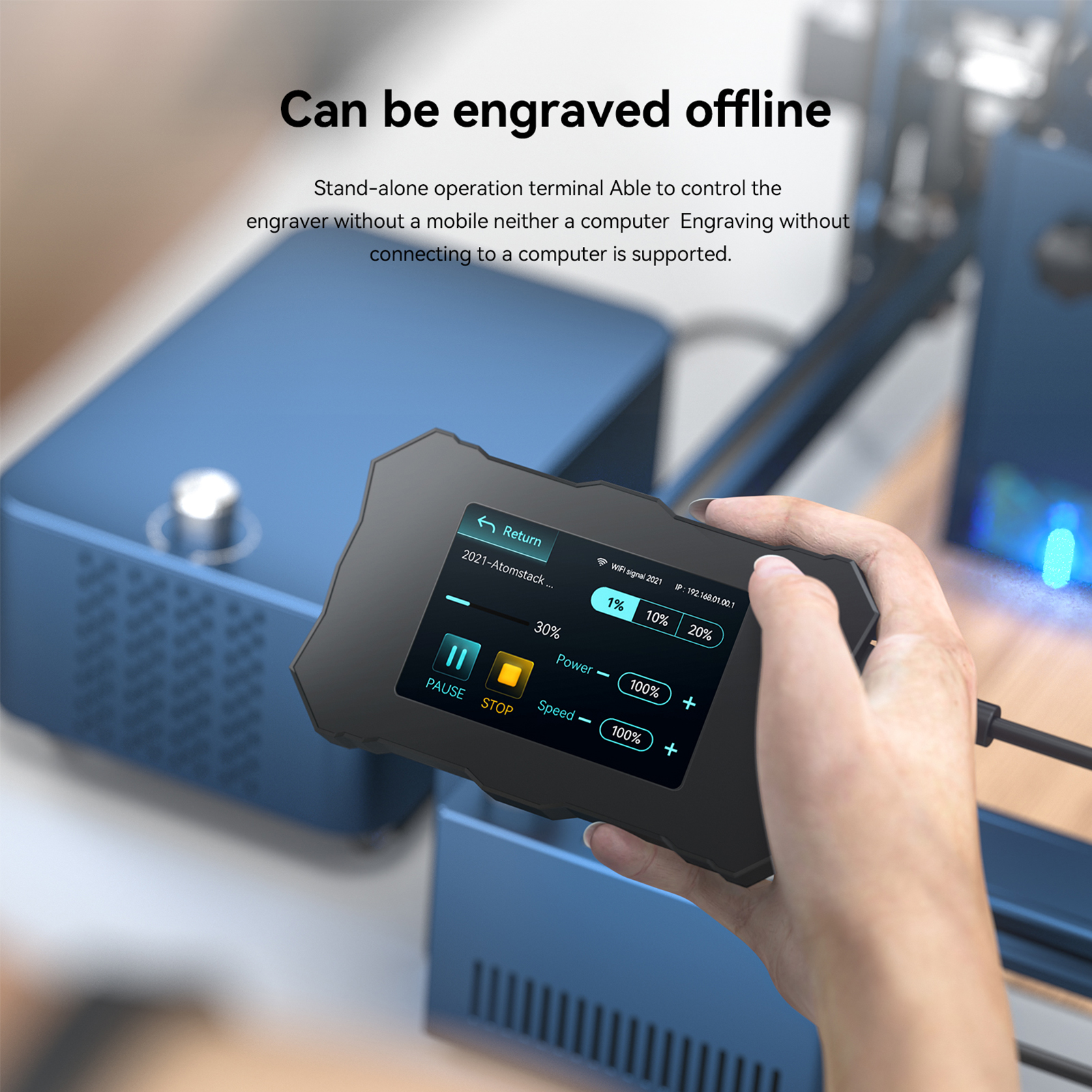

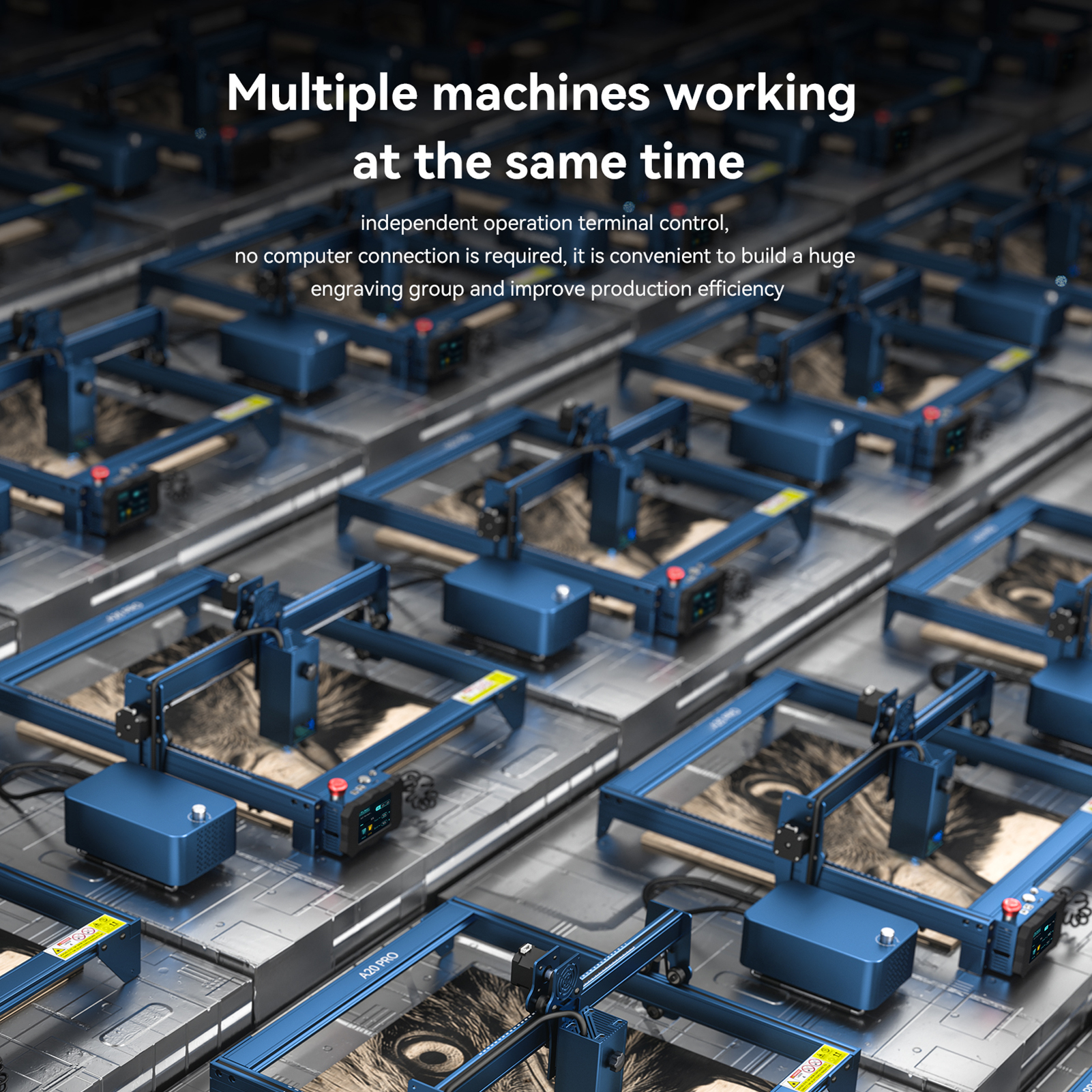

14. Support offline engraving: ATOMSTACK A20 PRO is equipped with a terminal control panel, which supports offline engraving. You can perform engraving anytime and anywhere without being limited by the computer
15. Laser sintering temperature up to 2400℃
16. Emergency stop button: If there is an unexpected situation, stop the machine at any time, and the engraving is safer
17. Limiter: Yes
17. Reset switch: yes
18. Expandable engraving size: Modular design of the fuselage mechanism, only need to replace the frame components, you can get 410*850mm super large engraving size

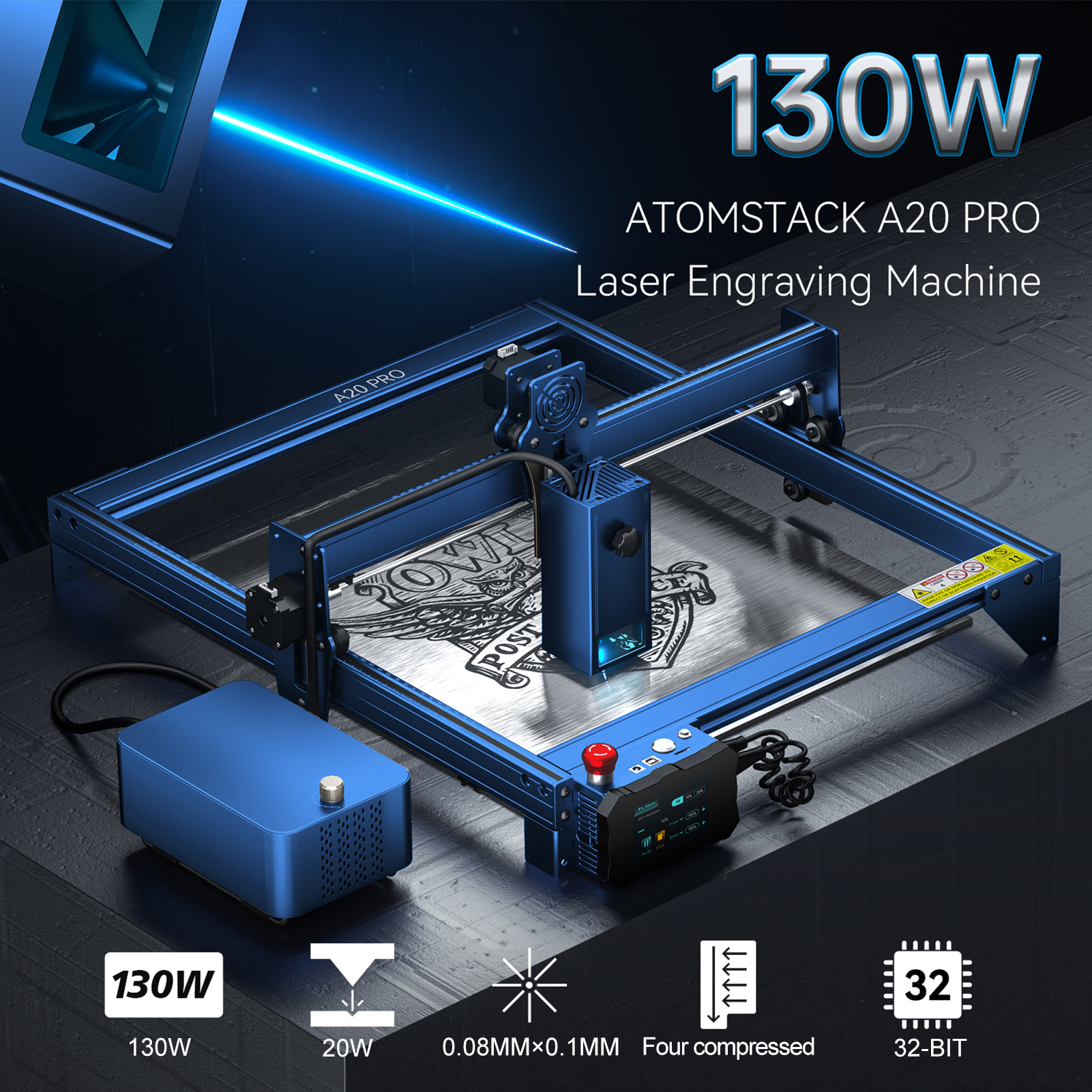

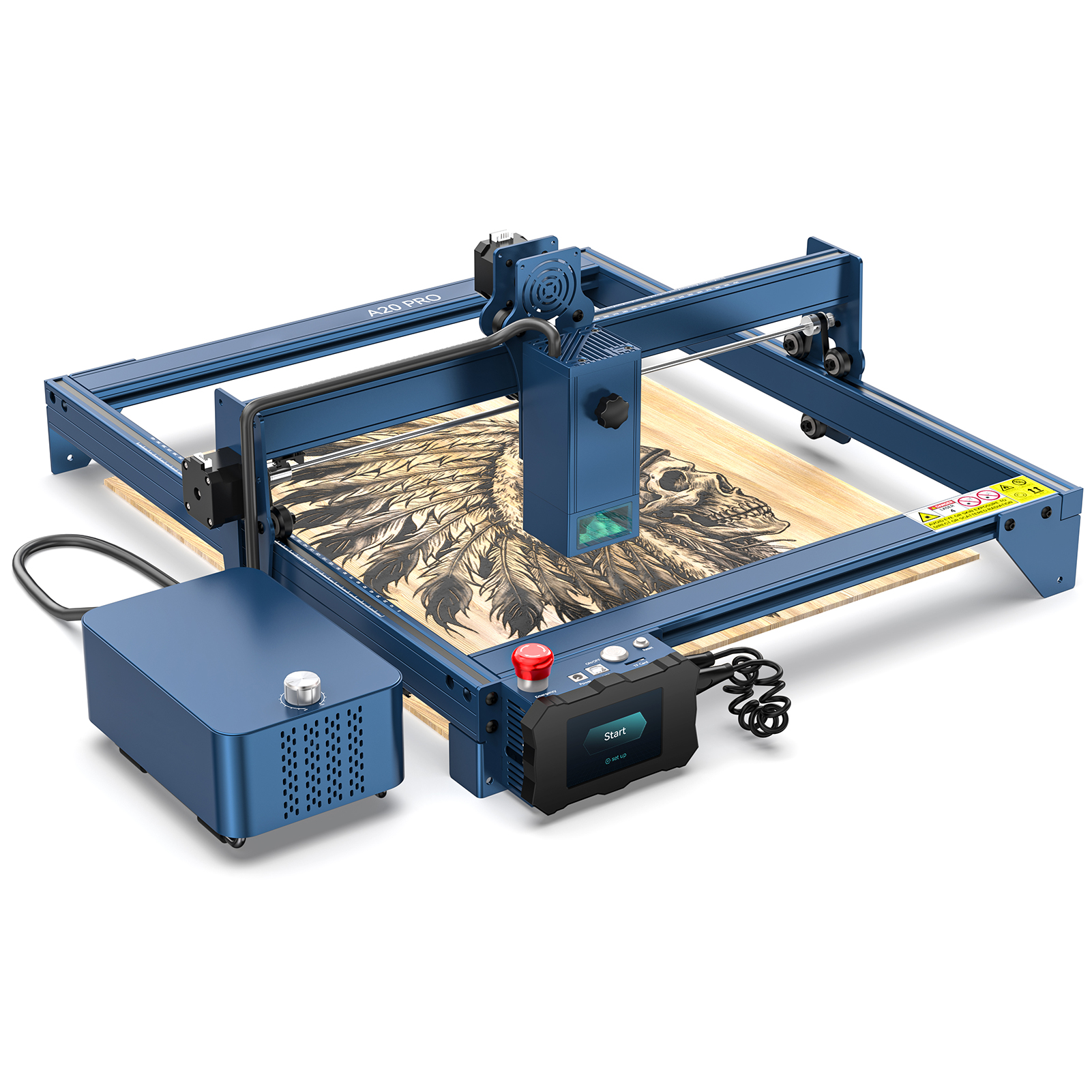

Product model: ATOMSTACK A20 PRO

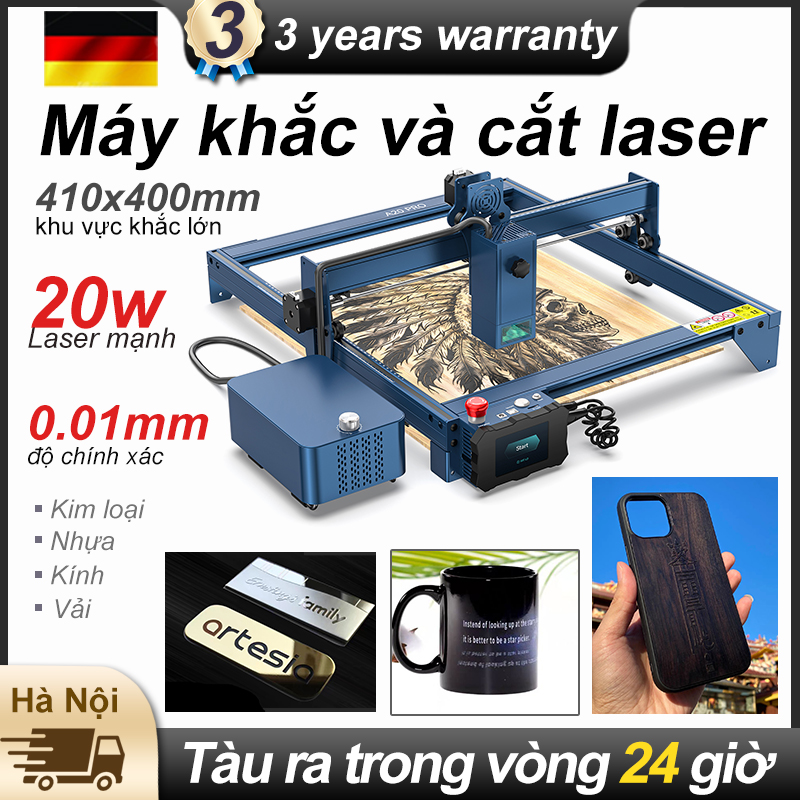

Engraving size: 400*400mm
Engravable/cuttable material
Carving material: wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective
Electroplated and painted metal, 304 mirror stainless steel, glass, ceramics, cotton cloth, slate;
Cutting material: cardboard, non-woven fabric, wood board, acrylic, some thin plastic board, sponge;
Machine power: 130W
Laser power: 90W
Laser output optical power: 20-21W
Laser wavelength: 455±5nm
Engraving accuracy: 0.01mm
Focusing method: fixed focus laser, no focusing
Laser protective cover: there is a protective cover on the laser to protect the user's eyes, no need to wear additional protective glasses. At the same time prevent pets from grabbing the laser point
Operating software: LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 system
Supported file formats NC, BMP, JPG, PNG, DXF,
Data transmission method: USB connection
Power supply: international common standard power input: 100-240V AC, 50/60HZ output: 12V 5A
Certification: CE FCC RoHS FDA PSE
Package Size:
Single package size: 560*520*165mm
Net weight of a single device: 7.22kg
Gross weight of a single device package: 9.92kg
Packing quantity: 2pcs
Combined box size: 585*540*365mm
A20 PRO engraving machine packing list:
1×Mounting screw
1×tool bag
4×foot pad foam
1× fixed focus film
3 x acrylic sheet
3 x wood chips
10×wire tie
1 x desiccant
1×hair brush
1×clean cloth
1×card reader
1 x TF card
1 x power adapter
1 x manual
1×data cable
1×touch screen assembly
1 x HDMI cable
1×laser module
1 x cutting backing board
1×X-axis assembly
1 x Y axis left profile
1 x Y axis right profile
1 x profile on the base
1× Base lower profile
3×foot bracket
1xF30 Pro Air Assist Kit
