AKKO V3 Switch

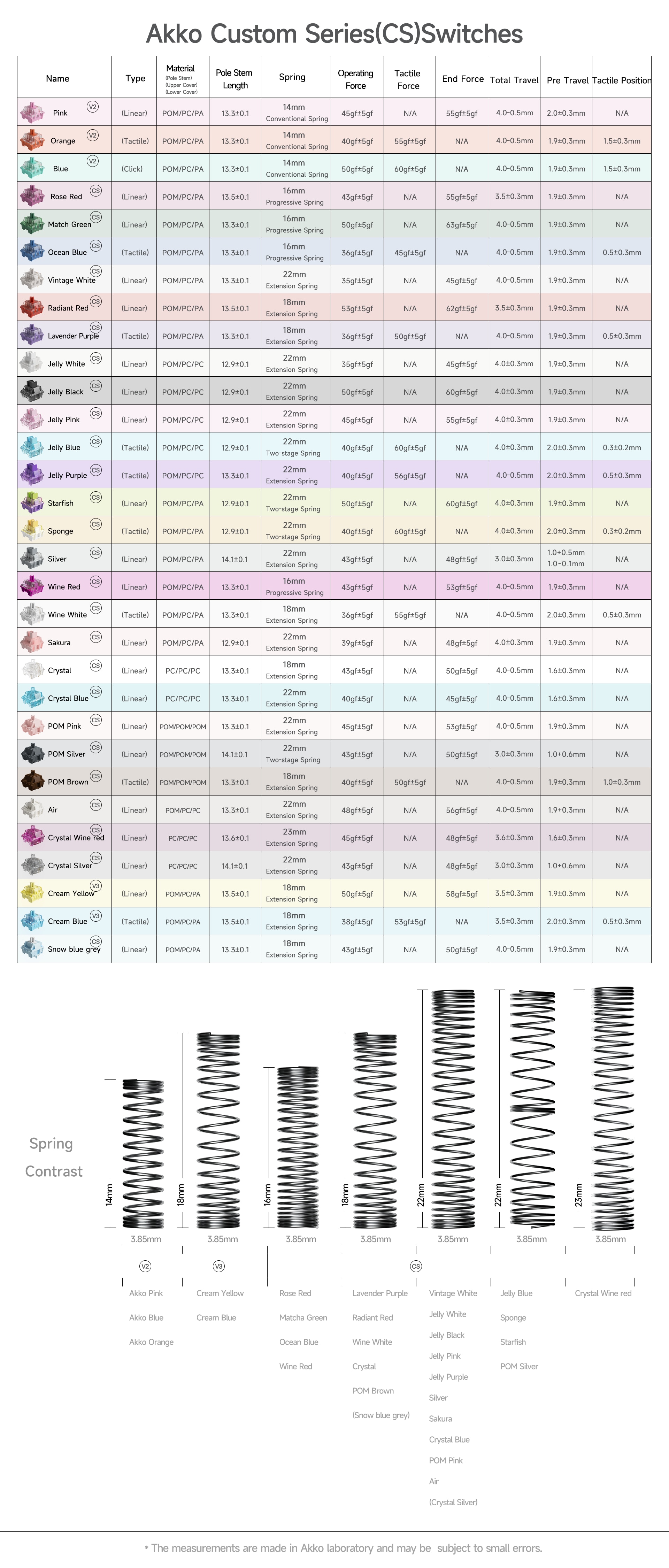

Being known by popular custom switches, AKKO V3 switch goes beyond. Previously we have released different types of CS switches and now we are introducing new V3 series to AKKO family. Like its predecessor, the V3 series will include different types of switches, either linear or tactile. The purpose of releasing the V3 series is to offer more options to keyboard enthusiasts as every tiny bit of changes would create distinct typing experiences.
About Lubes
It is always subjective when it comes down to the level of lubes that need to be applied on individual switch. Meanwhile, lubing the switches by machine might also affect the lifespan of switches. Thus, concerning those factors, AKKO V3 switches will not come factory-lubed at the moment. AKKO V3 switches do have a thin layer of dry film in the shrapnel for lubrication purpose, but there is no lube at all on any other parts such as top, stem or spring.
Compatible with MX Structure Keycaps
AKKO V3 switches are designed with general MX structure so that they can fit most keycaps sets with (+) cross stem. This greatly improves the compatibility and you can feel free to change the switch and remake your own keyboard.
Built-in LED Slot & Durable Lifespan
AKKO V3 switches are equipped with north-facing LED slot for LED modification. It is also compatible with SMD LED. This provides more fun feature and options for those who are a DIYer. With a lifespan of approximate 50 million times of keystrokes based on laboratory durability test, you are rest assured with the long lifespan.
Chose The Type Based On Your Needs
The AKKO V3 switches are designed with different configurations to meed various needs. Either you are in favour of a tactile feel or linear feel, you are able to find one switch among tons of choices.

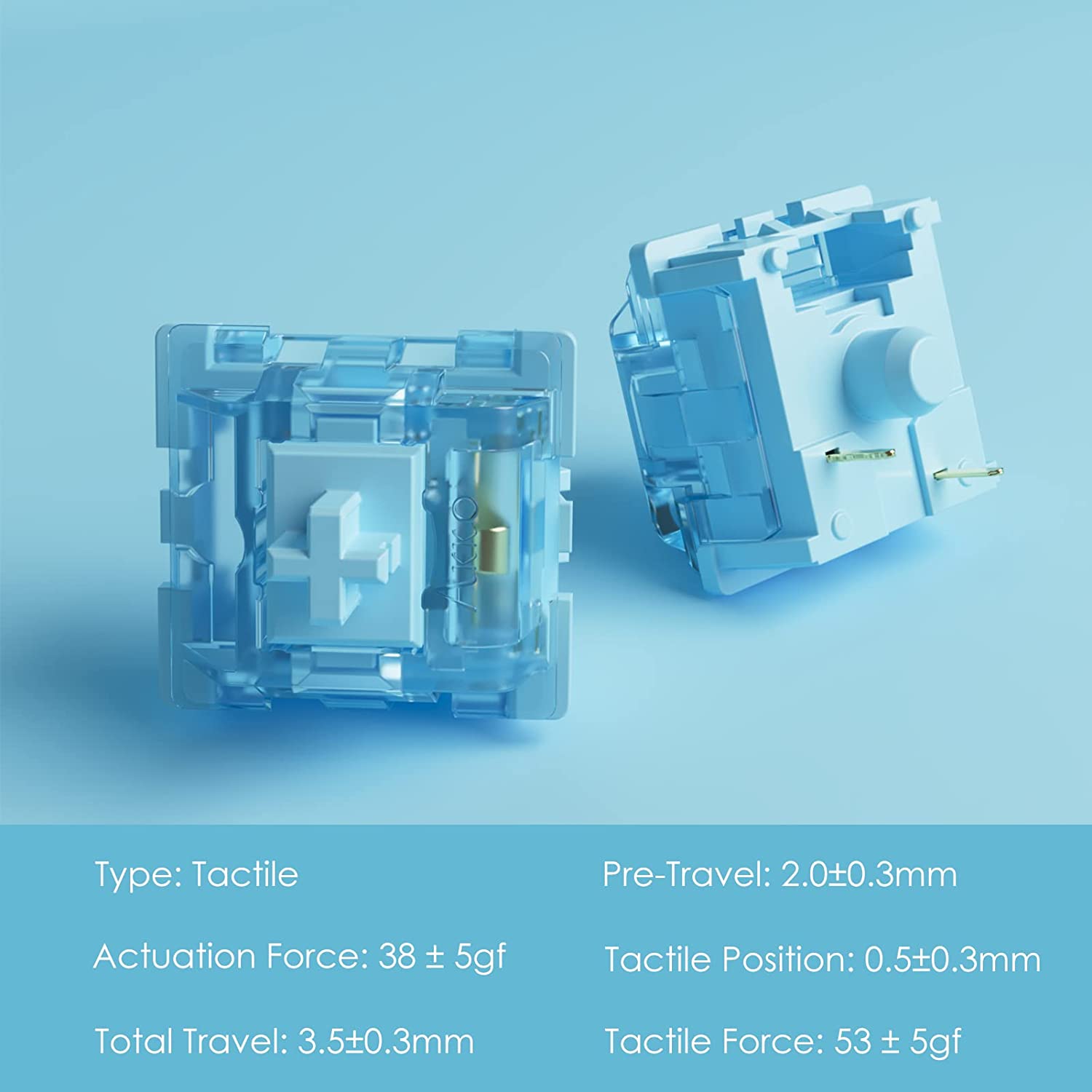

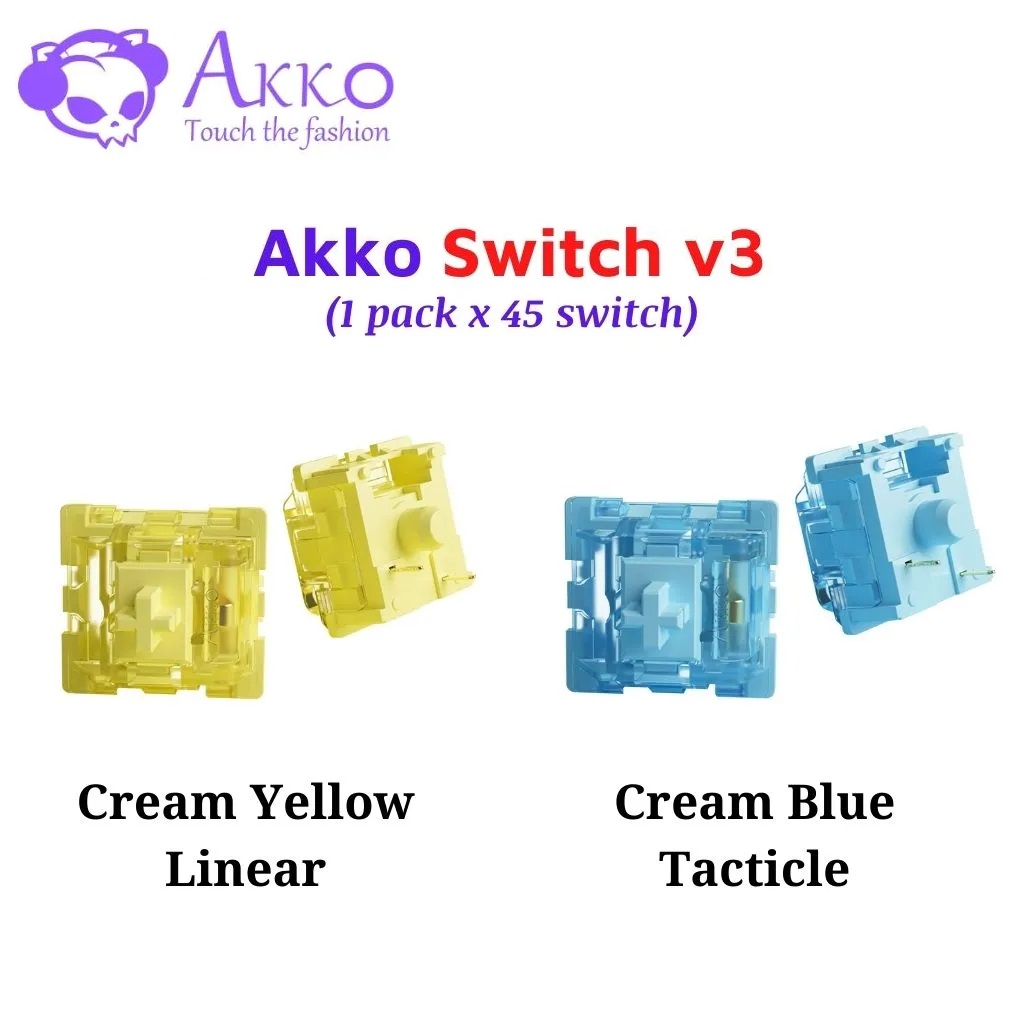

Akko V3 Cream Blue Switch 3 Pin 38gf Tactile Switch Compatible with MX Mechanical Keyboard (45 pcs)
Cream Blue is a tactile switch that is part of the Akko v3 Generation series. They have a long pole compared to other Akko tactile switches to provide a solid and faster bottom-out feeling. The v3 Cream Blue's are not lubed.
ABOUT THE SWITCHES
- Tactile switch.
- Materials:
- Stem: POM
- Top: polycarbonate (PC)
- Bottom: polyamide (PA is a type of nylon)
- Plate mount.
- 3 pin
- Packaged in a tray with cardboard slip cover.
- Designed and manufactured by Akko.
- Sold in units of 45.
Material
- Stem: POM with extension spring
- Housing: PC
- Bottom: PC

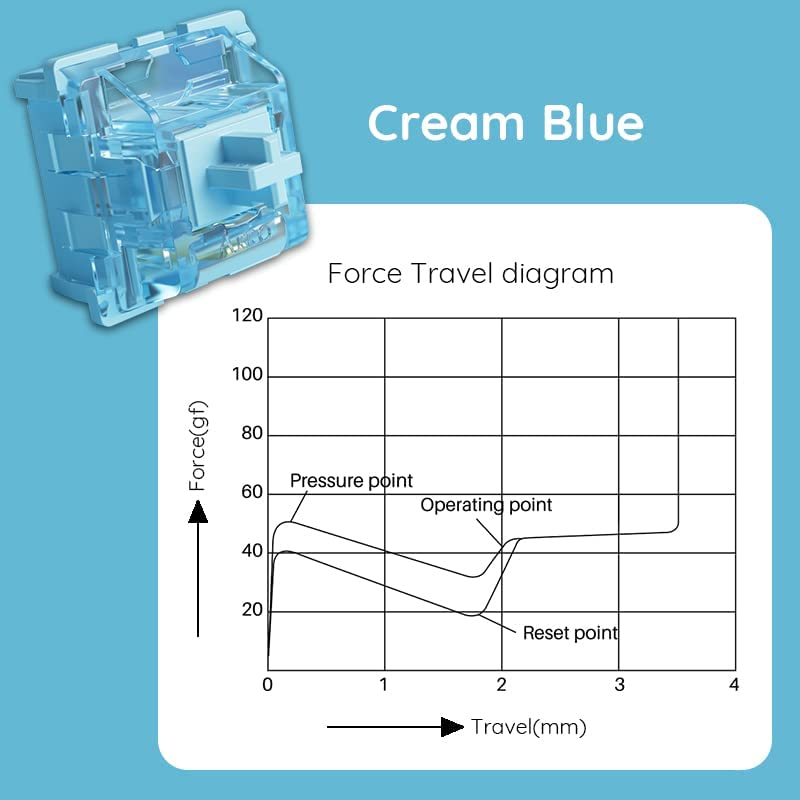

Akko V3 Cream Blue Switch (45pcs)
- Type: Tactile
- End Force: 38gf±5gf
- Total Travel: 3.5 ± 0.3mm
- Pre-Travel: 2.0 ± 0.3mm
- Tactile Position: 0.5 ± 0.3mm
- Tactile Force: 53 ± 5 gf
Compatible with most mechanical keyboards with 3-pins and 5-pins hot-swappable socket
- Fitted with hot-swap socket types including Outemu, Kailh and Gateron
- Good replacement switches for Cherry, Kailh, Gateron, KTT and TTC switches
Highlights
- Approximate lifespan of 60 million times of keystrokes based on the laboratory durability test
- Equipped with LED slot ready for LED Mod/Assembly, and are SMD compatible (LED underneath the switch)
- Come with MX style structure so would fit most keycap sets with (+) cross stem

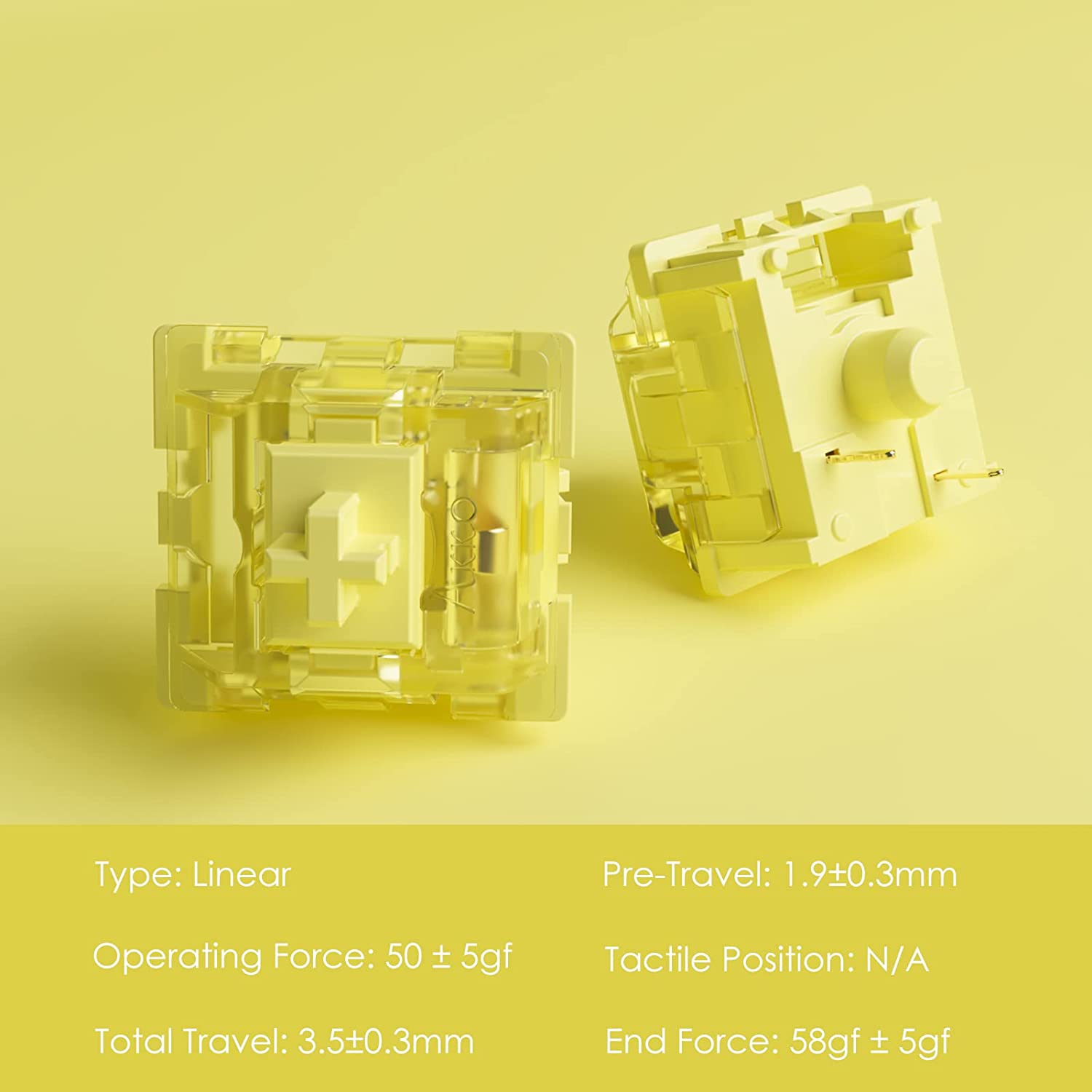

Akko V3 Cream Yellow Switch 3 Pin 50gf Linear Switch Compatible with MX Mechanical Keyboard (45 pcs)
Cream Yellow is a linear switch that is part of the Akko v3 Generation series. The v3 Cream Yellow's are not lubed.
ABOUT THE SWITCHES
Linear switch. These have a smooth keypress with no tactile bump.
- Materials:
- Stem: POM
- Top: polycarbonate (PC)
- Bottom: polyamide (PA is a type of nylon)
- Plate mount.
- 3 pin
- Packaged in a tray with cardboard slip cover.
- Designed and manufactured by Akko.
- Sold in units of 45.
Material
- Stem: POM with extension spring
- Housing: PC
- Bottom: PC

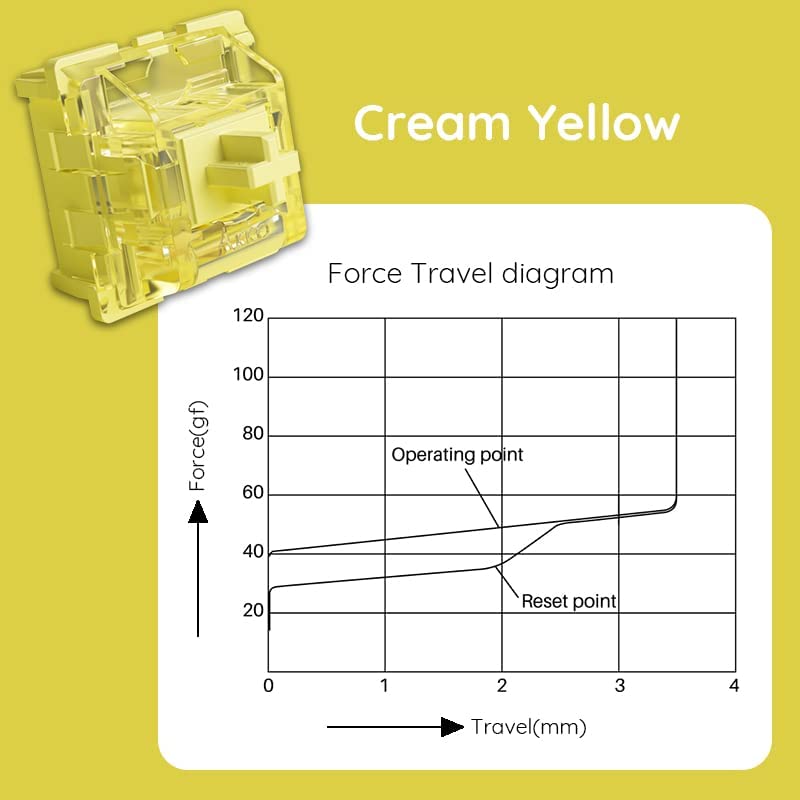

Akko V3 Cream Yellow Switch (45pcs)
- Type: Linear
- Actuation Force: 50gf ± 5gf
- Total Travel: 3.5 ± 0.3mm
- Pre-Travel: 1.9 ± 0.3mm
- Tactile Position:N/A
- Tactile Force:N/A
Compatible with most mechanical keyboards with 3-pins and 5-pins hot-swappable socket
- Fitted with hot-swap socket types including Outemu, Kailh and Gateron
- Good replacement switches for Cherry, Kailh, Gateron, KTT and TTC switches
Highlights
- Approximate lifespan of 60 million times of keystrokes based on the laboratory durability test
- Equipped with LED slot ready for LED Mod/Assembly, and are SMD compatible (LED underneath the switch)
- Come with MX style structure so would fit most keycap sets with (+) cross stem
SWITCHES
A keyboard switch is the little component that sits underneath the keycap and connects to the keyboard PCB. On a mechanical keyboard, every key has its own switch.
How many switches do I need?
For common sizes, here are some estimates (these can vary slightly by keyboard model):
- Full-size Plus: 108 Keys
- Full-size (100%): 104 Keys
- TKL (Tenkeyless): 87Keys
- 75%: 81, 75 Keyboard uses 79 switches.
- 65%: 68, Keyboard uses 67 switches.
- 60%: 61 Keys
We recommend buying enough to fill your board, with some extra to spare.
