Aideepen Bộ Điều Nhiệt DC 12V-50 ~ 110 ° C Bộ Điều Khiển Nhiệt Độ W1209 Công Tắc Cảm Biến NTC

Description:

• Color: Blue
• Temperature control range: -50~110°C
• Resolution: -9.9~99.9 when 0.1 °C Other temperature range 1°C
• Temperature measurement accuracy: 0.1°C
• Control accuracy: 0.1°C
• Hysteresis accuracy: 0.1°C
• Refresh rate: 0.5S

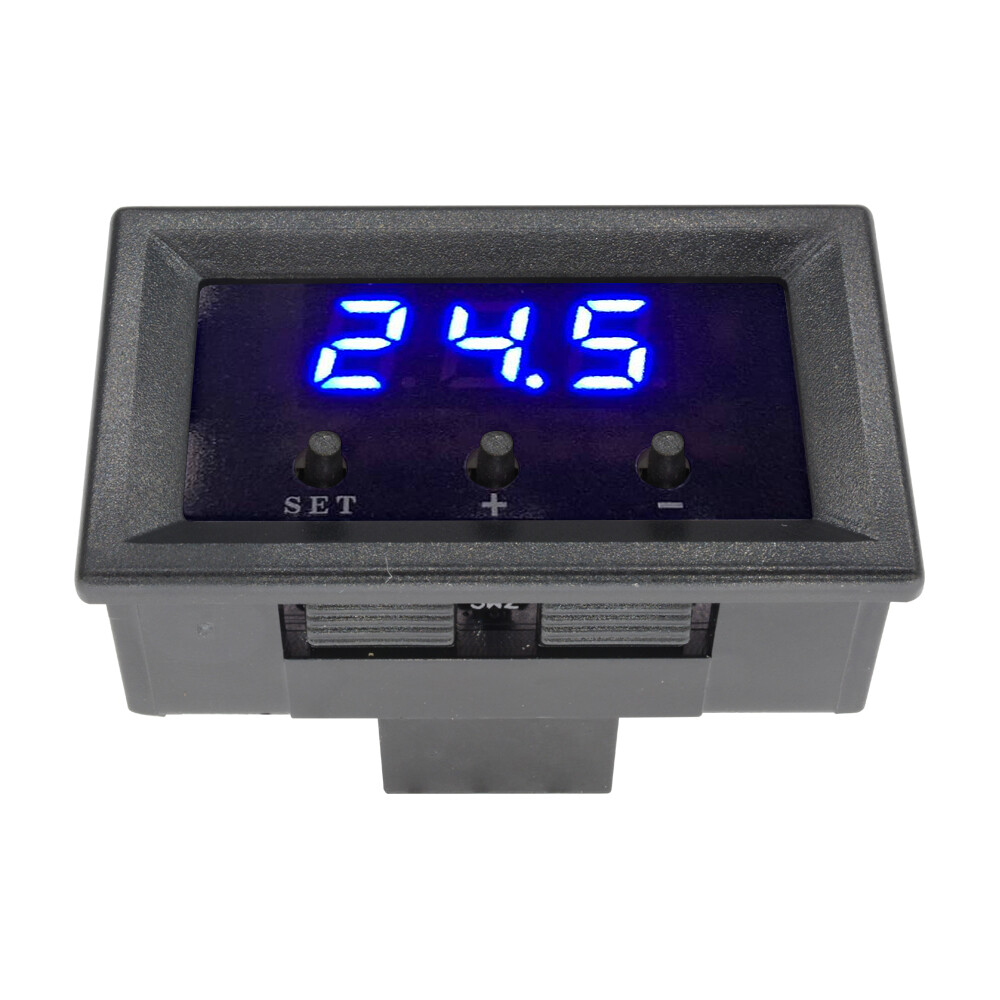

• Display type: 0.28 inch three digital tube
• Input power: DC 12V

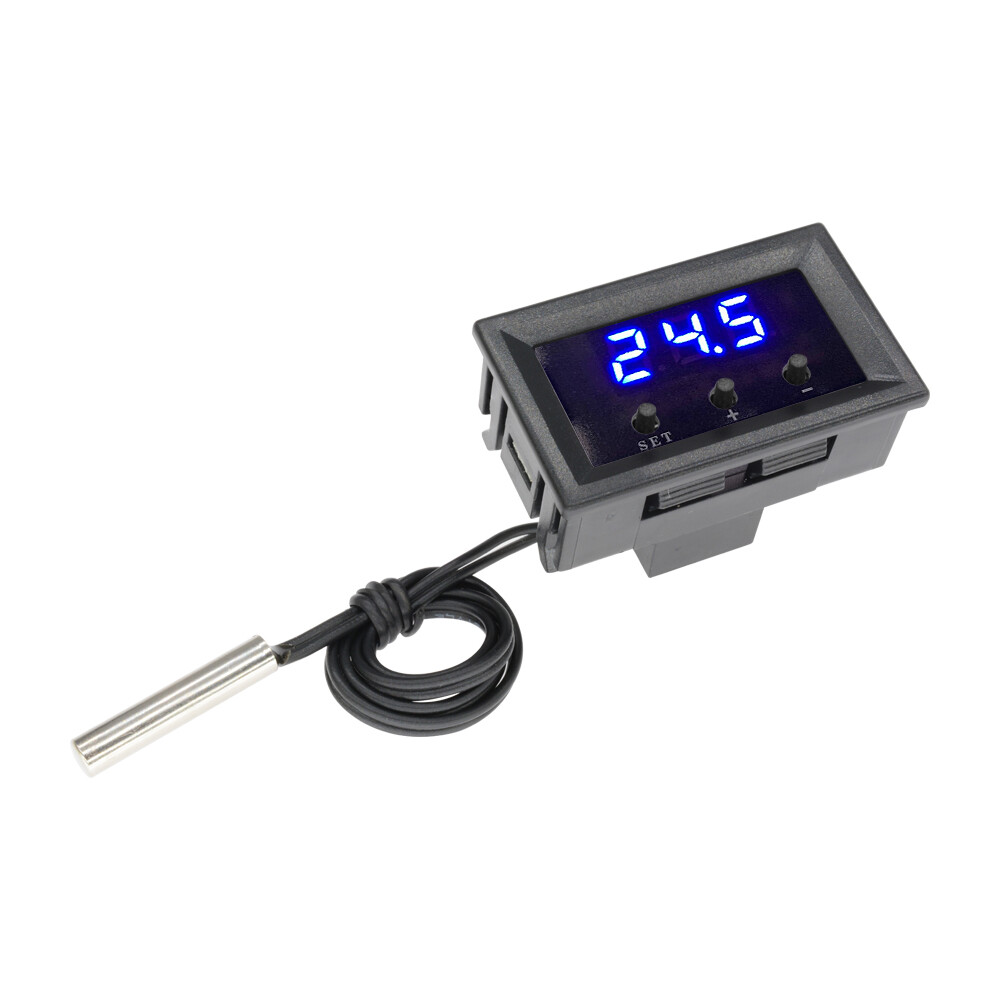

• Measurement input: NTC (10K 0.5%) Waterproof sensor Line length 300mm

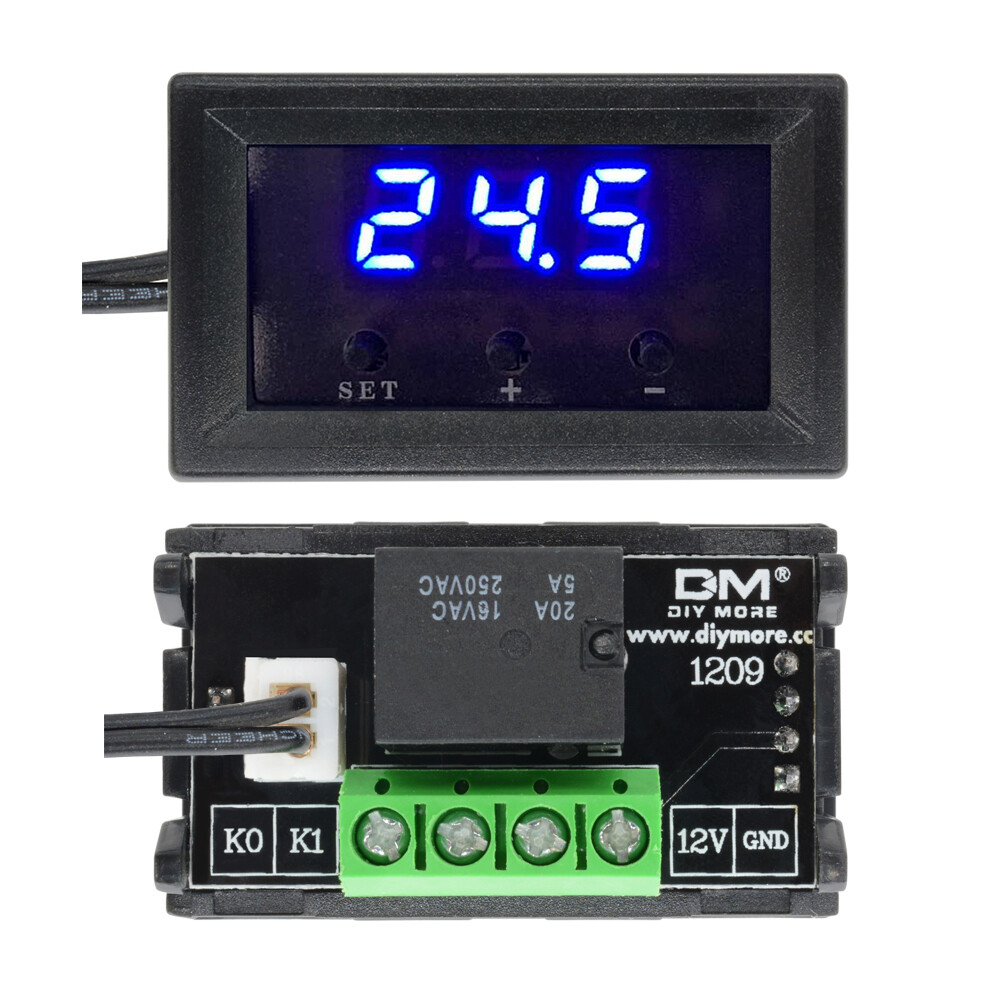

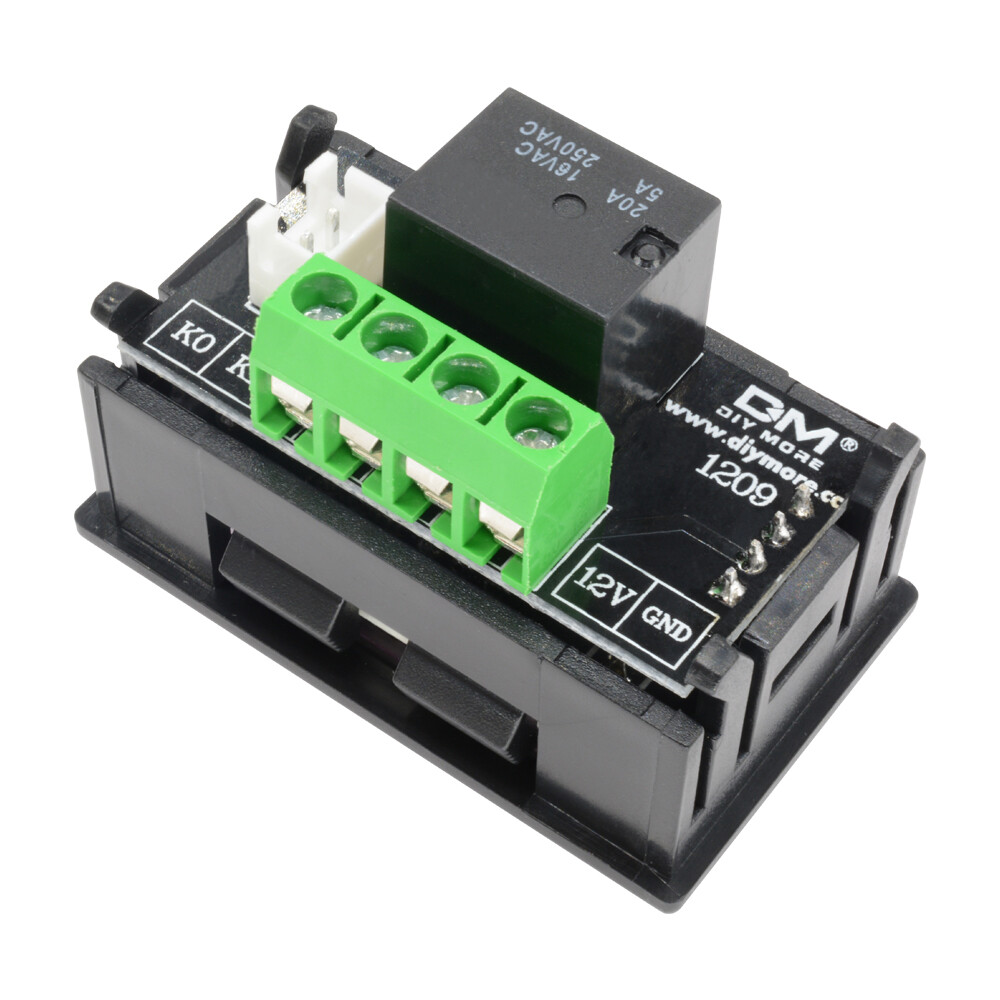

• Output: 1 relay output, 5A 250VAC, 20A 16VAC
• Environmental requirements: -10~60°C Humidity 20%-85%
• Size: 47.5*18.5*31.5mm
• Static current: ≤ 10MA, attract current ≤ 65MA

How to use:

Connect the power supply and the load, you can supply to the controller,

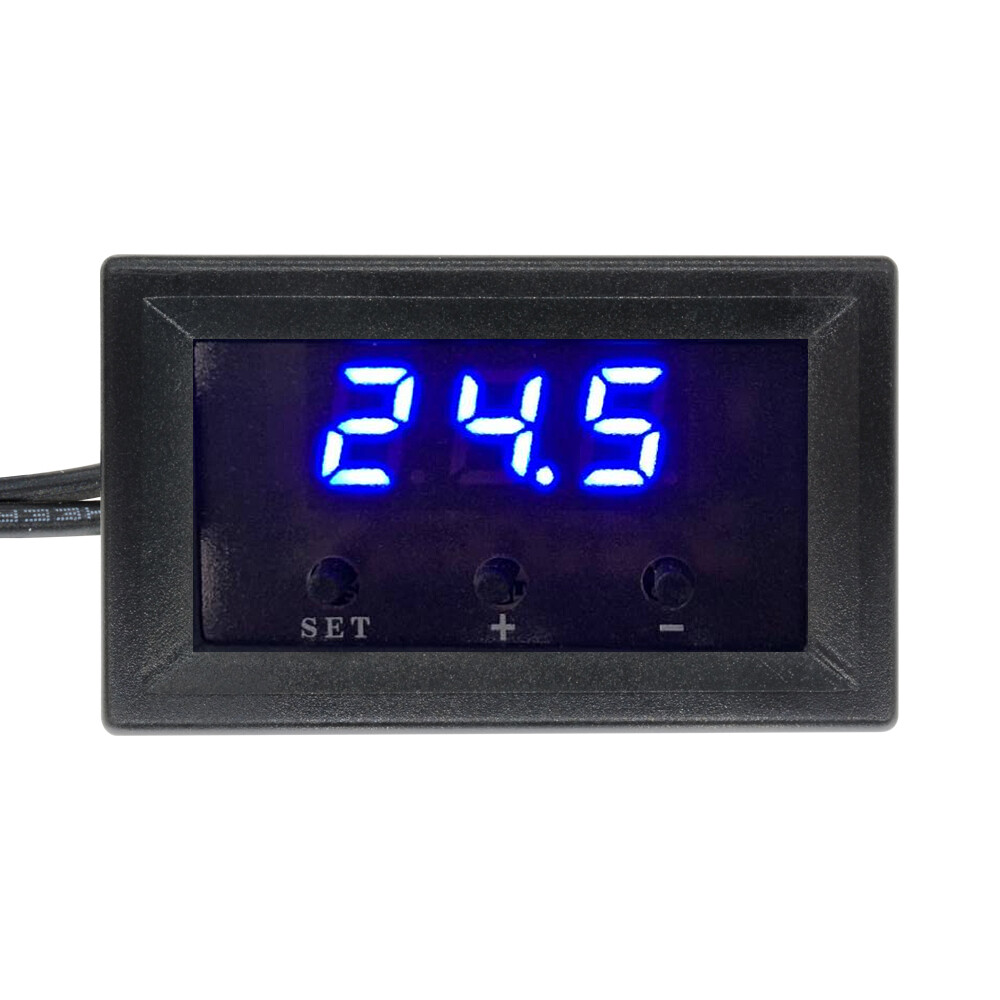

Is displayed as a measured temperature,
Press the SET button, the display flashes the temperature,
Press - to set the desired temperature,
After setting press SET to confirm return,
The controller automatically performs the relay by setting off!
Lights, LED status descriptions:
Indicator: Off The relay is switched off, Always indicate the relay is closed.
LED: Shows LL is the sensor open, showing ?HH is out of range, the thermostat will be forced to close the relay, the display --- as high temperature protection.

Package Included:

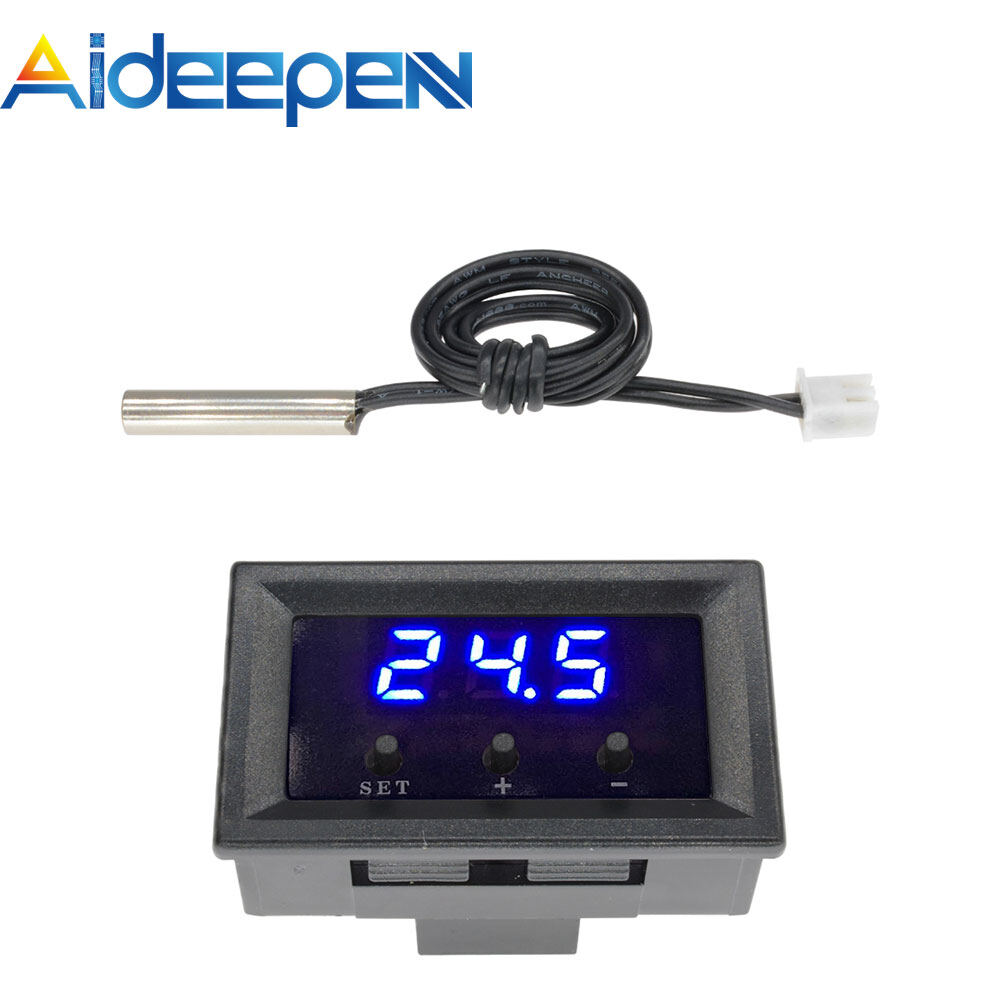

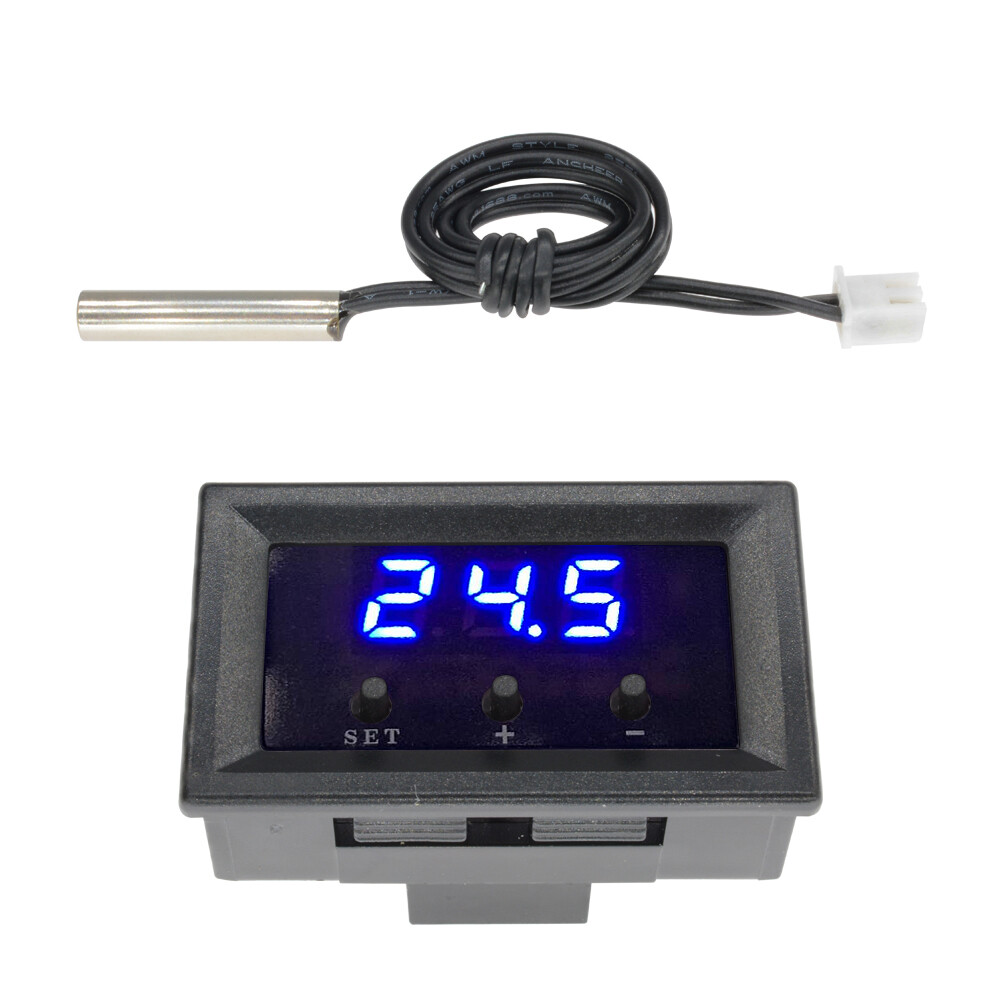

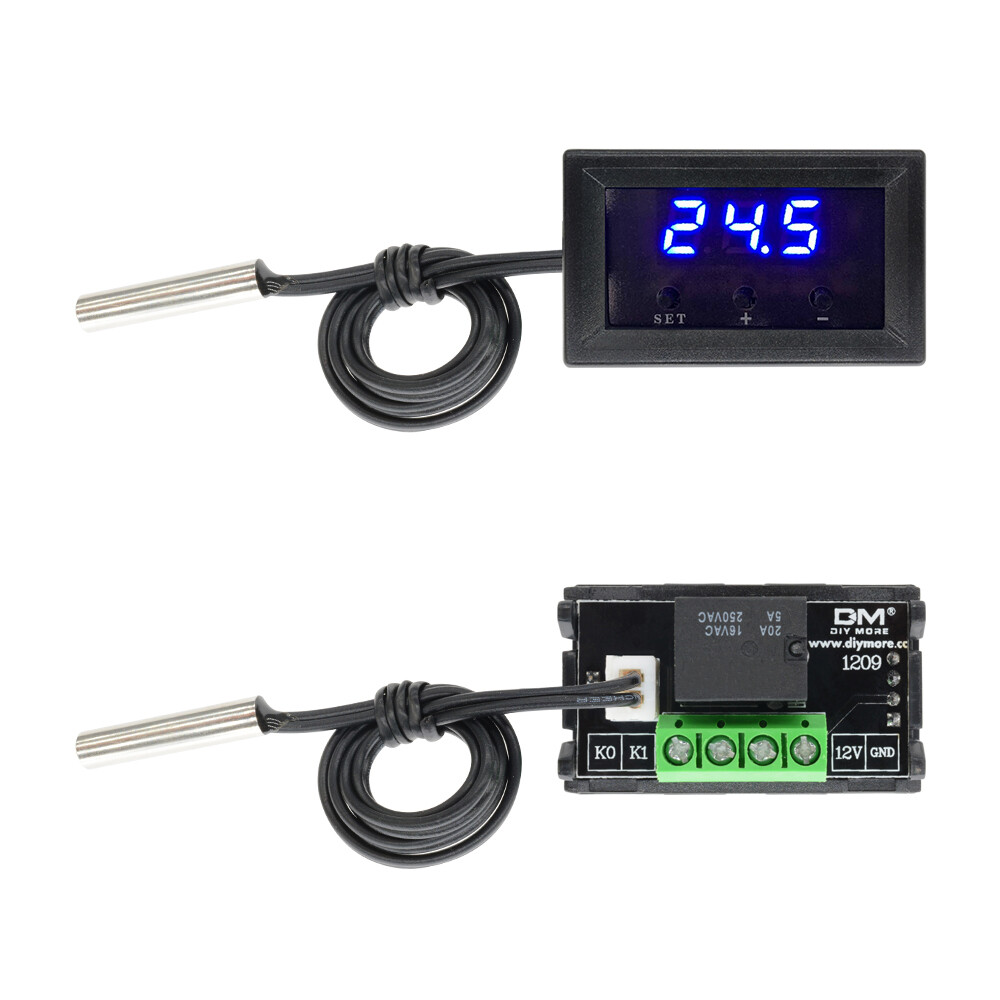

1 x-50~110°C W1209 12V Digital Thermostat Temperature Controller Switch Sensor+Case
