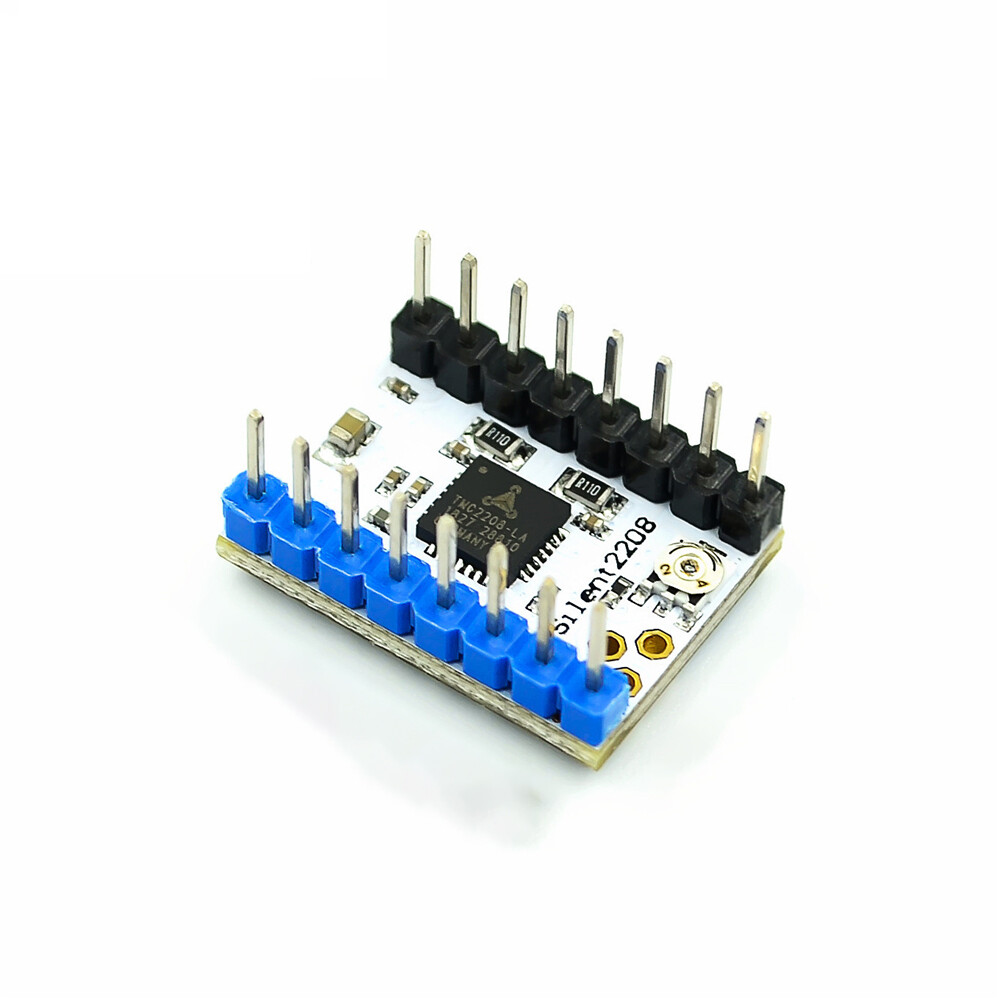

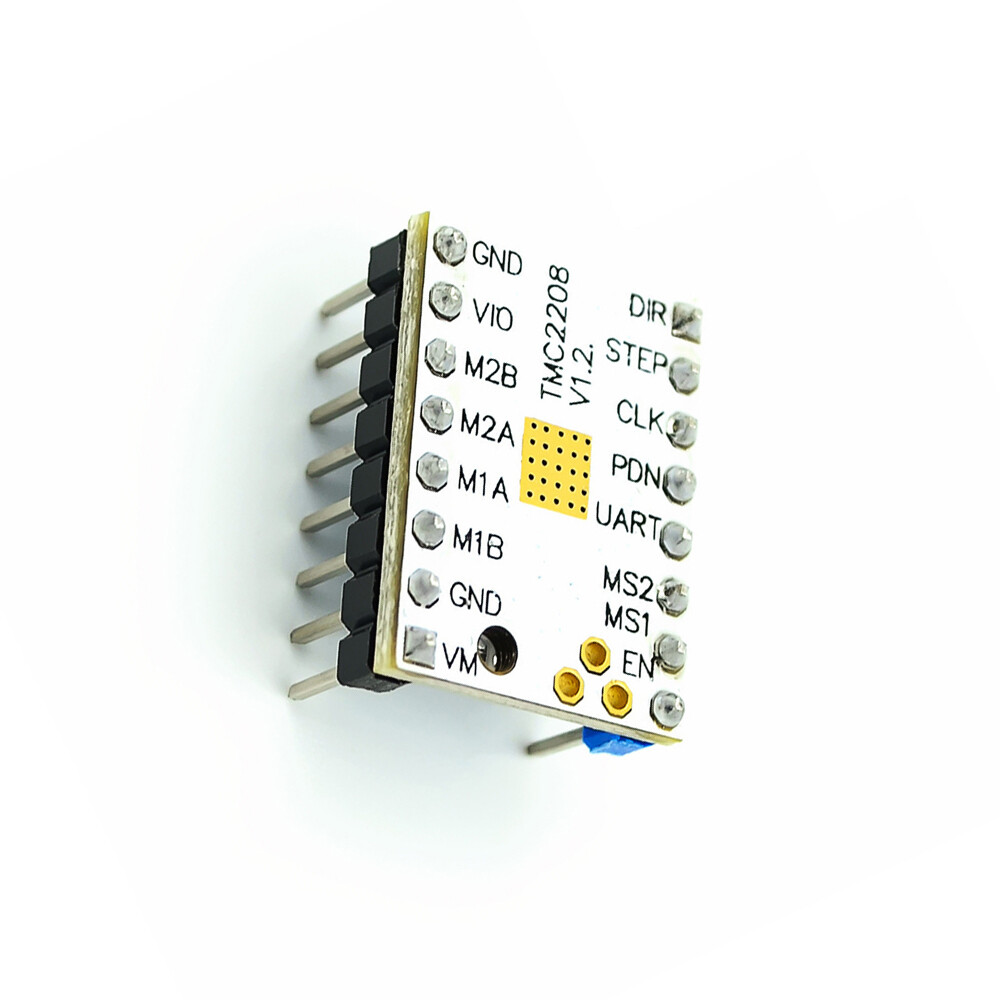

Phụ Kiện Máy In 3D Aideepen Bộ Điều Khiển Động Cơ Bước TMC2208 V1.2 Với Bộ Tản Nhiệt Hỗ Trợ Bước/Giao Diện DIR Và Giao Diện SPI 256 Phân Chia Dòng Điện Cực Đại 2A

Product parameters:

Motor voltage: 4.75V-36V

Logic voltage: 3V-5v

Segments: 256

Control mode: support STEP/DIR interface and SPI interface two control methods

Product introduction:

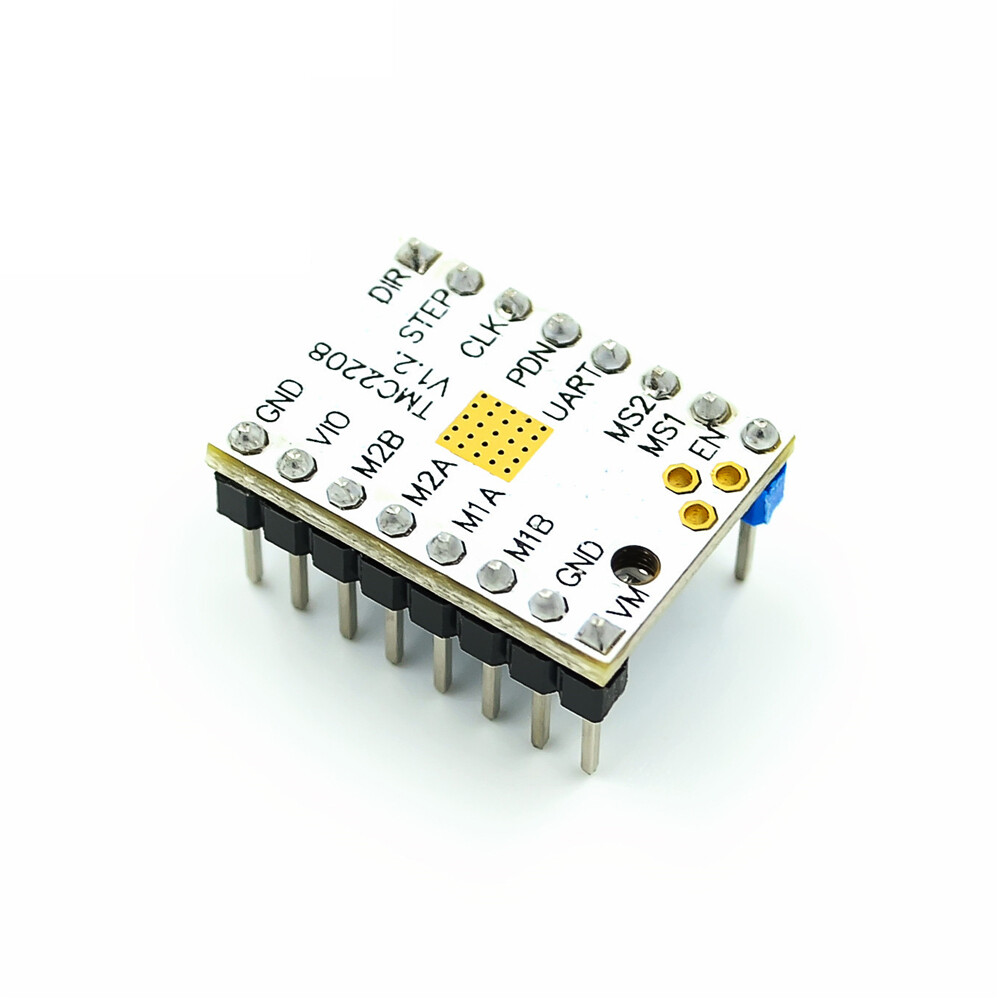

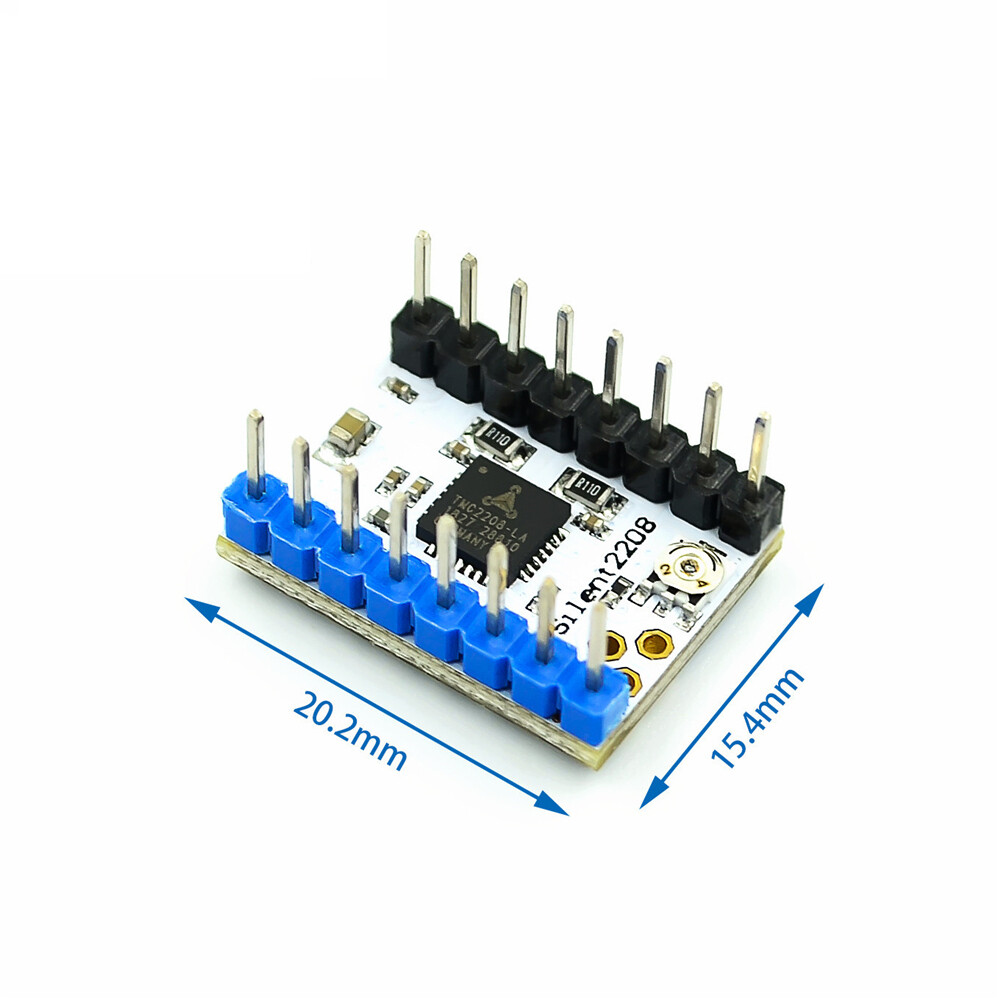

TMC2208 single-axis stepping motor driver chip, built-in power tube drive current 1.4A, peak current 2A, voltage range 4.75V~36V, 256 subdivisions; with technology spreadCycletTM high chopping frequency, dcStepTM stall detection technology, coolStepTM current dynamic adjustment technology , can save 70% energy, StealthChop silent and flexible microPlyer interpolation unit, components can provide up to 256 microsteps / step resolution, can still achieve sinusoidal control even in systems with limited pulse rate; due to StealthChop silent technology in 3D printing are widely used in 3D printers, so these components are also designed to be compatible with existing 3D printer electronics

Both components have pulse/direction inputs for fully autonomous operation, configuration via digital inputs

It can replace the original TMC2100 with lower calorific value, especially suitable for the 3D printing market

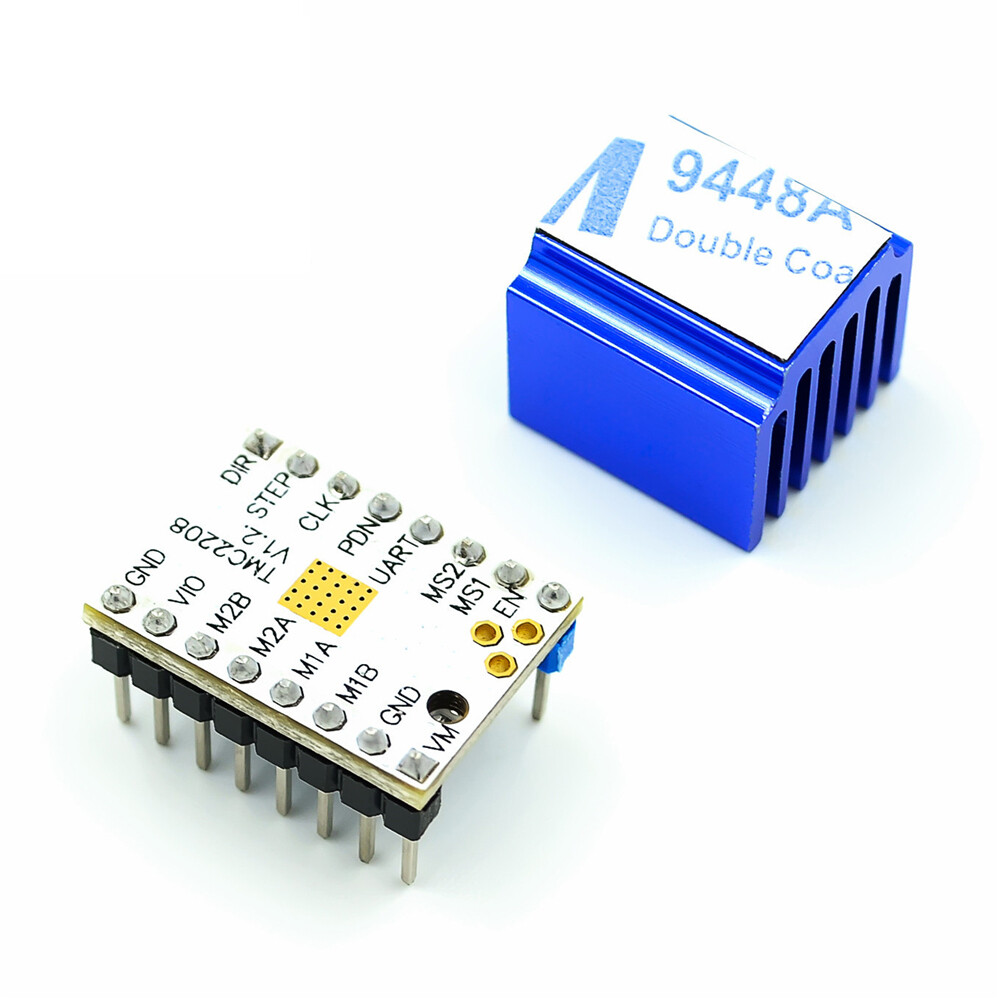

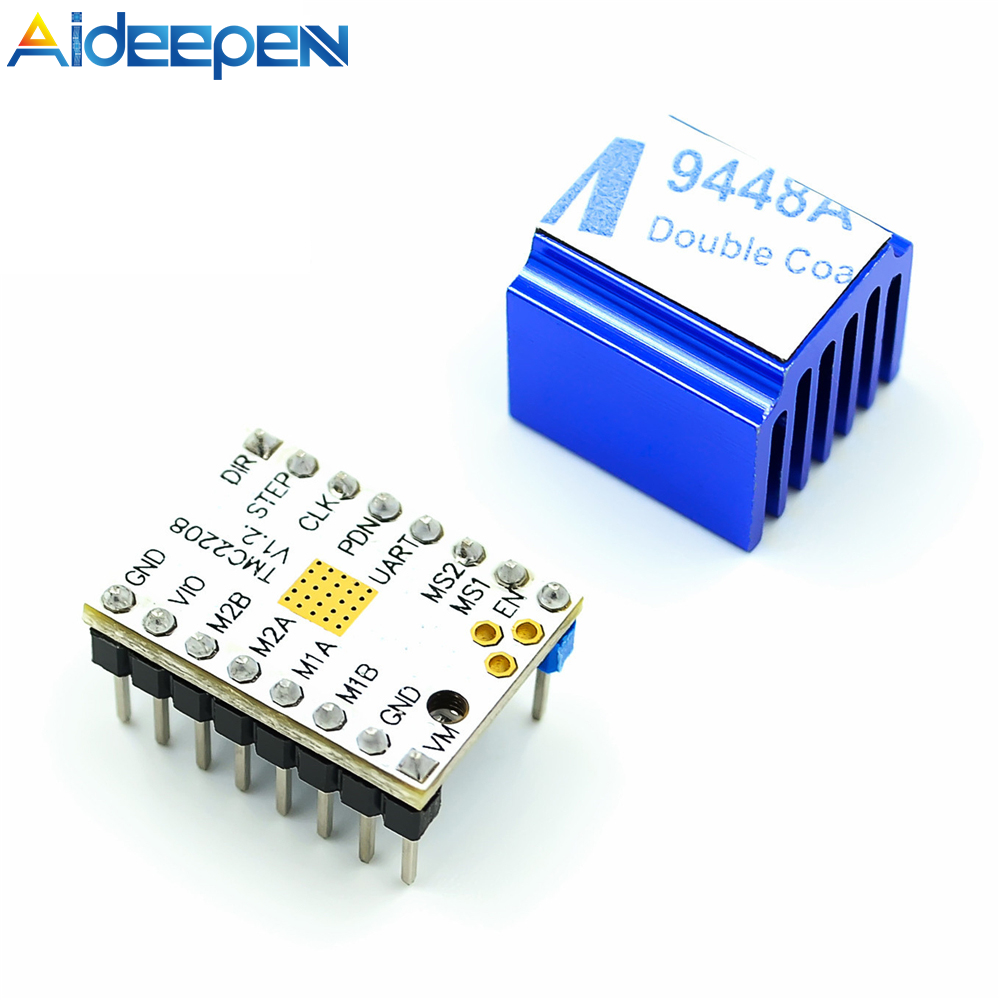

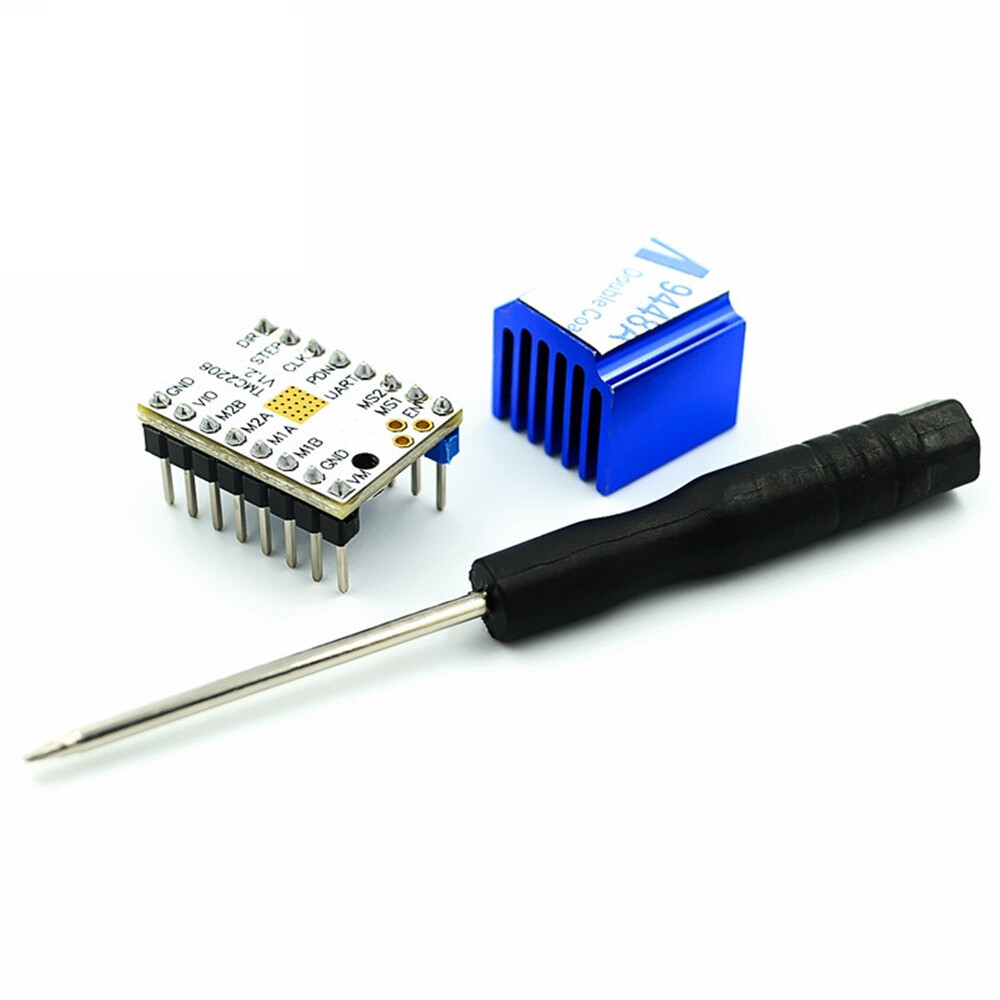

Package includes:

Module X1

Accessories X1

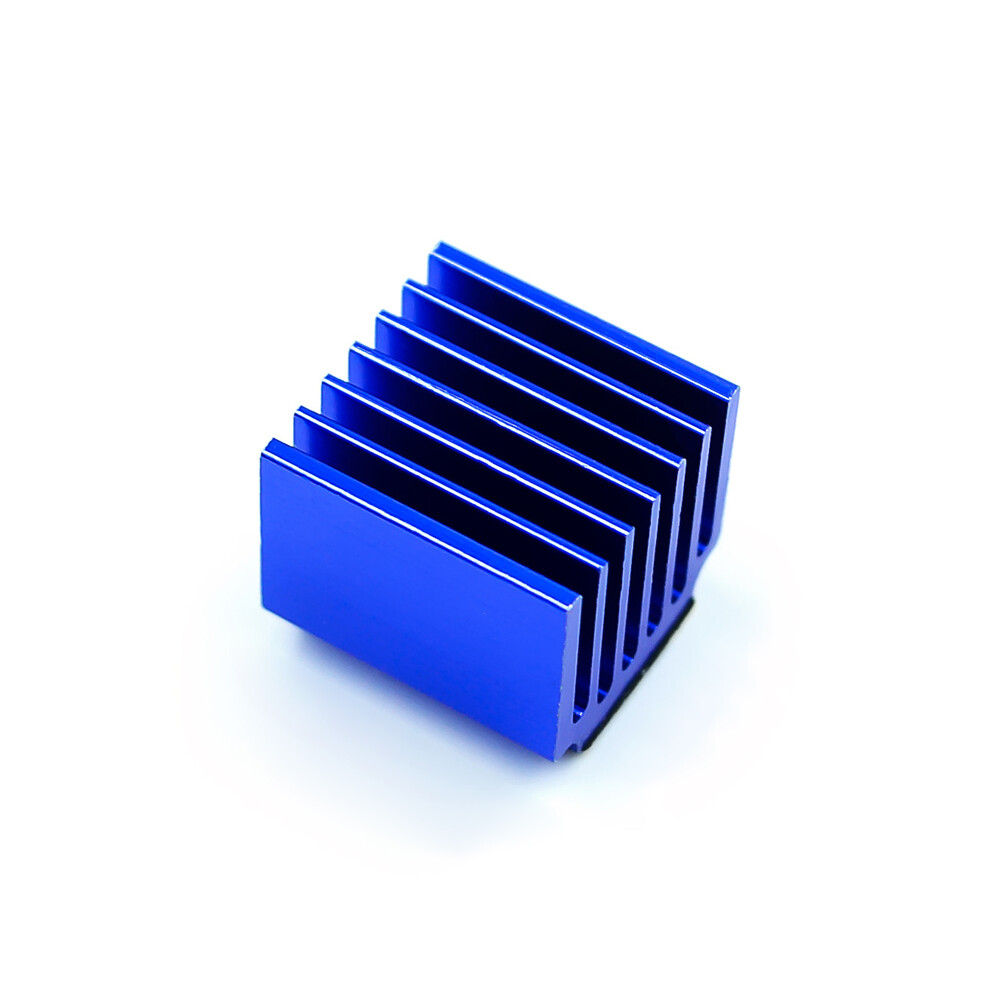

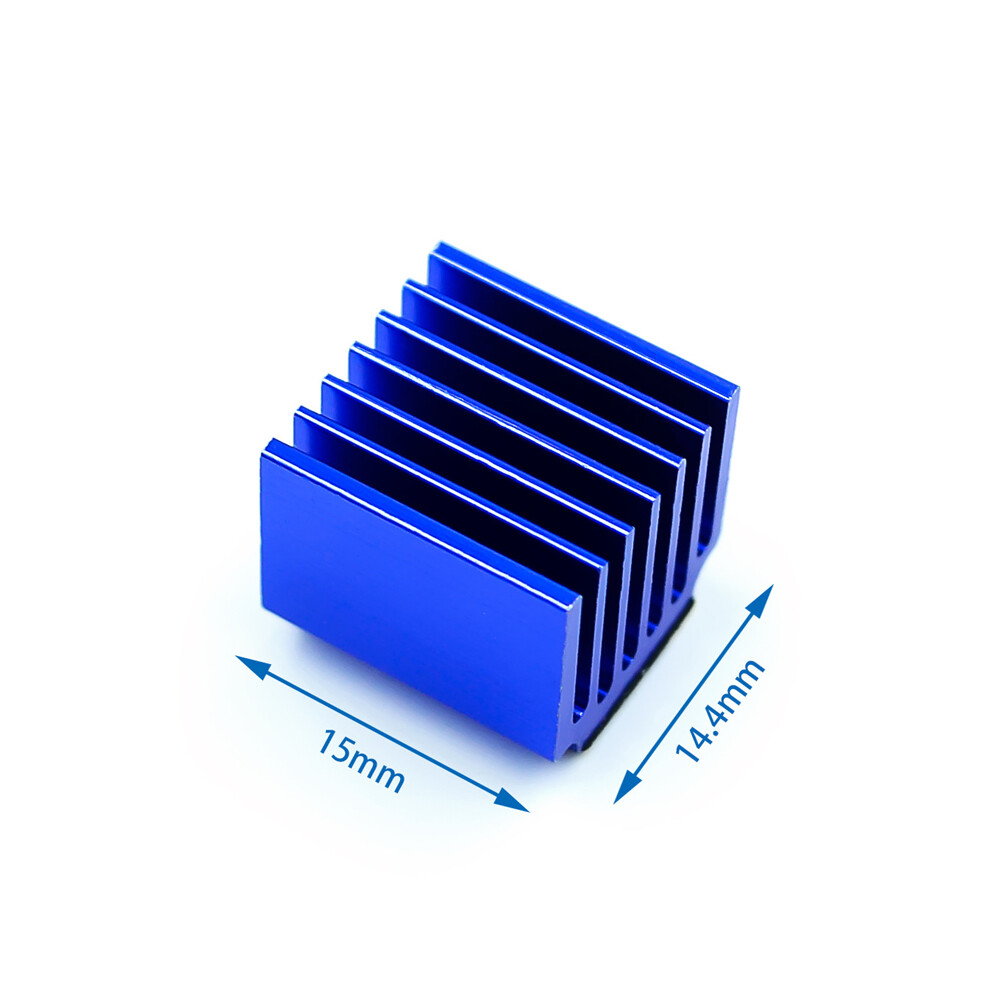

Heat sink X1
