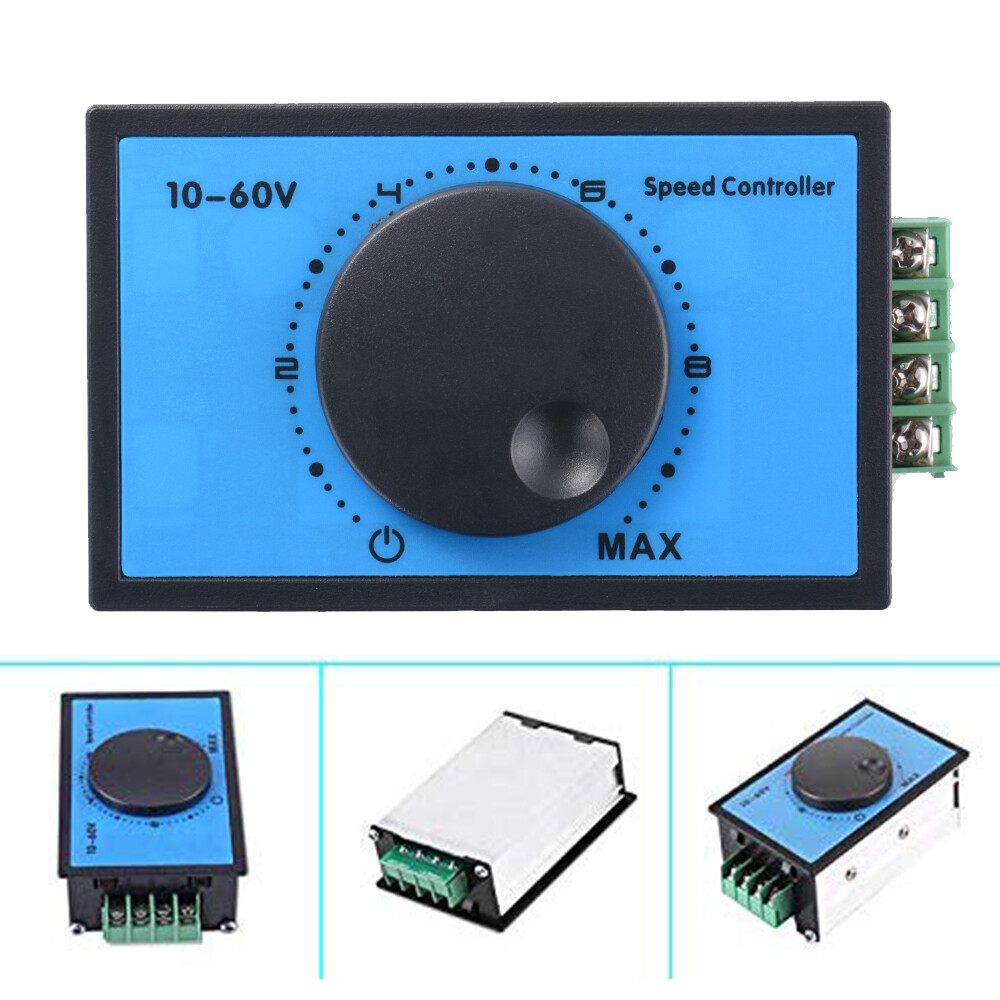

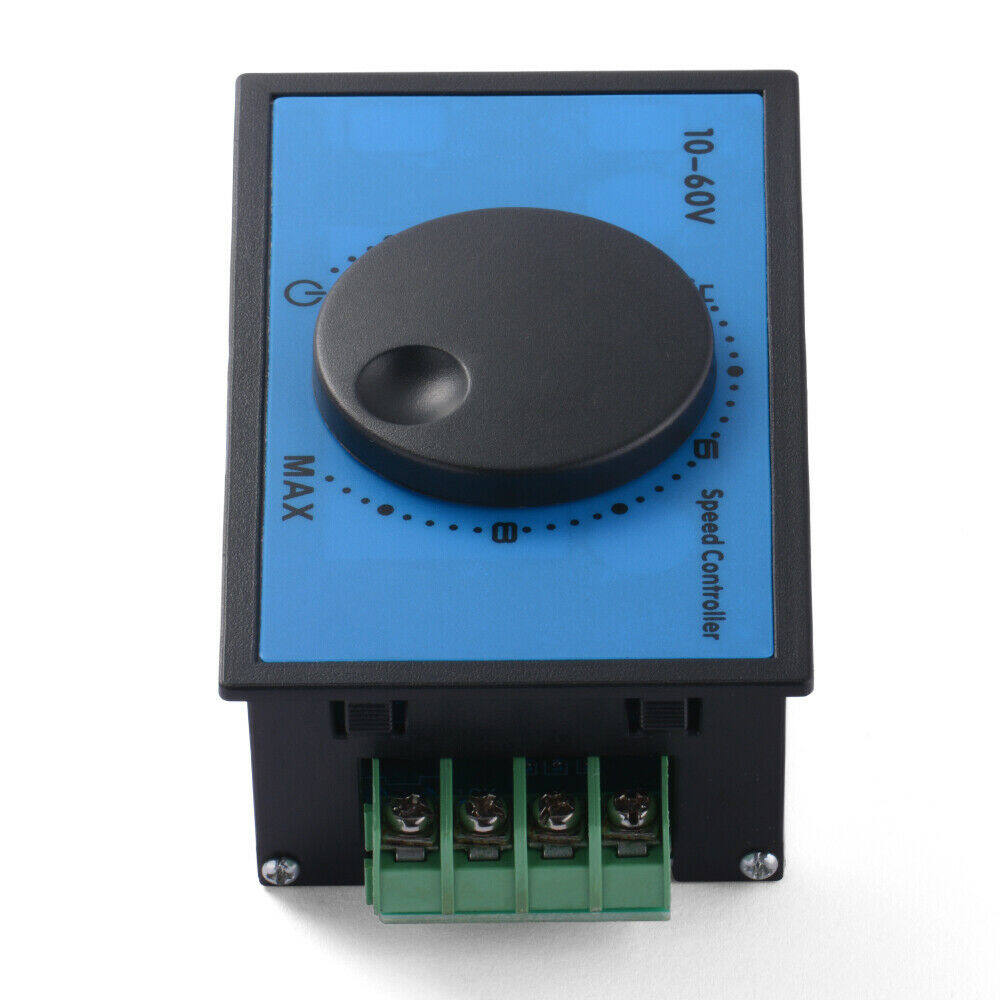

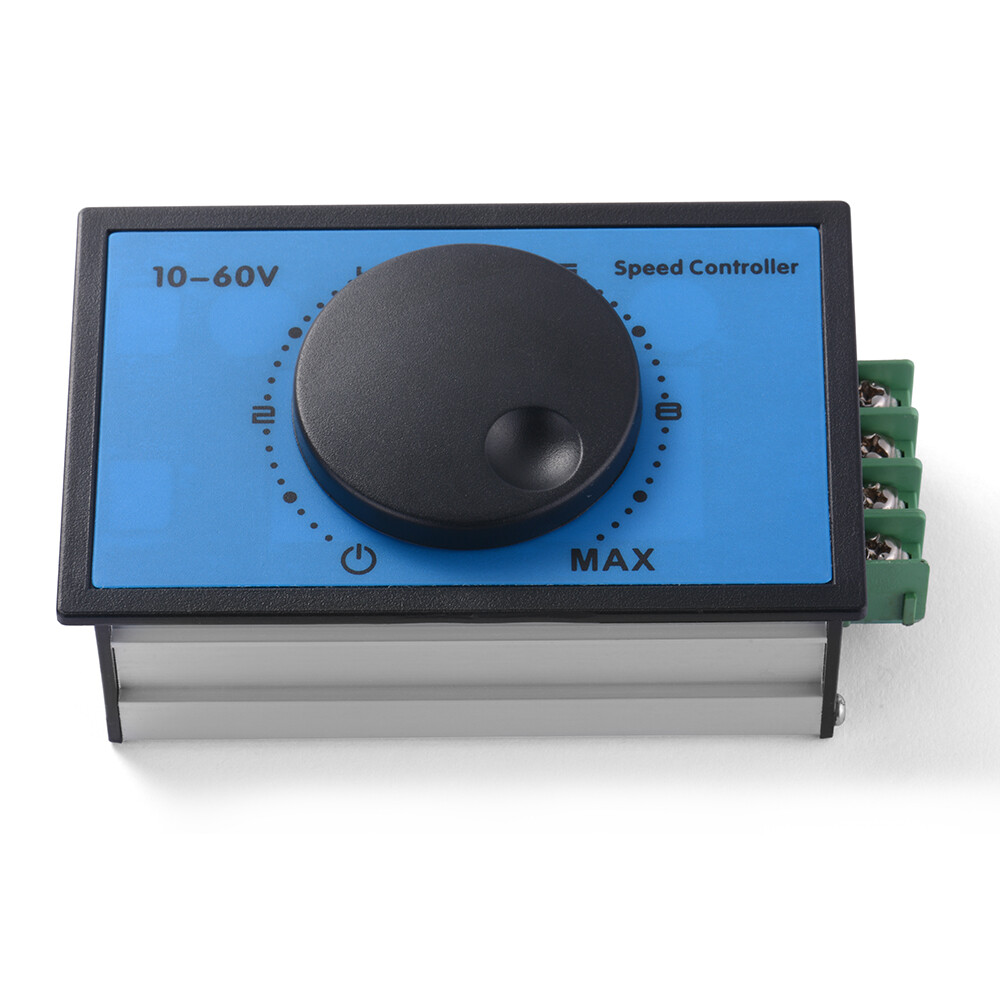

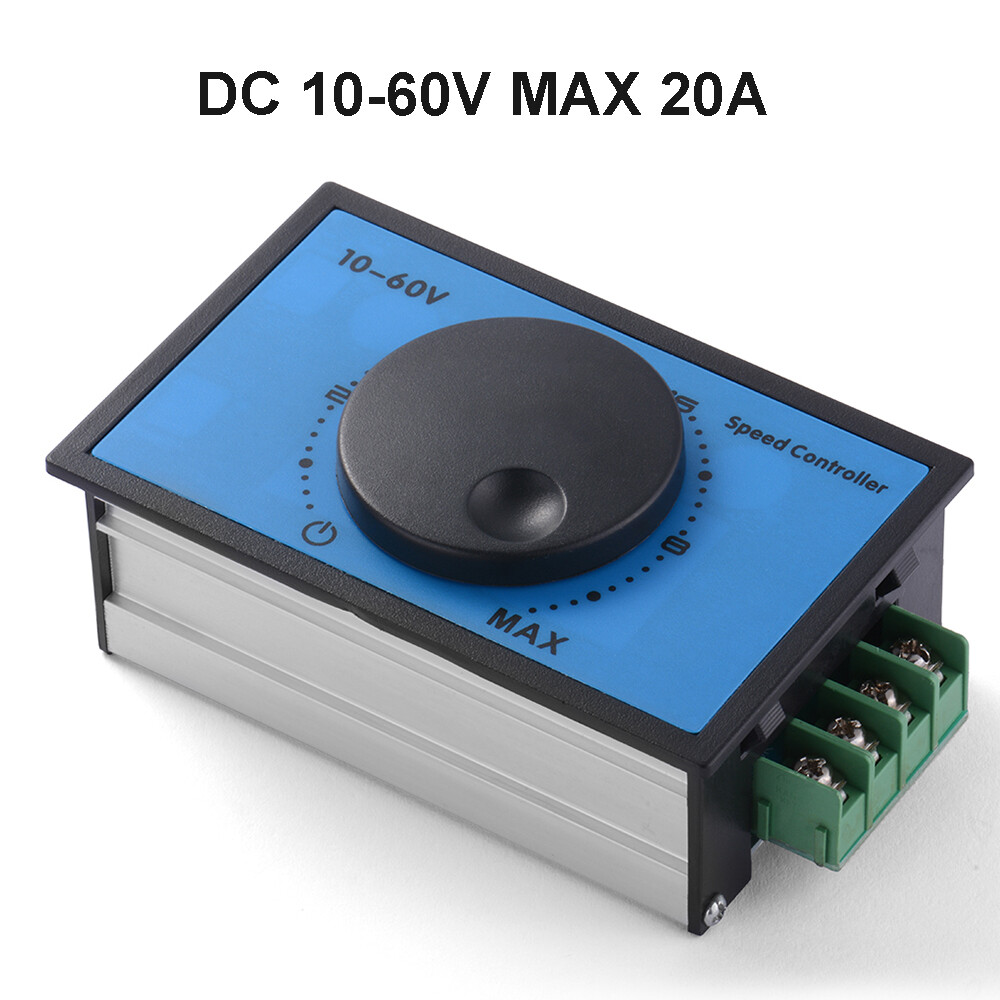

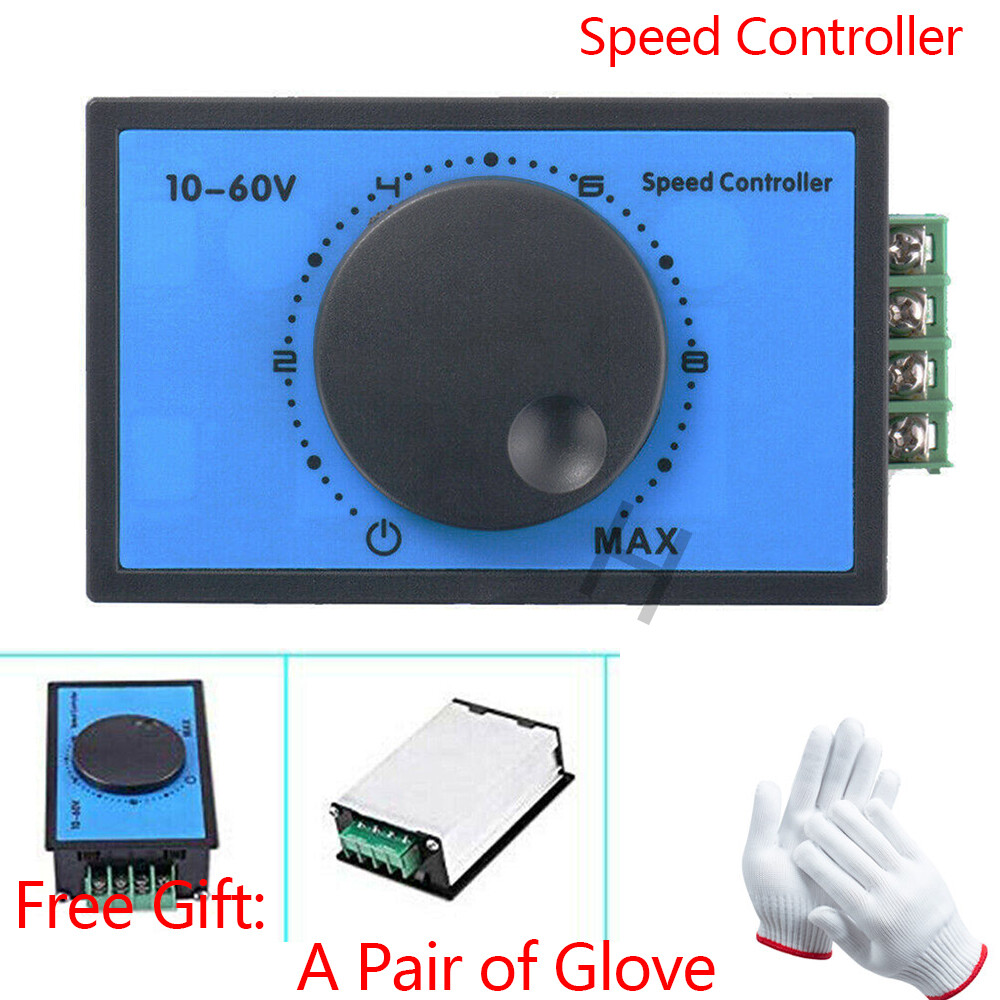

[Chất Lượng Cao] Công Tắc Điều Khiển Có Thể Điều Chỉnh DC 10-60V 12V 24V 48V 20A Bộ Điều Khiển Tốc Độ Động Cơ PWM DC Công Tắc Khởi Động Mềm TE1255

Feature: Soft start: Can solve the damage caused by instantaneous high current to speed controller Blocking protection (20A current limited): Limit the high current produced by the blocking of the motor Panel switch control, more easy to control the speed for the project Specification Input voltage: DC 10-60A (The specific voltage must be the same as the rated voltage of the motor) Output voltage: Linear output under load Support motor: DC brush motor Output current: Max 20A (Limited value 20A) Continuous working current: within 18A Max power: 240W Regulating type: regulating current Regulating method: potentiometer (270° linear) Regulating speed range: 0-100% Control frequency: 15KHZ Knob: 10K (with switch) Size: 95mm*60mm*32mm Panel mounting: 88mm*55mm Weight: 106g Note: The input terminal must be divided into positive and negative input. The input voltage must be the same as the rated voltage of the motor (within DC 10-60V). Cannot input AC 200V, or it will burn up the module directly. Blocking protection is not a power cut, it is limited current value of 20A. Package include: 1 x Speed Controller

Feature:
Soft start: Can solve the damage caused by instantaneous high current to speed controller
Blocking protection (20A current limited): Limit the high current produced by the blocking of the motor
Panel switch control, more easy to control the speed for the project

Specification
Input voltage: DC 10-60A (The specific voltage must be the same as the rated voltage of the motor)
Output voltage: Linear output under load
Support motor: DC brush motor
Output current: Max 20A (Limited value 20A)
Continuous working current: within 18A
Max power: 240W
Regulating type: regulating current
Regulating method: potentiometer (270° linear)
Regulating speed range: 0-100%
Control frequency: 15KHZ
Knob: 10K (with switch)

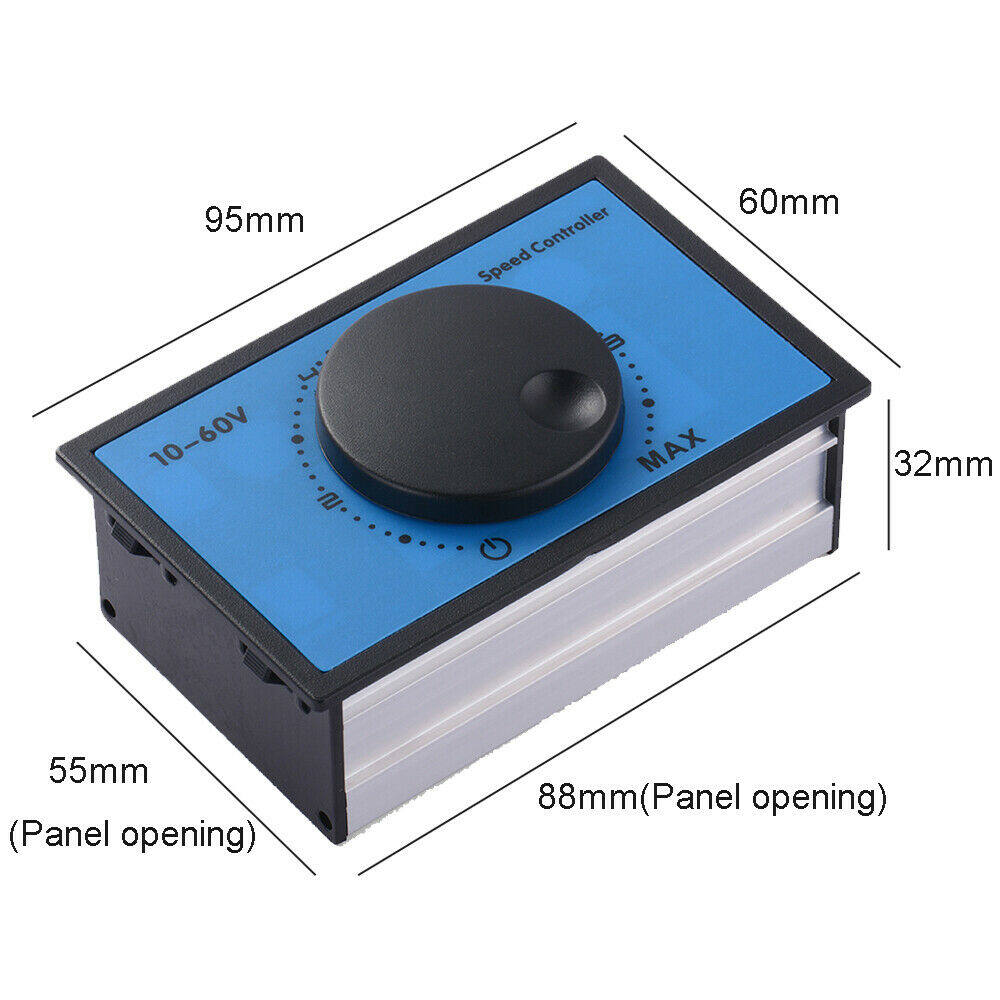

Size: 95mm*60mm*32mm
Panel mounting: 88mm*55mm
Weight: 106g

Note:

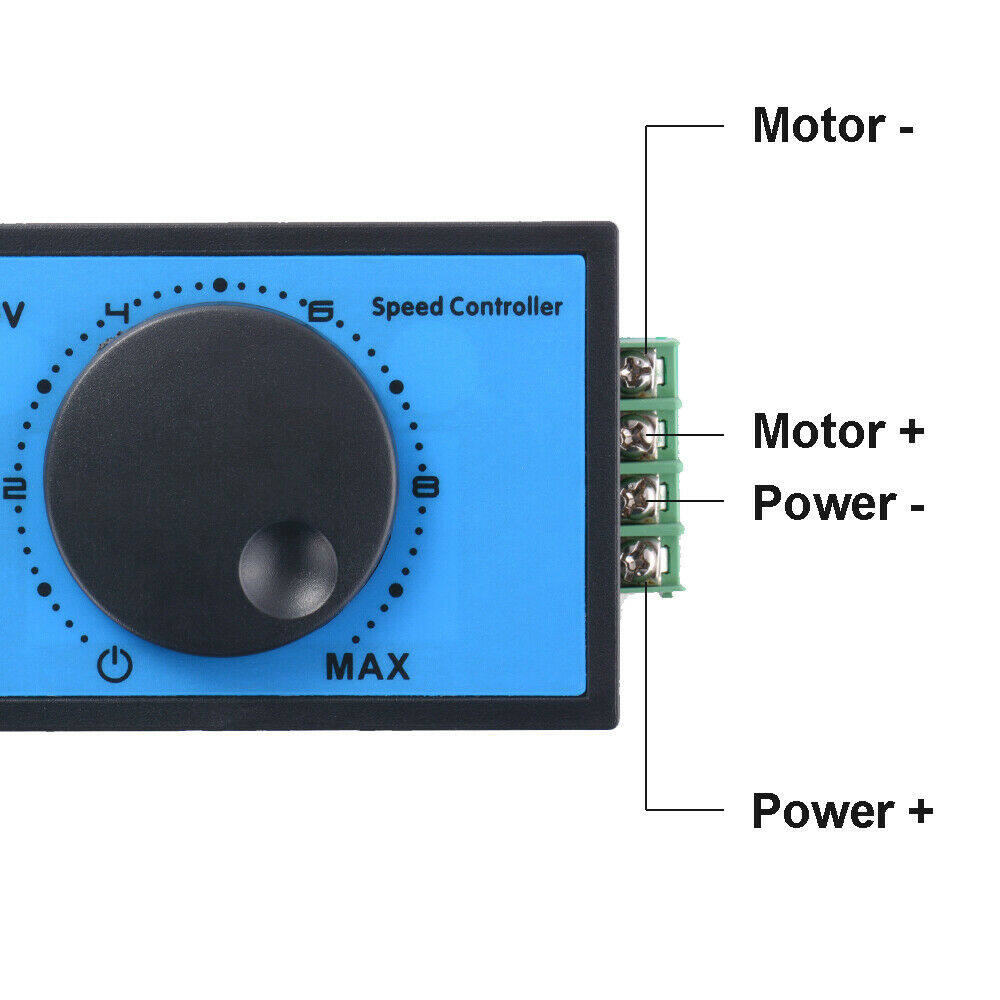

The input terminal must be divided into positive and negative input.
The input voltage must be the same as the rated voltage of the motor (within DC 10-60V).
Cannot input AC 200V, or it will burn up the module directly.
Blocking protection is not a power cut, it is limited current value of 20A.

Package include:
1 x Speed Controller
