Mô-đun 900W Bộ Chuyển Đổi Tăng Áp Dòng Không Đổi Điện Áp Không Đổi DC9-60V Đầu Vào DC10-120V Đầu Ra Tối Đa 15A Bộ Điều Chỉnh Chính Xác Cao Máy Biến Áp Hiện Tại Với 1.77Inch Màn Hình TFT

Constant current and constant voltage design, this boost converter has DC9-60V input and DC10-120V output voltage, 85% high conversion efficiency and with the max current of 15A. 1.77 inch TFT digital display screen, clearly displays real-time output voltage, real-time output current, real-time output power, trigger mode, input voltage, etc. Two kinds of power-on program trigger modes design, support multi-parameter setting, reliable and practical to use.

Features:

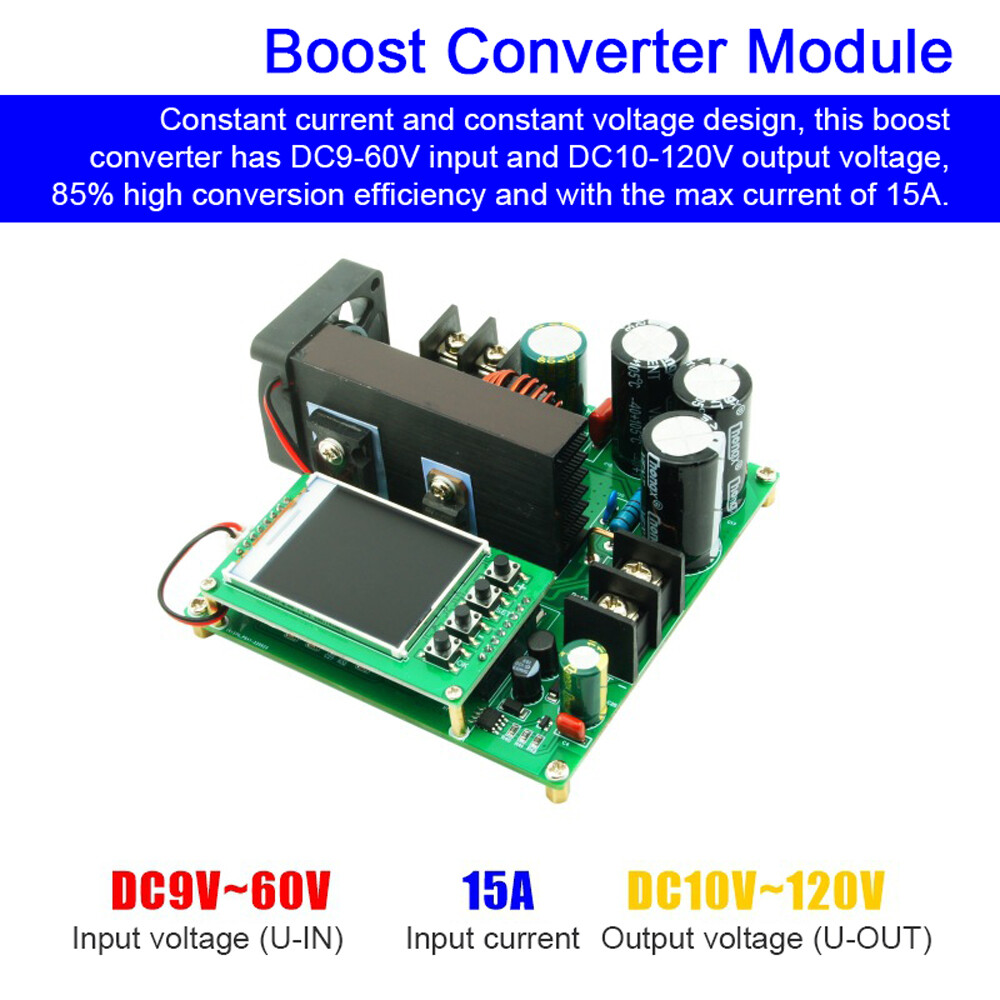

Constant current and constant voltage design, this boost converter has DC9-60V input and DC10-120V output voltage, 85% high conversion efficiency and with the max current of 15A.

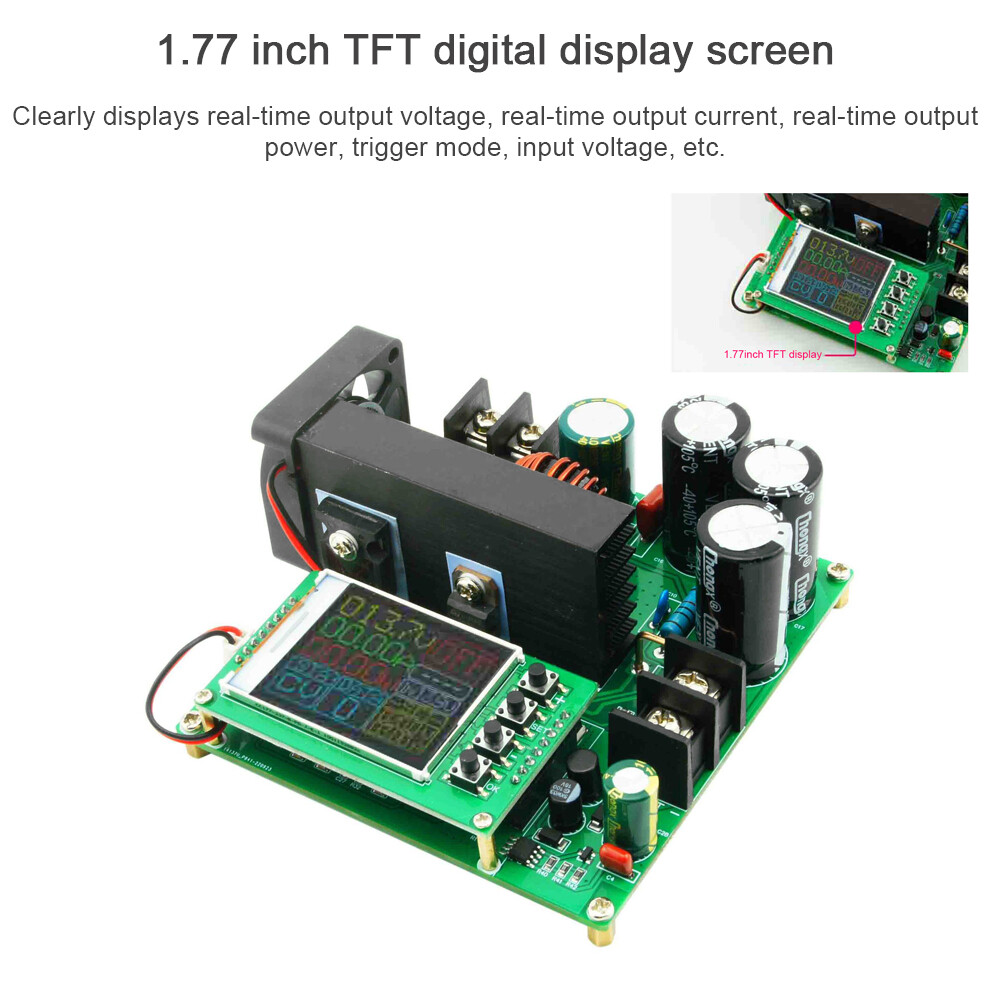

1.77 inch TFT digital display screen, clearly displays real-time output voltage, real-time output current, real-time output power, trigger mode, input voltage, etc.

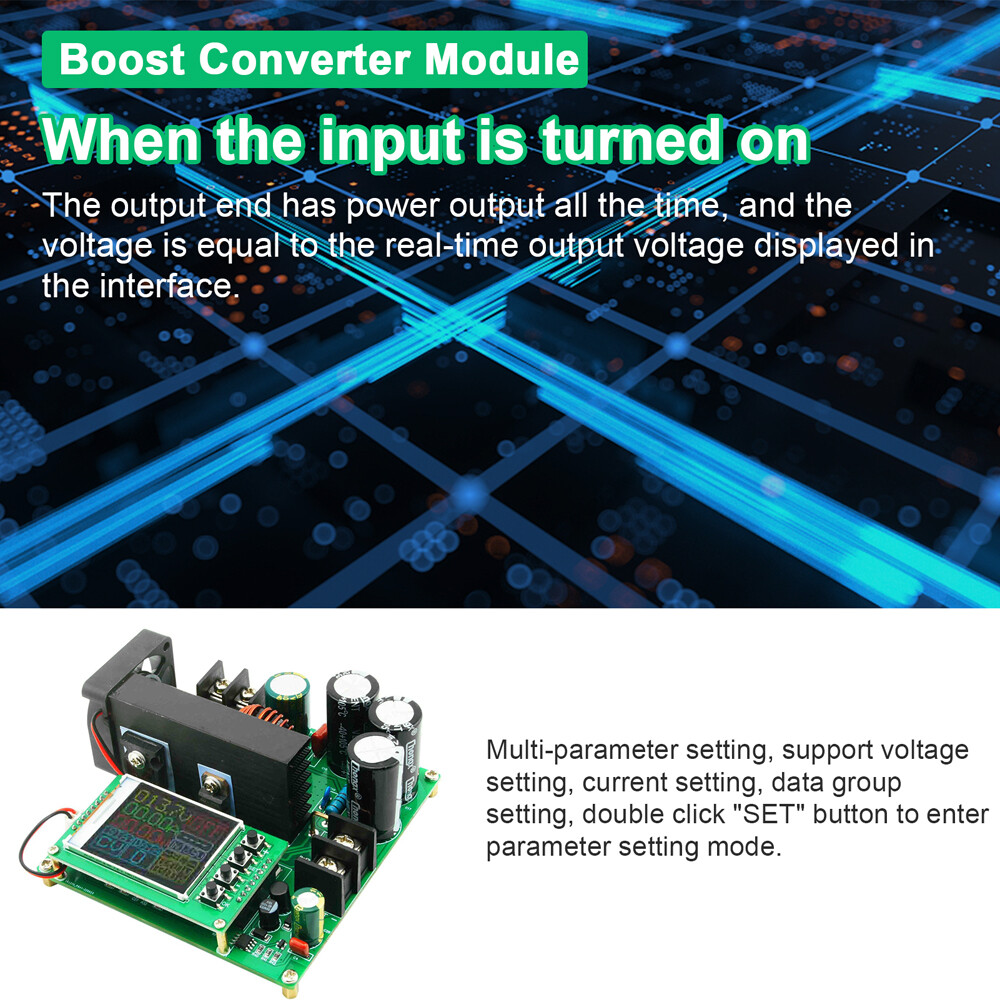

When the input is turned on, the output end has power output all the time, and the voltage is equal to the real-time output voltage displayed in the interface.
The module has output voltage after connecting to the input all the time, ON and OFF only indicate whether the boosting program is running or not, not the on/off of output voltage.
Two kinds of power-on program trigger modes design, AUTO mode: power-on boosting program runs automatically; ----: power-on boosting program does not run; long press "SET" button for 6 seconds to switch the trigger mode.
Multi-parameter setting, support voltage setting, current setting, data group setting, double click "SET" button to enter parameter setting mode.
Support call the data group, click "+" or "-" to switch data group, only call, not starts boost.
Starts/Stop running the boosting program, click "ok" button in OFF state to run the program, the output voltage will rise to the set voltage. Click "ok" to stop the program in the ON state, and the output voltage will drop to the input voltage.

Specifications:

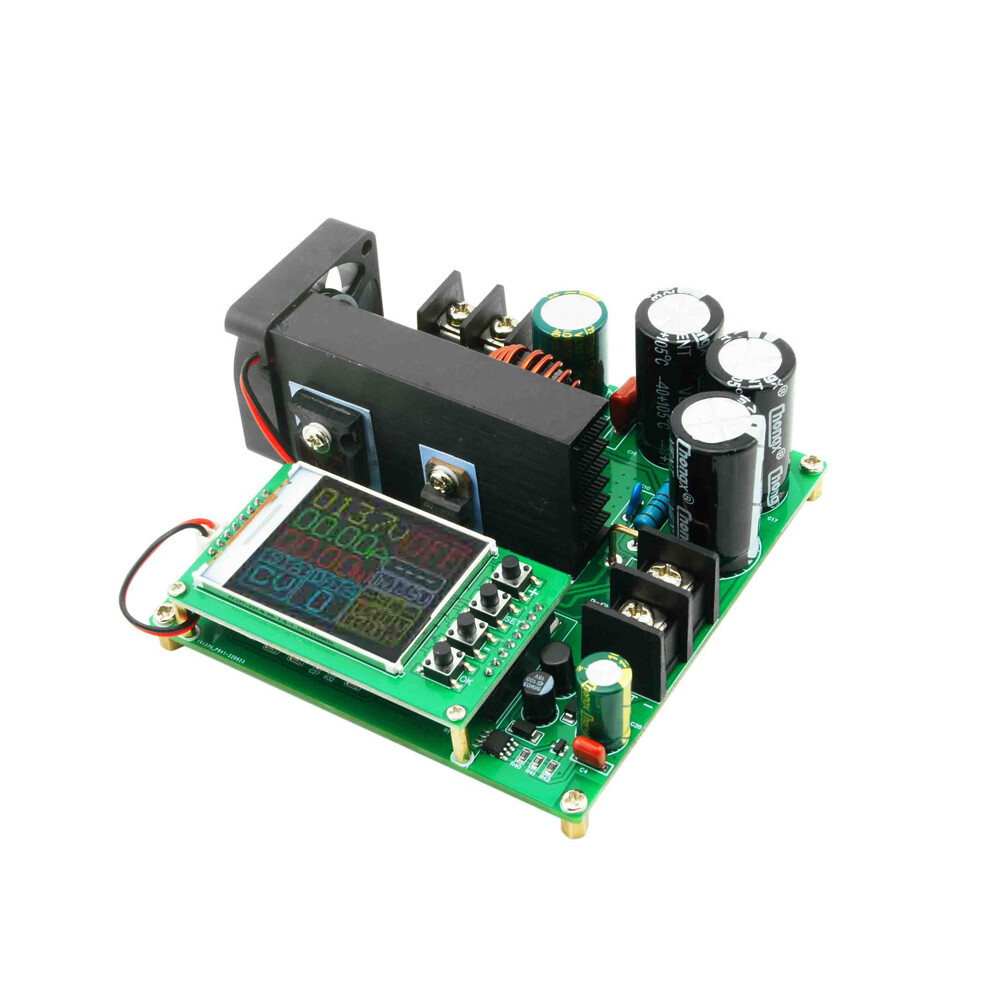

Name: Boost Converter Module
Material: printed circuit board

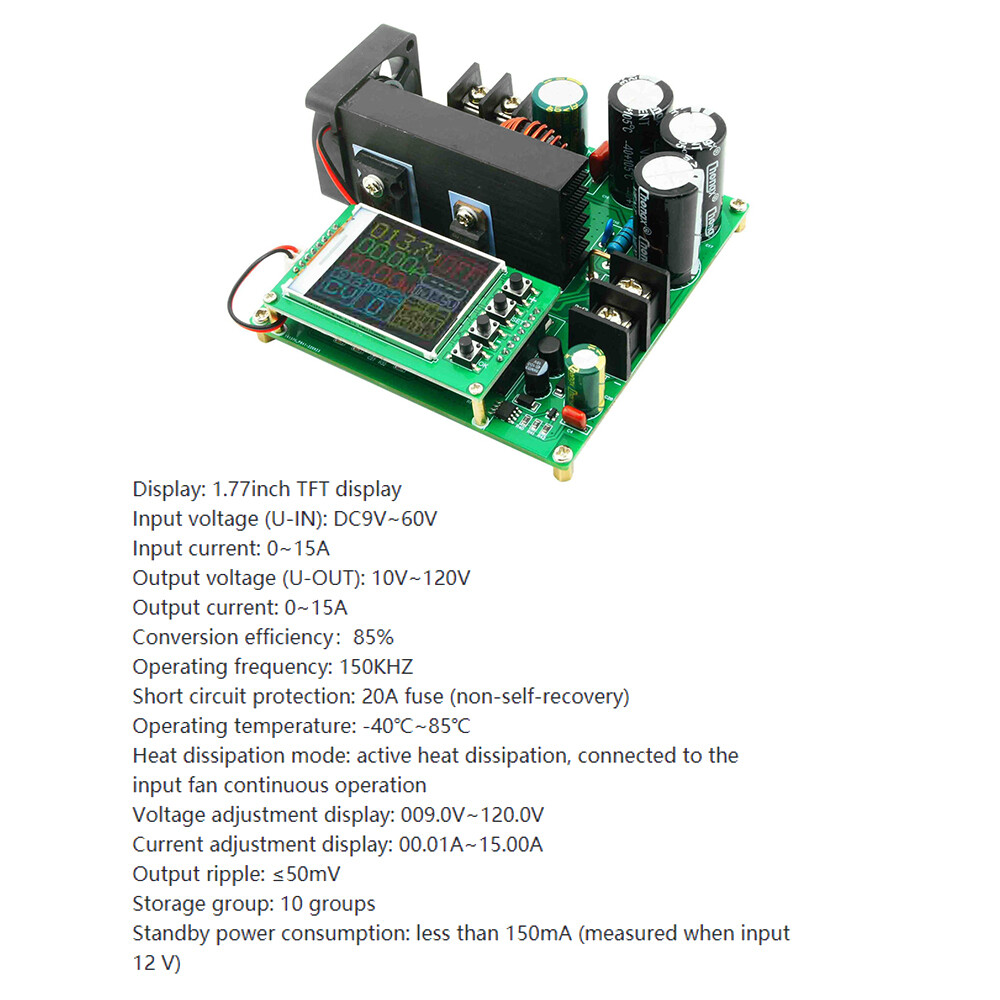

Display: 1.77inch TFT display
Input voltage (U-IN): DC9V~60V
Input current: 0~15A
Output voltage (U-OUT): 10V~120V
Output current: 0~15A
Conversion efficiency:85%
Operating frequency: 150KHZ

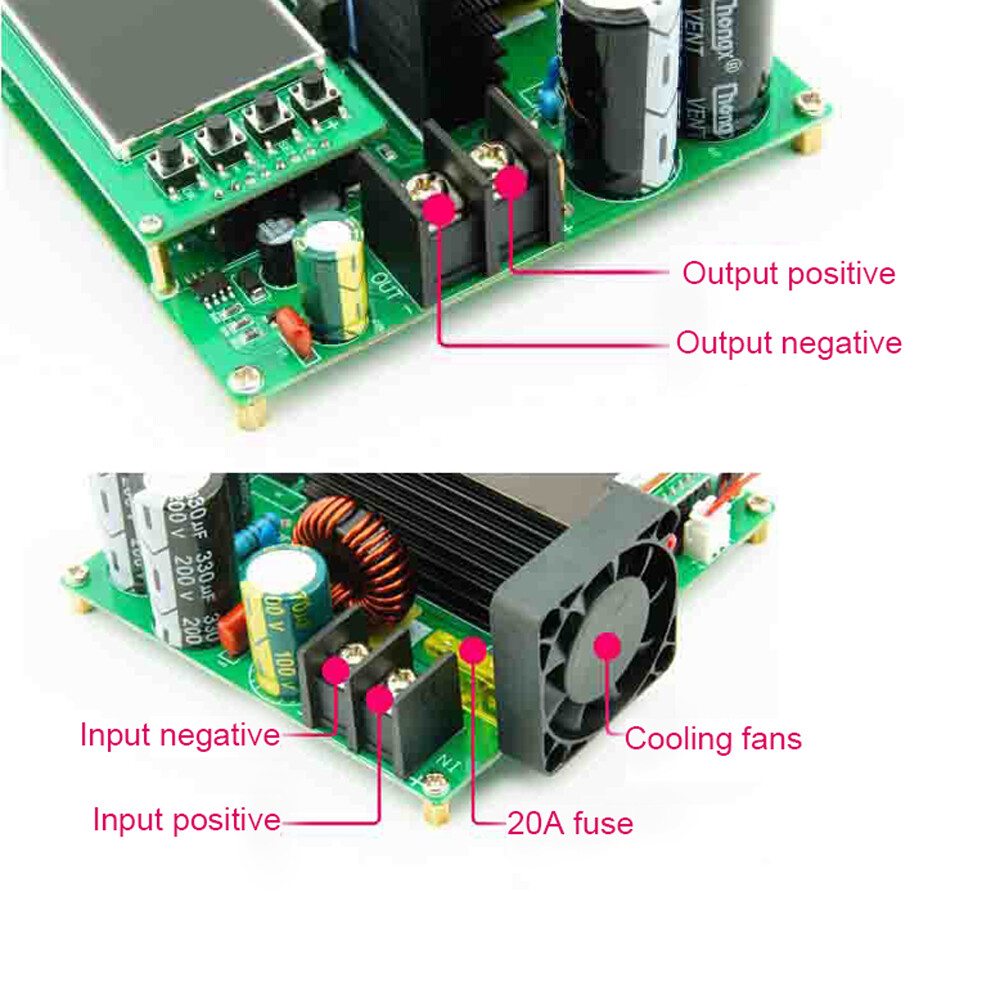

Short circuit protection: 20A fuse (non-self-recovery)
Operating temperature: -40°C~85°C
Heat dissipation mode: active heat dissipation, connected to the input fan continuous operation
Voltage adjustment display: 009.0V~120.0V
Current adjustment display: 00.01A~15.00A
Output ripple: ≤50mV
Storage group: 10 groups
Standby power consumption: less than 150mA (measured when input 12 V)
Item size: 110 * 105 * 48mm / 4.33 * 4.13 * 1.89in
Item weight: 235g / 8.29ounce
Package size: 90 * 110 * 120mm / 3.54 * 4.33 * 4.72in
Package weight: 280g / 9.88ounce
