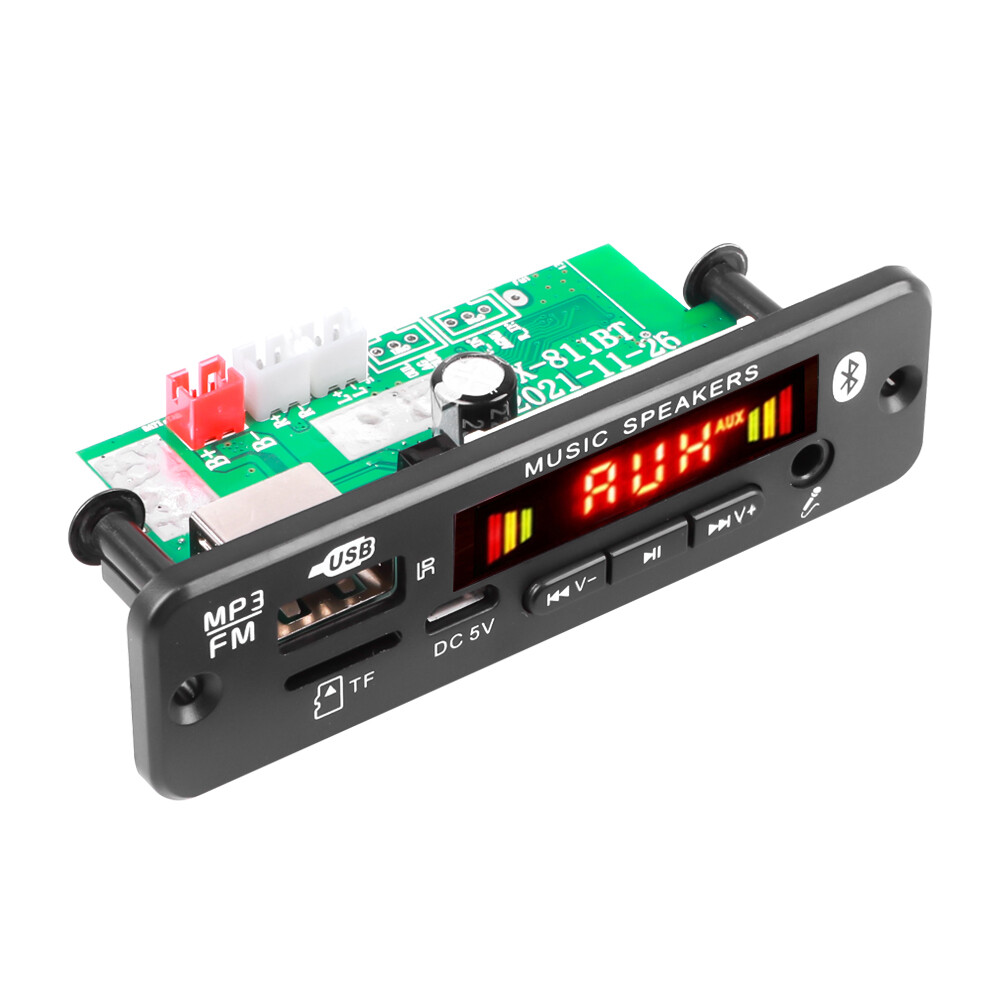

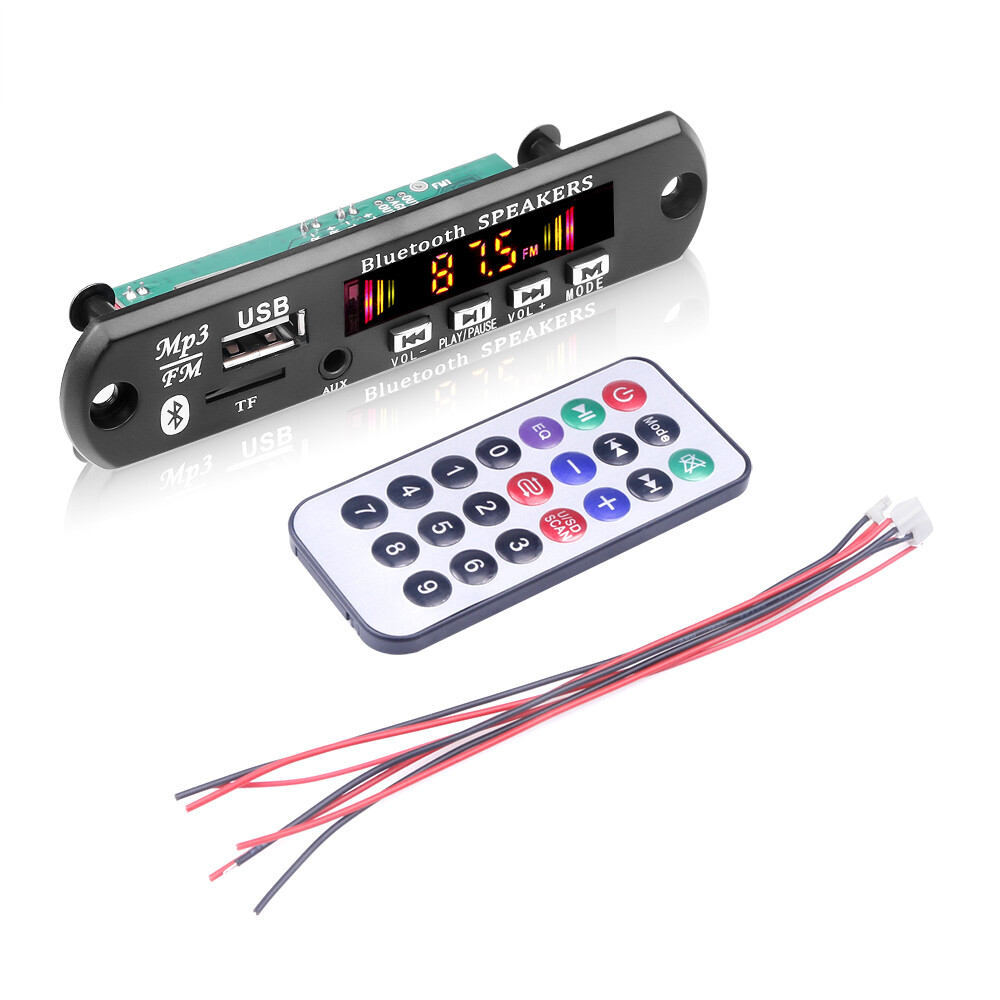

6V-12V Bluetooth 5.0 MP3 Decoder Board Module with USB Audio Player WMA WAV TF/USB Card Slot / FM Remote Board Module with 2*20W Amplifier

Parameters:

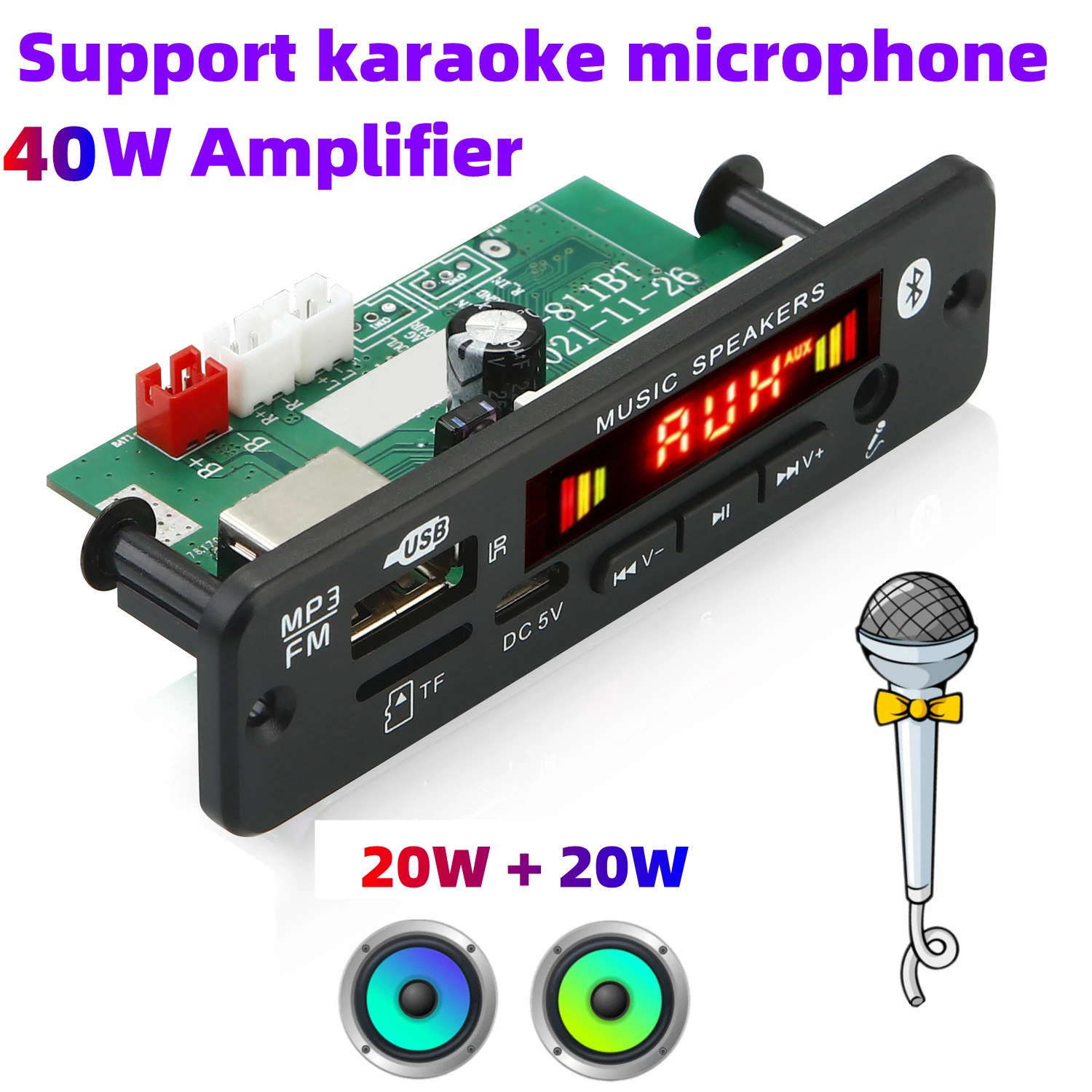

Bluetooth Version：5.0 Power amplifier 2*20W-60W ： can be connected to 2*20W-60W speakers at the same time

Features:

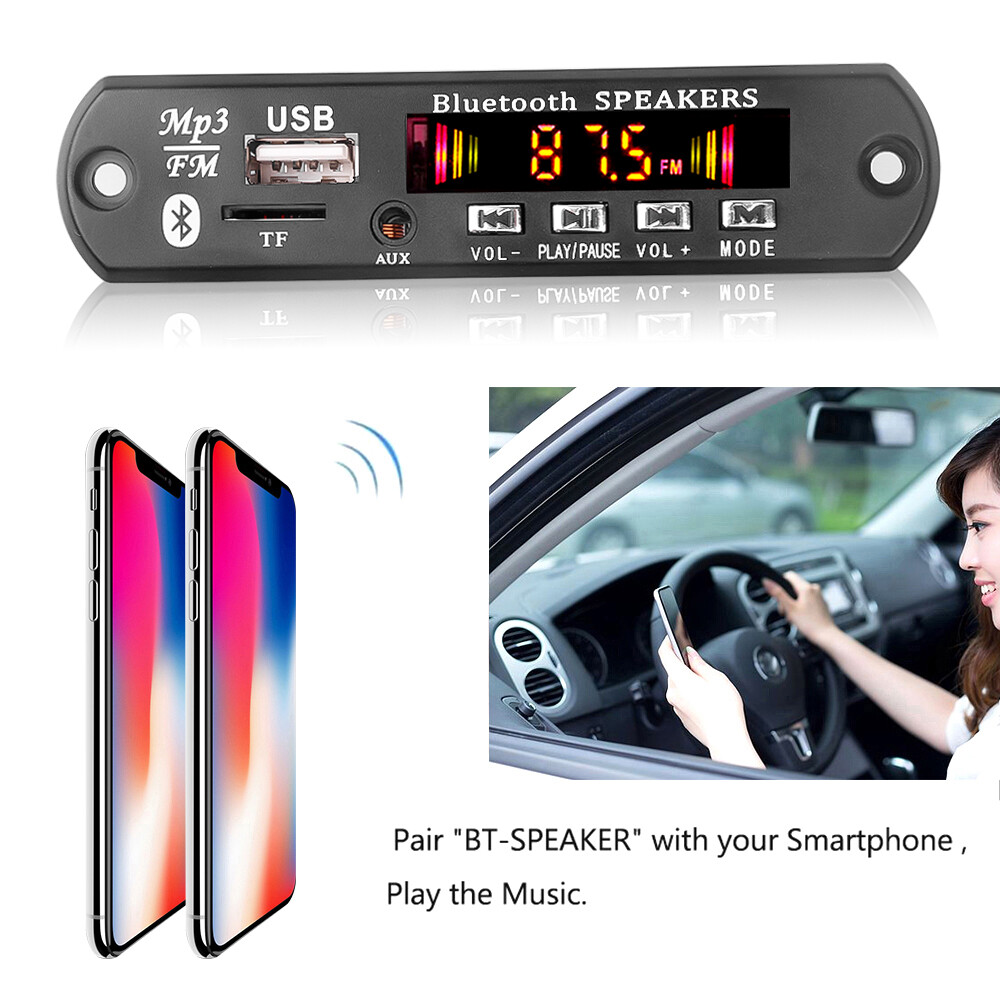

Bluetooth call function:

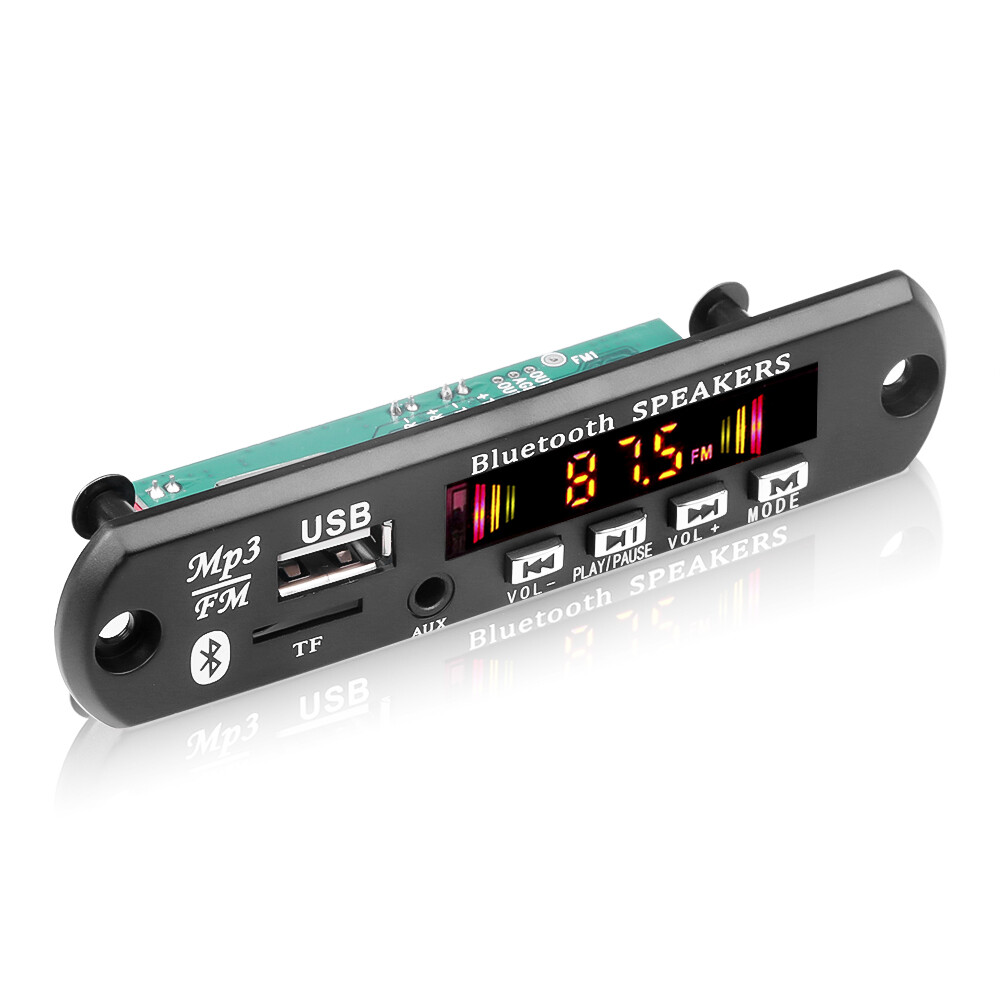

Music format: MP3 / WMA / WAV / FLAC / APE lossless format music Radio FM frequency: 87.5-107.5 MHZ Folder switching function Support function introduction: support MP3 / USB / TF/ LINE IN / FM / BLUETOOTH / remote control connection / DC 12V About the structure: Panel size: 88 * 25 MM, the two corners of the panel and the position of the screw hole, and then the lid cover surface, the depth of the board is 27 MM

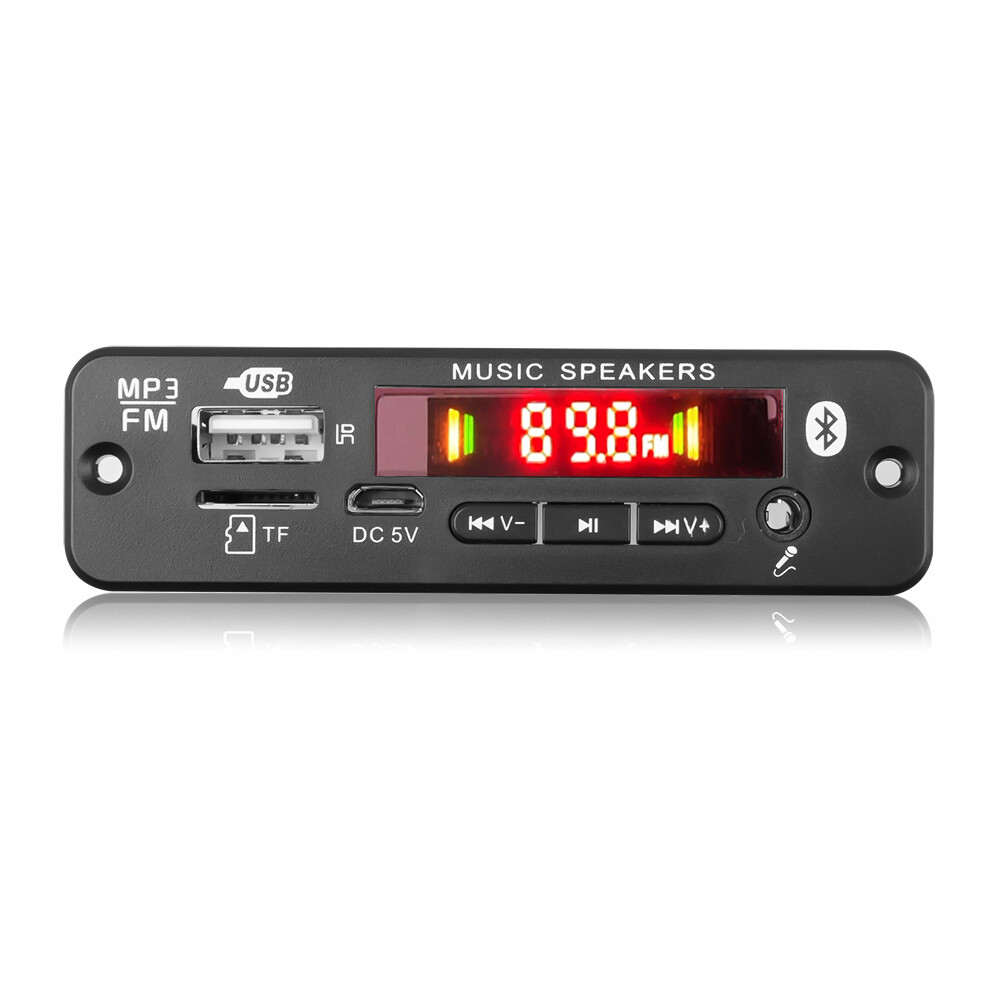

Button function and interface function:

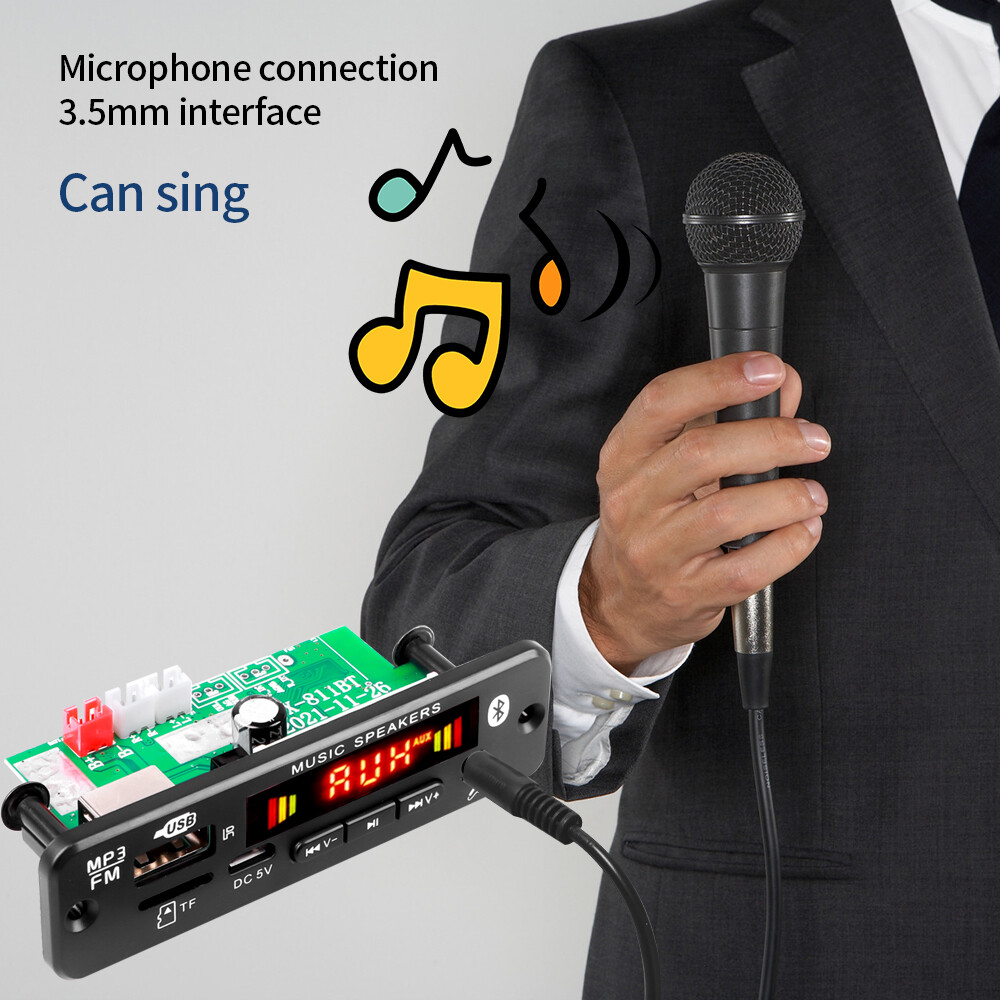

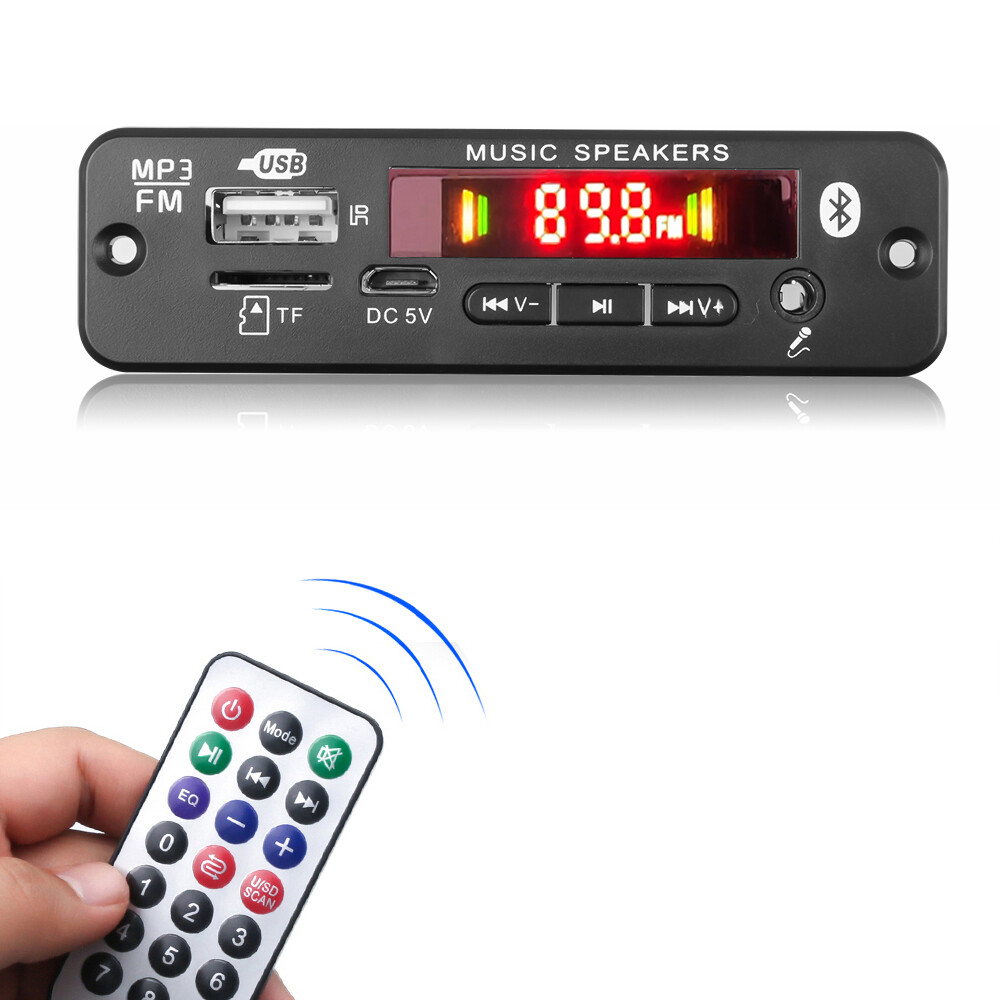

1. USB: connect to a U disk (the interpretation speed of a memory card above 32GB is slow) 2. Infrared receiving module 3. MIC: Support calls (long-press the remote control pause button to answer the call when there is an incoming call). 4. Support recording. Recording only supports operation in TF mode or USB mode. 5. Support 3.5MM head microphone Karaoke function（Not a phone headset） (Long press the remote control MODE button to start recording, long-press the remote control PLAY button to switch between recording and music playback; when recording, you need to connect a storage device, such as U disk or TF card;) 6. LED: digital display, the screen color display red 7. TF: Connect TF memory card (the interpretation speed of memory card above 32GB is slow) 8. The power: supply voltage supports between DC 6v-18v, and the current is between 1-3A. 9. VOL- button (previous song/volume down): in MP3 state, short press VOL- to last song, long press to decrease volume; in radio FM state, short press to increase one channel; in Bluetooth Under function, short press is the previous Bluetooth song, long press is the volume decrease. 10. PLAY/PAUSE button (play/pause): short press PLAY/PAUSE in MP3 state to play/pause; short press in radio FM state to automatically close and save the station; short press to play/pause in Bluetooth function. Long press the PLAY/PAUSE button to switch between USB / TF / FM / LINE IN / BLUETOOTH 11. VOL+ button (next song/volume increase): in MP3 state, short press VOL+ for the next song, long press to increase the volume; in the radio FM state, short press to adjust one channel down; in the Bluetooth function Short press for the next Bluetooth song, long press to decrease the volume. 12. AUX: Audio input interface 13. Support power off memory 14. Power 40W, stereo 2*20W-60W . 14. Support folder selection and playback. When USB or TF is playing, when there is a folder in the device and there are songs in the folder, press the previous button or the next button twice to select the folder to play the song, and the screen will display F001-F00? and so on, yes? F00 is displayed for each folder? .

Package Included：

1 * Bluetooth 5.0 MP3 Decoder Board

Note: This item comes without a retail box, but please rest assured that we will pack it well before shipping!
