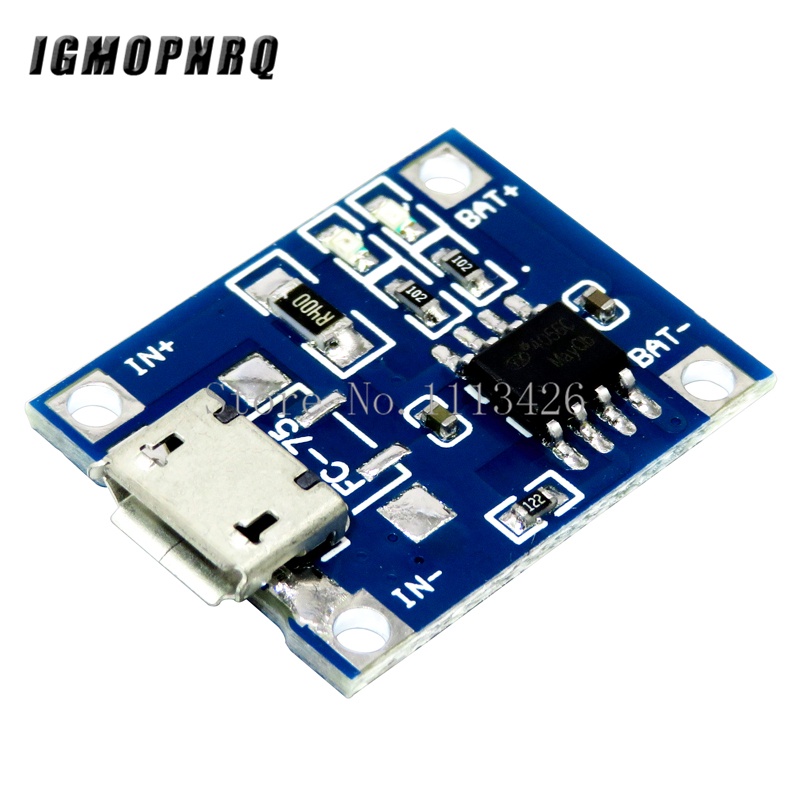

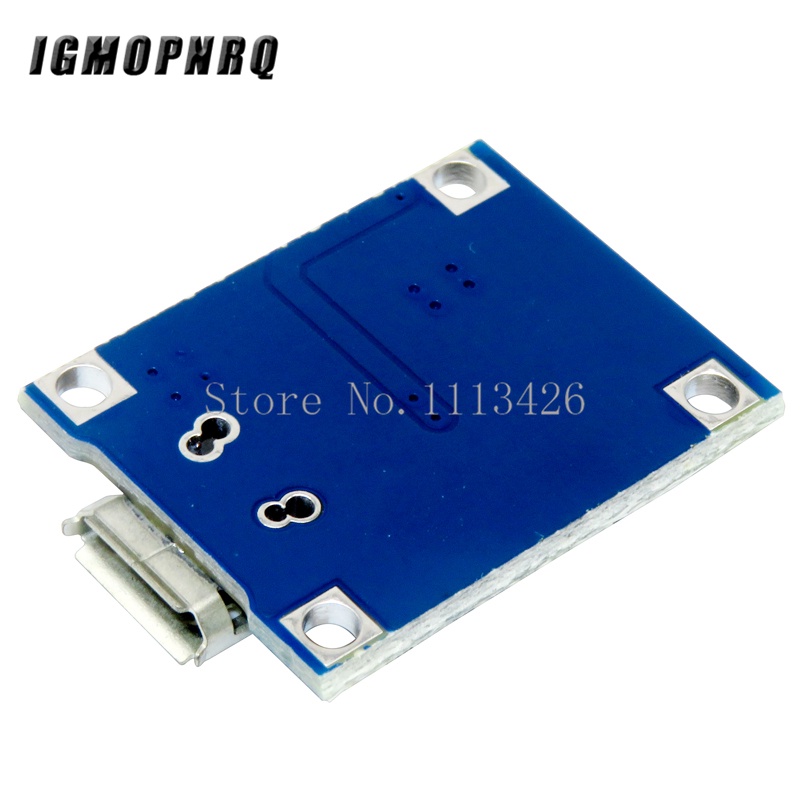

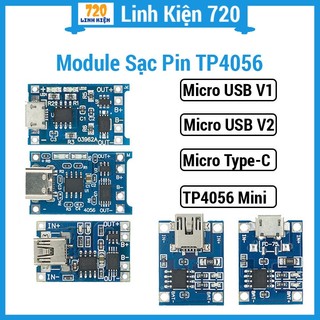

5 cái Micro USB TP4056 1A chuyên dụng pin lithium đệm sạc mô-đun Sạc Bộ Sạc Pin Lithium mô-đun 1A bảng sạc

1、 Characteristics
1）。 The high-quality charging chip TP4056 has a simple circuit, good protection value, and high charging accuracy.
2）。 Complete mechanical automation processing with high reliability.
3）。 Simply replace the fixed resistor on the circuit board to automatically adjust the output current within the range of 100 to 1000ma.
2. Application
It can be used to charge one lithium battery or multiple parallel lithium batteries.
3. Parameters
Input voltage: 4.5-5.5V
Full charge voltage: 4.2V
Maximum output current: 1A
Power indicator light: Red represents charging, green represents full charge.
Input interface: micro interface
Project size: 25mm * 19mm.
4. Output current and corresponding resistance
R1(K) I(mA)
30 50
20 70
10 130
5 250
4 300
3 400
2 580
1.66 690
1.5 780
1.33 900
1.2 1000
5. Note:
1)。 The ammeter can only be connected to the 5V input port of the module.
2）。 The charging current should preferably be 37% of the battery capacity. For example, the charging current of a 1000mAH battery should be 400.
3）。 The connecting wire should not be too thick.
4）。 Ensure that the connection points are in good condition.
5）。 If the input voltage is too high, such as 5.2V or even 5.5V, the charging current will be less than 1000mA, which is normal. When the voltage is too high, the chip will automatically reduce the charging current to protect the chip from burning. In addition, when the operating temperature of the chip is around 60 ° C, it is normal for the chip to feel hot.
