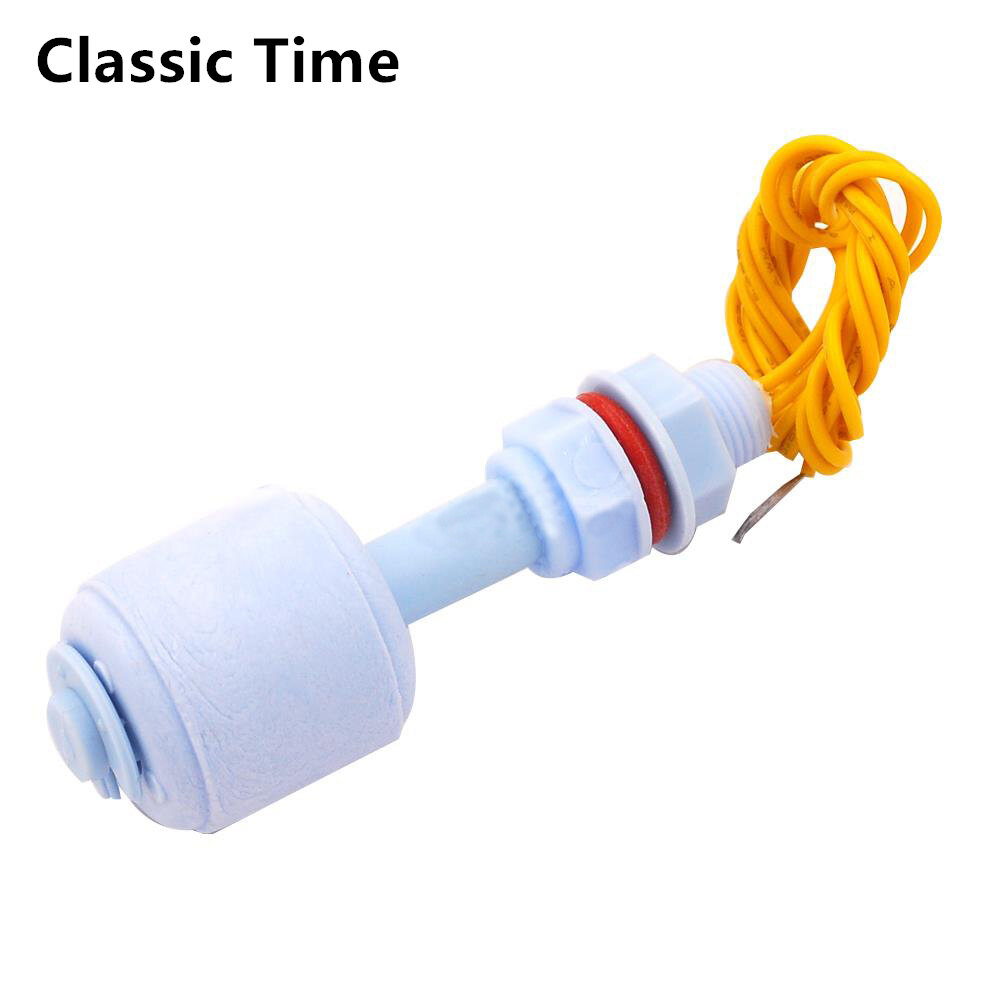

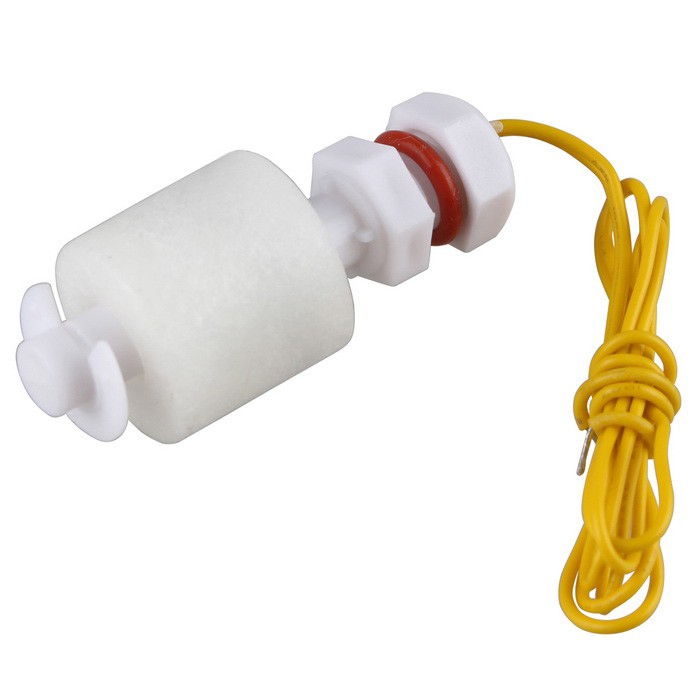

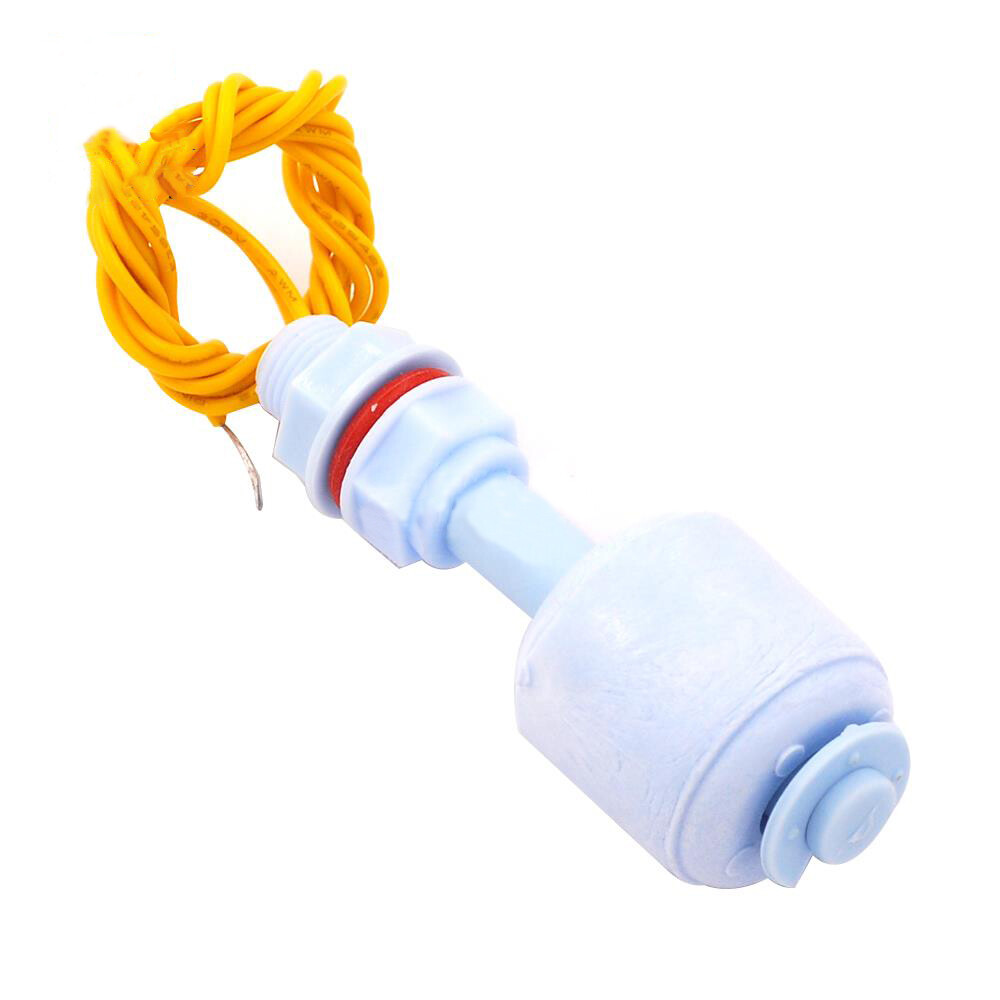

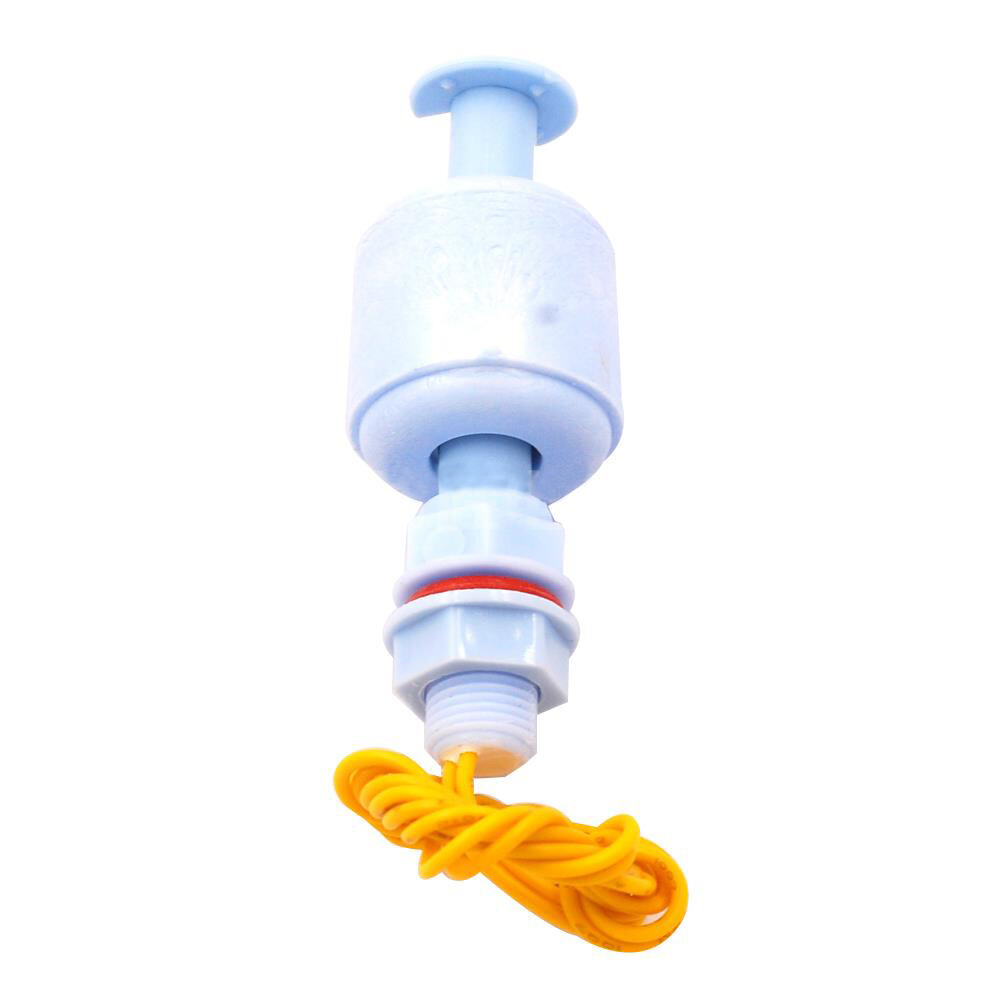

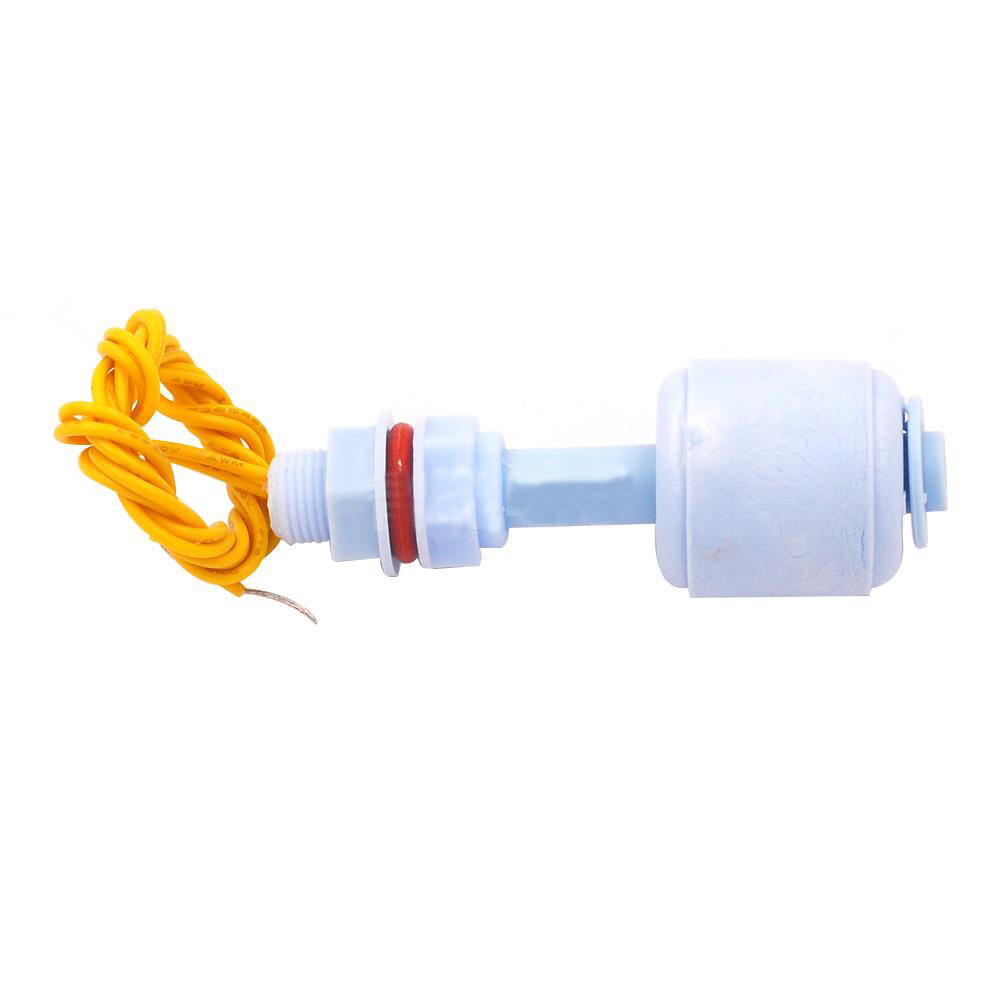

Phao cảm biến mực nước và chất lỏng khác PP 52Mm-INTL

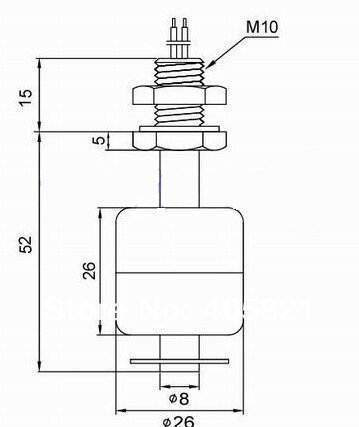

What is the pitch between the screw and the thread? M10*1 PP float switch L=52mm Normally closed by default Can be adjusted Can be adjusted to normally open? Yes, the clip is pulled out, the float is turned over The float level switch is a liquid level control device with simple structure and easy to use. It does not need to provide power and has no complicated circuits. It has the advantages of smaller volume and longer working life than general mechanical switches. As long as the material is selected correctly, it can be used with any liquid or pressure and temperature. It is widely used in shipbuilding industry, generator equipment, petrochemical industry, food industry, water treatment equipment, dyeing and finishing industry, hydraulic machinery, etc. application. Working principle: The liquid level sensor is mainly composed of a magnetic reed switch and a floating ball. There are magnetic materials in the floating ball. One or more magnetic reed switches are set in a closed non-magnetic metal tube or plastic tube, and then the conduit is passed through one Or multiple floats with magnetic materials, and use fixed double rings to control the float and the magnetic reed switch at the relevant position. The float rises or falls with the liquid, and the contact near the beginning of the magnetic reed is used to open and close the ball. The action is used for liquid level control or indication (when the float is close to the reed switch, it is turned on; when it leaves, the switch is turned off).
