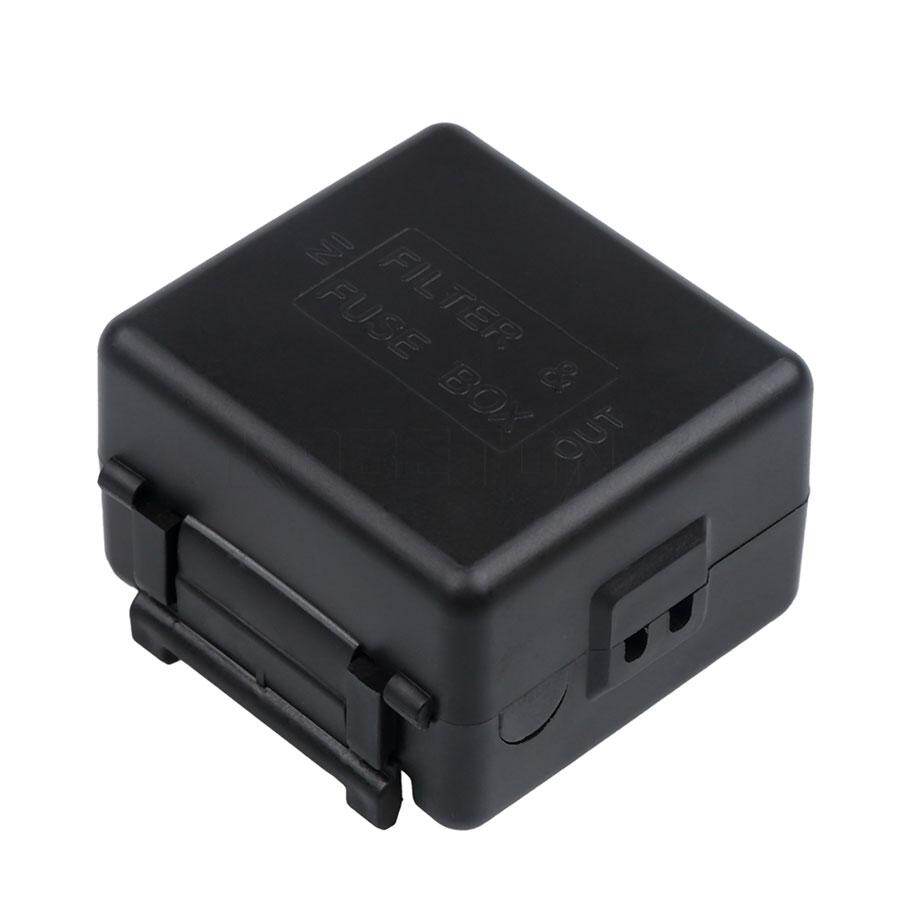

Công Tắc Điều Khiển Từ Xa Không Dây Điều Khiển Từ Xa 433 Mhz Mô-đun Nhận Rơ-le DC 12V 10A 1CH Và Bộ Phát RF

Technical Data:

Input Power: DC10V-14V

Standby Current:<5MA

RF Frequency:315M or 433M

RF working mode: superheterodyne

Receive sensitivity: >97dbm

Transmitting distance: 20 meters above

Decoding mode: MCU software decoding

Remote storage: 25 pcs

Support remote type: Learning code, Fixed code(Rolling code can be design)

Working mode: Momentary, Toggle, Latching Time delay (5s, 10s, 15s )

Wiring type: fixed terminal

Output Terminal: NO, NC, COM

Dimension of PCB:35*30*18mm (L,W,H)

Wiring diagram 1:

+V : 12V + input ;

- V: 12V - input ;

NO: Output, normal open;

COM: Output , common ;

NC: Output, normal close;

Working mode:

Momentary: Push the remote button, the relay connects, release the remote button, the relay dis-connects.

Toggle: Push once the remote button, the relay connects, push twice the remote button, the relay dis-connects.

Latching: Push the remote button A, the relay connects, push the remote button B, the relay dis-connect.

Time delay mode: Push the remote control button, the relay connects, from when releasing the remote button, after 5s or 10s or 15s, the relay disconnect automatically.

Clearing the code :

Push the learning button on the receivers for 8 times, the codes will be cleaned.

After clearing the code, all the remote control cannot work anymore.

Learning the code : (momentary)

Push the learning key on the receiver once time, it comes into momentary setting mode.

Wait for a moment, the LED will be off, it comes into learning state.

Push the remote button, LED indicator on the receiver board will flash then come off.

After 3 seconds, the LED indicator will be on again, learning successfully.

Learning the code : ( Toggle )

Push the learning key on the receiver twice the time, it comes into toggle setting mode

Wait for a moment, the LED will be off, it comes into learning state.

Push the remote button, LED indicator on the receiver board will flash then come off.

After 3 seconds, the LED indicator will be on again, learning successfully.

Learning the code : ( Latching )

Note: When you choose for latching mode, in order to learn more remote control, you need to learn two different buttons, the first time learned is for //'//'ON//'//', the second time learned for //'//OFF//'//'.

For example : button A = ON , button B = OFF

Push the learning key on the receiver triple time, it comes into latching mode.

Wait for a moment, the LED indicator on the receiver board will flash then come off.

Push the remote button A.

LED flash for 5 times.

Push the remote button B.

Led flash for 5 times.

After 3 seconds, the LED indicator will be on again, learning successfully.

A = ON , B = OFF .

Learning the code : ( Time delay mode )

Push the learning key on the receiver forth time, the time delay for 5 seconds.

Push the learning key on the receiver fifth time, the time delay for 10 seconds.

Push the learning key on the receiver sixth time, the time delay for 15 seconds.

The LED indicator will be off.

Push the remote button, LED flashes and off.

After 3 seconds, the LED indicator will be on again, learning successfully.

NOTE: The system can store for 25 pcs of remotes if the remote get more than 25 pcs, the initial remote control will be lost or not working.

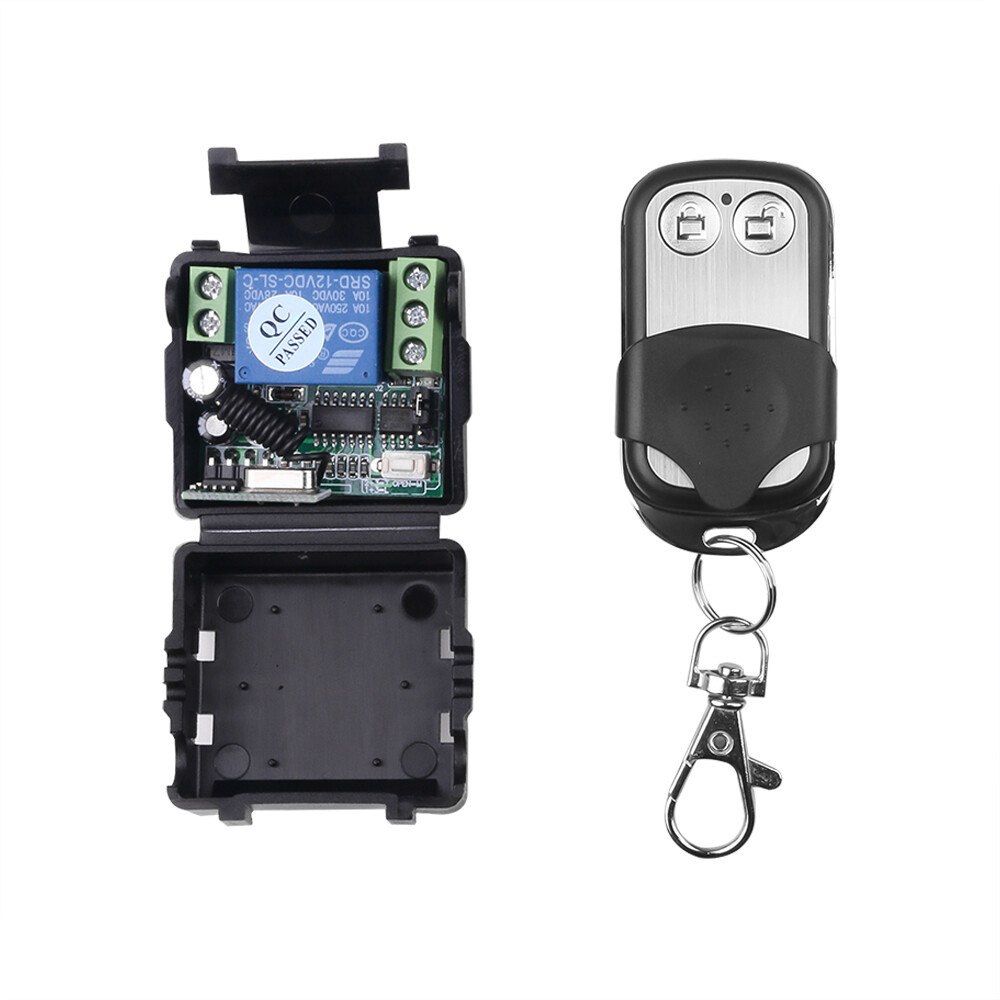

Package included

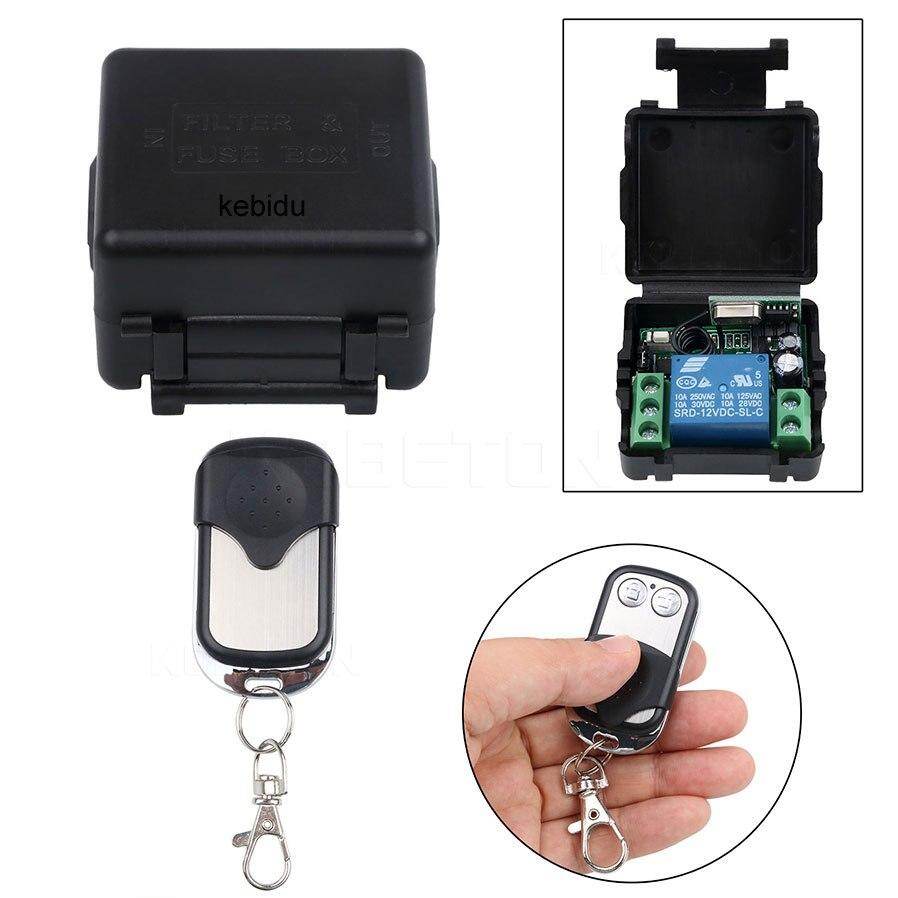

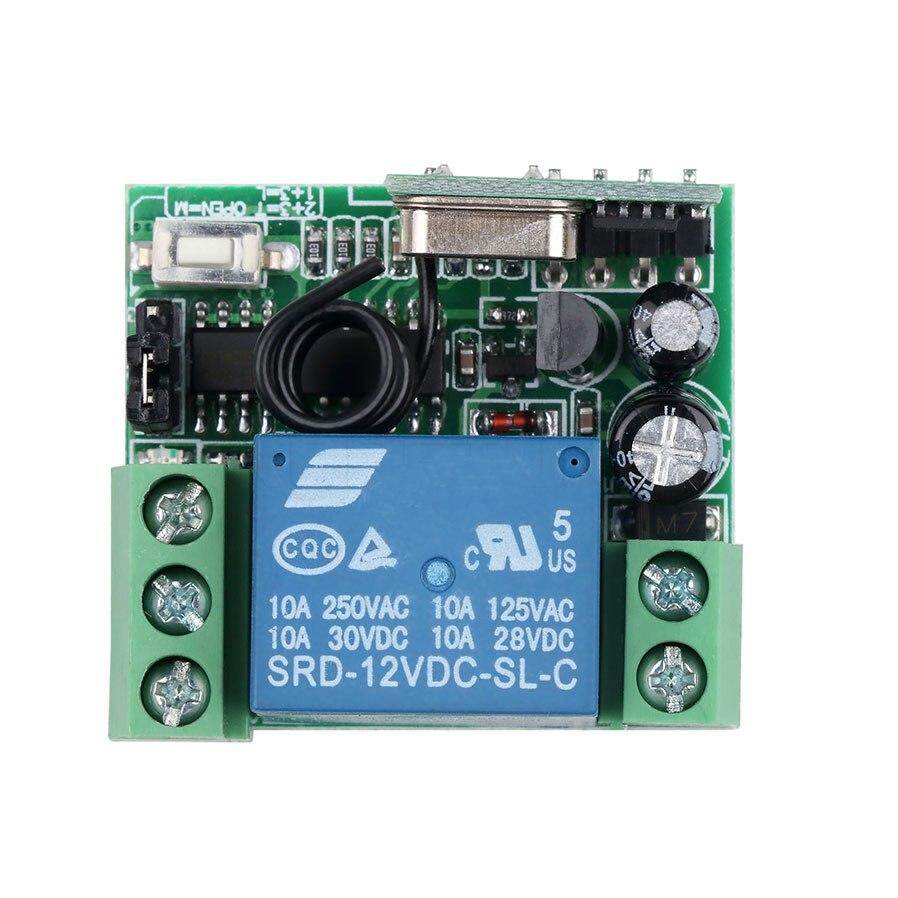

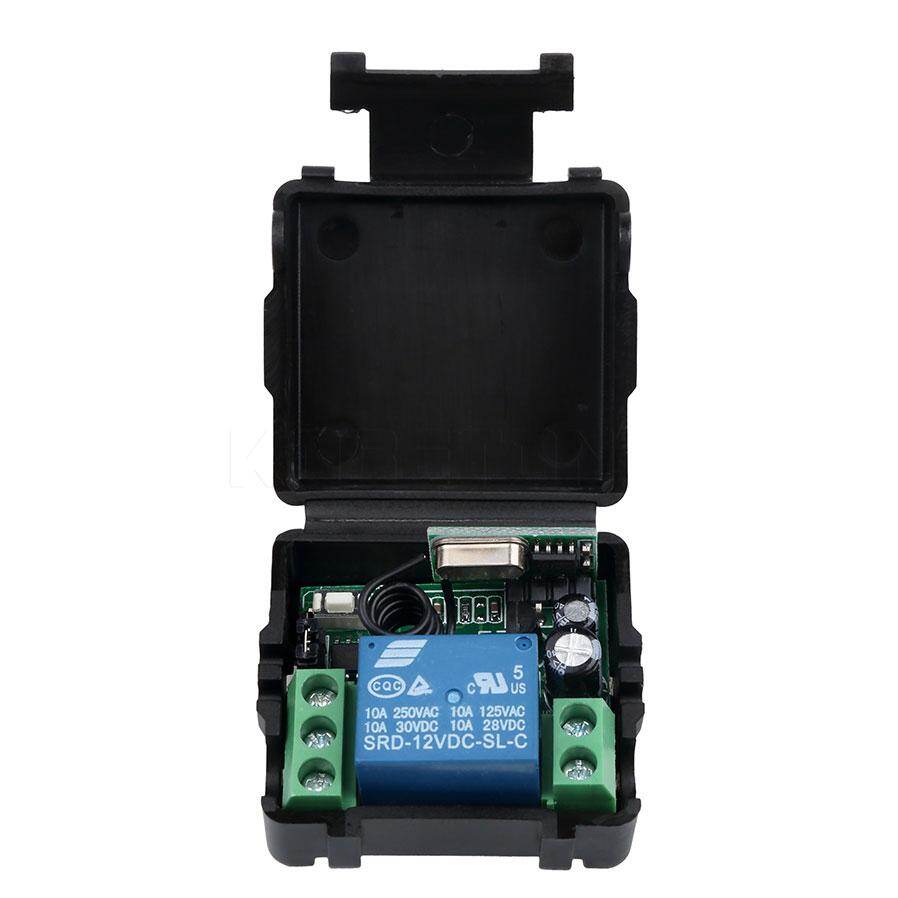

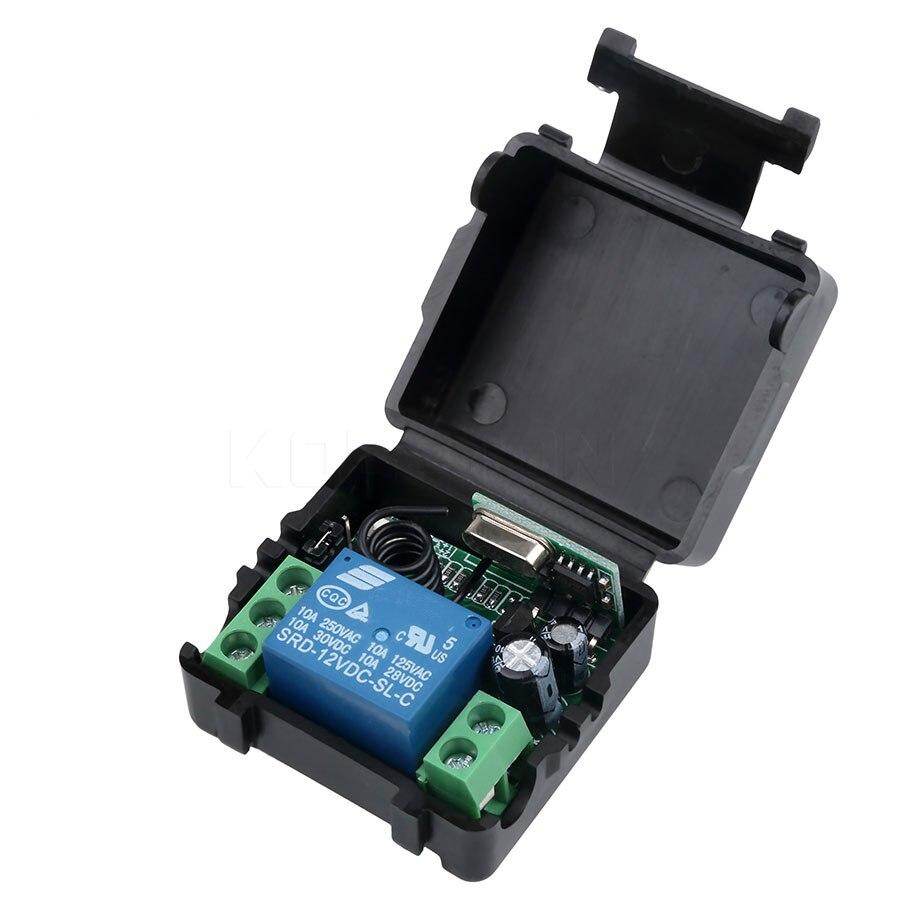

Receiver module*1

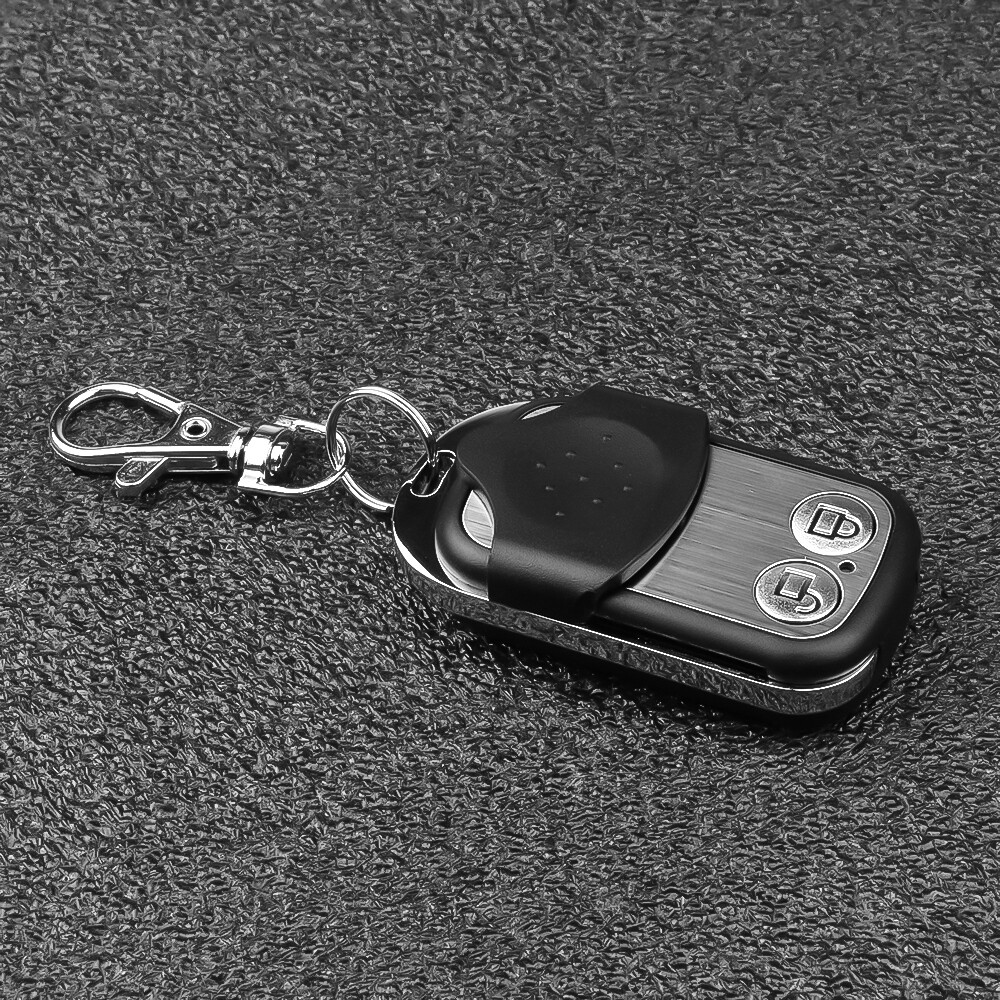

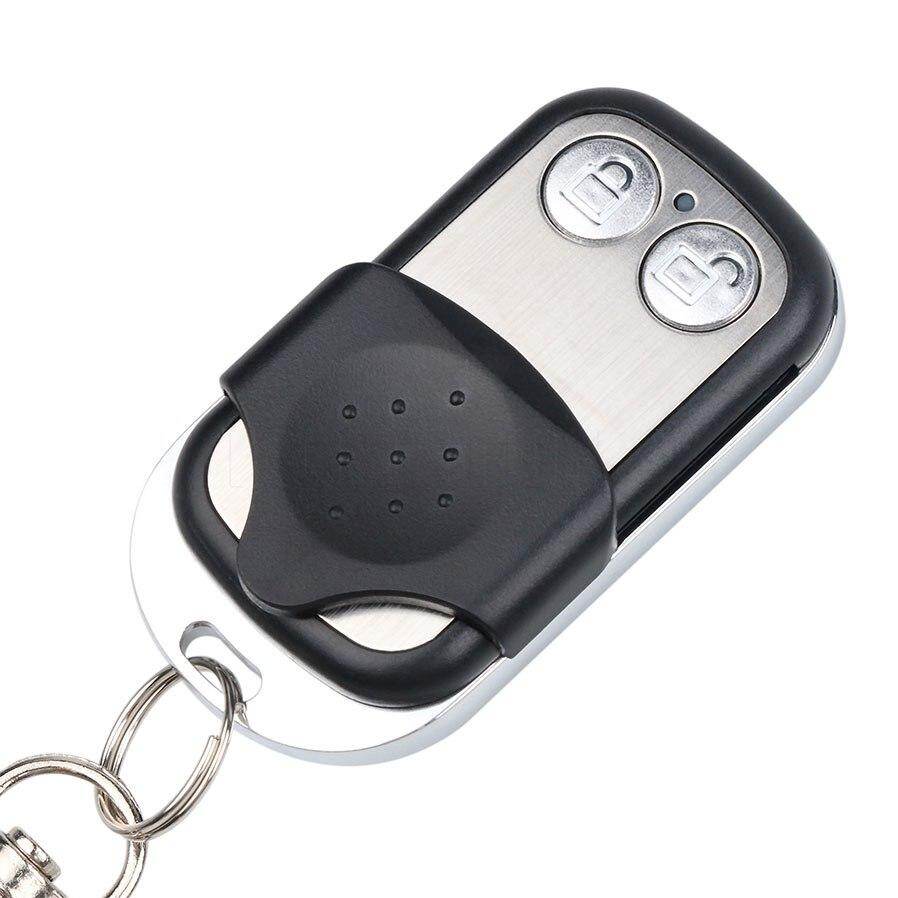

Remote Control*1

No retail box will be included, but we/'ll pack well before shipping.
