Parameter

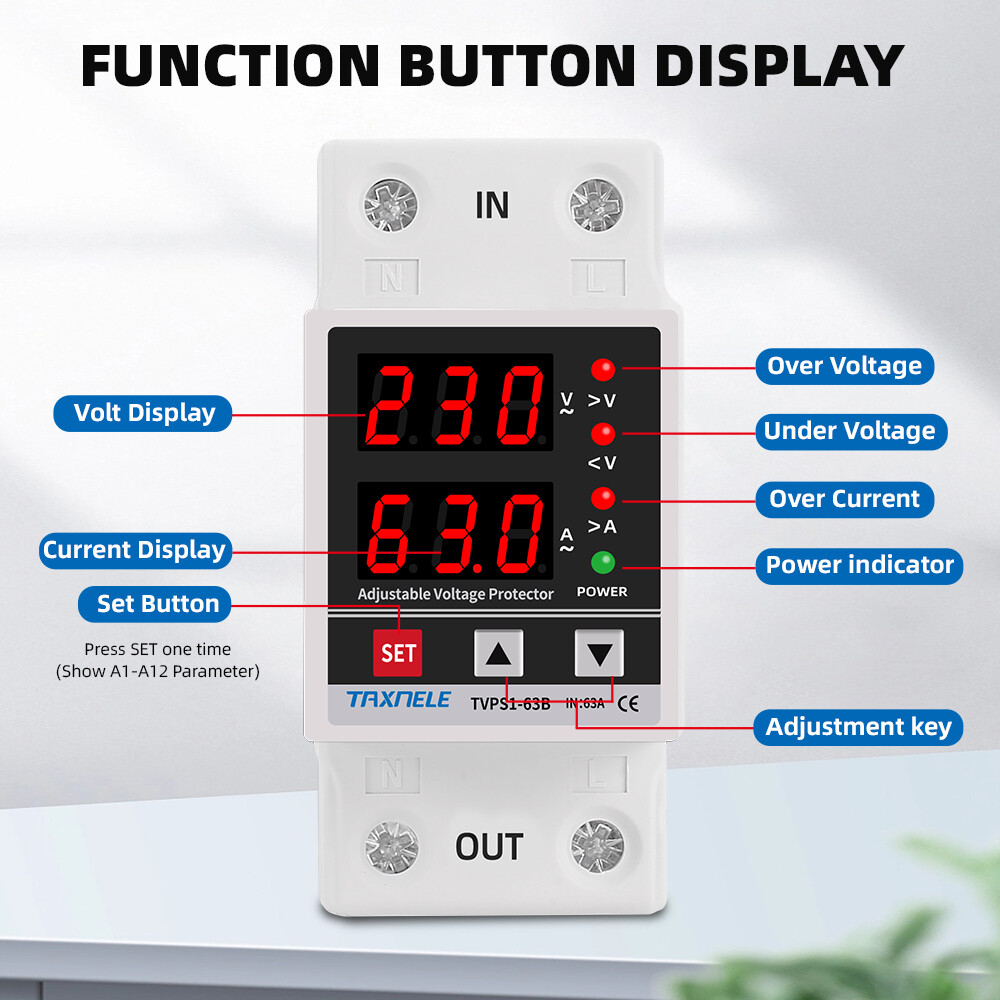

Functions:

1.Over-voltage protection

2.Under-voltage protection

3.Over-current protection

4.Automatic recovery

5.Voltage display(voltage measurement)

6.Current display (current measurement)

Product Parameters:

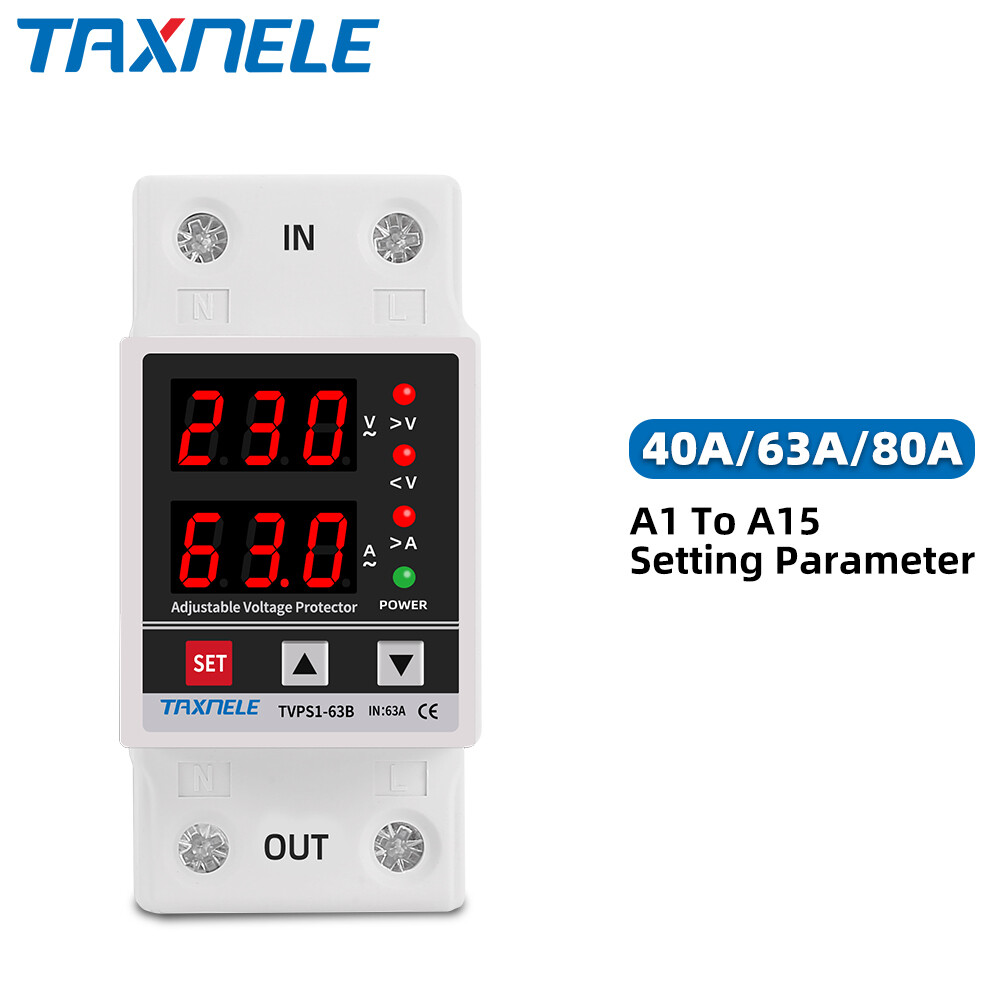

1.Model number:TVPS1-63B

2.Power supply:230VAC 50/60Hz

3.Max.Loading power:1~40A Adjustable(default:40A)

1~63A Adjustable(default:63A)

1~80A Adjustable(default:80A)

4.Over-voltage protection value range:230V~300~OFF(default:270V)

Over-voltage recovery voltage range:225V--295V(default:250V)

Over-voltage protection action time:0.1s~30s(default value:0.5s)

Over-voltage recovery delay time:1s~500s(default:30s)

5.Under-voltage protection value range:140V--210V --OFF(default:170V)

Under-voltage recovery voltage range:145V--215V (default:190V)

Under-voltage protection action time:0.1s~30s(default:0.5s)

Under-voltagerecovery delay time:1s~500s(default:30s)

6.Over-current adjustment range:1-40A (default:20A)1-63A(default:40A) 1-80A (default:60A)

Over-current action range:0.1~30second(default:0.5s)

Over-currentrecovery delay time:1s~500s(default:30s)

7.Power-on delay time:1s~500s(default:10s)

9.Power consumption : <2W

10.Electric machinery life : 100,000 times

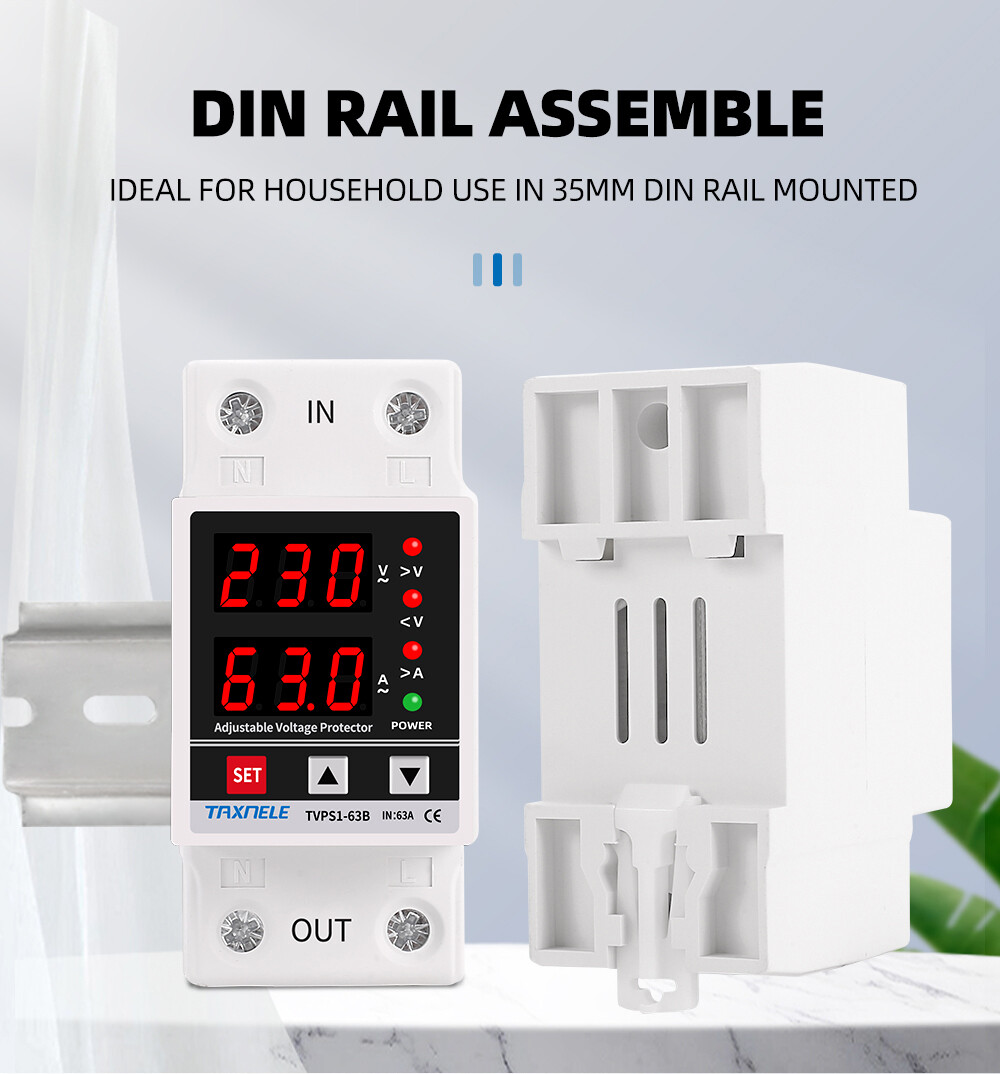

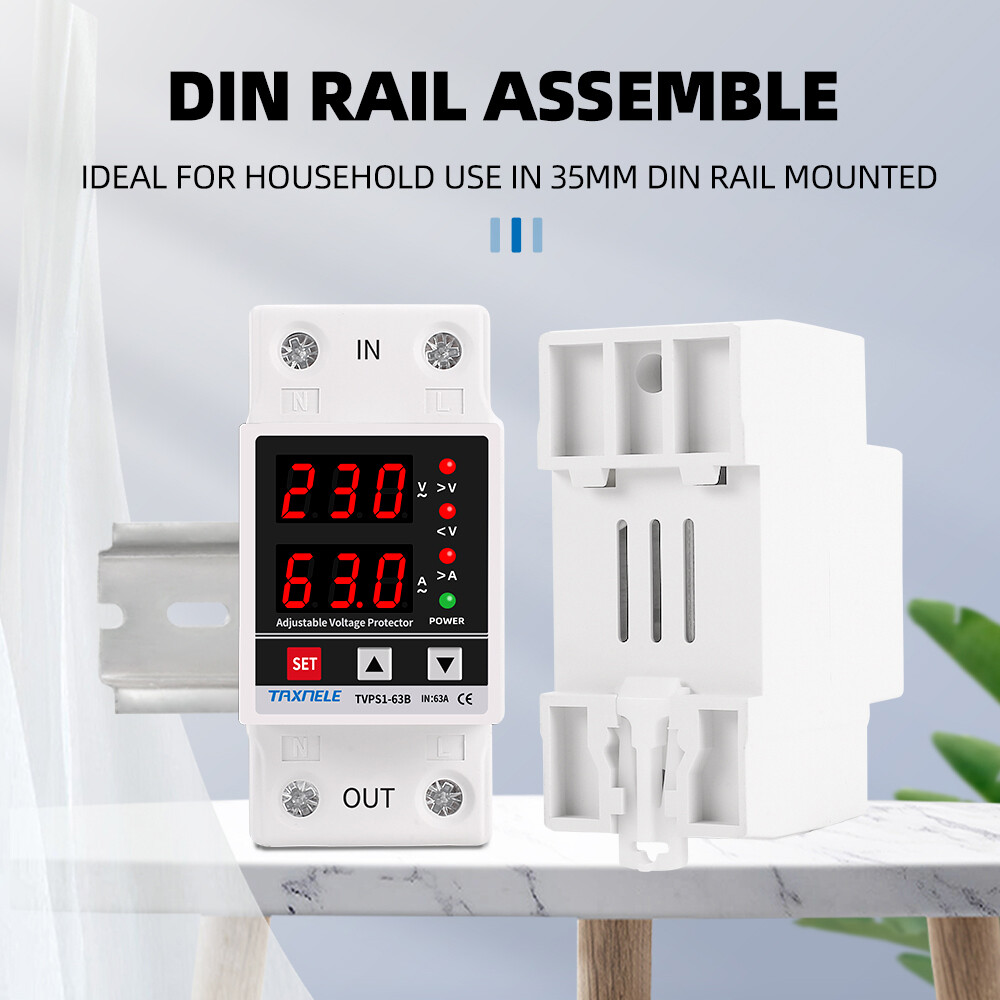

11.Installation:35mm DIN rail

Noted: When you first connect the product, you have to wait about 10 second(Power-on delay time:1s~500s(default:10s)),after the red light turn off, then the product will work.

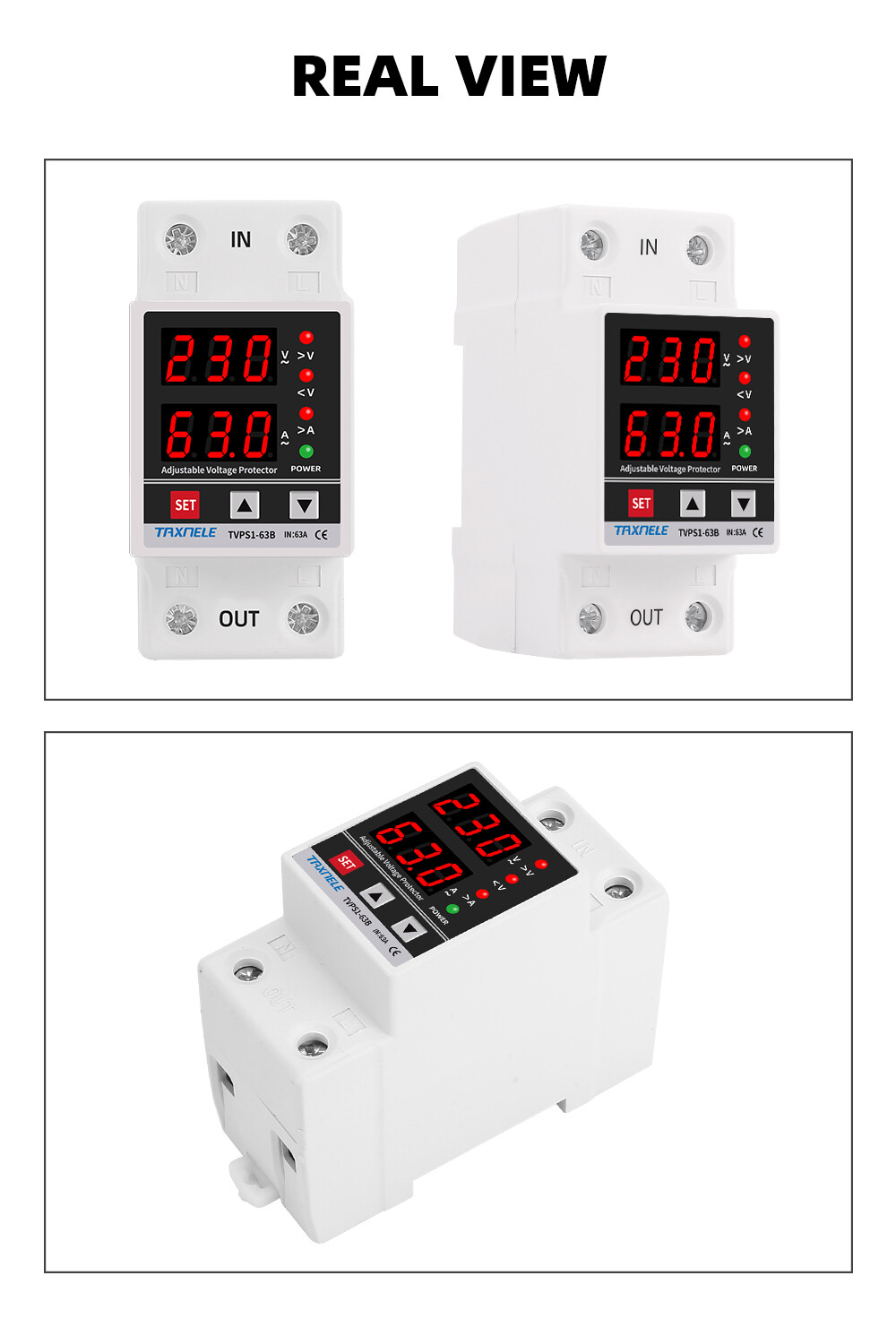

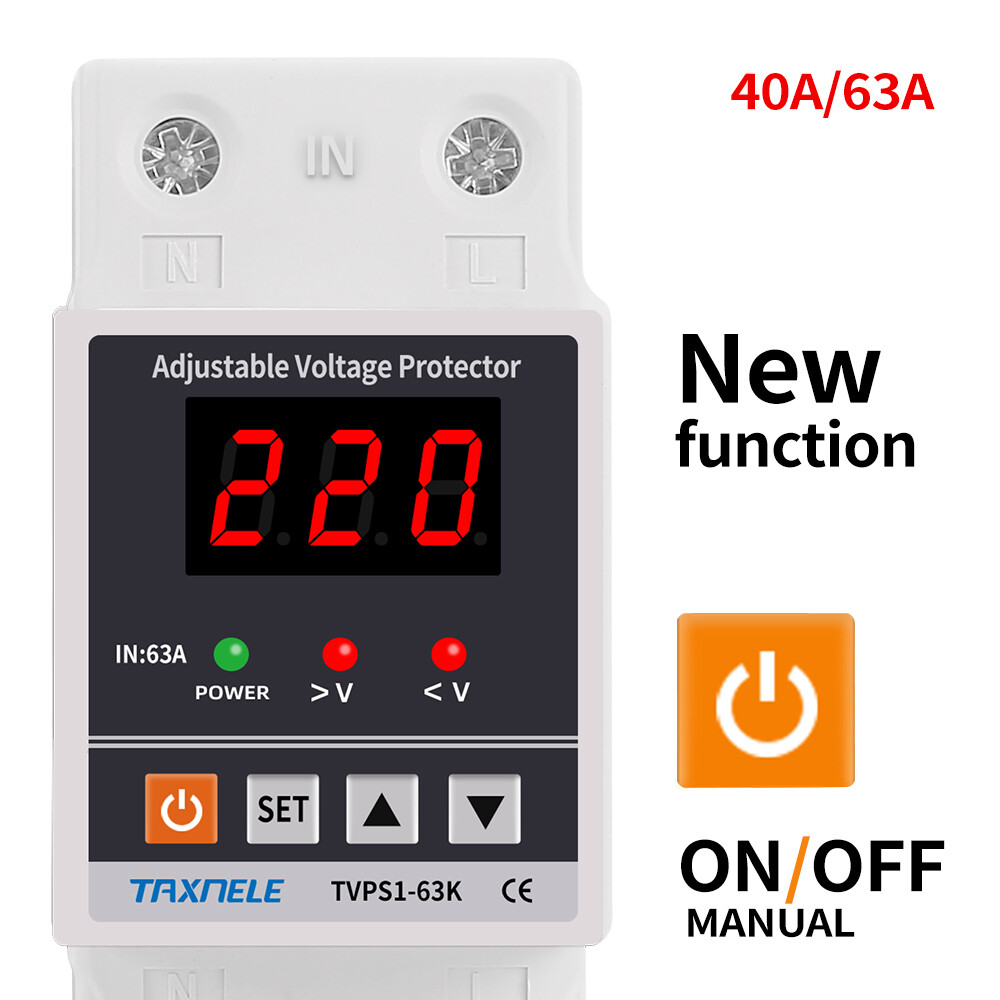

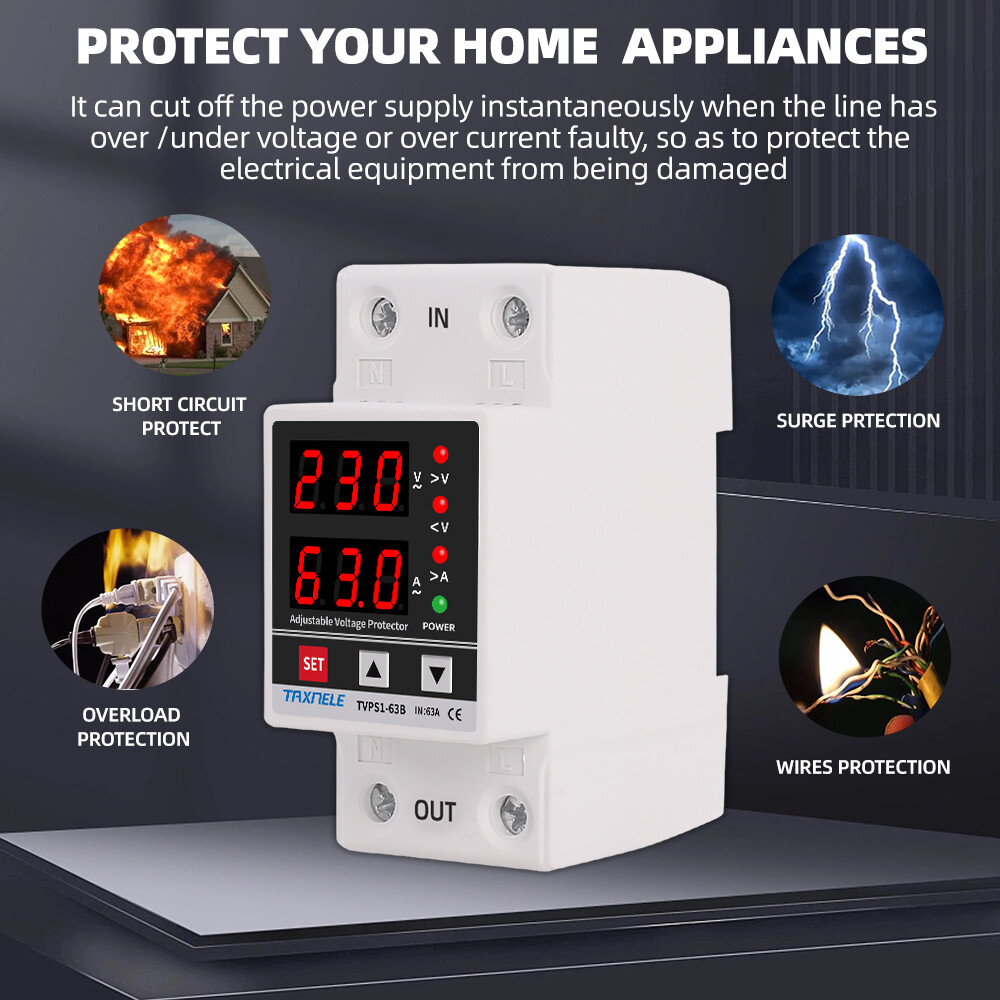

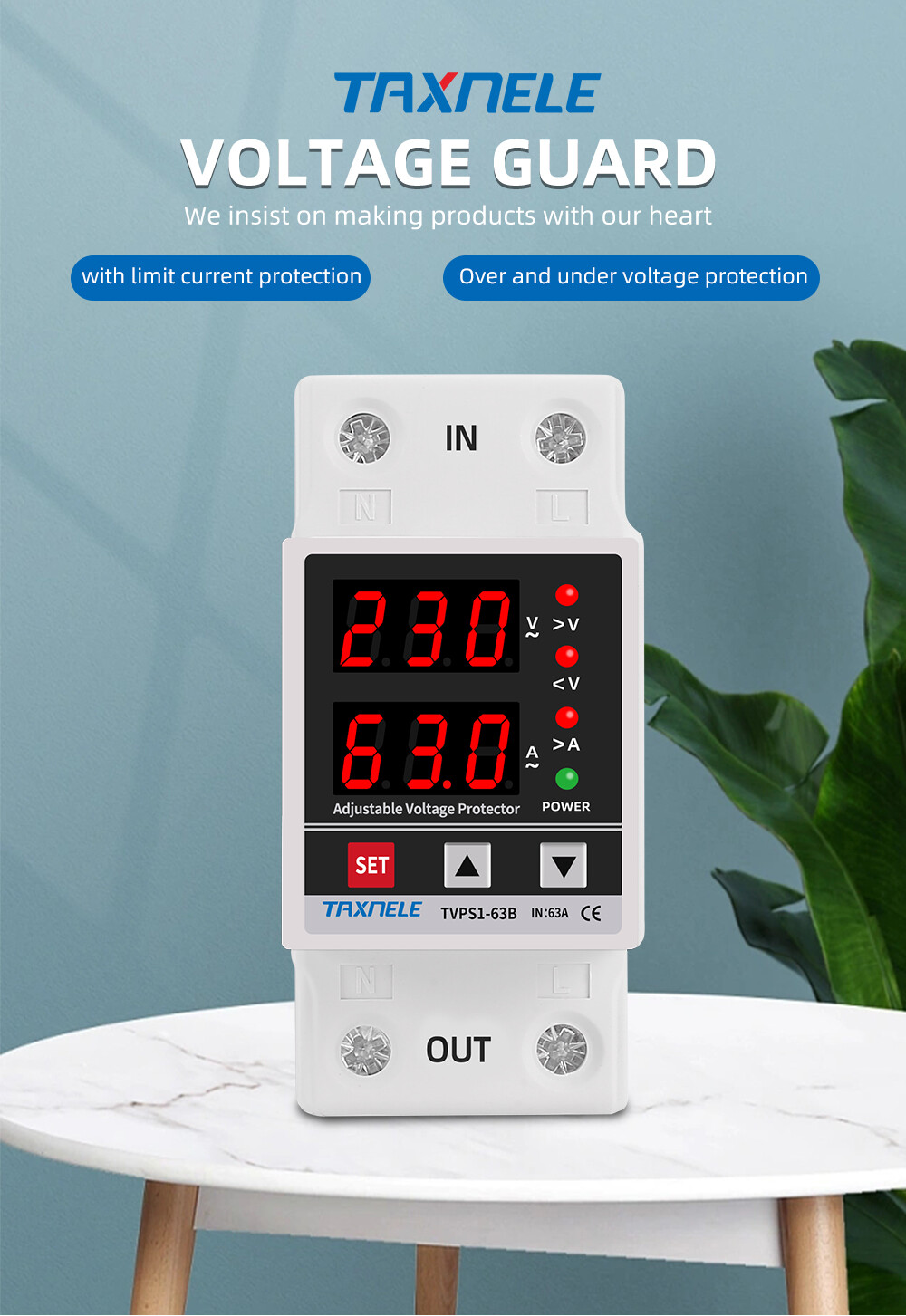

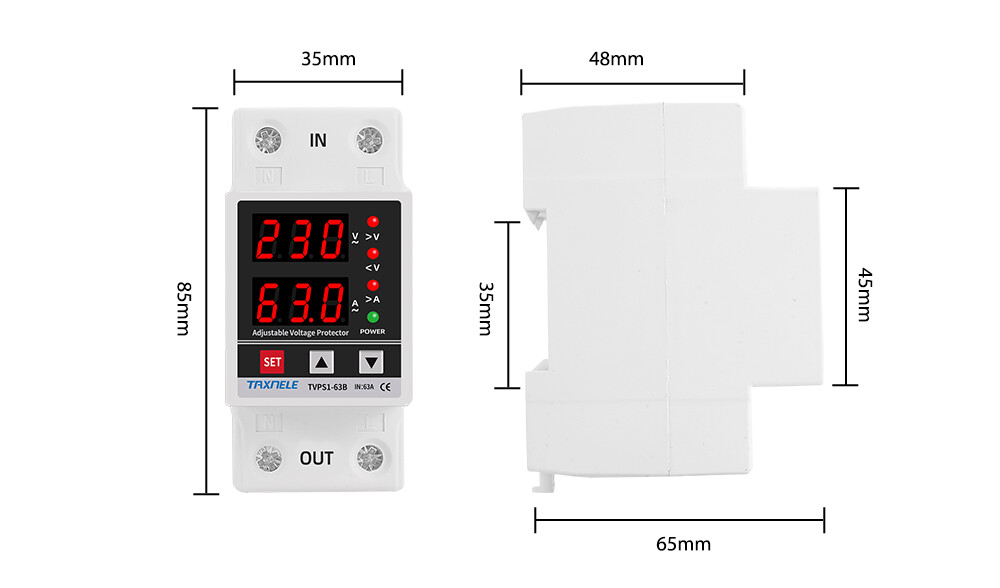

Product Display
