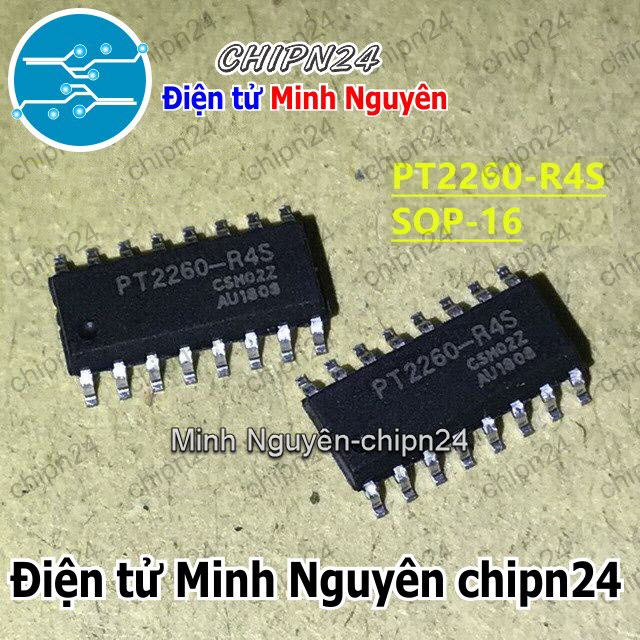

IC PT2260 SOP-16 (SMD Dán) (PT2260-R4S 2260)
_x000D_ IC PT2260 PT2260-R4S SOP-16 (SMD dán)Mô tả:
- PT2260 is a remote control encoder paired with either PT2270 or PT2272 utilizing CMOS Technology. It encodes data and address pins into a serial coded waveform suitable for RF modulation. PT2260 has a maximum of 10 bits tri-state address pins providing up 10 to 59,049 (or 3 ) address codes; thereby, drastically reducing any code collision and unauthorized code scanning possibilities.
- PT2260 is one of the first generation of Encoder/Decoder ICs that utilizes the unique PTC Technology. When paired with PT2270, this encoder/decoder (PT2260/PT2270) pair can operate at very wide temperature range (see Features). Thus, this very important feature enables your Encoder/Decoder to operate under the worst environmental condition.
Thông số kỹ thuật:
- Least external components
- Single resistor oscillator
- Wider range of operating voltage: 1.8 ~ 10.0V
- 2 or 4 data pins
- 8 or 10 Tri-State code address pins
- Wide operating temperature range: -40℃ ~ 85℃
- Very high noise immunity
- Low power consumption
- High performance CMOS technology
Datasheet:
http://www.princeton.com.tw/Portals/0/Product/PT2260_4.pdf
