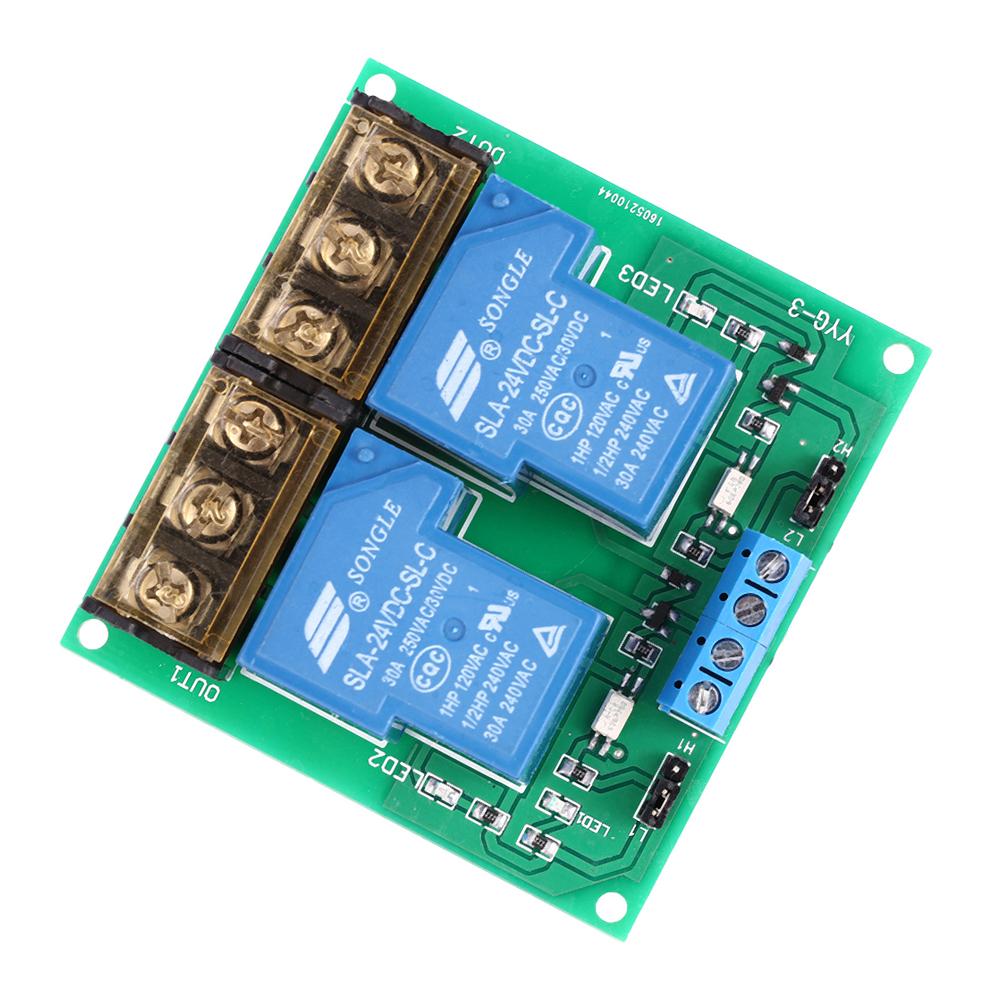

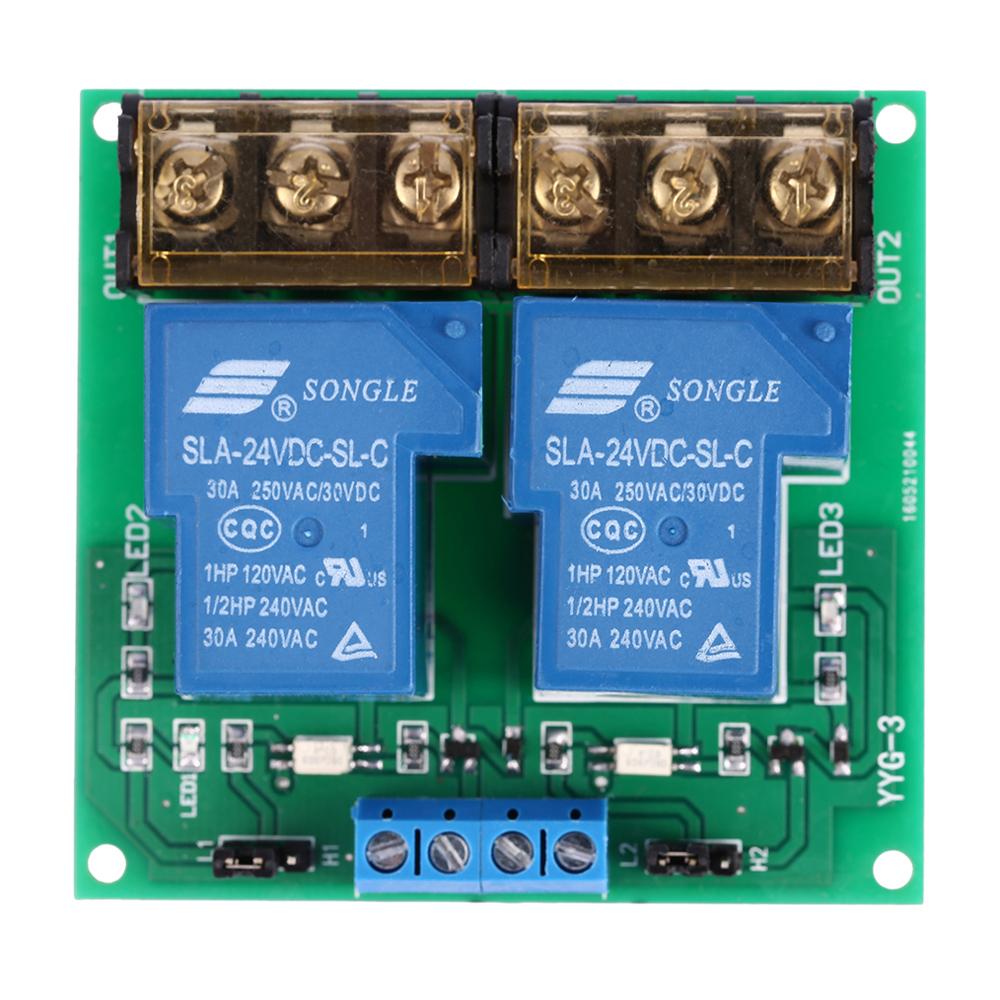

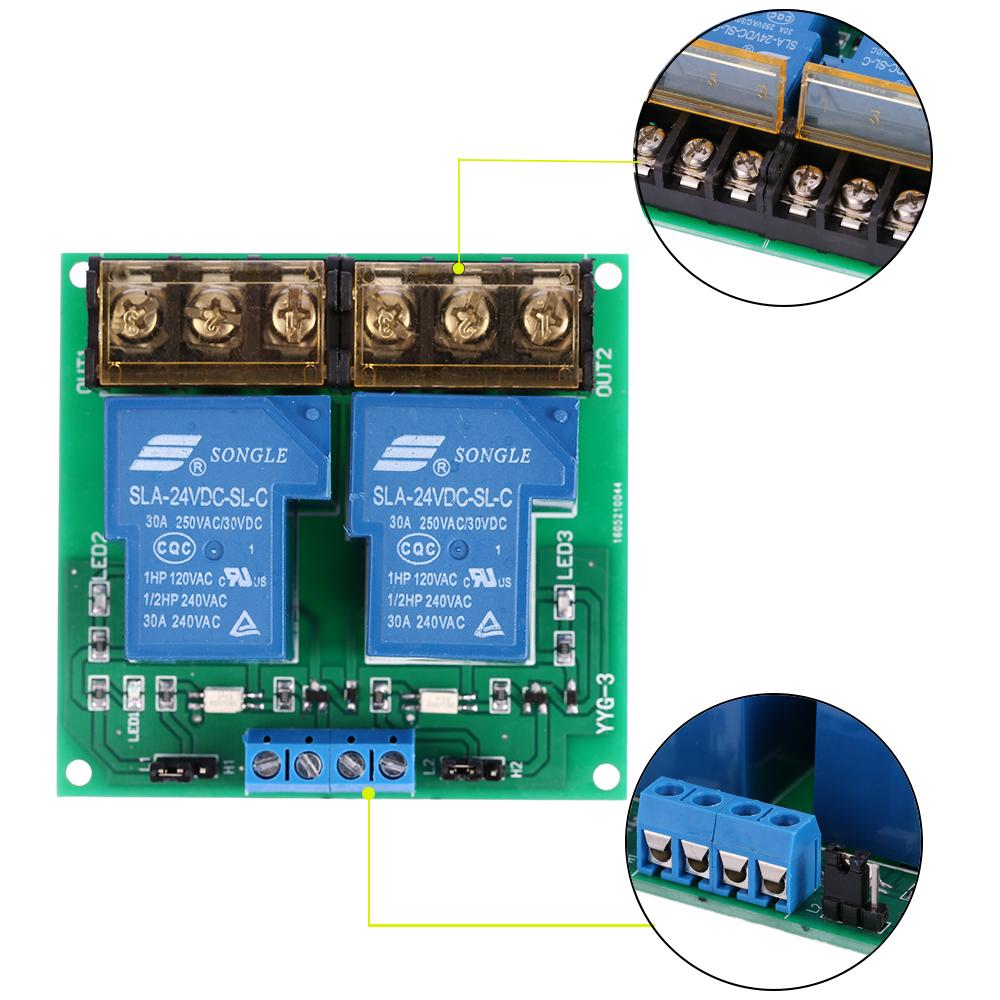

Mô Đun Bảng Mạch Rơ Le 2 Kênh DC 12V 30A Bộ Ghép Quang Cách Ly Kích Hoạt Cao/Thấp

This is a relay module with high performance, which is convenient and practical for users.

Features:
The module voltage: 5V, 12V, 24V are available.
Output capacity: within DC 30V 30A or AC 250V 30A.
Using optocoupler isolation, strong anti-jamming capability and stable performance.
The module can be set high or low trigger.
With power indicator and working indicator.
To ensure stability, uses industrial grade PCB board and 9.5mm barrier terminals.

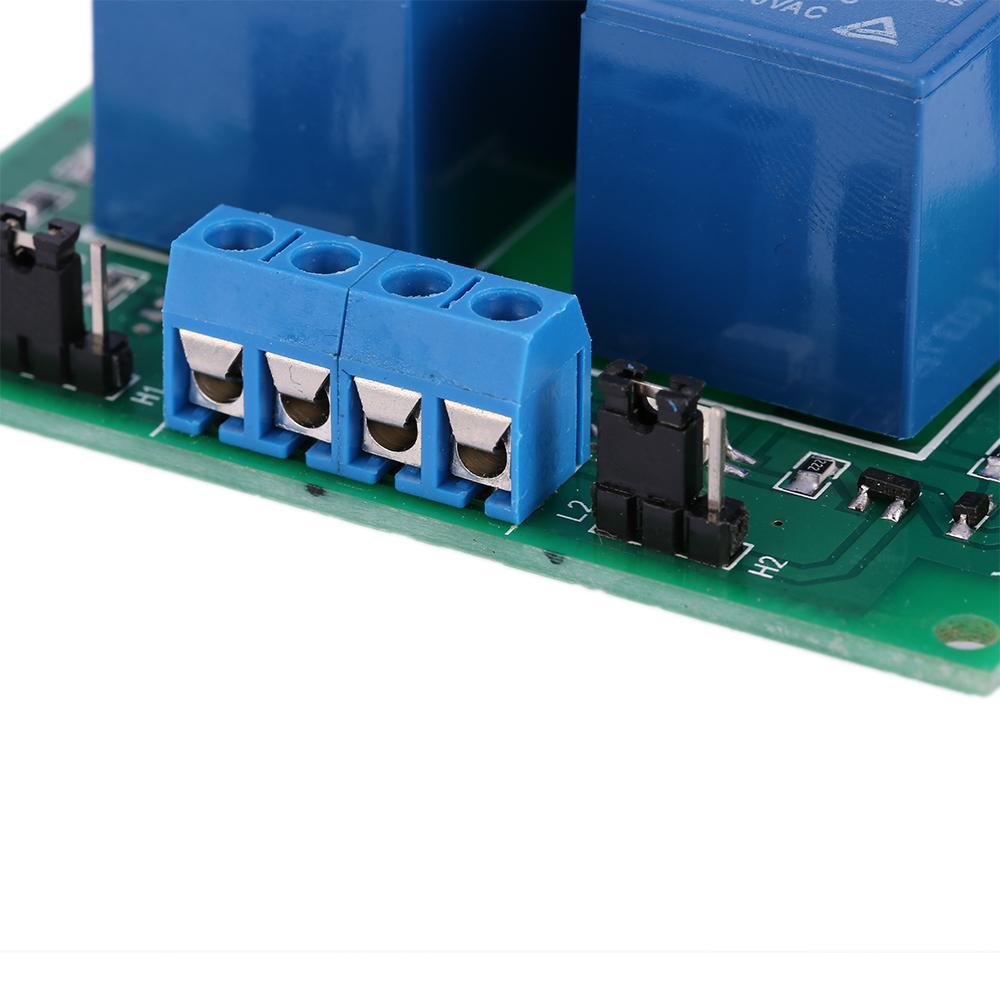

All interfaces can be connected directly via terminal wiring leads, very convenient.

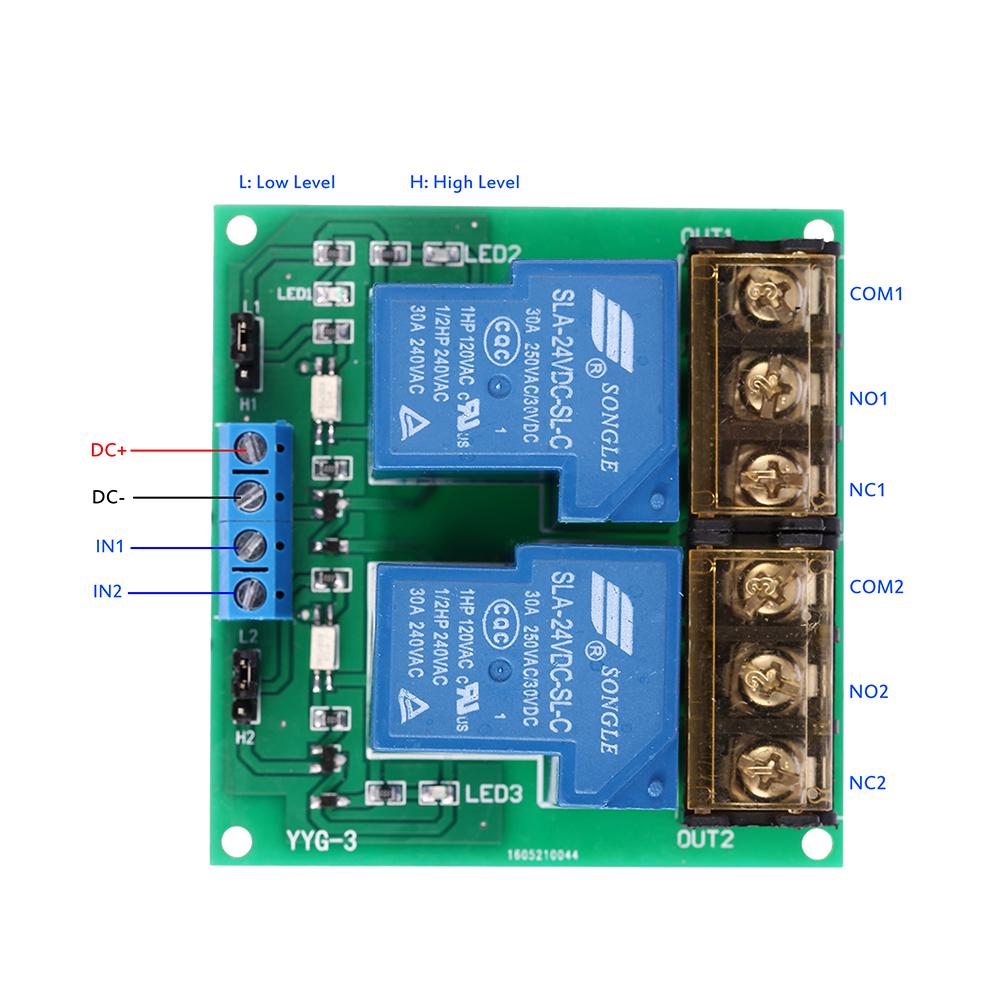

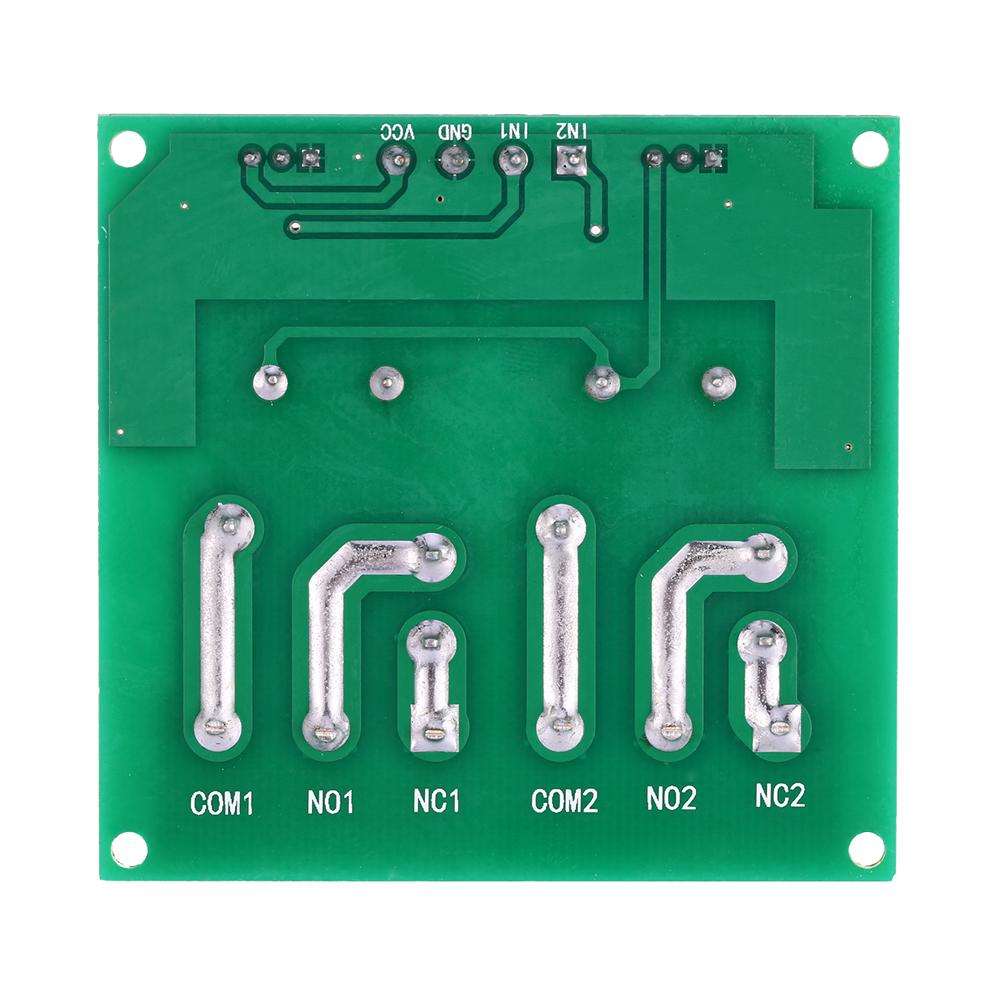

Module Interface Description:
1. DC +: DC power supply positive;
2. DC -: DC power supply module negative;
3. IN: Signal input terminal(support High/Low Level switch freely);
4. Normally open (NO): Relay normally open;
5. Common terminal (COM): Relay common;
6. Normally closed terminal (NC): relay normally closed terminal;

Specifications:

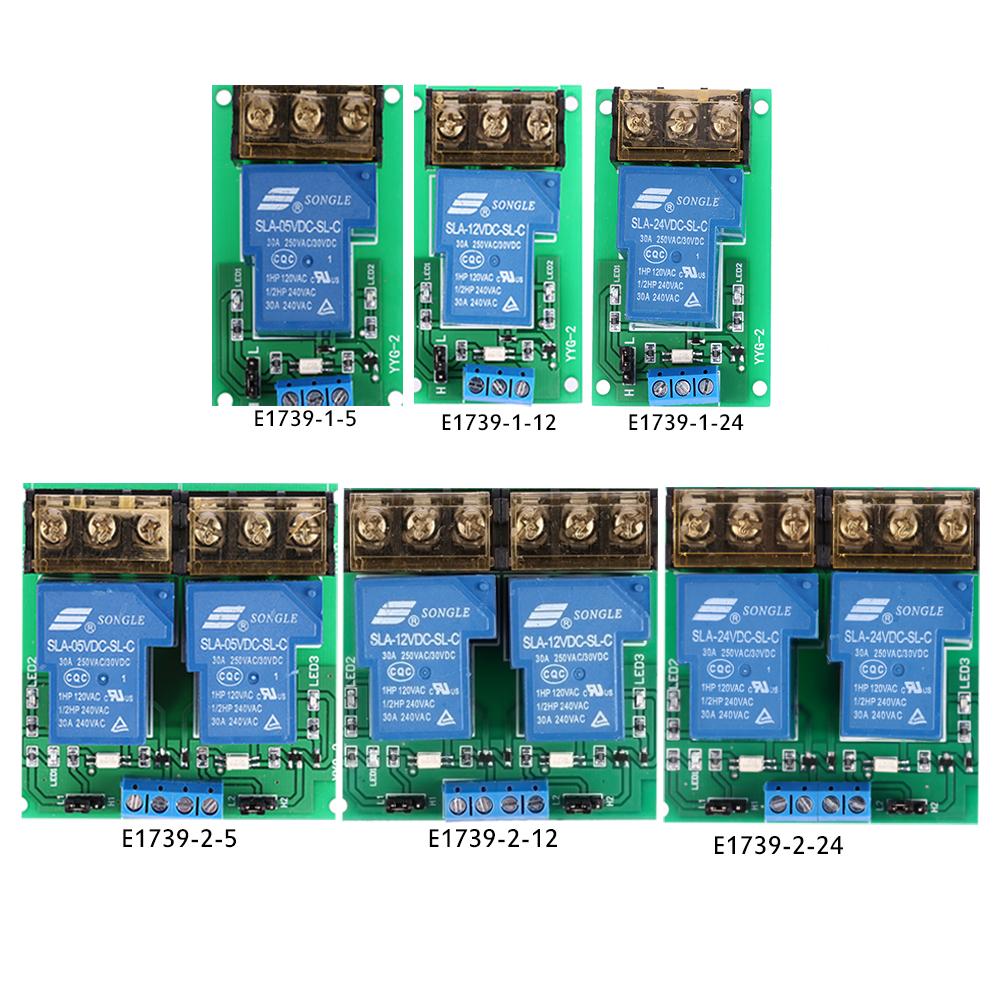

Type: 1-Channel / 2-Channel (Optional)
Relay Voltage: 5V / 12V / 24V (Optional)
Output Capacity: within DC 30V 30A or AC 250V 30A
Quiescent Current: 5mA
Maximum Current: 5V: 190mA; 12V: 80mA; 24V: 50mA
Trigger Current: 5mA
Module Size: 1-Channel: 66 * 40 * 22mm; 2-Channel: 69 * 66 * 22mm
Module Weight: 1-Channel: 47g; 2-Channel: 90g

Package List:
1 * Relay Module
