All of the board we have tested before sent out.
Free program driver board, no need firmware,no need to install, just jump cap to choose resolution.
Description: Model: T.HD8503.03C Support TV Signal: Analog Support Language: Russian, English, Chinese, French, German, Italian, Spanish, Portuguese, Arabic. Scheme of the chip: 8503 Input Interface: PC / HDMI / TV / USB multimedia playing Voltage: DC 12 V 3-5A, 4A is the best Screen interface: LVDS Single 6 / 8 , Double 6 / 8 Screen voltage: 3.3V / 5V / 12V Resolution: Support high screen 1920 * 1080, 7-55 inch LVDS screen (support most of the panels,but not all) Not only USB interface can used to play video/music/photo, basically formats are supported but doesnt support AC3 Audio, You can also set a boot display pictures or LOGO.

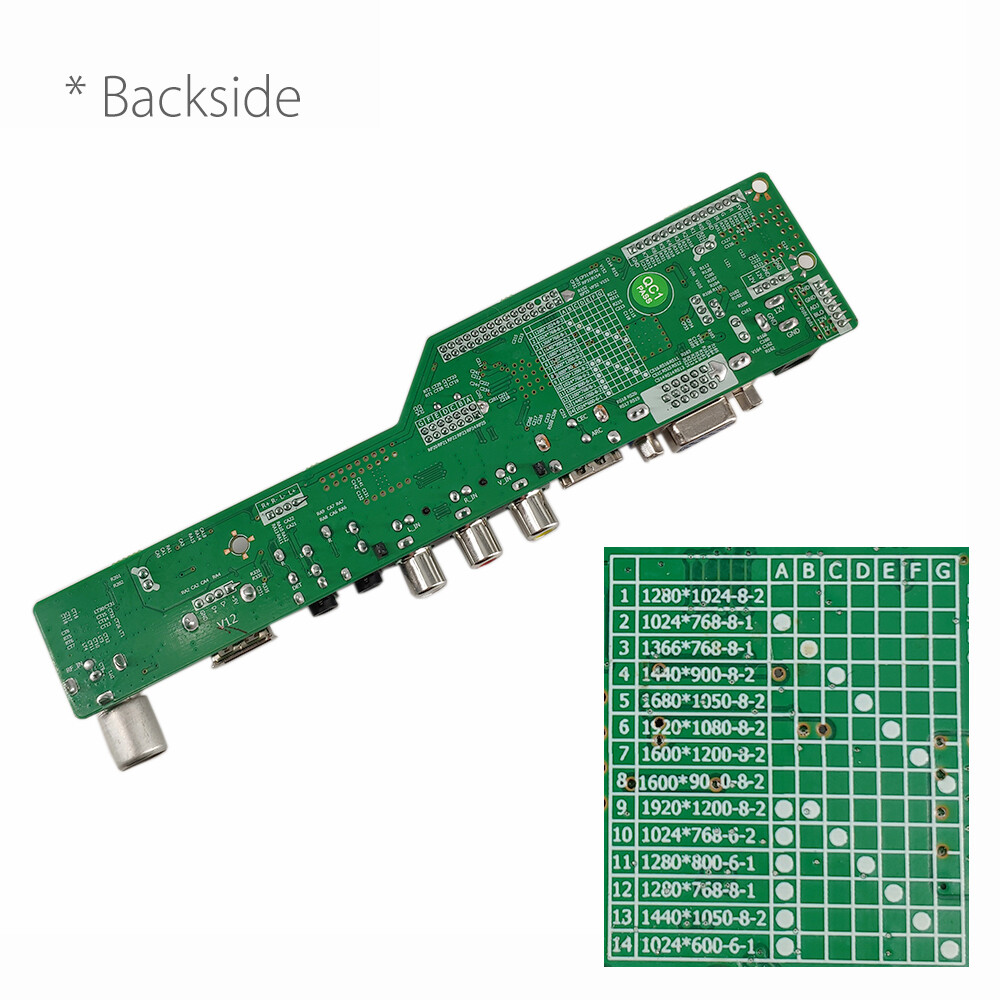

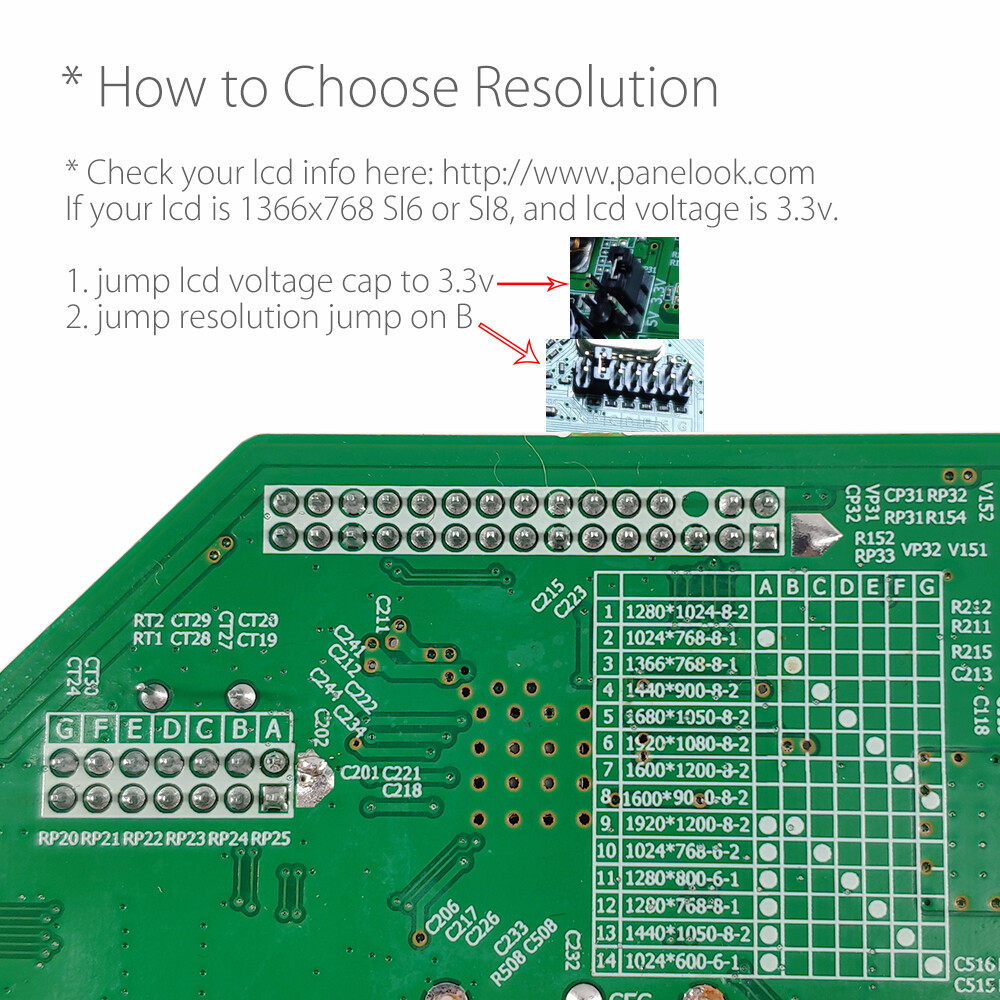

Support Resolution
Test Photo
How to set logo

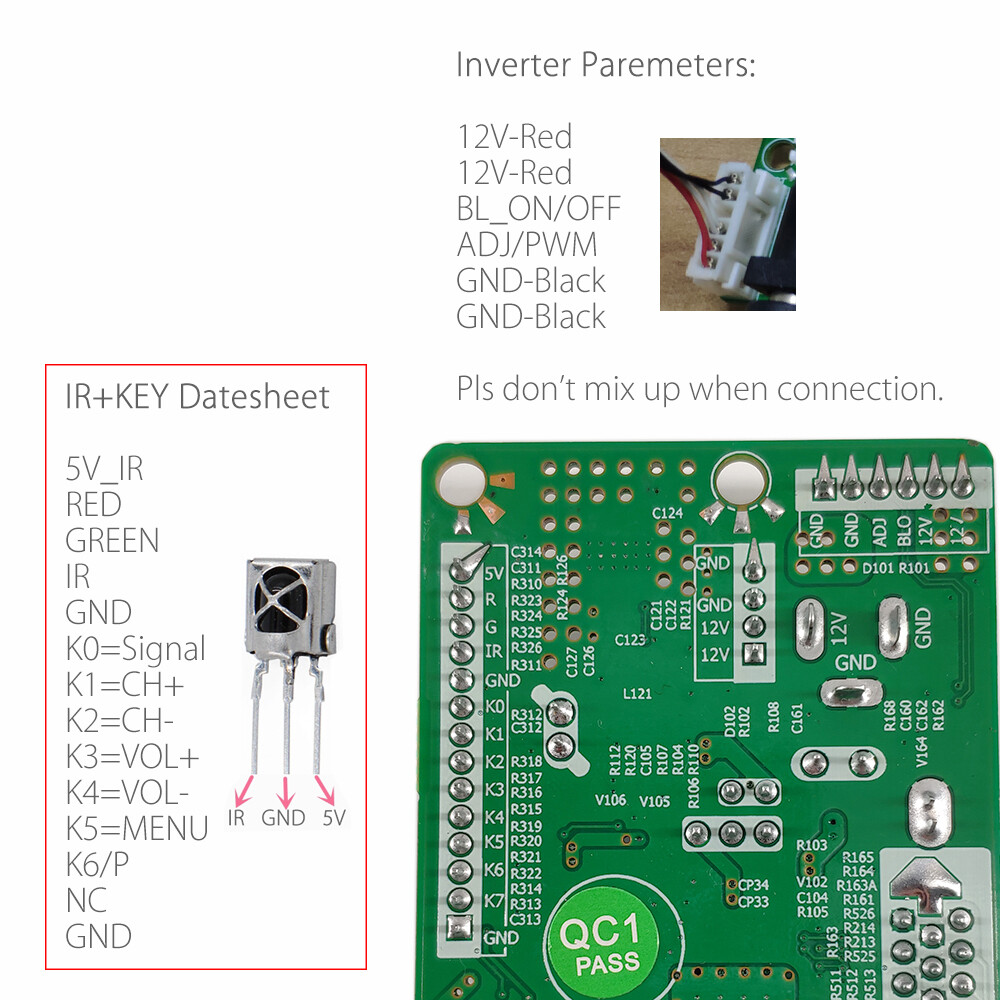

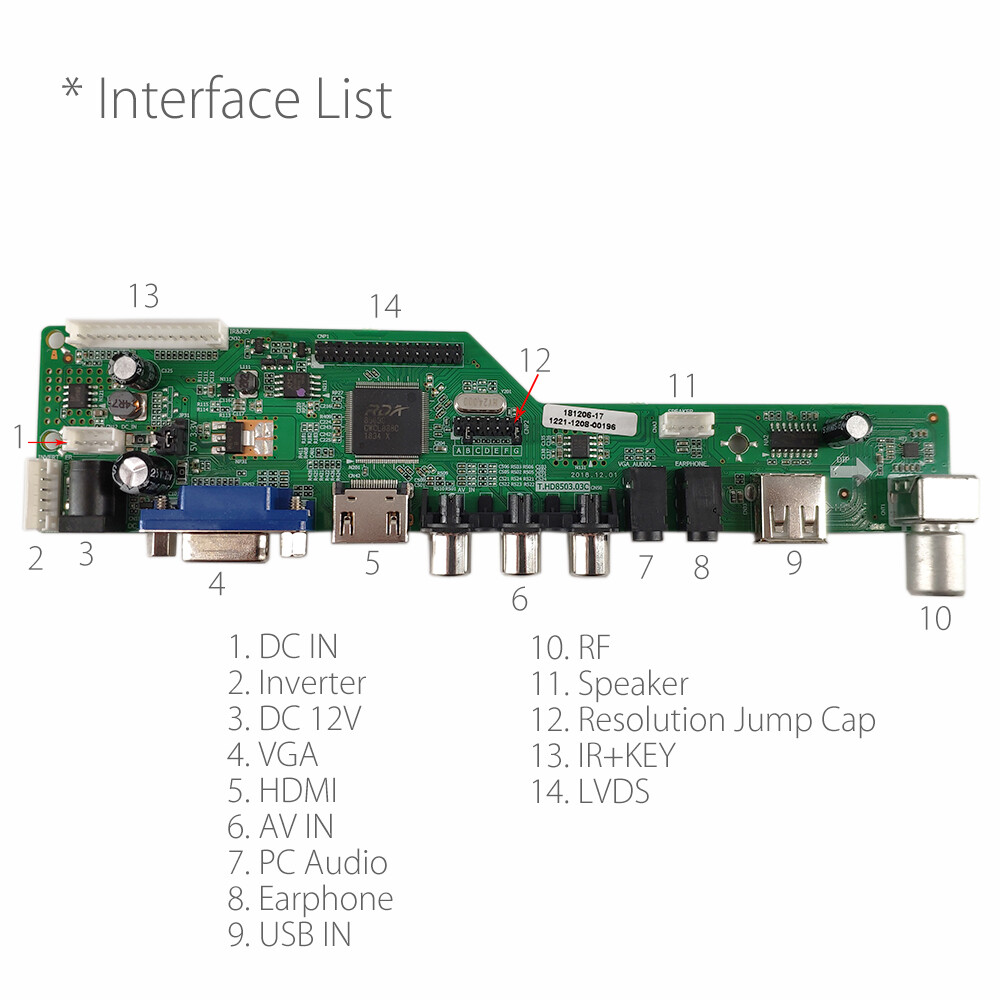

Connection Photo (just for reference)
