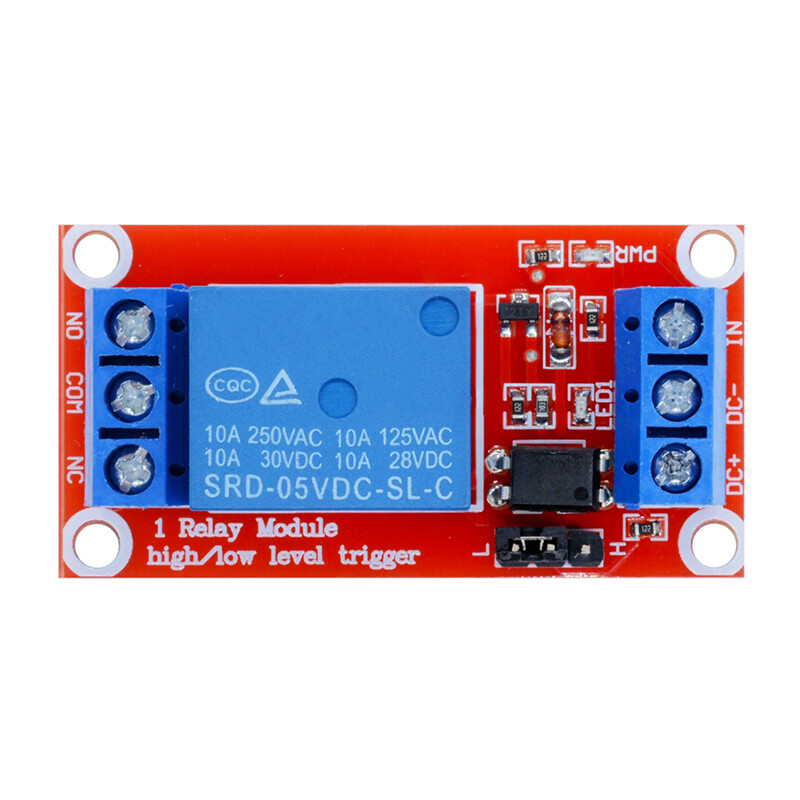

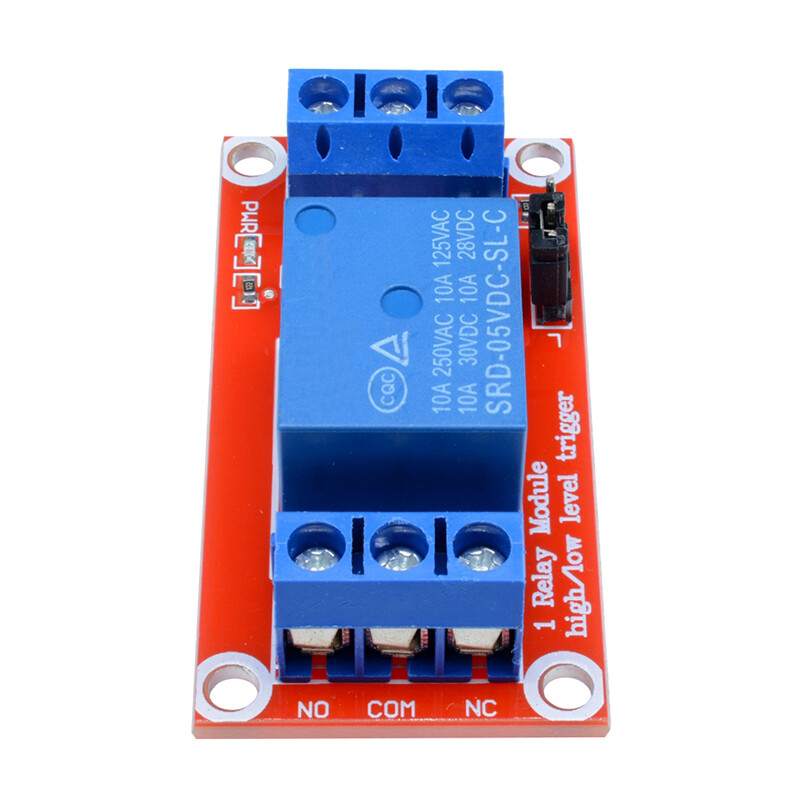

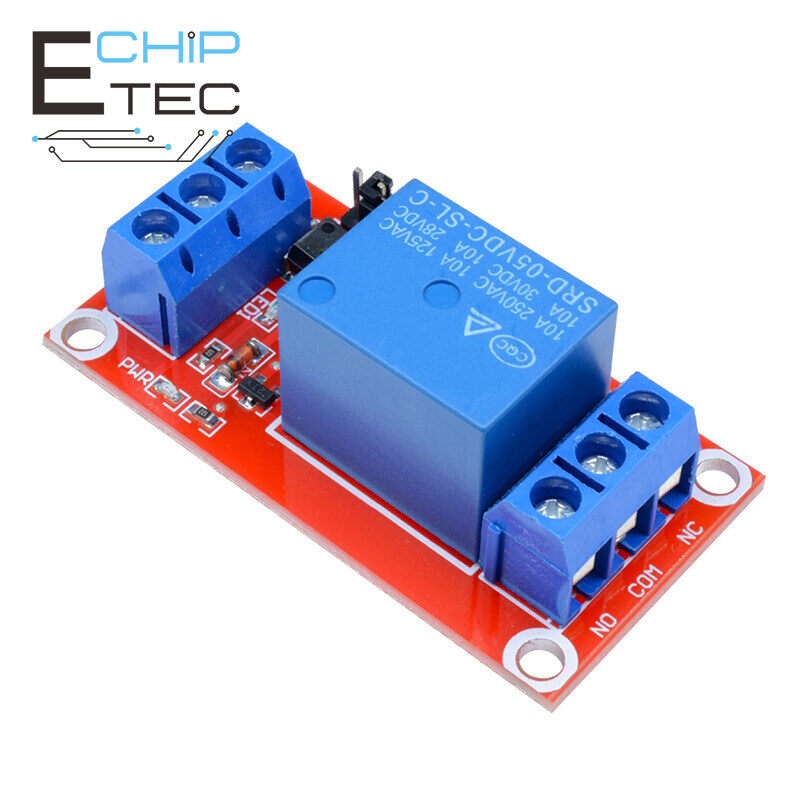

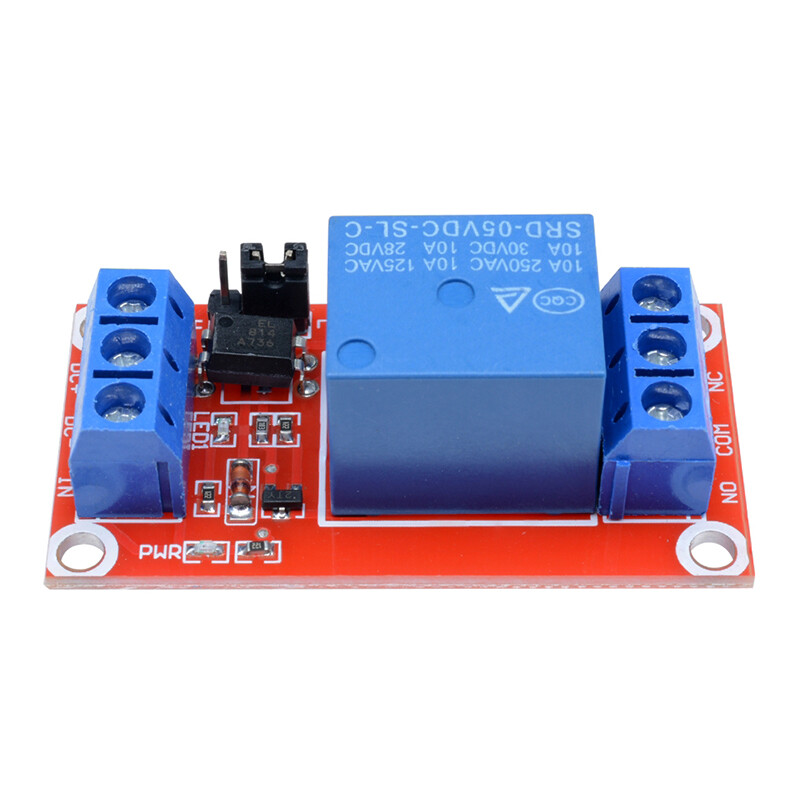

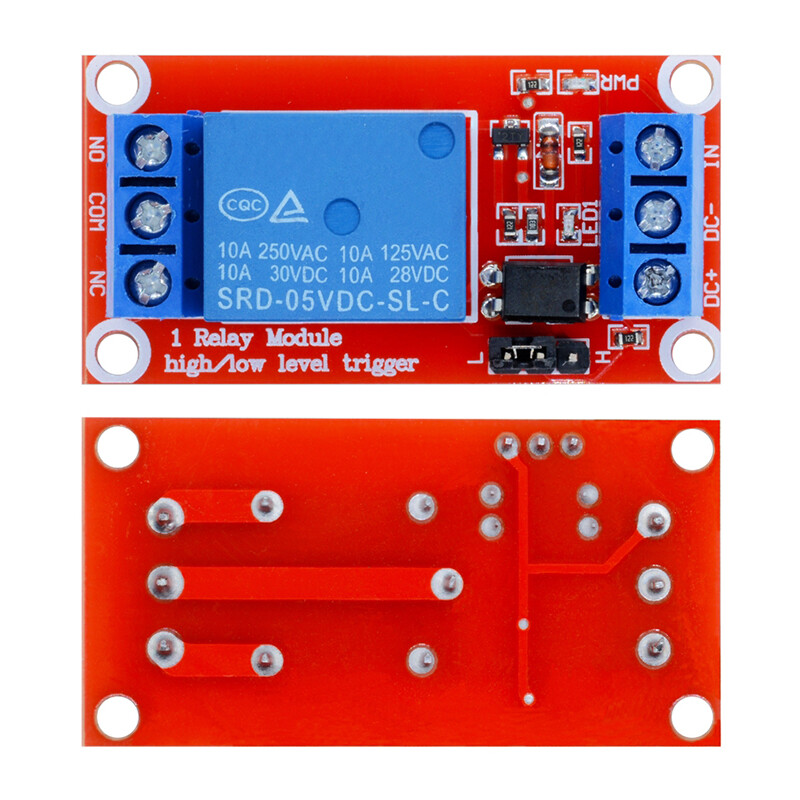

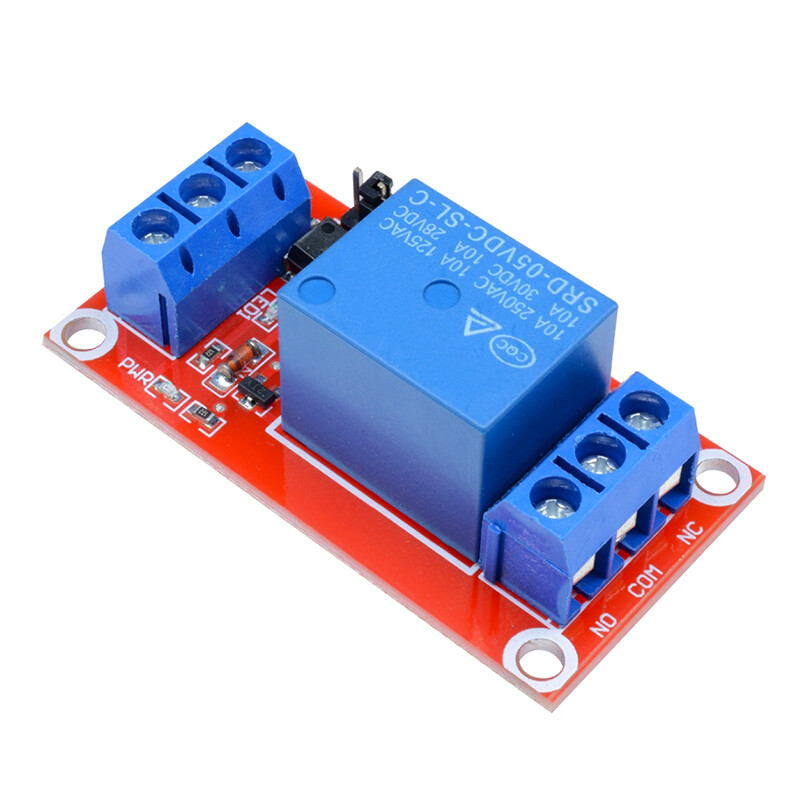

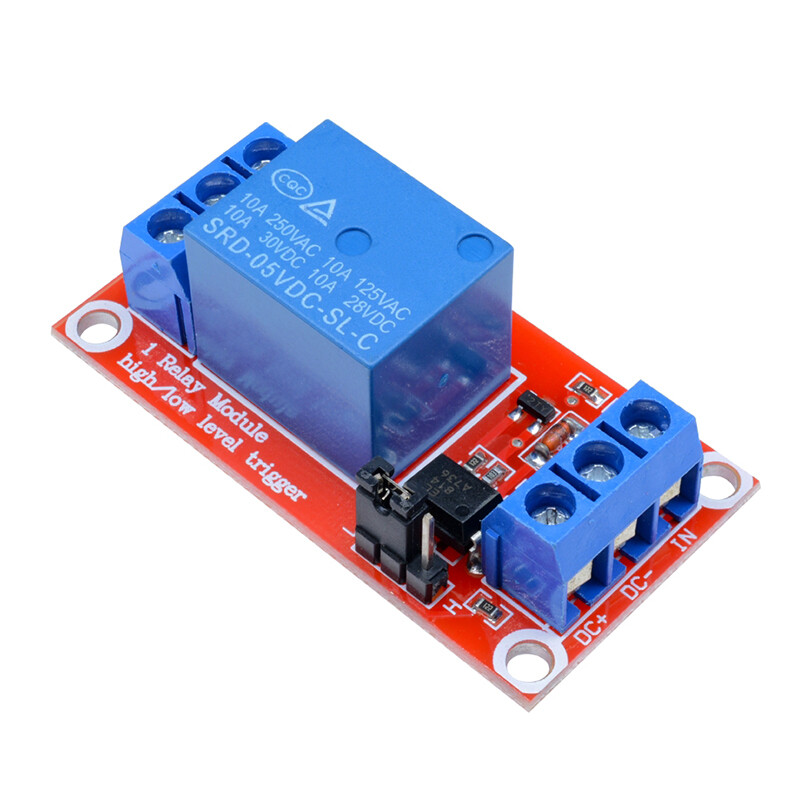

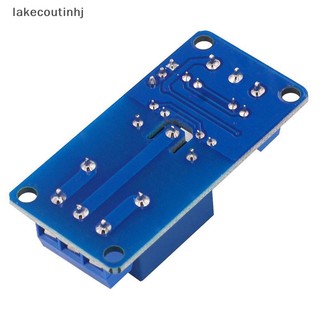

Description: 1, this module uses pure quality relay, normally open interface maximum load: AC 250V/10A, DC 30V/10A; 2, using SMD optocoupler isolation, driving ability, stable performance; Trigger current 5mA; 3, the module voltage is 5V4, the module can be set to high or low triggered by a jumper; 5, intolerant design, even if the control line is broken, the relay will not operate; 6, power indicator (green), indicator relay status (red); 7, humane interface design, all interfaces can be directly connected through terminal wiring leads, very convenient; 8, module size: 50mm * 26mm * 18.5mm (length * width * height); 9 , has four mounting bolt holes, 3.1mm hole, 44.5mm * 20.5mm pitch. Two module interfaces: 1, DC +: positive power supply (the voltage required by the relay, there is 5V ); 2, DC-: negative power connection ;3, in: can be a high or low level control relay. Output Relay: 1, no: the relay interface is normally open, the relay before empty after pull is shorted with COM; 2, COM: common interface relay; 3, NC: relay The relay interface is normally closed and shorted an COM past, after pull-empty. Selection of high and low trigger ends: 1 short jumper with low triggered when connected 2 when high jumper with high short trigger Package 1 x Relay Optocoupler module
