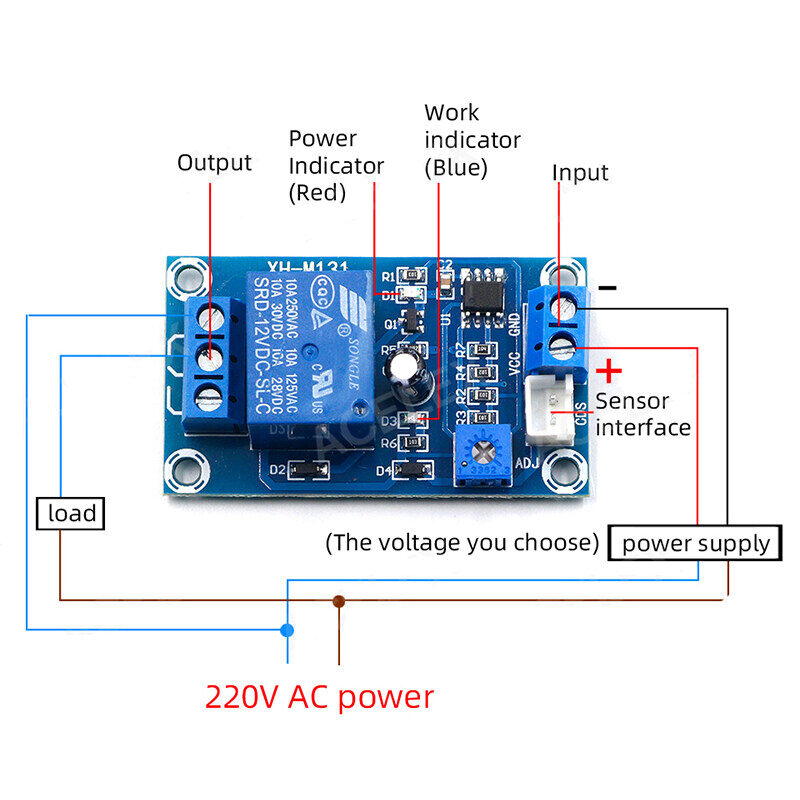

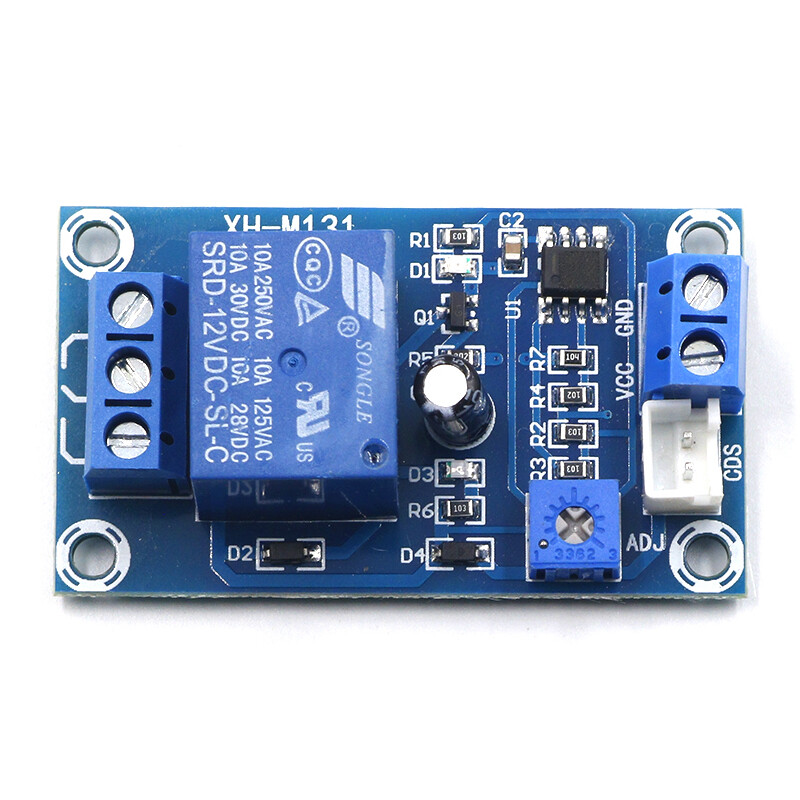

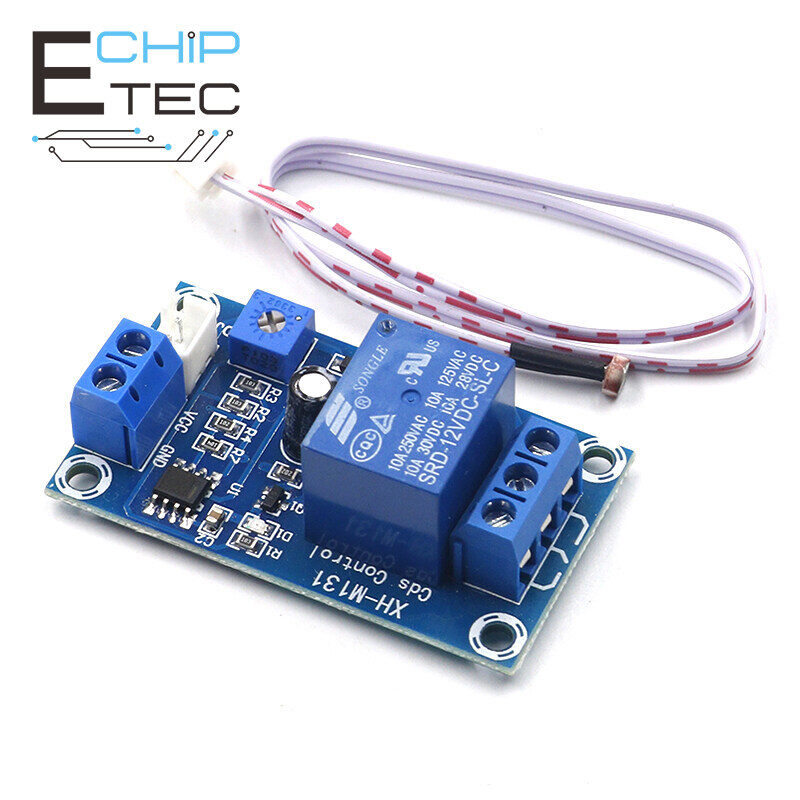

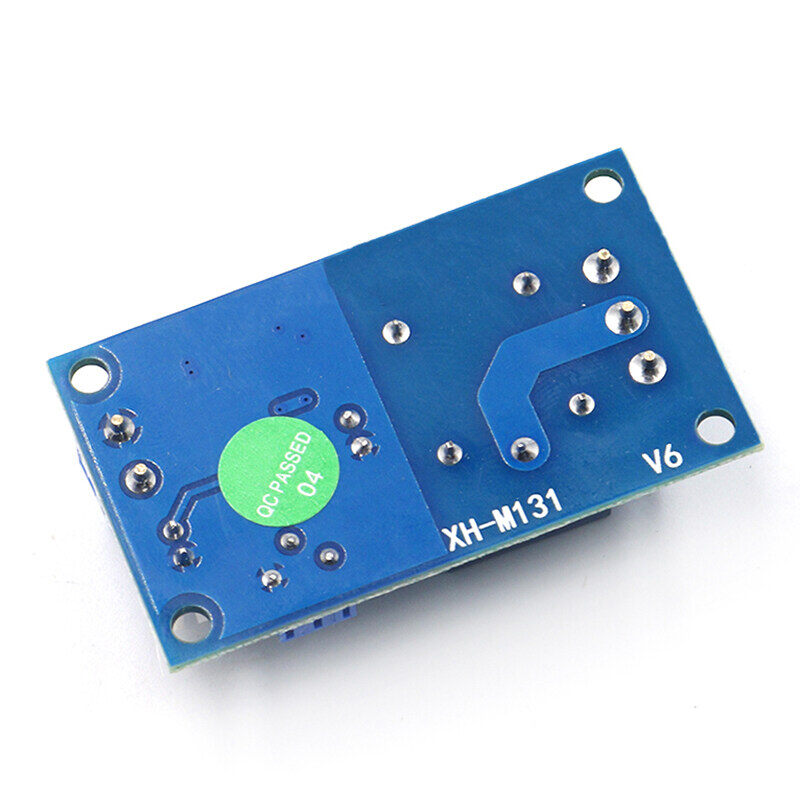

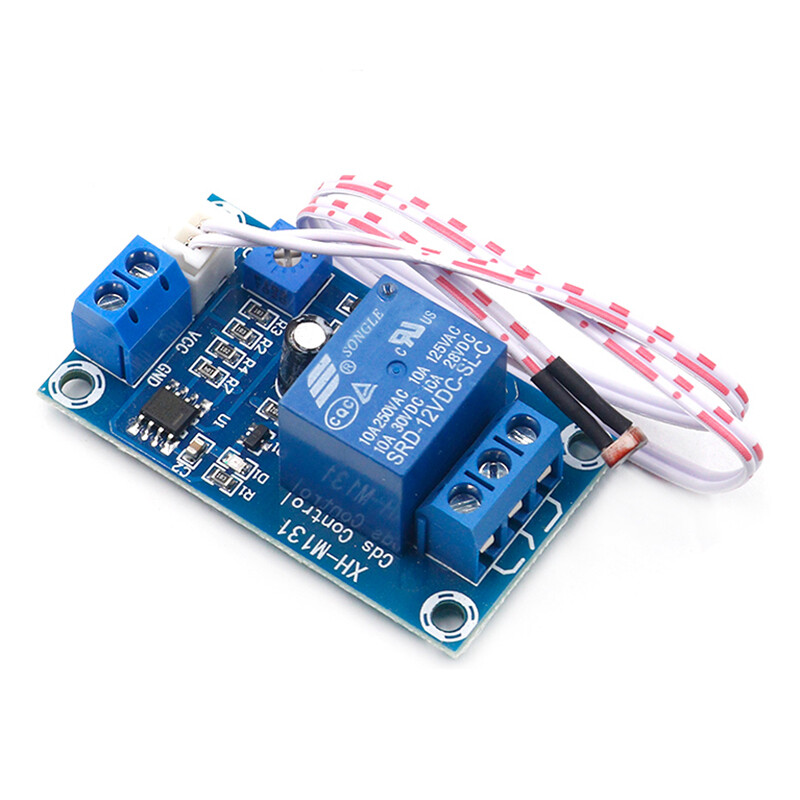

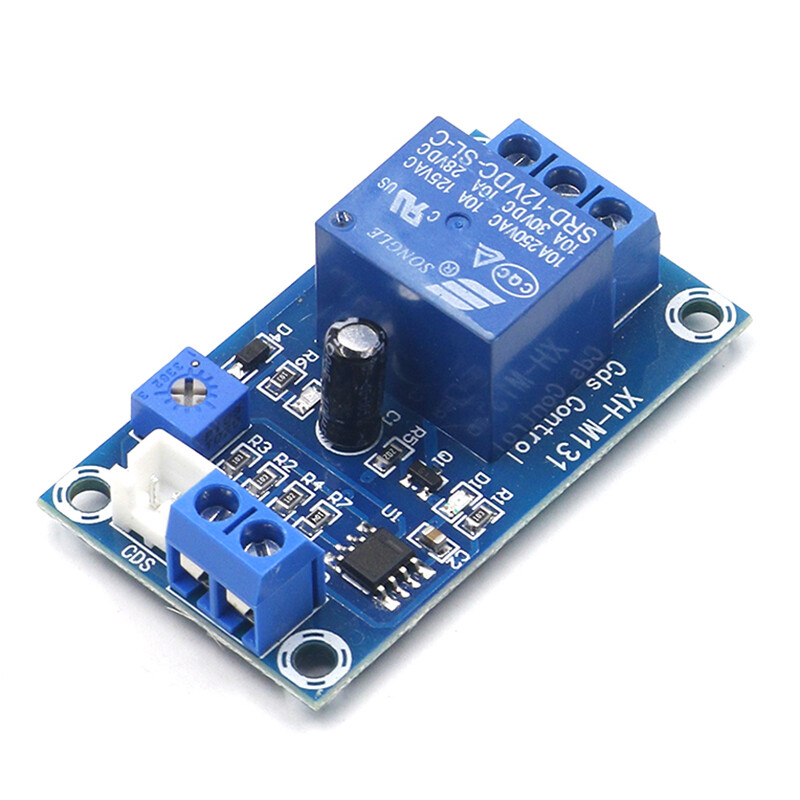

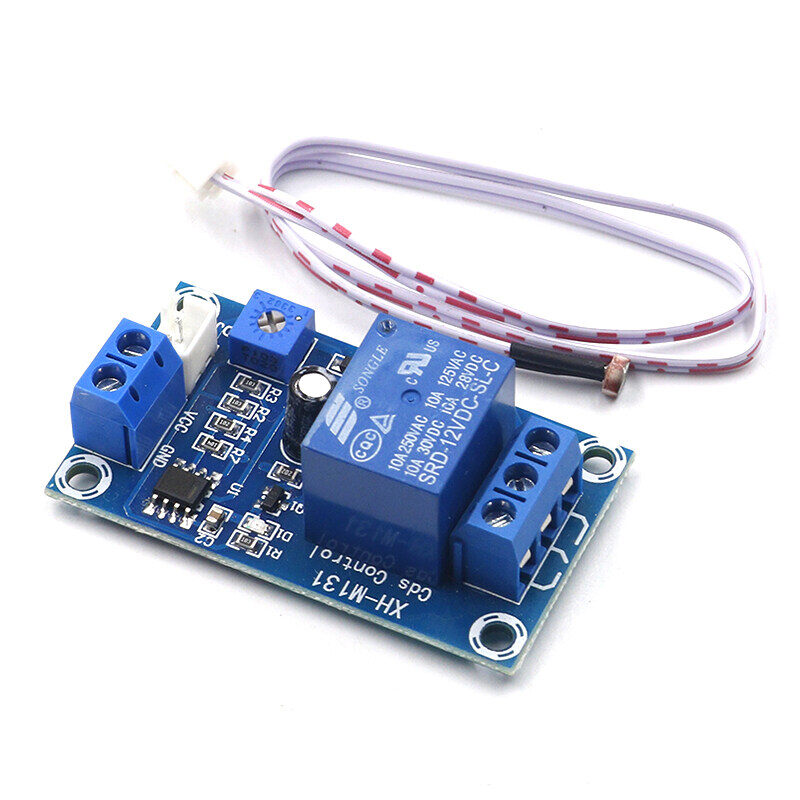

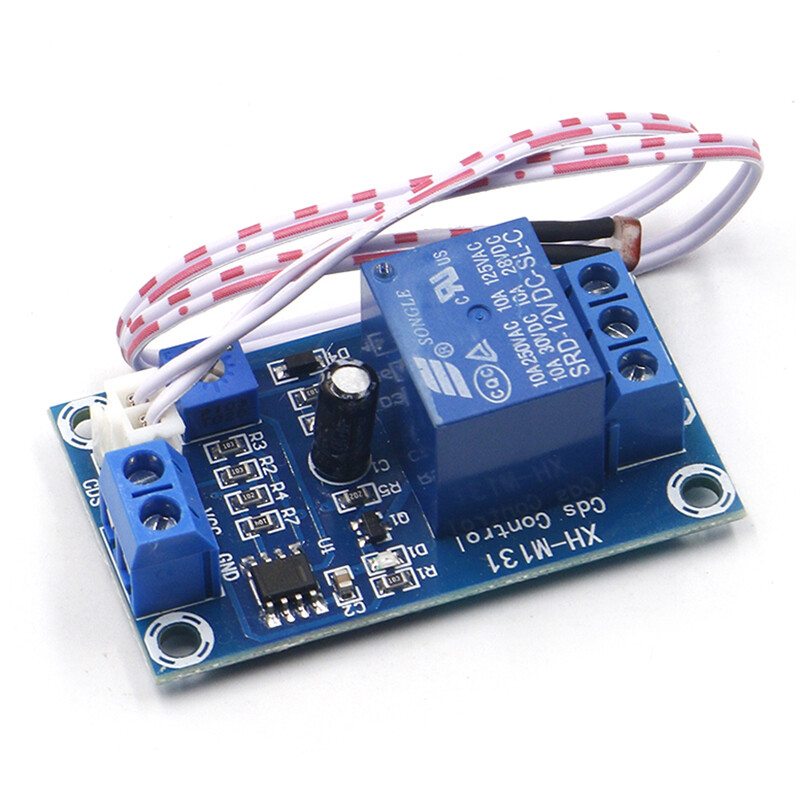

1. Connect the input terminal to the 5V DC power supply (note that the positive and negative poles should not be reversed), the red power indicator light will be on. 2. Connect the output control terminal to a power supply with a maximum voltage of 250V and a maximum current of 10A, and then the load. 3. When the light meter detects that the light is dark, the switch is automatically closed, the load works, and the blue indicator light works; when the light is dark, the relay is disconnected, the load stops working, and the work indicator light goes out. 4. If you feel that the light detection is not sensitive enough, you can use a screwdriver to adjust the potentiometer to achieve the detection sensitivity. Product Name: Photosensitive Relay Module Product Model: XH-M131 Input Voltage: DC 5V Output Type: Switch Output Control Capability: Max 10A Detection Frequency: 1 MHz Product size: 53*31*19mm
