Mô-đun Sưởi Ấm Cảm Ứng 1800W Bảng Sưởi Ấm Cảm Ứng Điện Áp Thấp ZVS 12V-48V Bộ Điều Khiển Flyback Bộ Làm Nóng Mô-đun Máy Tự Làm

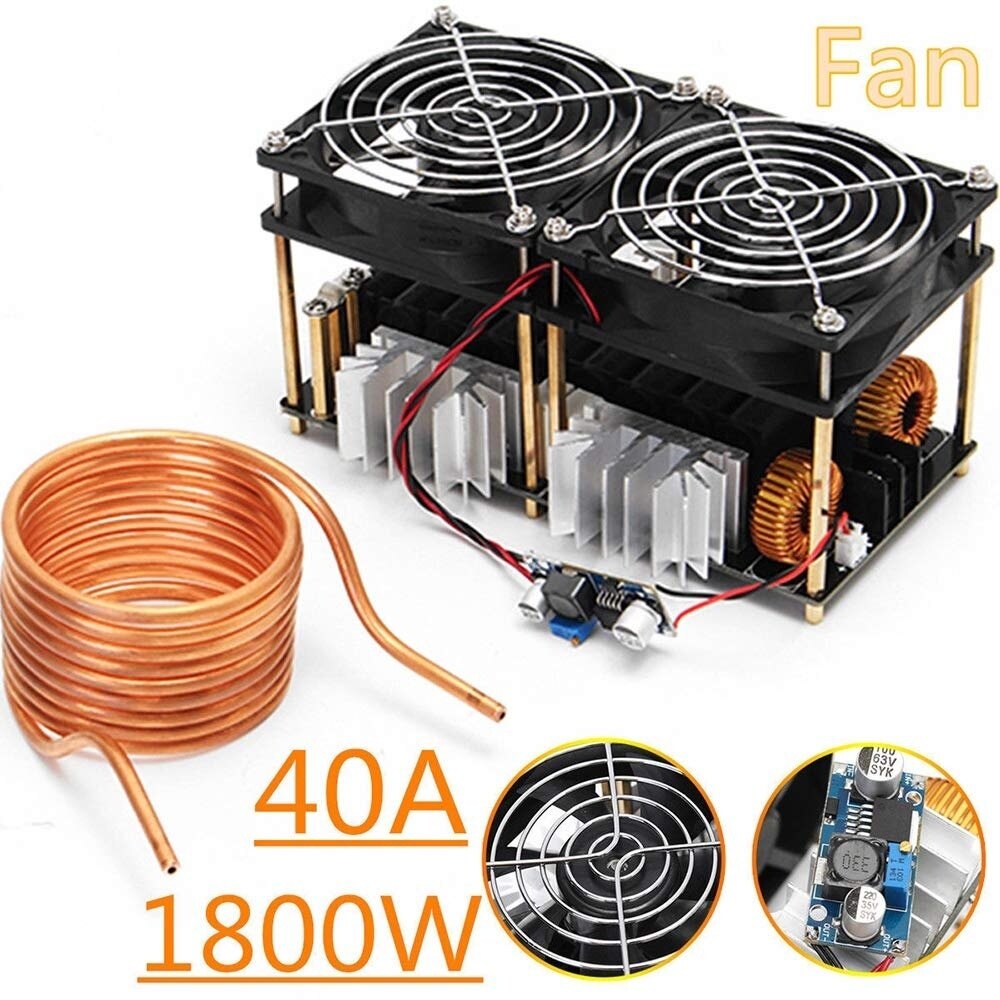

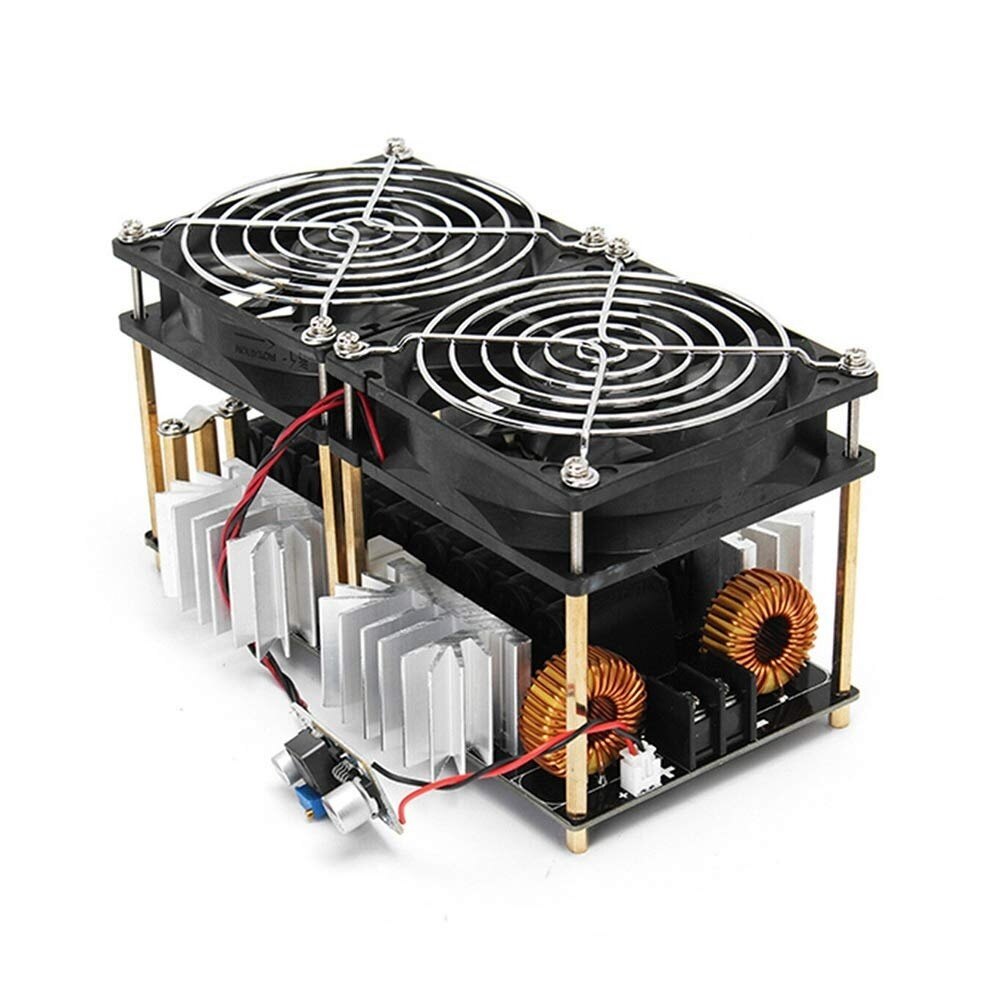

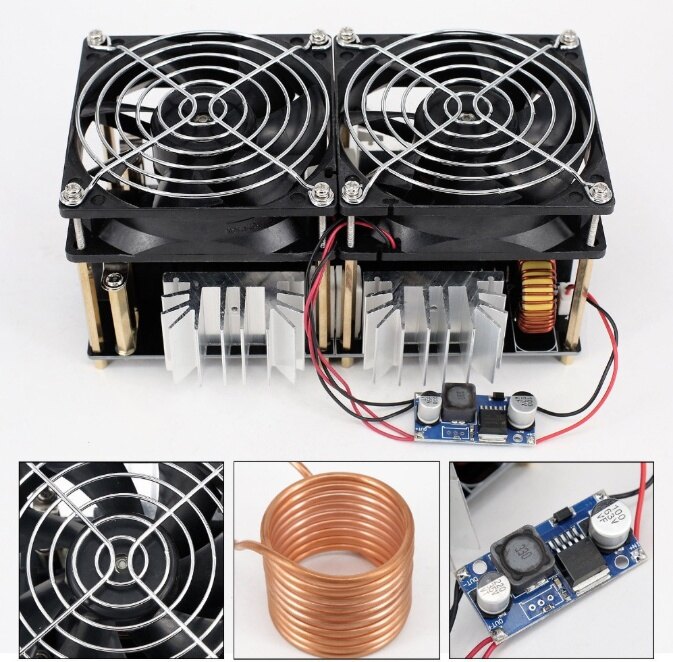

1800W Induction Heating Module ZVS Low Voltage 12V-48V Induction Heating Board Flyback Driver Heater DIY High Frequency Induction Heating Machine Module

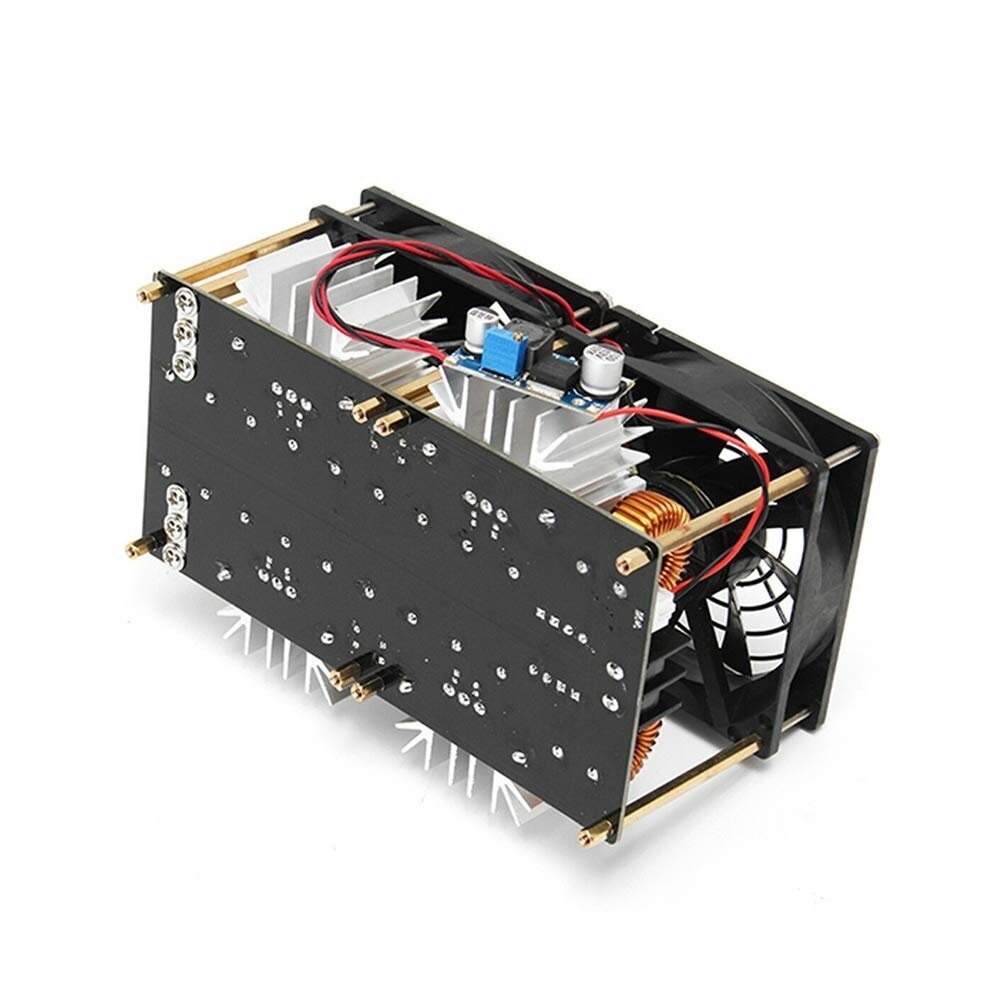

Efficient Heat Dissipation：This product has a maximum power of 1800W, super PCB layout design and super heat sink, superior heat dissipation effect. 12-48V low voltage DC power supply with a maximum current of 40A. It can work continuously for several hours with good heat dissipation. Do not heat metal that is too large or it may be overloaded. Please add a 35A fuse or ammeter Easy to Use： Can be used for small parts DIY players do hardening, annealing and other heat treatment.Also can be used with a graphite crucible melting gold, silver, copper, aluminum and other metals, uniform heating fast, very convenient.Not for industrial production.With a cooling fan interface, can also do Tesla discharge, generator voltage inverter, etc. It is recommended not to exceed 48V 35A to prevent accidents and damage High Performance：The circuit board using double-sided fiberglass board, mainly copper traces are used to widen use the entire back surface of the resonant circuit common, continuous work, please add a fan to blow down from above, to the resonance capacitors and other components cool. When using a switching power supply, make sure that the power supply voltage is stable before connecting to the induction heating circuit Note：Although this driver board can withstand more than 40A, it is recommended not to exceed 48V 35A to prevent accidents and damage. The minimum input voltage of the module is 12V, the voltage of 12V must be greater than 10A to use the power supply. If you find that the MOS tube is hot, first consider whether the power output meets the requirements. Do not clear the circuit board, otherwise it will emit a very high frequency of noise, and then the MOS tube will burn out Quality Service： It is recommended to use a 36V 20A power supply. Below 12V is very dangerous.

Product Description

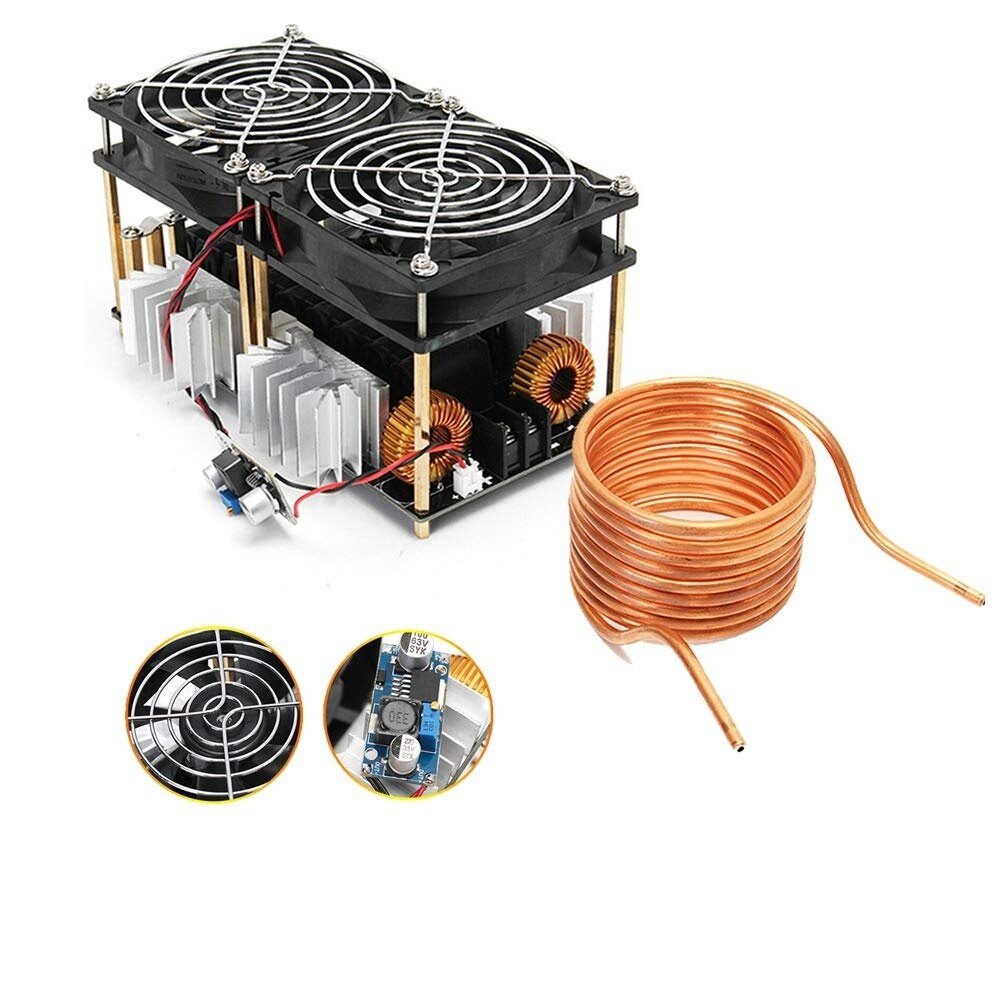

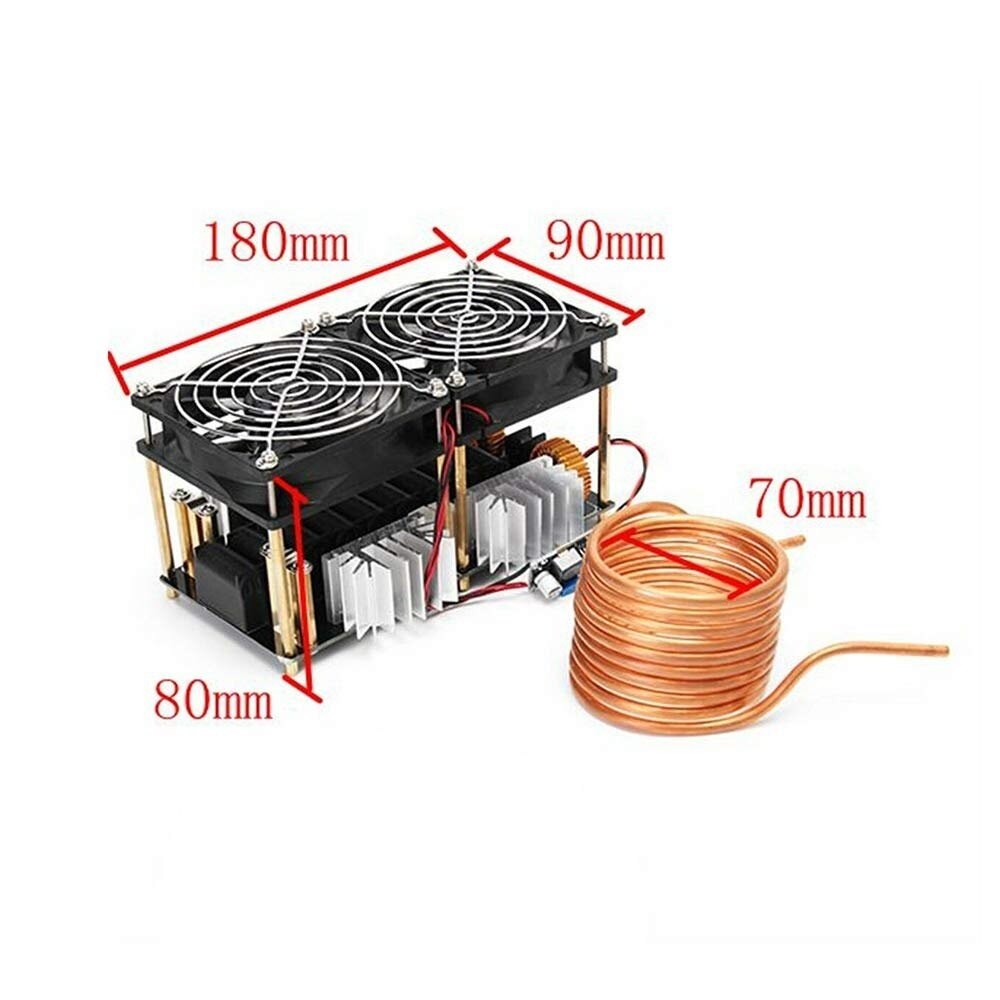

Specification: Input Voltage: 12V-48V (Recommendation: above 36V) Power Requirments: Less than 12V >=10A, More than 15V >=15A Maximum Power: 1800W Maximum Current: 40A Heater Inner Ring: 70mm / 2.8in Size: 18 * 12 * 9 cm / 7.1 * 4.7 * 3.5in Weight: Approx. 1052g Package Included: 1 x PCB Board 1 x Copper Tube

Note:

1. When using a switching power supply, make sure that the power supply voltage is stable before connecting to the induction heating circuit.

2. Do not heat metal that is too large or it may be overloaded. Please add a 35A fuse or ammeter.

3. Although this driver board can withstand more than 40A, it is recommended not to exceed 48V 35A to prevent accidents and damage.

4. The minimum input voltage of the module is 12V, the voltage of 12V must be greater than 10A to use the power supply.

5. If you find that the MOS tube is hot, first consider whether the power output meets the requirements.

6. Do not empty the circuit board, otherwise it will emit a very high frequency of noise, and then the MOS tube will burn out.

7. It is recommended to use a 36V 20A power supply. Below 12V is very dangerous. When the voltage is lower than 12V, it will cause the two MOSs to be turned on at the same time, and the MOS tube will be burned off.
