Description:
100% brand new and high quality.
Feature:
Not only used in refrigerants, but also in air and liquid.
Multi-touch conversion function
Commonly use the "single knife and double throw" electric shock mechanical structure design.
Novel micro switch structure ensures reliable conversion.
Manual control, no need for any tools to perform an electric shock function test; Smart mounting plate for different installations.
It is suitable for controlling various pneumatic machinery and controlling the cut-off or commutation of its gas path.
Attention: Adjust the pressure of the size, please screw the two terminals in the middle of the Hex.
Pressure Switch only, other accessories demo in the picture is not included!
Specifications:
Item Type: Pressure Switch
Material: Metal. Plastic

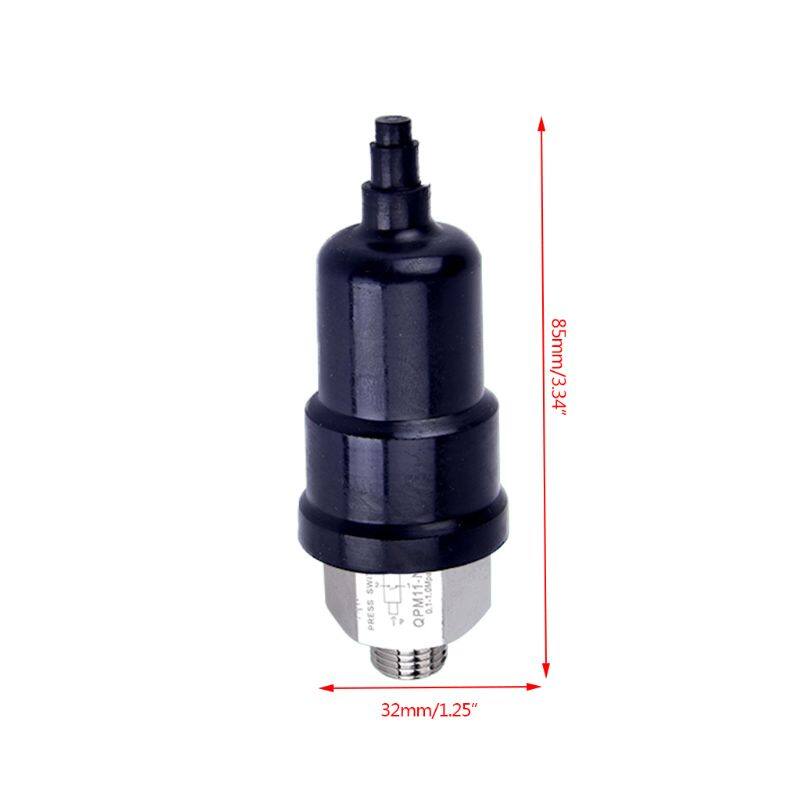

Size: Diameter: 32mm/1.2in, Height: 85mm/3.3in
Color: Black
Optional Type: QPM11-NO
Use medium: air
Working Form: Pressure Adjustable
Installation Connection: external thread
Pressure range: 0.1-1.0 MPA
Work tempertature range: -5-60℃/23-140℉
Connection: 1/4"
Work voltage: 220V/AC,48V/AC,DC
Current: 500mA
Maximum power: 24VA, 100VA
Insulation voltage: 500V, 1500V
Maximum working current: 500mA
Max pulse count: 200T/min
Service life: 100 millions cycles
Protection class: IP54
Quantity: 1 Pc
Note:
No retail package.
Transition: 1cm=10mm=0.39inch
Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package Includes:
1 x Pressure Switch
