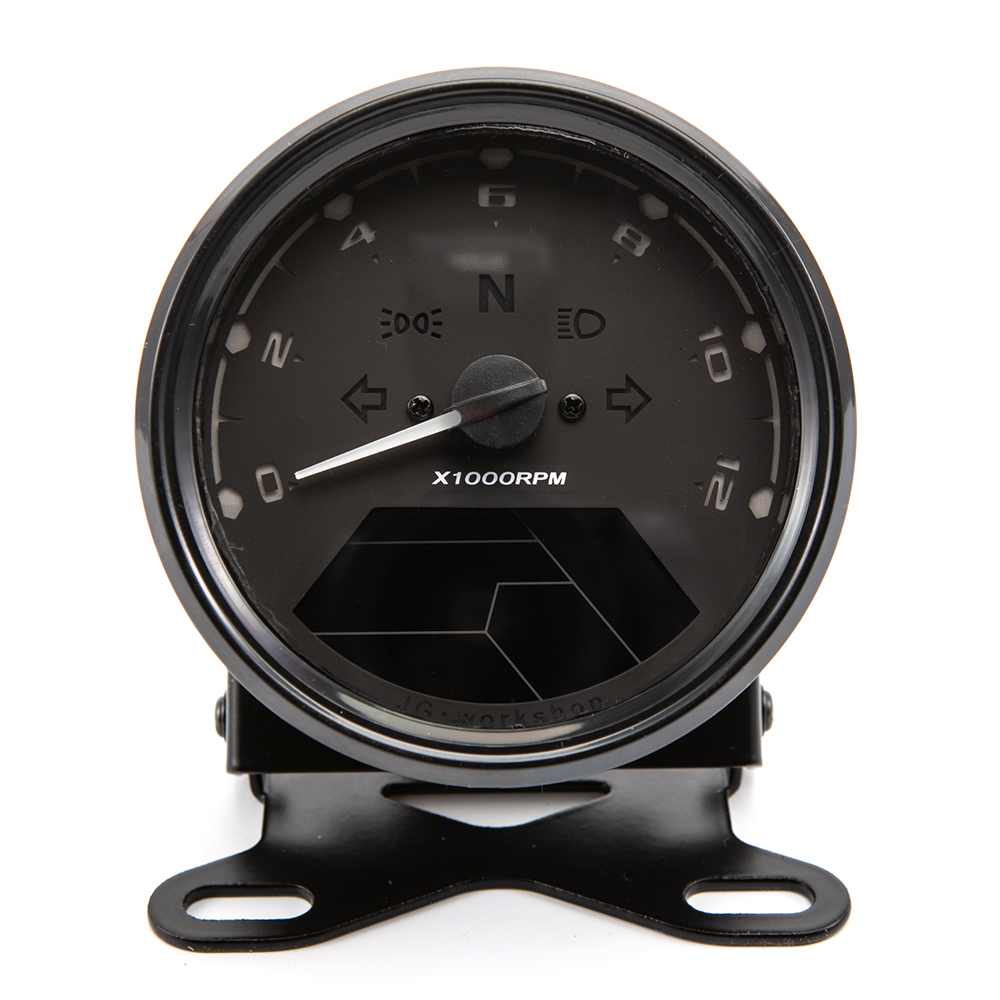

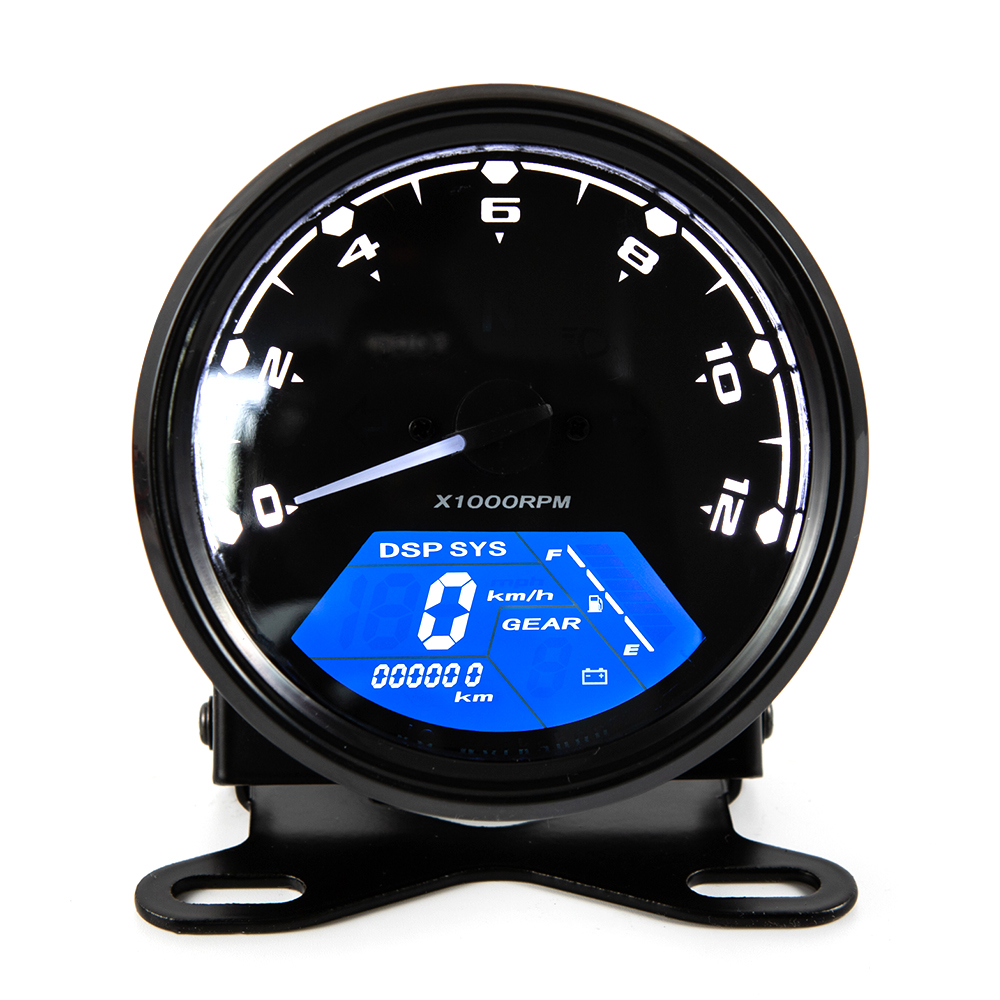

12V phổ Đồ Hồ số của xe môtô tachometer Đồng hồ nhiên liệu bảng điều khiển đồng hồ đo quay số đo dặm LCD chỉ báo kỹ thuật số với khung

Description:

Working voltage8-18V

Rated voltageDC 12V

Working temperature-20 - +70 Celsius

Storage temperature-30 - +80 Celsius

Digital display speed range0-199km/h

Needle display rpm range0-12000rpm

Digital display odo distance range 0-99999.9km

Gear indicator1-6

BacklightBlue

Installation diameter9cm

Height5.3cm

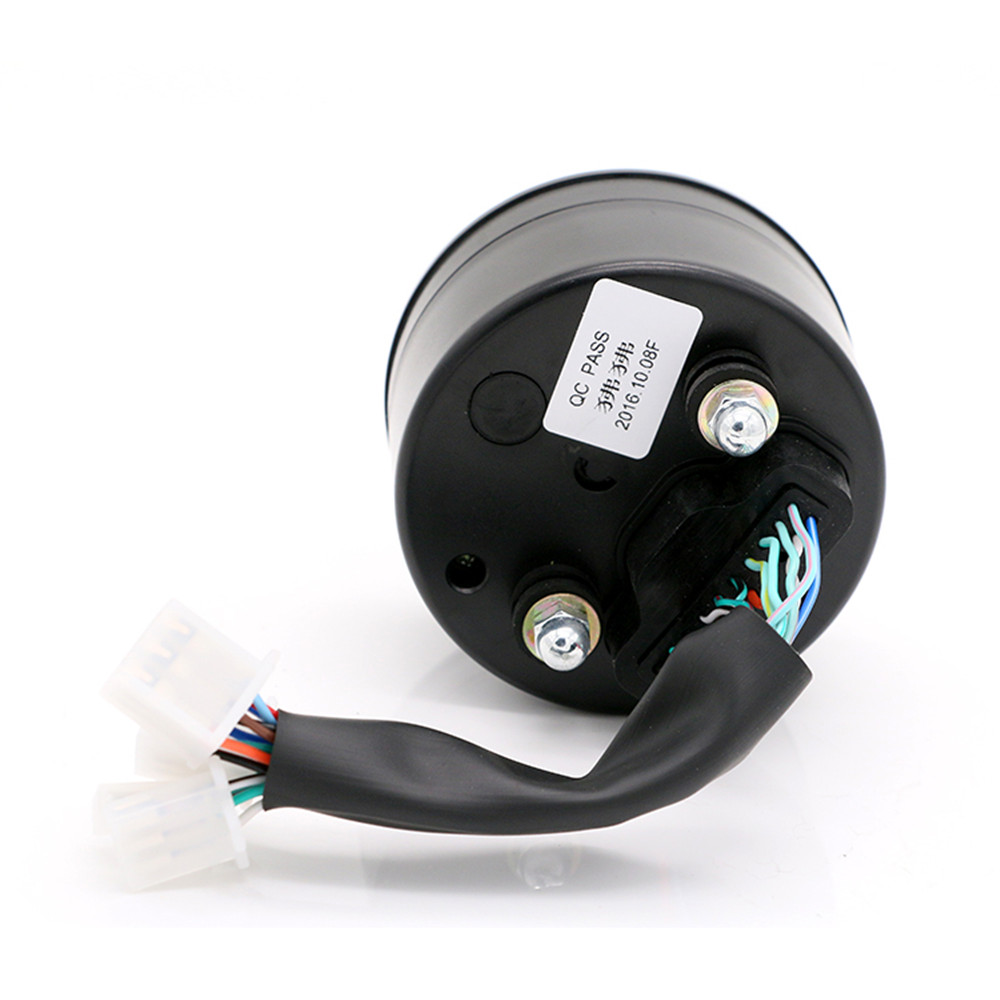

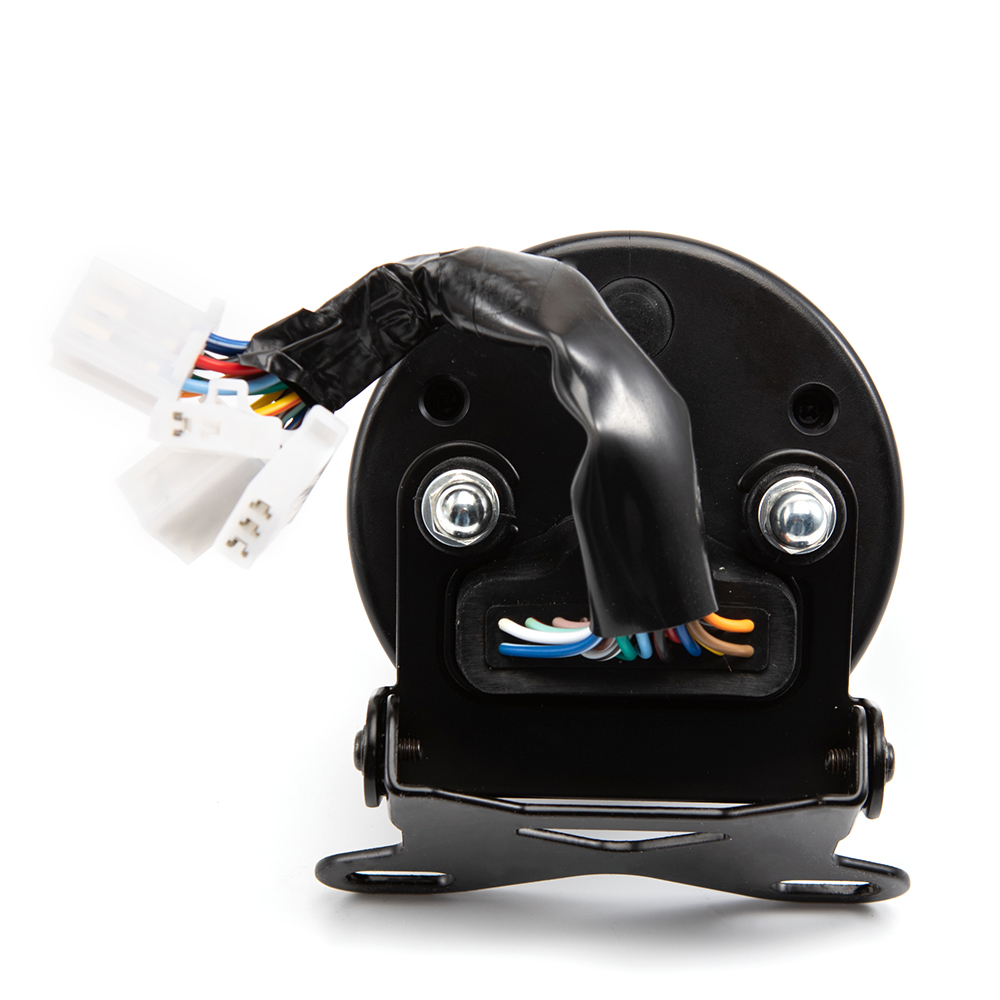

Cable Length12cm

Features:

Large anti -UV & Anti-g lare LCD screen

All-in-one design with digital signal processing system

Using chip technology for most of the components

Multiple indicator functions as the L/R Turn Signal, High Beam, Position Lights, N Lights

High withstand voltage up to 100V

Waterproof & Anti-vibration

Fits for most motorcycle that is with 4 stroke, 2/ 4 Cylinders (default as 1 cylinder of the setting)

Function Knob Instruction:

1.Meter working voltage is 12V.

2.Short press the right button for shift between ODO&TRIP .

3.When the meter displayed TRIP, long press the button 3s to reset the TRIP meter.

4.When the meter displayed ODO, long press the button for shift between KM&MI.

5.Long press the button and power on ,keep 5s to get to the setting mode ,the perimeter bit flash, short press the button to modify the number ,No operation automatically move to the next item. The order is :Perimeter - Speed pulse number -rev pulse number - Fuel sensor - ODO, Long press or power off to exit.

6.Negative control: left&right turn signal ,High beam ,

Positive control: Outline Marker Lamps.

7.The symbol flash when : voltage >15.0V & voltage < 11.9V;

8.The symbol does not display when: 12.0V<voltage<14.9V.
