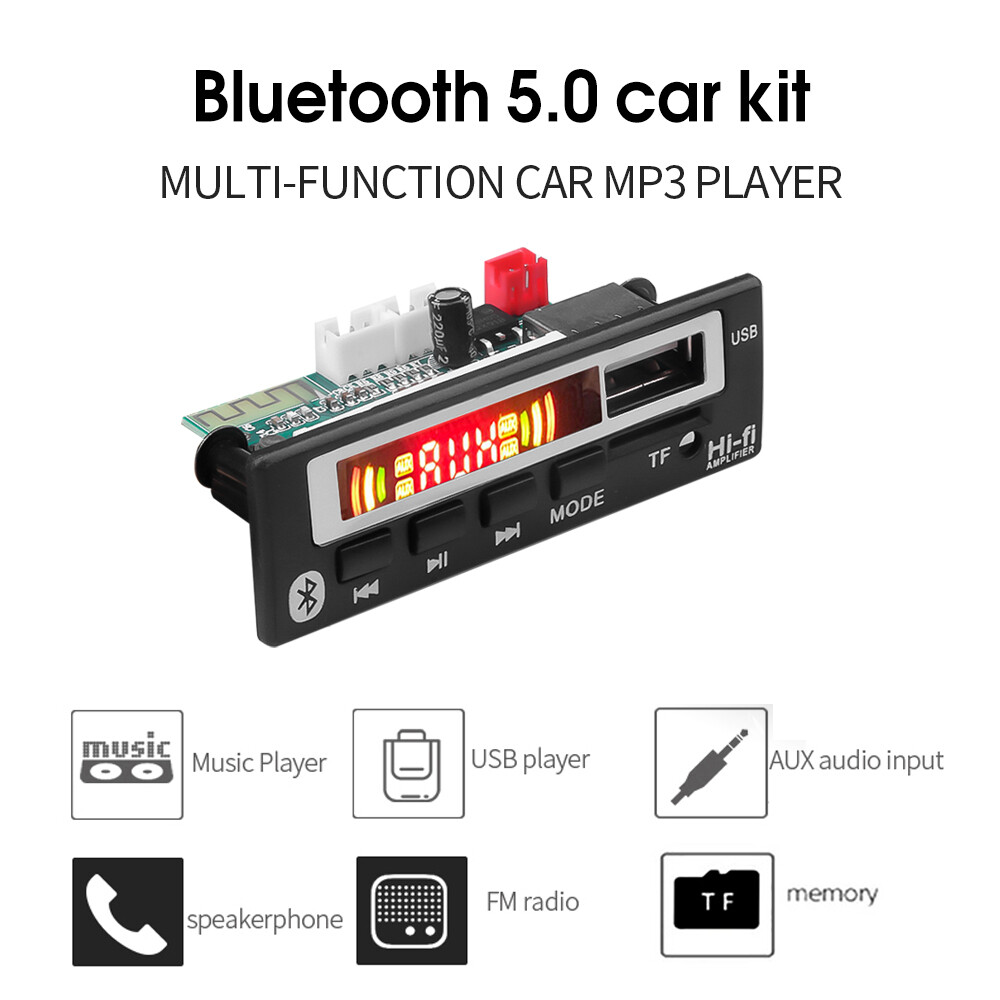

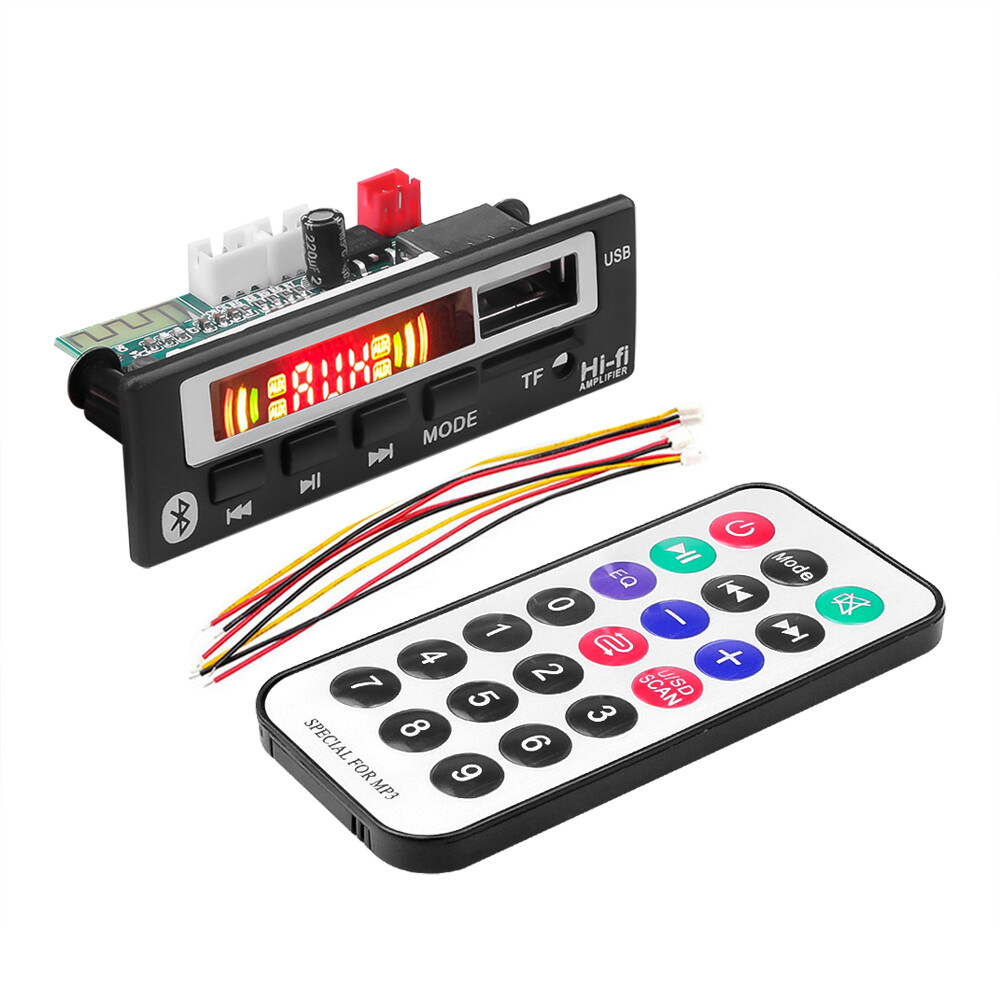

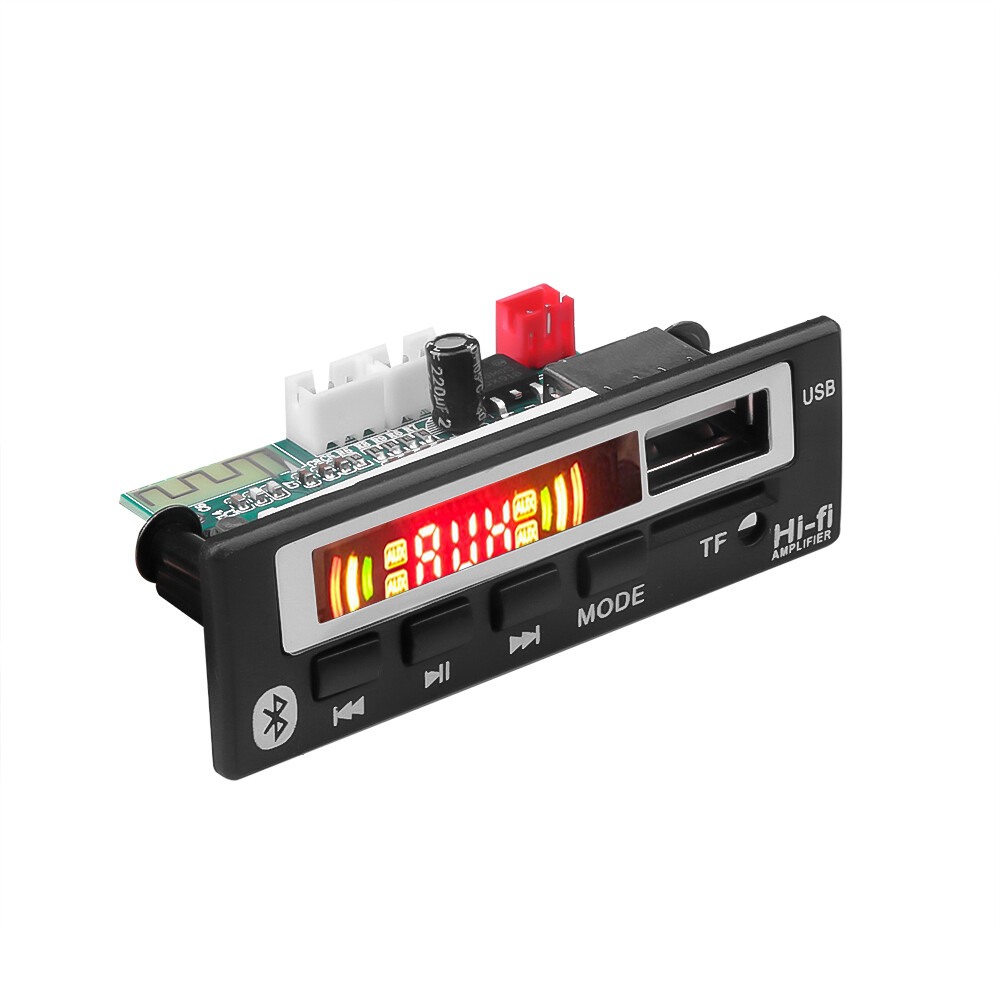

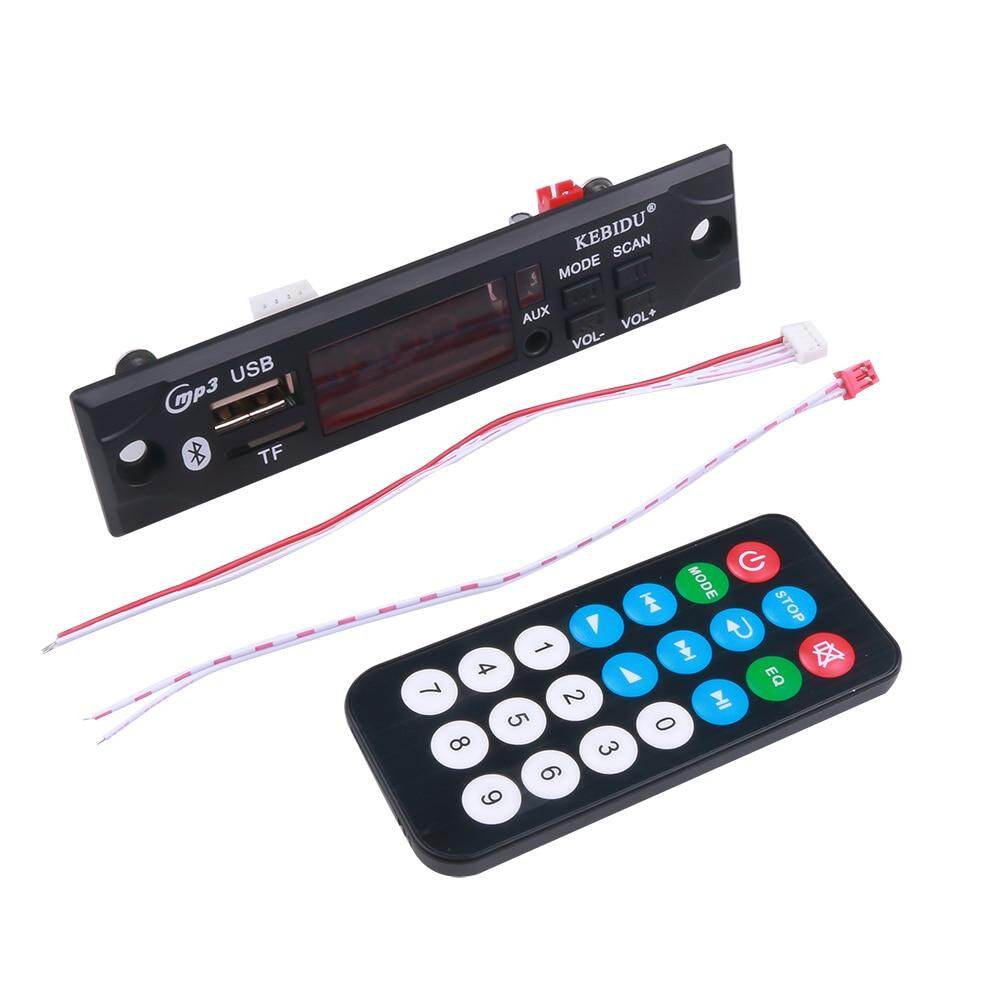

Bảng Mạch Giải Mã Mp3 Bluetooth 12V Mô-đun Radio FM Cho Xe Hơi Máy Nghe Nhạc MP3 TF USB V5.0 Bộ Thu Không Dây Bộ Chuyển Đổi Âm Thanh AUX 3.5Mm

Feature:
* Support signal switch directly. Support USB, TF
* Support Bluetooth (Bluetooth5.0 EDR) (after been paired with mobile phones can realize wireless music play)
* Support USB / TF / Bluetooth/FM / LINE switch. MP3 / WMA, WAV lossless music decoding chip.
* Support USB / TF card switch, PREV, NEXT, fast forward, fast rewind, volume, EQ, play/pause, stop, single repeat, mute, shutdown, and direct election.
* Support Bluetooth PREV, NEXT, volume, EQ, play/pause, mute, turn it off.
* Support FAT16, FAT32 file system. Support for MP1 Layer3, MP2 Layer3, MP3 Layer3 version of the song.Support 32-320 KBPS MP3 songs.
* Support power off memory function: memory play songs and volume before power off.

Note:
Non-smart phones (android) have to enter the password - 0000
Decoding board play mode instruction:
Decoding board in the absence of memory card or U disk, boot default to ''audio input'' mode, the screen display LINE
Press ''MODE'' key on the panel or the remote control switch to Bluetooth MODE, the screen shows ''BLUE'', can open Bluetooth search condition at this time
Press ''MODE'' key on the panel or the remote control switch to radio MODE, the screen display FM radio frequency, long press ''PLAY'' button automatic searching channel
Press ''MODE'' key on the panel or the remote control switch to the U disk or memory card ''play MODE'', the screen displays the time schedule of the song
.

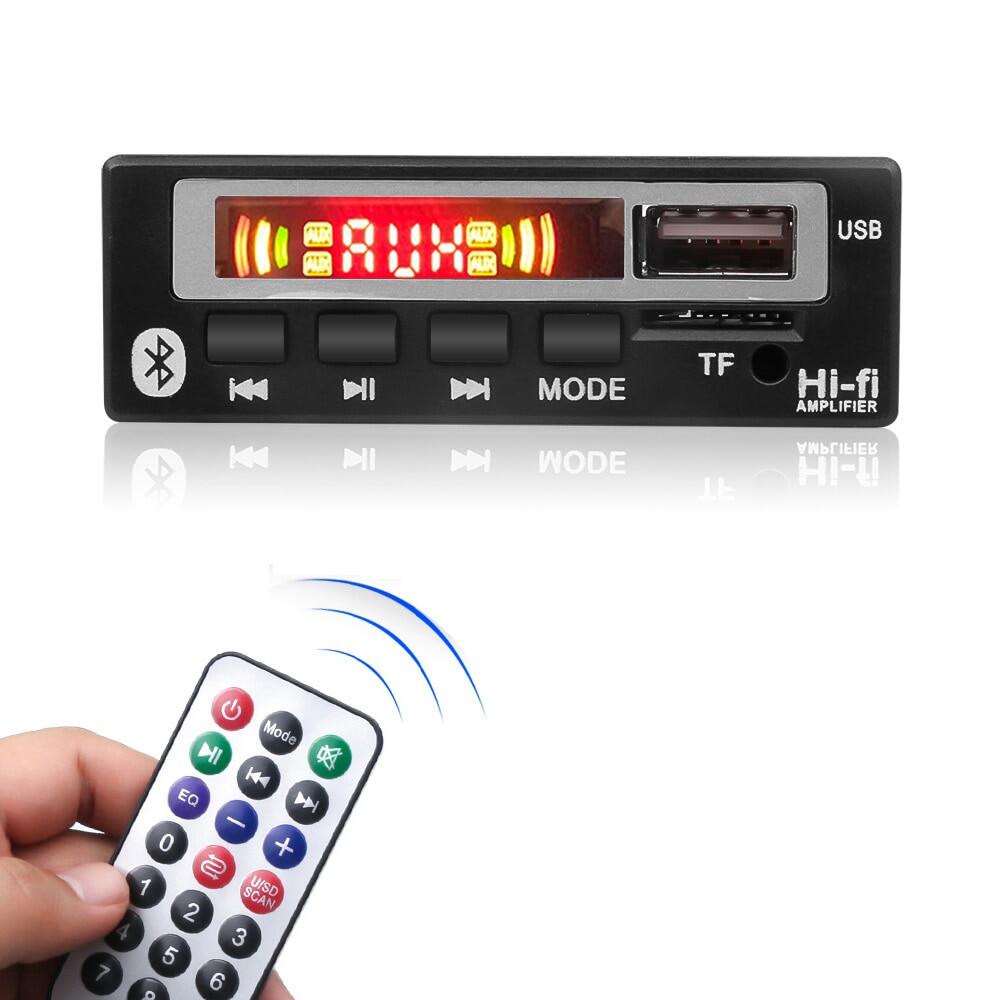

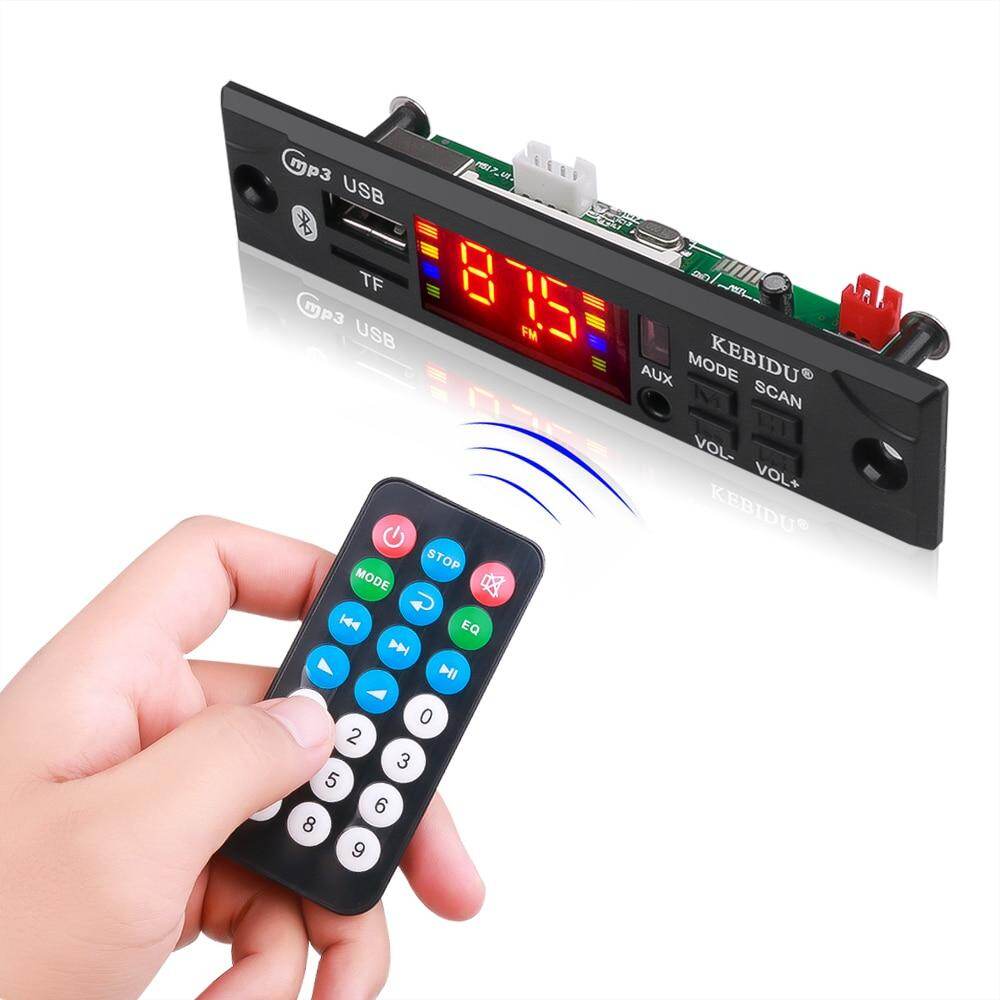

The remote control instruction:
1. POWER: STANDBY button cannot switch.
2. MODE: TF card and U disk: switching sequence for USB→TF→Bluetooth→FM→AUX;
Only U disk: switching sequence for USB→Bluetooth→FM→AUX;
Only the TF card: switching sequence for TF→Bluetooth→FM→AUX;
There is no USB and TF card: switching sequence for FM→AUX→Bluetooth.
3. PREV: In USB/TF / Bluetooth MODE, short press for PREV;
In the USB / SD MODE, long press for fast rewind; In FM MODE, short press for last channel, long press for scan search last channel.
NEXT: In USB / TF/Bluetooth MODE,short press for NEXT;
In USB / TF MODE, long press for fast forward;
In FM MODE, short press for next channel, long press for scan searches the next channel.
4. VOL + : short / long press for music. VOL-: short/long press for music.
5. REP: In USB / TF MODE, is the switch key between single repeat and whole cycle when play music, boot for all cycle.
6. STOP: In the USB / TF MODE, short press to STOP the music play.
7. MUTE: MUTE, press for MUTE, press again for relieve(also can relieve by VOL- /VOL+).
8. EQ: Acoustic field MODE. The NORMAL→BAS→POP→ROC→JAZZ→CLA→CUT→NORMAL
9. PLAY/PAUSE: In USB/SD/Bluetooth MODE for PLAY / PAUSE; In the FM MODE, long press for searching all channels and save.

Specification:
Installation pitch: 92 mm wide
Installation hole: 83 x 20 x 38 mm
Overall dimensions: 107 x 25 x 38 mm
(W x H x D)

Input voltage: 12V

Package Includes:
1 X decoding board，
1 X remote controls((Not Bring the Battery)

(it will not come with the retail packing box, but do not worry, it will be packed well before sending)

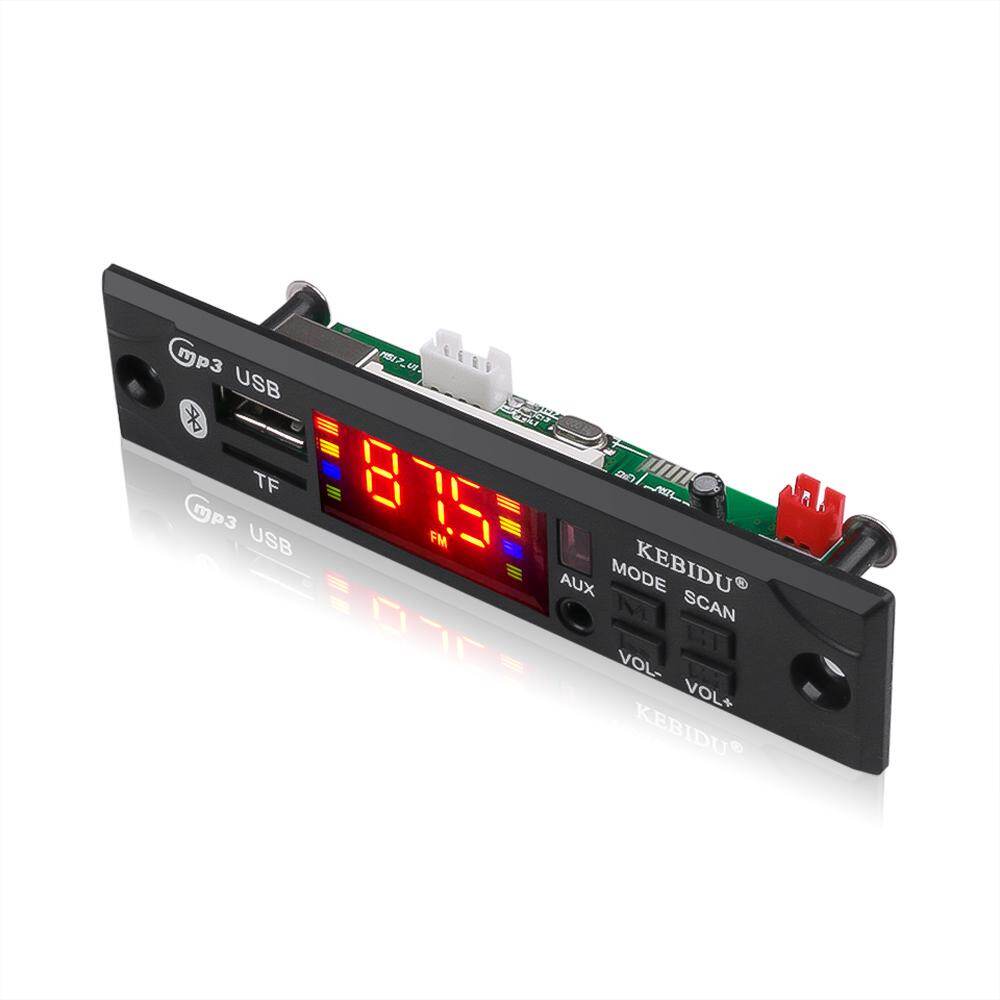

NEW VERSION

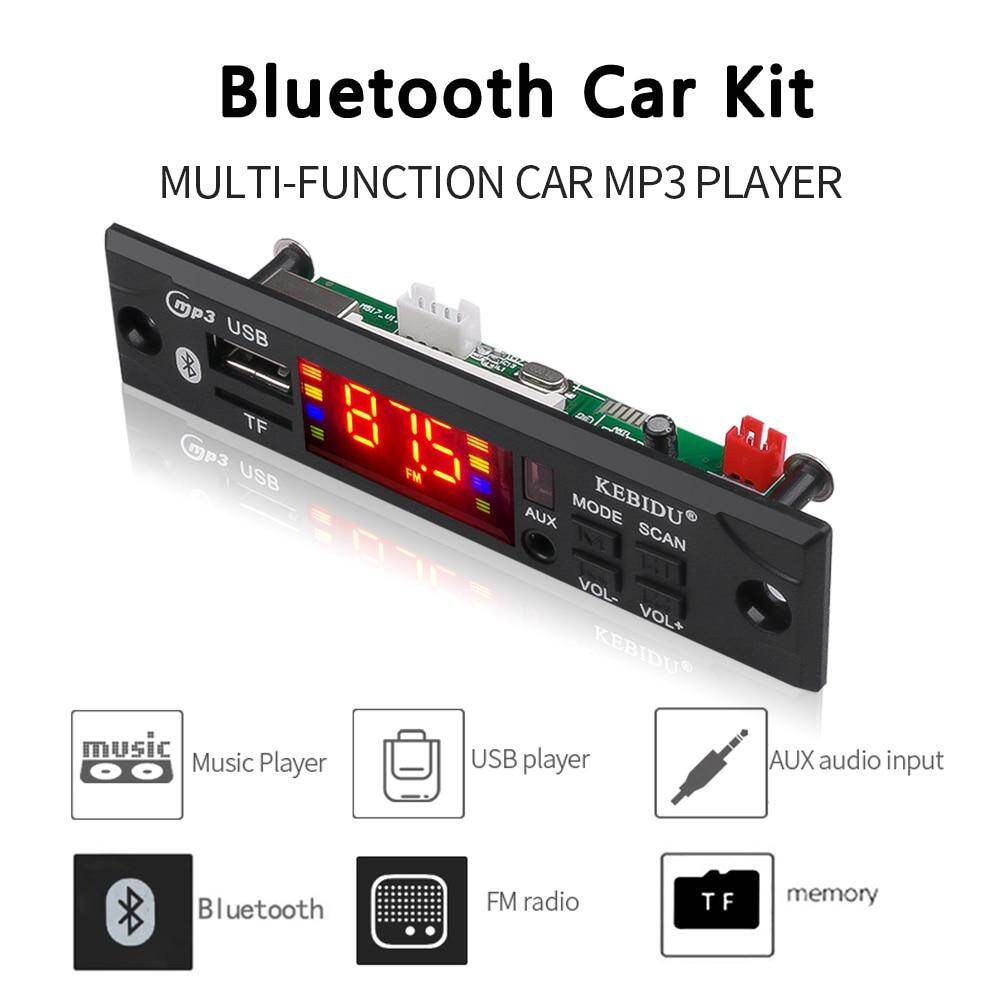

Main function:

1. Double decoding supports music in MP3/WMA/WAV format;

2. Support Bluetooth function;

3, with digital tube display;

4, support MMC / SD / MMA and other cards, support USB interface (U disk);

5, power failure memory function 24C02;

6, support 5-10 meters distance infrared remote control operation;

7, support for external audio input LINE IN (AUX);

8, support radio FM, receiving frequency band (87.5MHZ-108.0MHZ);

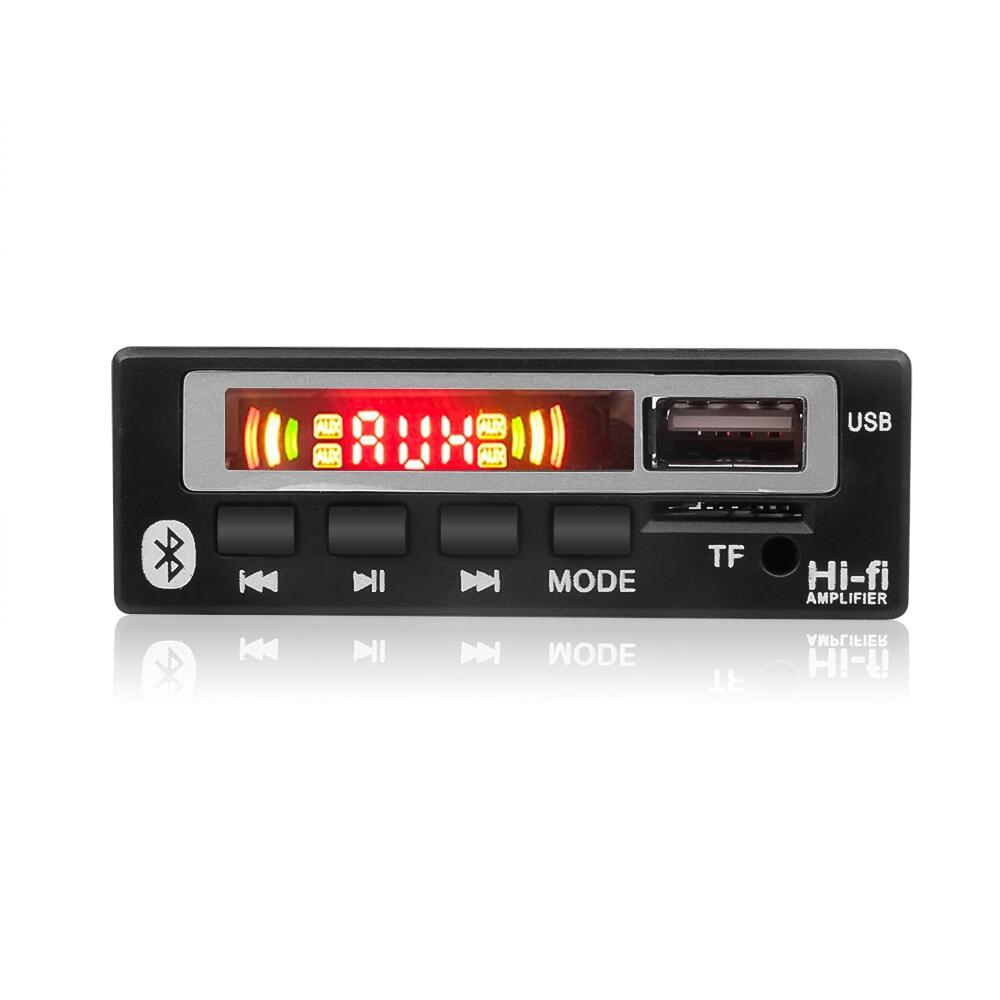

9, button: four buttons multi-directional control, MODE / previous song / play / pause / next song;

The button operation details:

1. Previous button (volume down): Short press in the MP3 state for the previous song, long press for the volume to decrease; short press in the FM state to adjust one station number; short press under the Bluetooth function Bluetooth is a song, long press to reduce the volume.

2. Play/Pause: Short press in MP3 state for play/pause; short press in FM state for play/pause, long press to automatically receive and save the station; short press for play/pause under Bluetooth function.

3, the next song button (volume increase): in the MP3 state, short press for the next song, long press for the volume to increase; short press in the FM state to adjust a station number; short press under the Bluetooth function Bluetooth next song, long press for the volume to decrease.

4. MODE button: Switch between USB/SD/FM/AUX/Bluetooth function.

Package Content:

• 1 x MP3Decoder,
• 1x remote controller(without battery),
• 1 x Surface Shell

(the product comes without retail packing, but don't worry, we will pack it well before sending)
