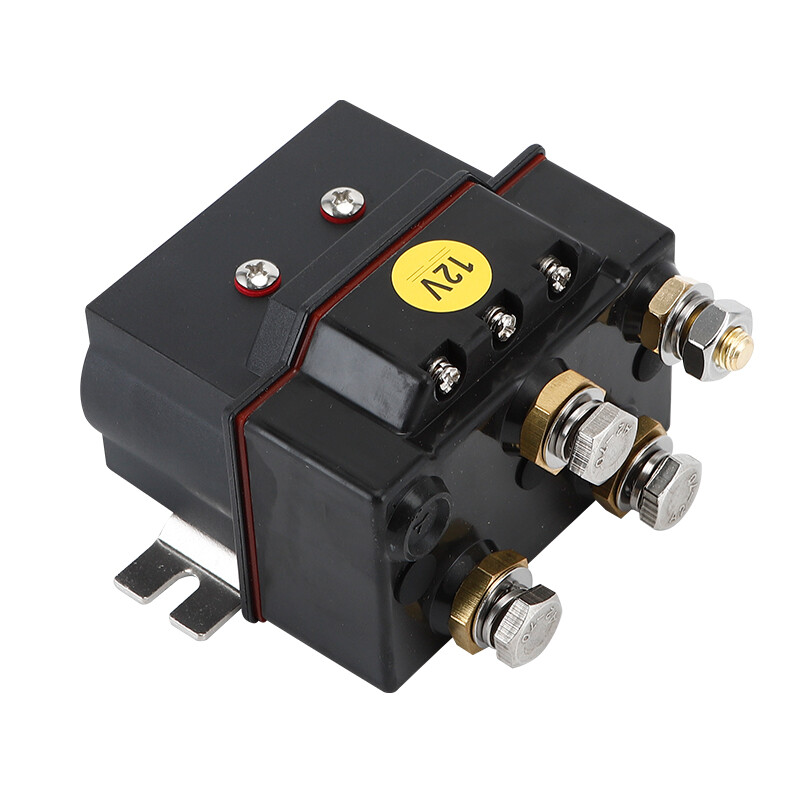

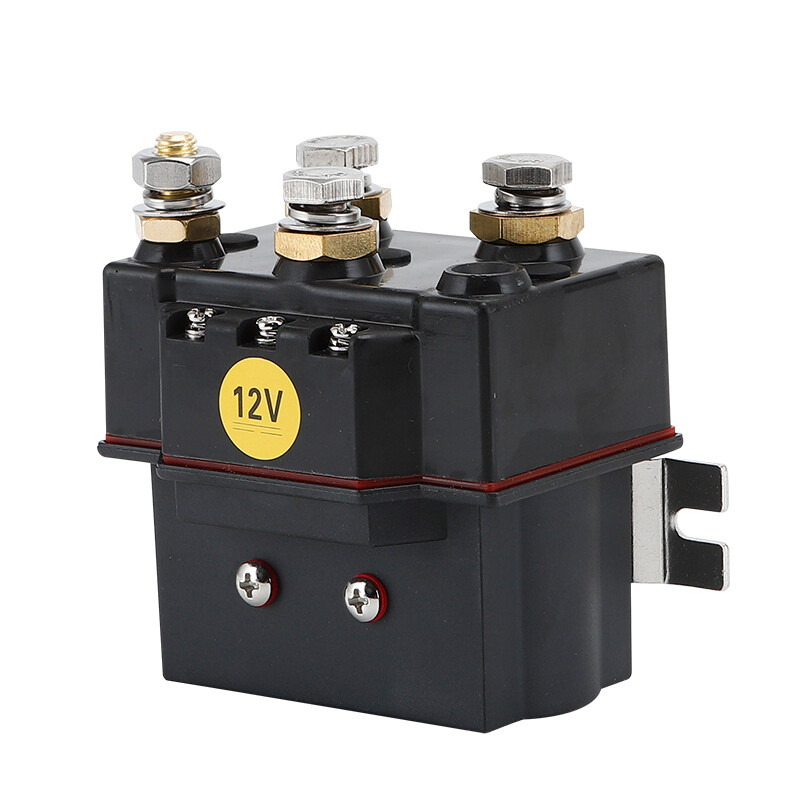

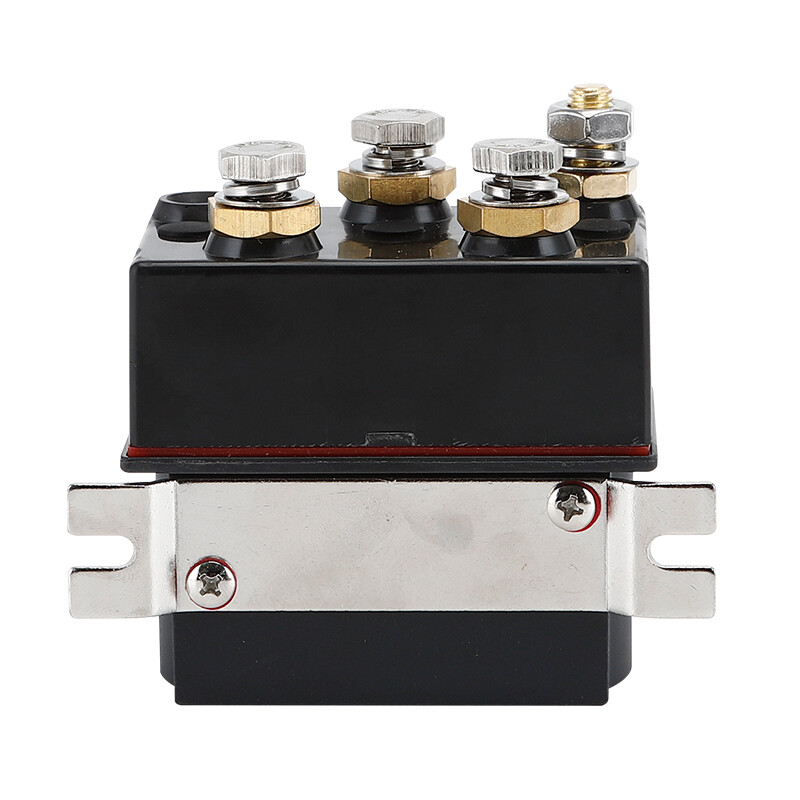

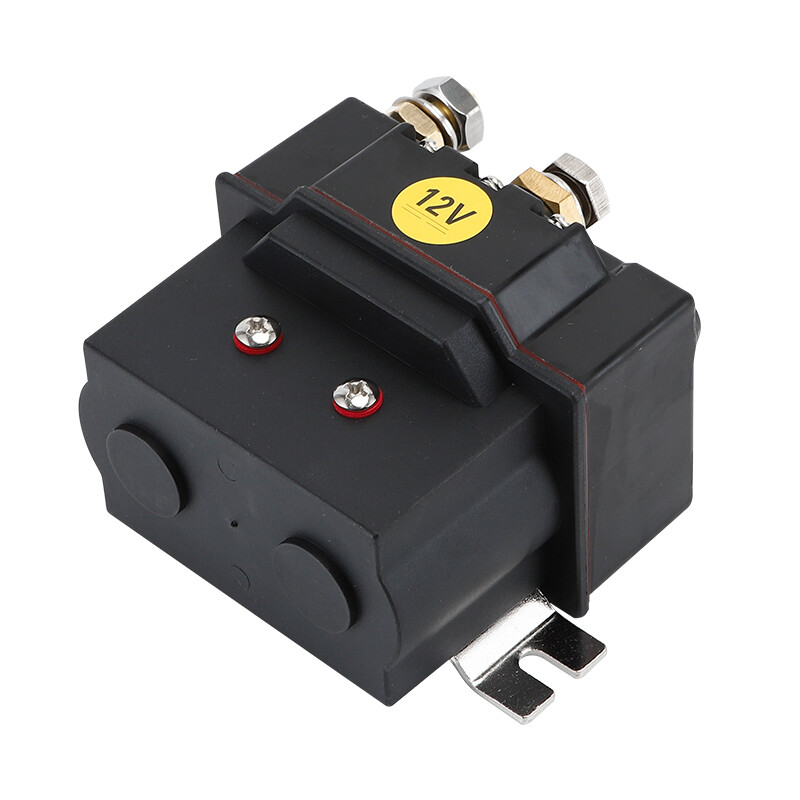

Bộ Tiếp Điểm Đảo Chiều DC Làm Việc Ngắn Hạn 12V 24V 400A Cho Máy Xúc Tời Điện DC TK400-2Z

>>Features

1.400A Contact switching capability 2.It has two sets of contact conversion forms 3.Coil power consumption is: 14~25W Min~Max 4.Scope of applacation: The product is mainly used in automobile which and electric which to control the forward and reverse rotation of motor 5.Technical Specification: GB / T14048.4-2020

>>Specification

• Model: TK400-2Z
• Contact Form: 2PDT

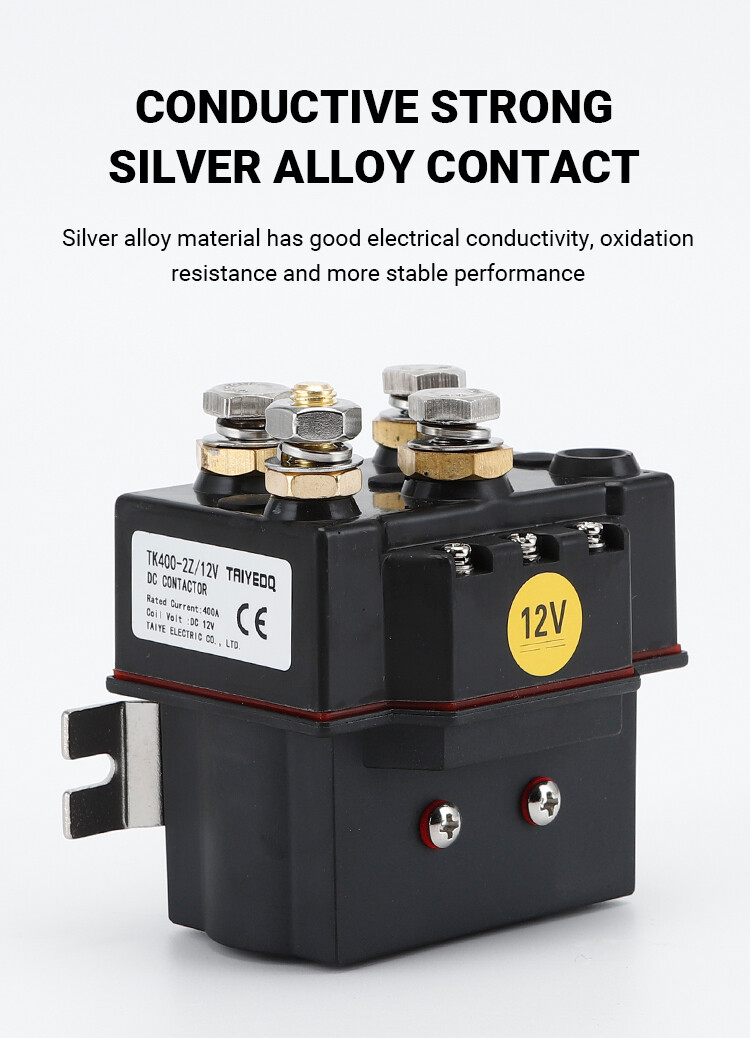

• Contact Material: Silver Alloy
• Contact Load: 400A 24VDC/ 100A 250VAC
• Insulation Resistance: Min. 100MΩ at 500VDC
• Pull In Time(ms): ≤50 mS
• Release Time(ms): ≤50 mS
• Operating Ambient Temperature: -25~60℃
• Storage Temperature: -40~65℃

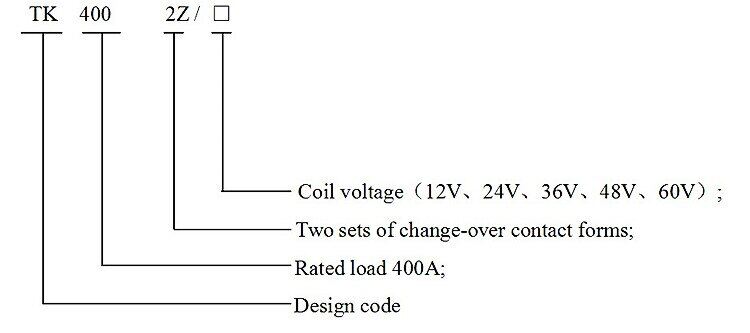

>>Interpretation of Product Model

Example: TK400-2Z/24 ; Indicates: DC contactor with two groups of change-over contact forms, load current of 400A and coil voltage of DC 24V.

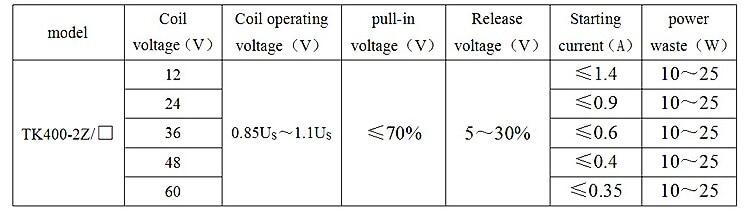

>>Coil Parameters
