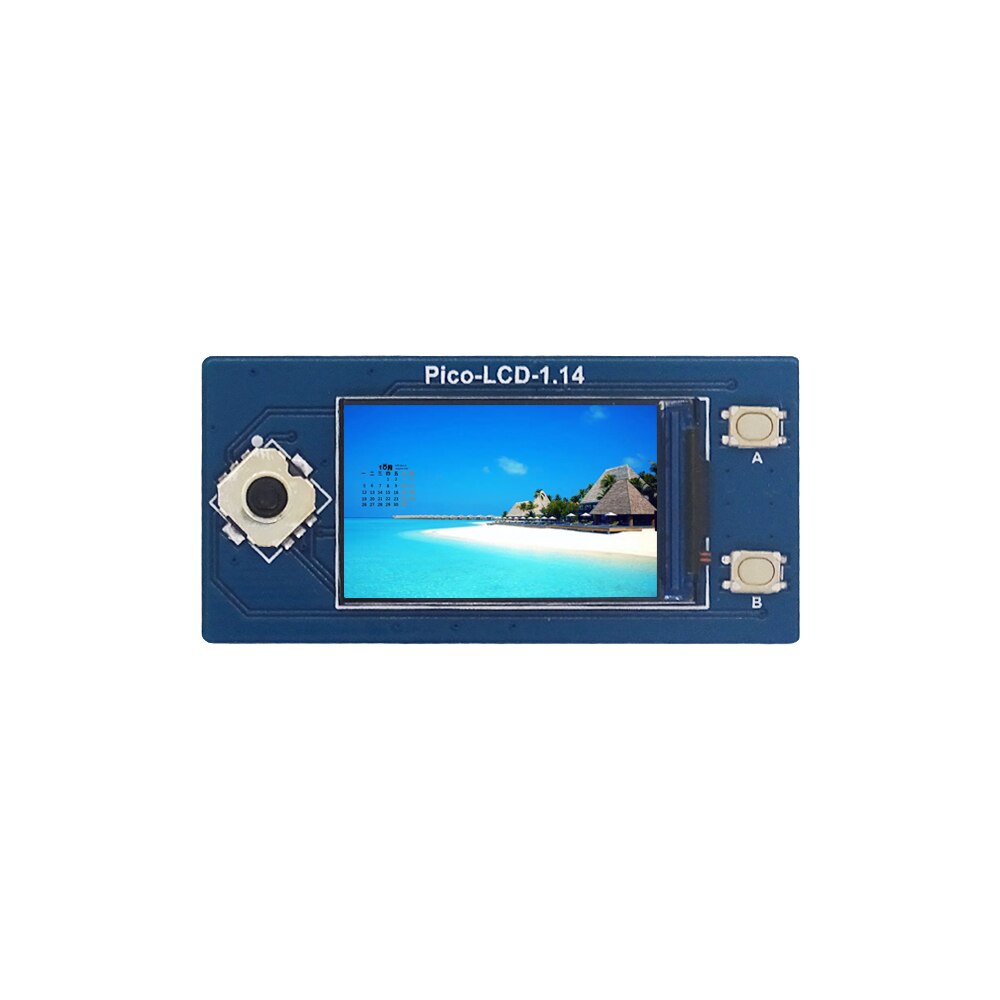

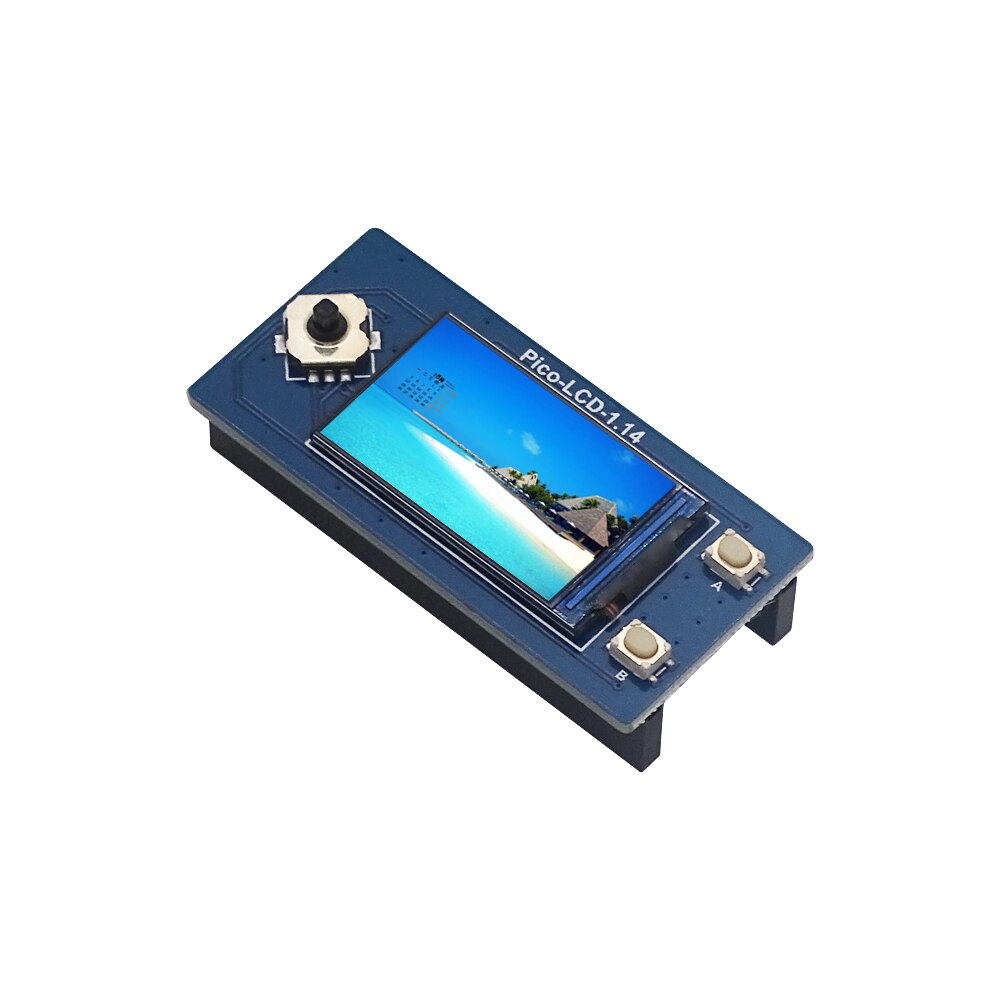

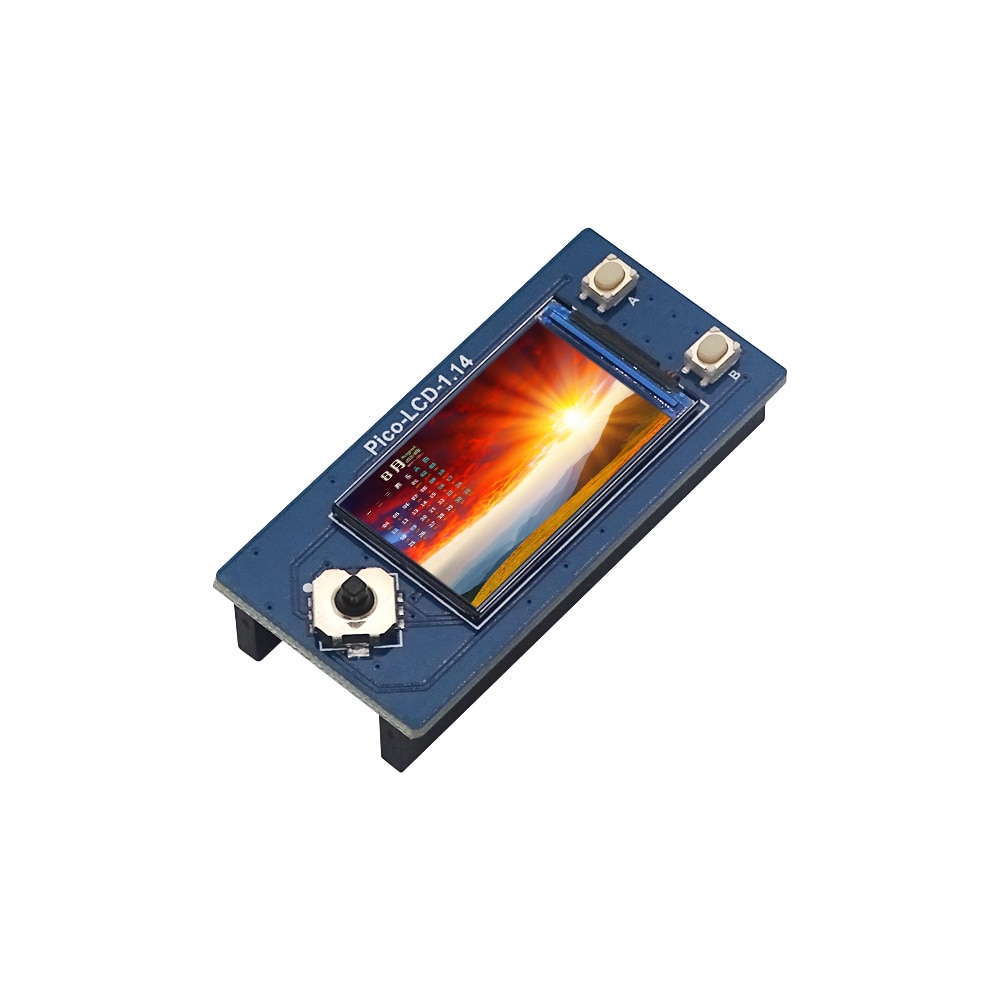

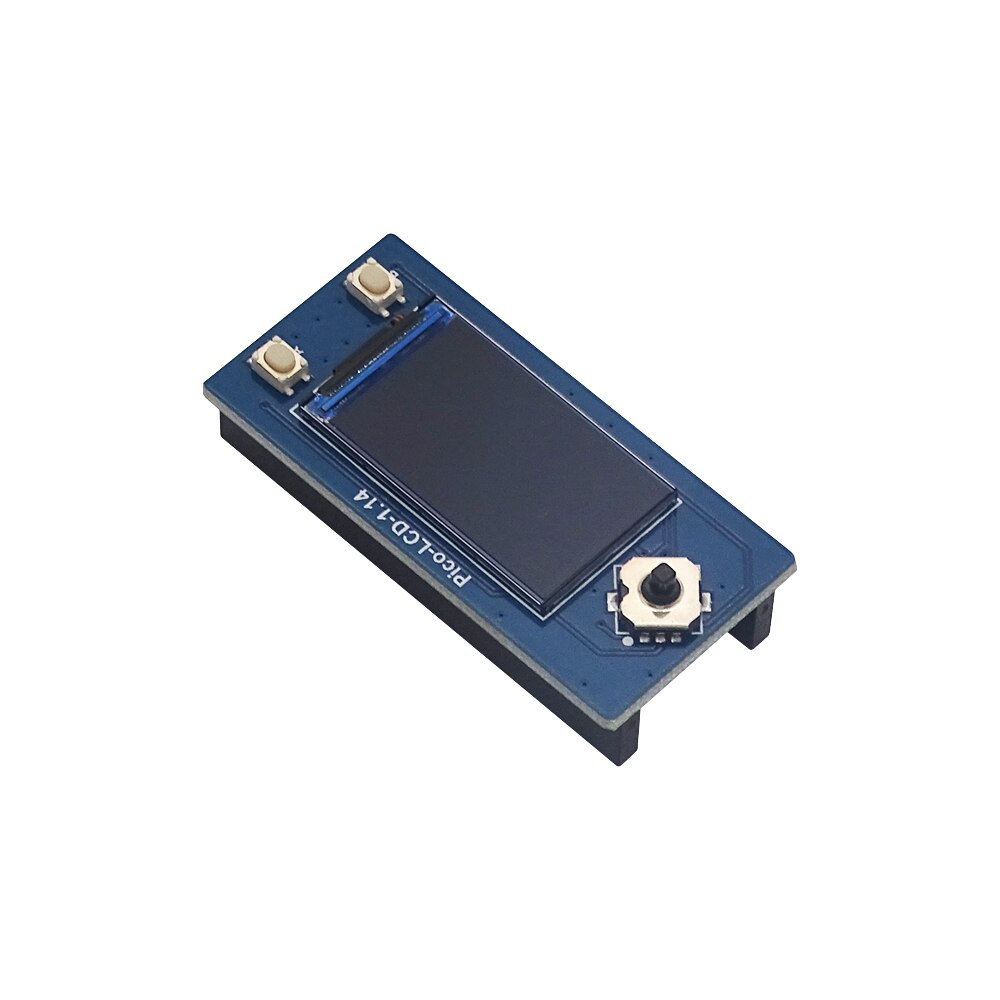

Mũ Mô-đun Màn Hình 1.14 Inch 240X135 IPS Màn Hình LCD Cho Bảng Mạch RPI Raspberry Pi Pico, SPI Inter

• Model Number:1.14 inch
• Type:TFT
• Origin:Mainland

PACKAGE CONTENT：

1.14inch LCD Display Module x 1

(NOT include Raspberry Pi Pico.)

Note :Only for Raspberry Pi Pico.

1.14" LCD Display ModuleFor Pico

Embedded ST7789 Driver, Using SPI Bus

Comes with Raspberry Pi Pico C/C++ and MicroPython Demo

• Size1.14"

• Resolution240×135

• Display Color65K RGB

•


• InterSPI

• Display PanelIPS

• DriverST7789

Features At A Glance

• 240×135 resolution, IPS screen, 65K RGB colors, clear and colorful displaying effect

• SPI inter, requires minimal IO pins

• 4x user buttons for easy interacting

• wiki manual (Raspberry Pi Pico C/C++ and MicroPython examples)

• WIKI: www.waveshare.com/wiki/Pico-LCD-1.14

Specifications

OPERATING	2.6 ~ 5.5V	RESOLUTION	240×135 pixels
COMMUNICATION INTER	4-wire SPI	DISPLAY SIZE	24.91 × 14.86mm
DISPLAY PANEL	IPS	PIXEL SIZE	0.1101 × 0.1035mm
DRIVER	ST7789	DIMENSIONS	52.00 × 25.00mm

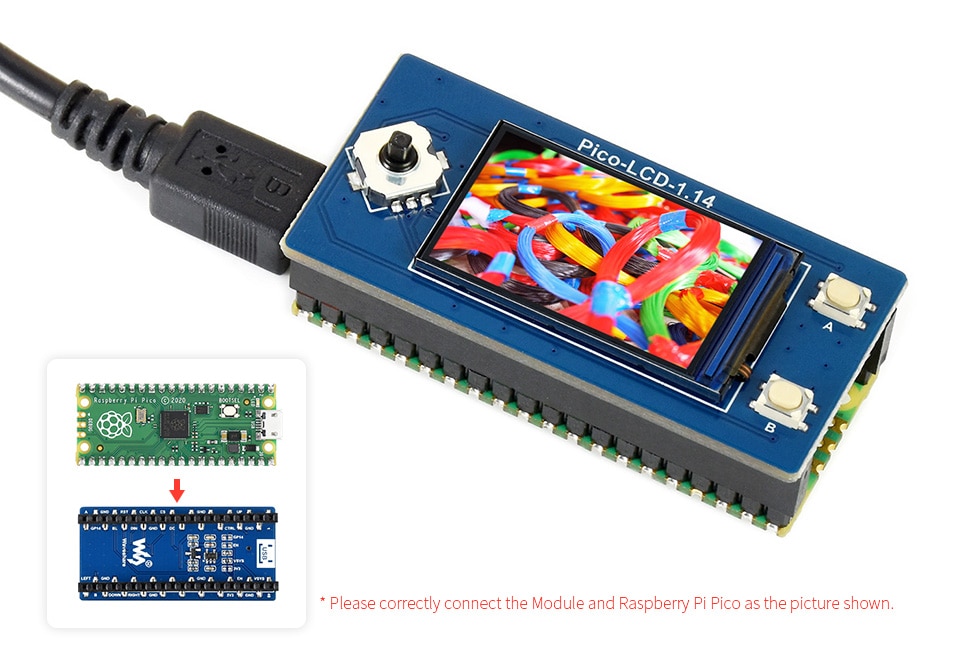

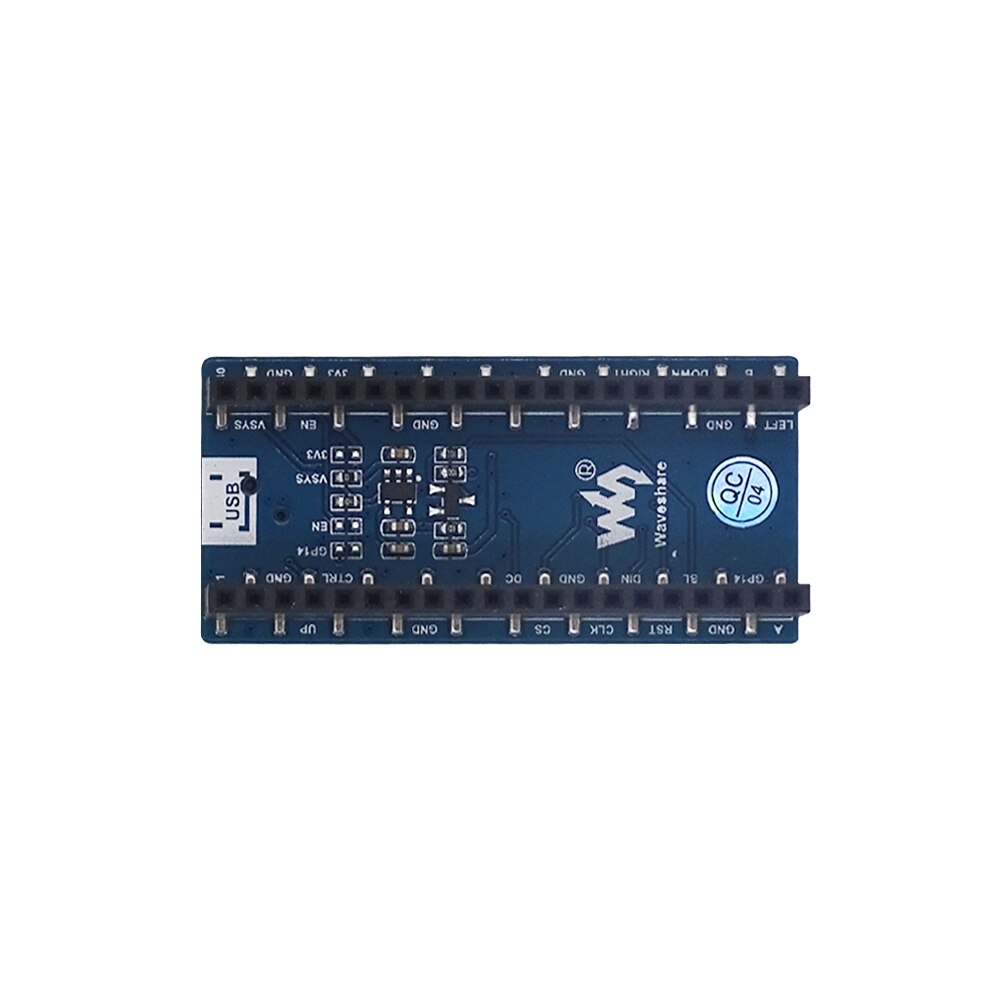

Raspberry Pi Pico Header Compatibility

Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico
4x User Buttons For Easy Interacting

Raspberry Pi Pico is NOT included.

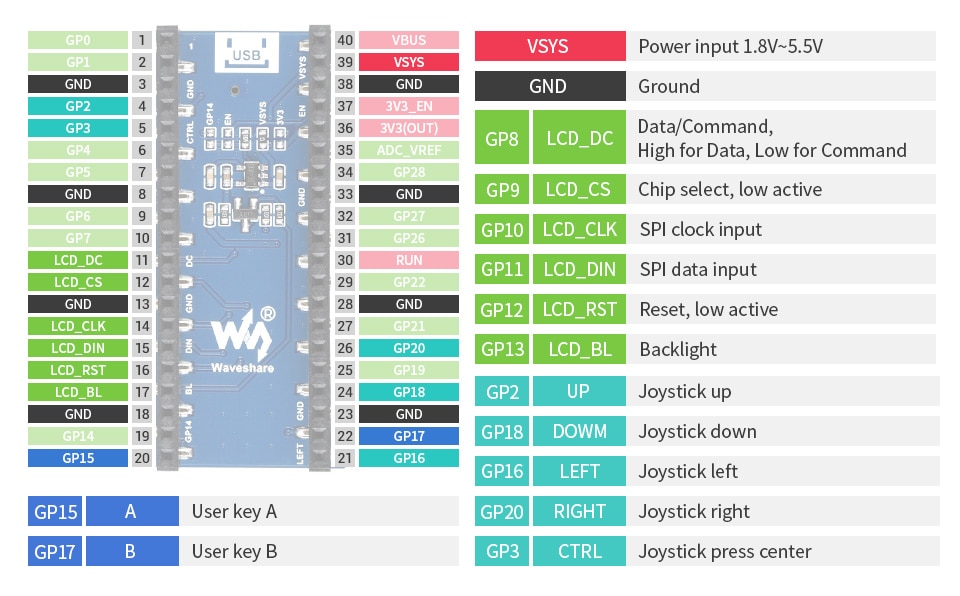

Pinout Definition

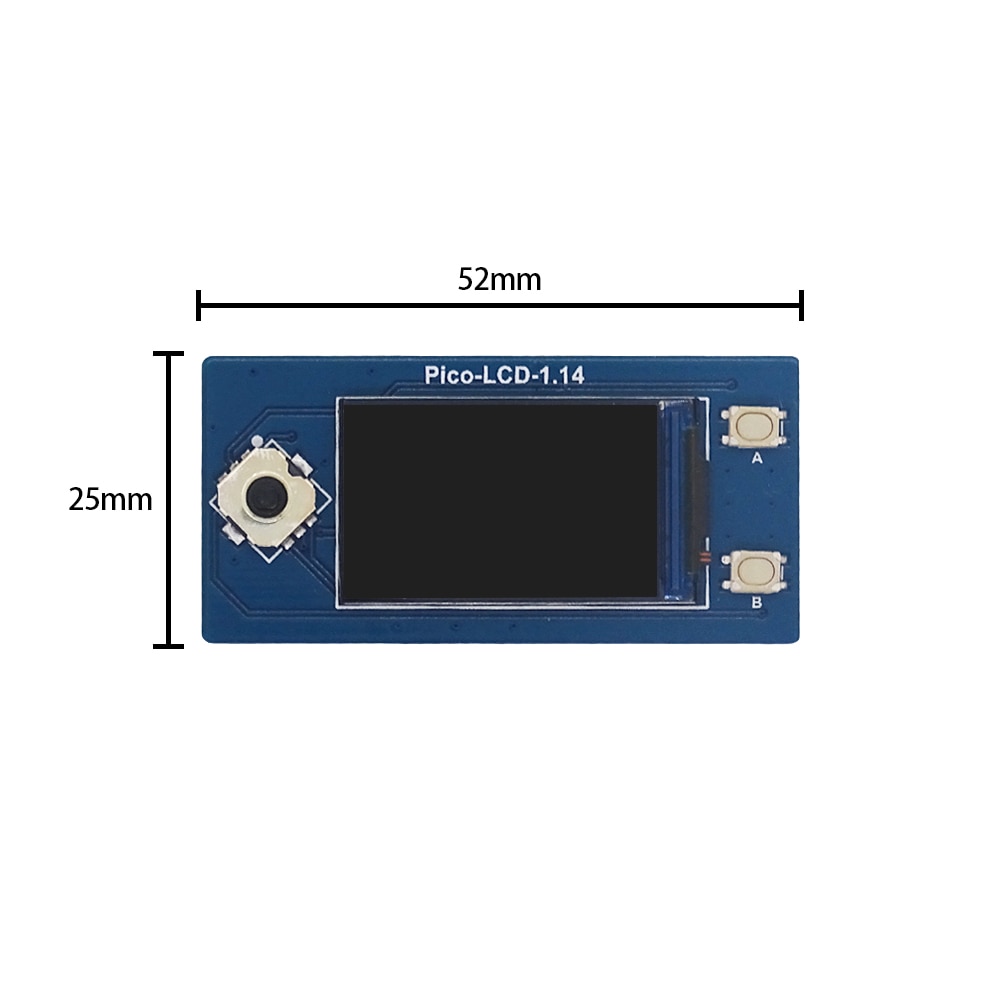

Outline Dimensions
