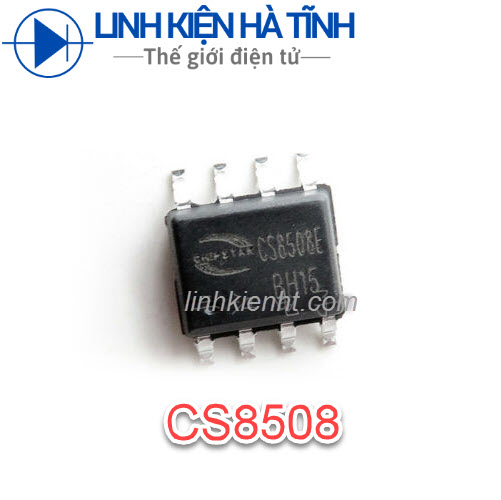

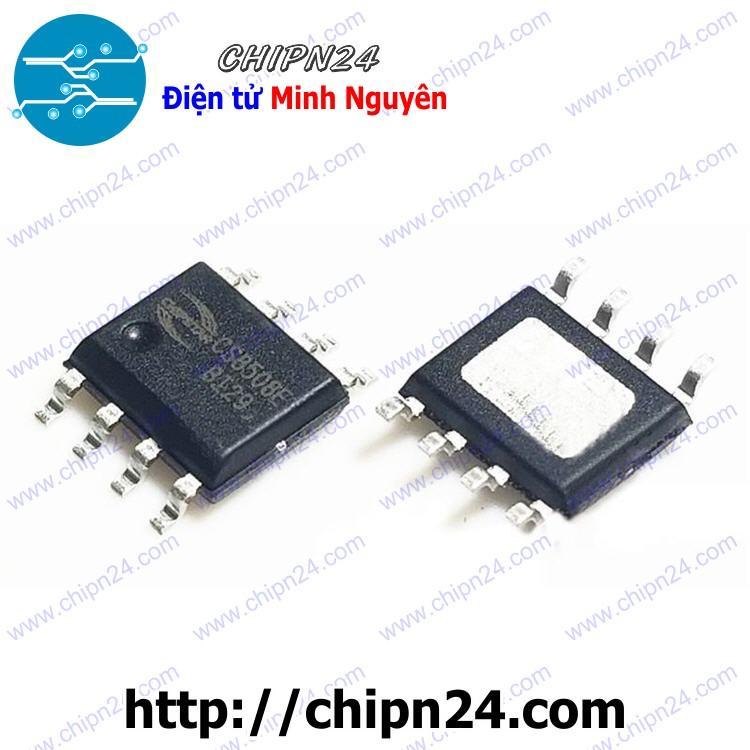

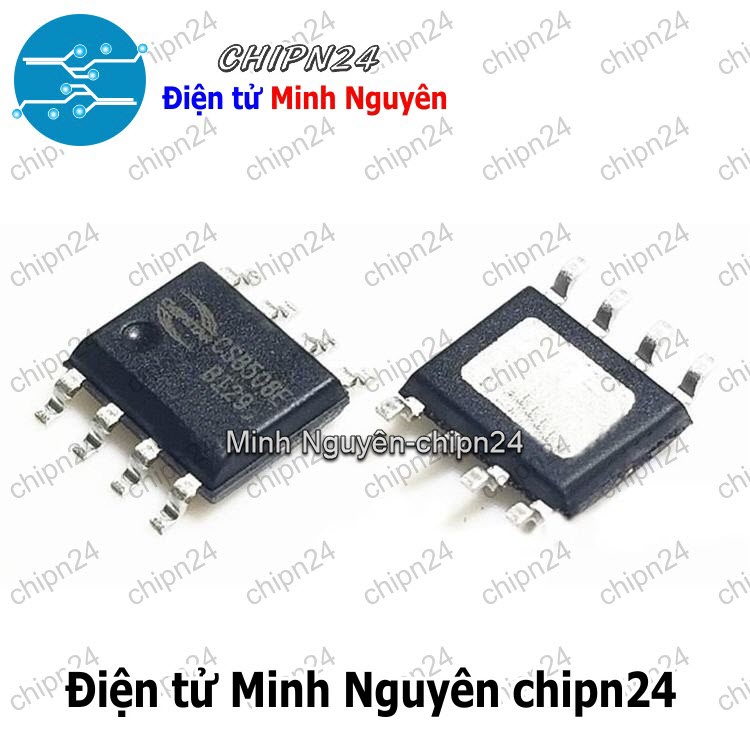

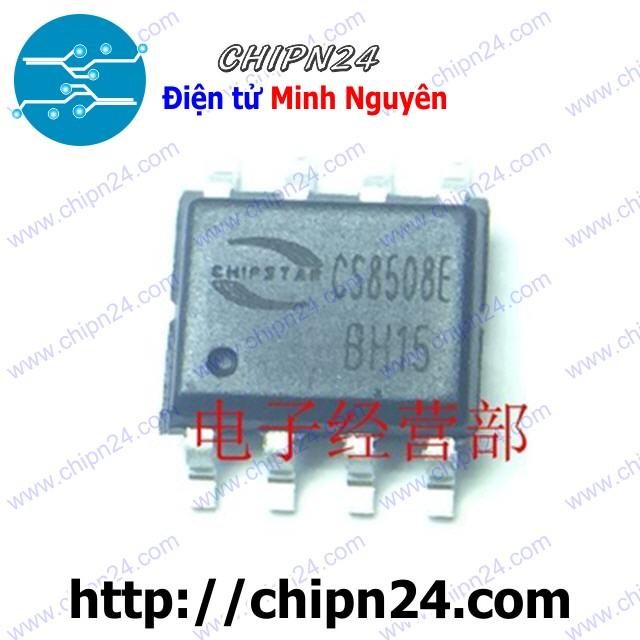

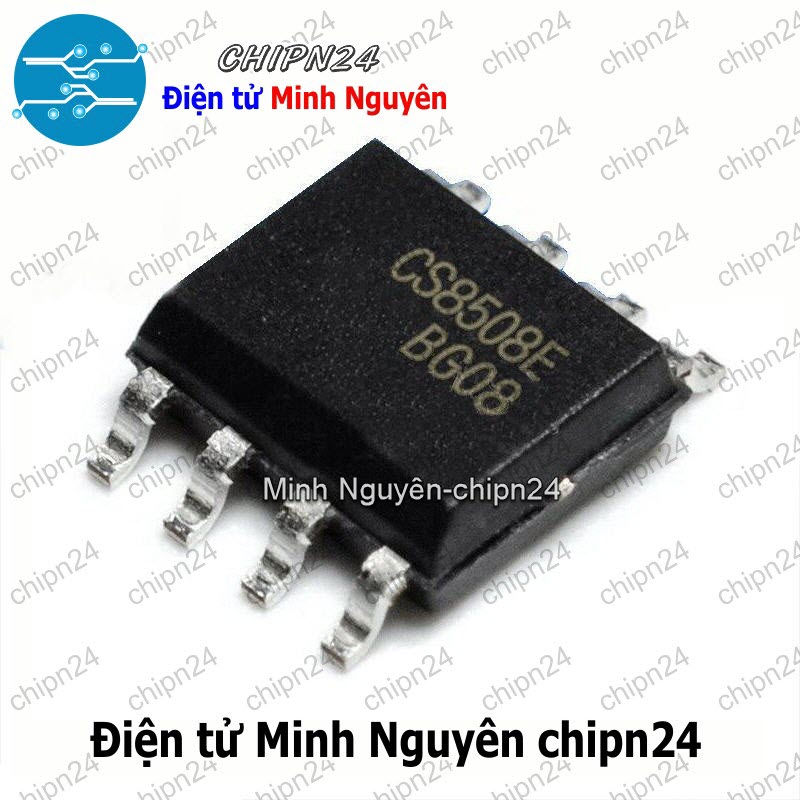

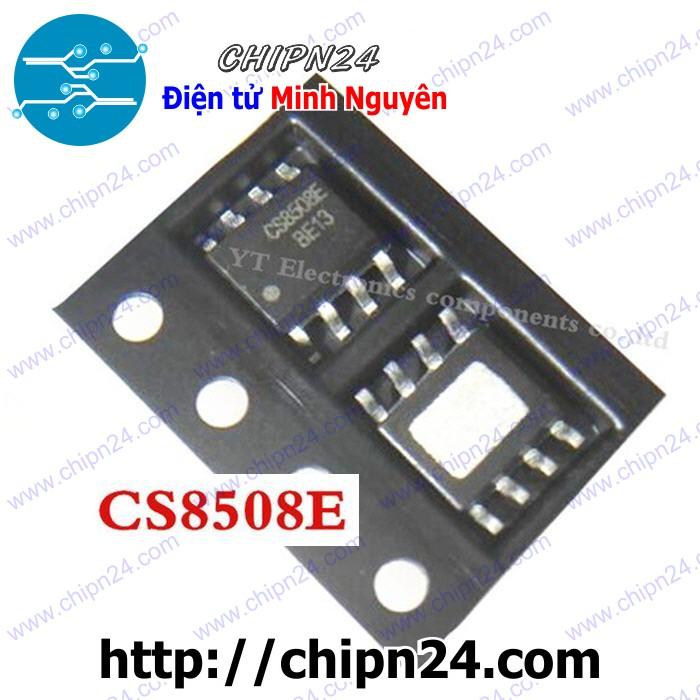

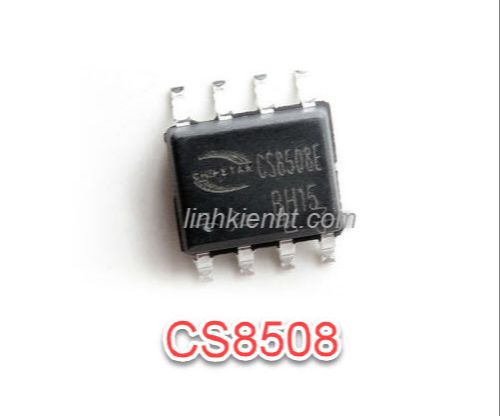

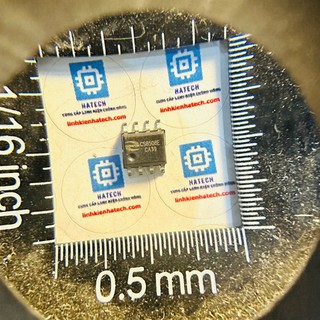

IC CS8508 SOP-8 (SMD Dán) (CS8508E 8508 8W)
_x000D_ IC CS8508 SOP-8 (SMD Dán) (CS8508E 8508 8W)Mô tả sản phẩm:
Description

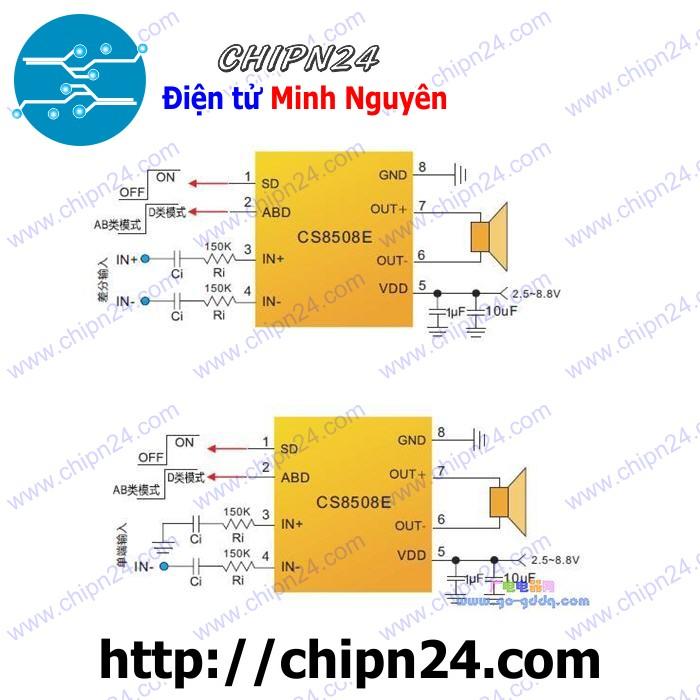

IC CS8508 SOP-8
8W mono audio power amplifier
Class AB Class-D
Thông số kỹ thuật:
- No need to filter the Class-D structure
- Class D mode with up to 90% efficiency
- High power supply rejection ratio (PSRR): -80dB at 217Hz
- Fast start-up time (40ms)
- Low quiescent current (3mA)
- Low Shutdown Current (<0.1μA)
- Over-current protection, short-circuit protection and over-temperature protection
- Rohs-compliant lead-free package
Datasheet:
http://www.datasheetcafe.com/cs8508e-datasheet-audio-power-amplifier/
