Bảng module rolay quang điện 1 kênh cho nguồn mạnh và yếu 5V/12V/24V - INTL

Features:

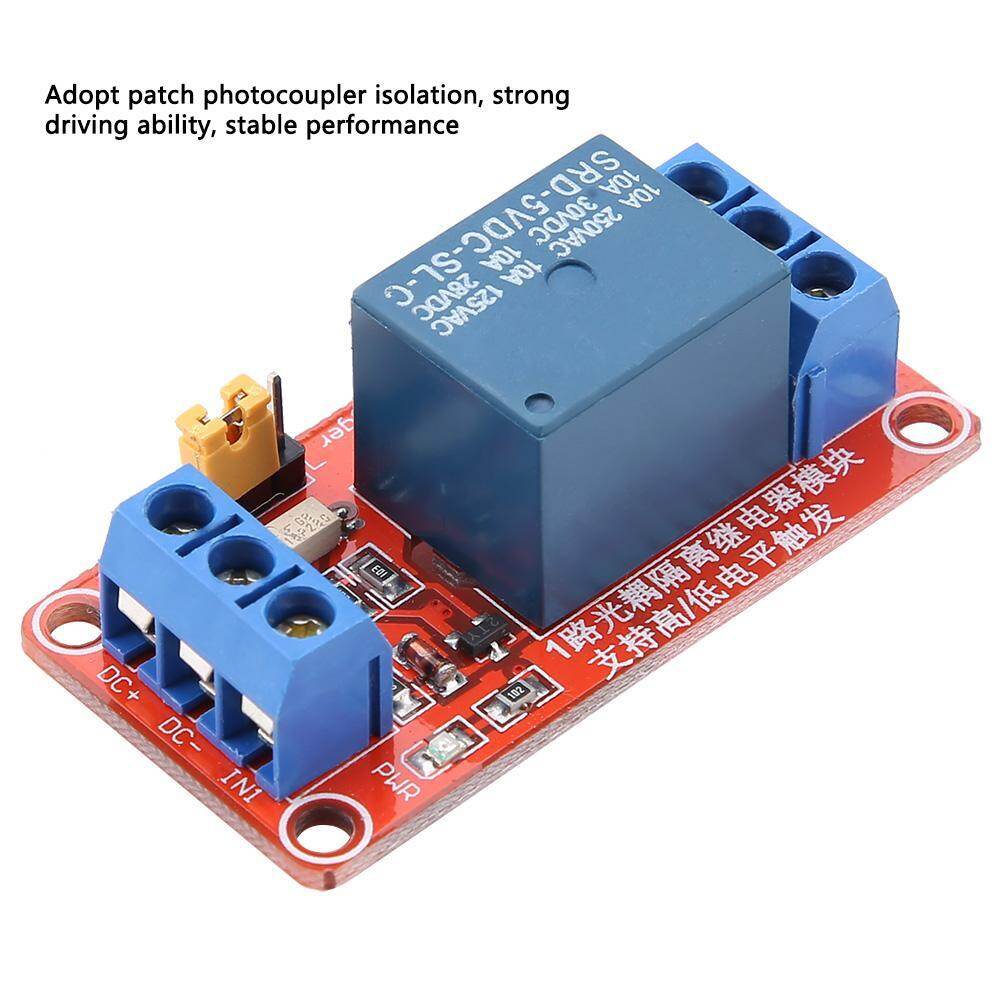

• Adopt patch photocoupler isolation, strong driving ability, stable performance. Trigger current is 5mA.
• Module operating voltage is 5V,12V,24V for choice.
• Each path of the module can be triggered by the high level or low level through a jumper setting.
• Fault-tolerant design,even if the control line breaks,the relay will not move.

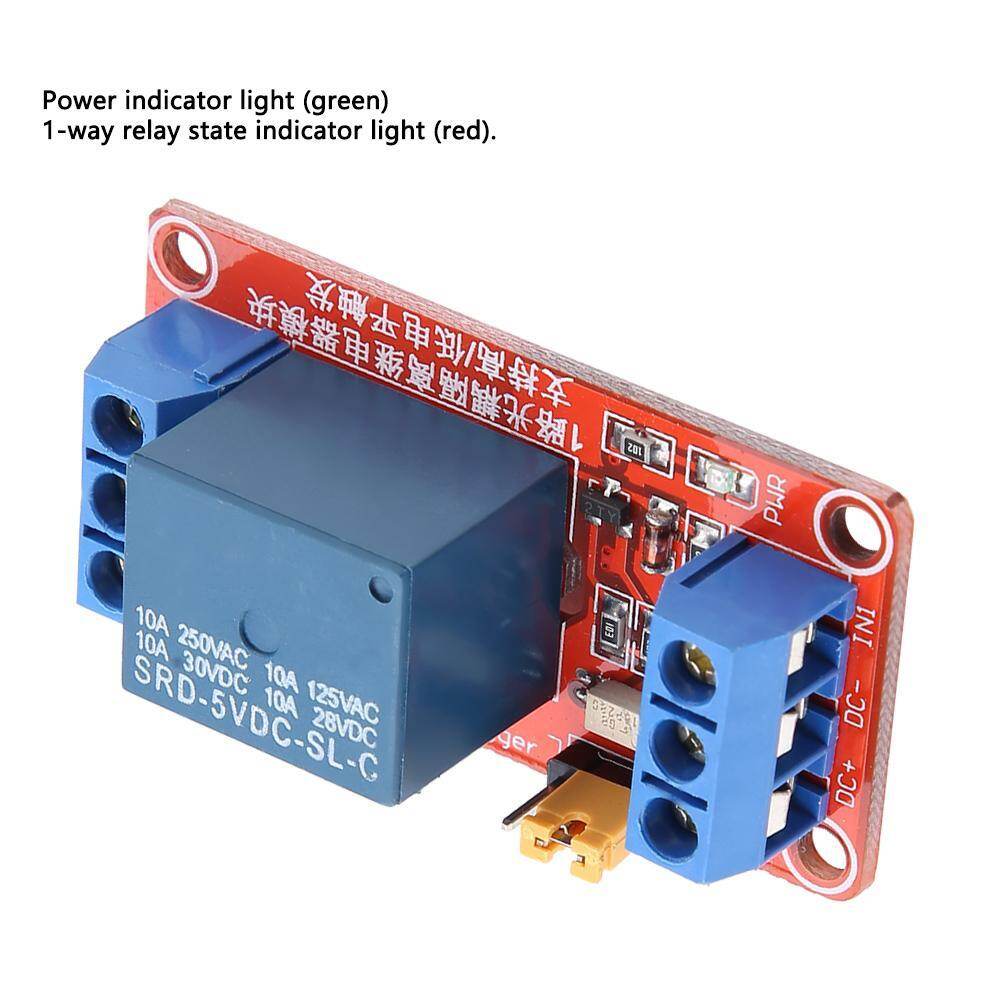

• Power indicator light (green), 4-way relay state indicator light (red).
• Humanized interface design, all interfaces can be directly connected through the terminal lead, very convenient.
• Four fixing bolt holes are provided.

Specification:
Weight: 18g/0.6oz
Common interface load: AC 250V/10A, DC 30V/10A

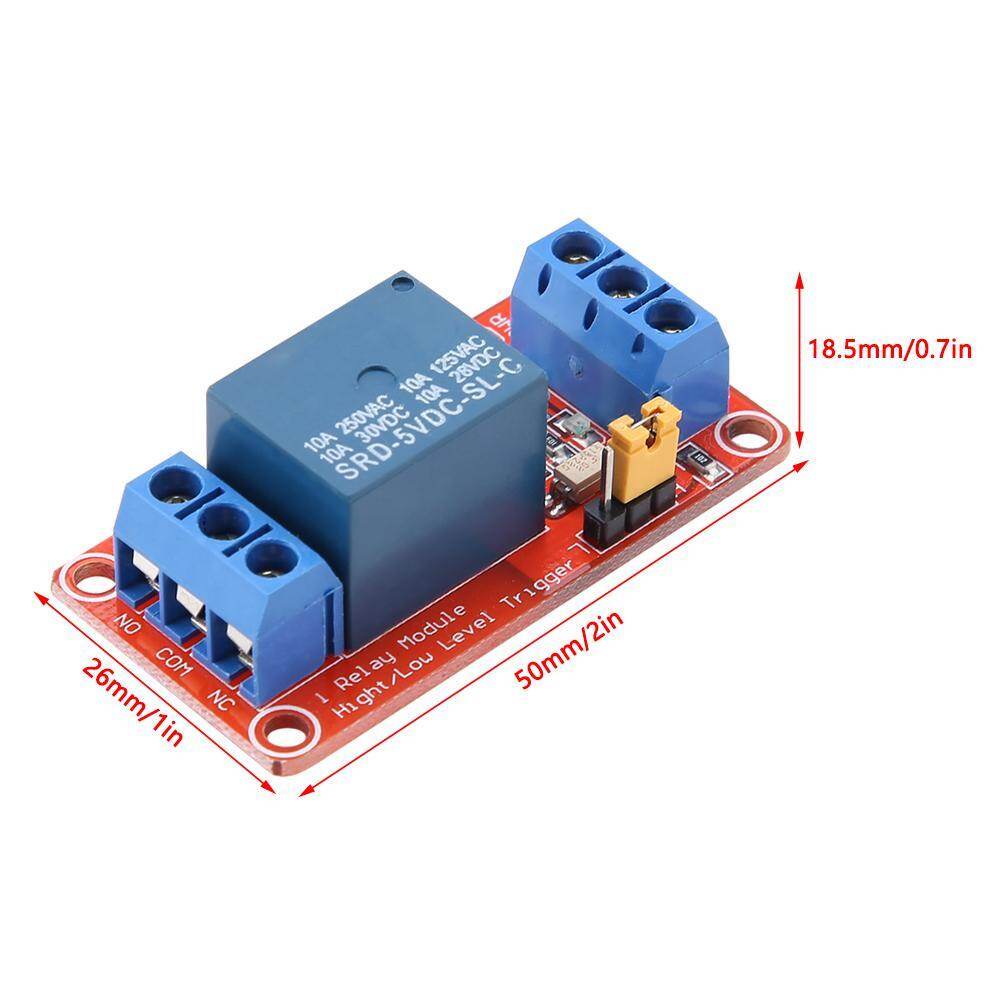

Module Size (L*W*H): 50*26*18.5mm/2*1*0.7inch
Bolt Hole: 3.1 mm; 44.5*20.5mm (spacing)
Voltage: 5V, 12V, 24V (Optional)

Module interface:
1. DC + : connected to the positive pole of power supply (voltage is required for relay, 5V, 12V and 24V for choice)
2. DC- : connect to the power negative pole.
3. IN: high or low level control relay suction

Relay output terminal:
1. NO: relay changeover interface,relay suction front suspension, suction and COM short connection.
2.COM: Relay common interface.
3.NC: Relay normally closed interface,relay suction and COM short joint, suction clearance.

High and low level trigger selection terminal:
1. When jumper is connected with LOW short circuit, it is triggered by LOW level;
2. High level is triggered when jumper is connected with high short circuit;

Package List:
1 x Relay Module
